◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#168076) — 201 parça

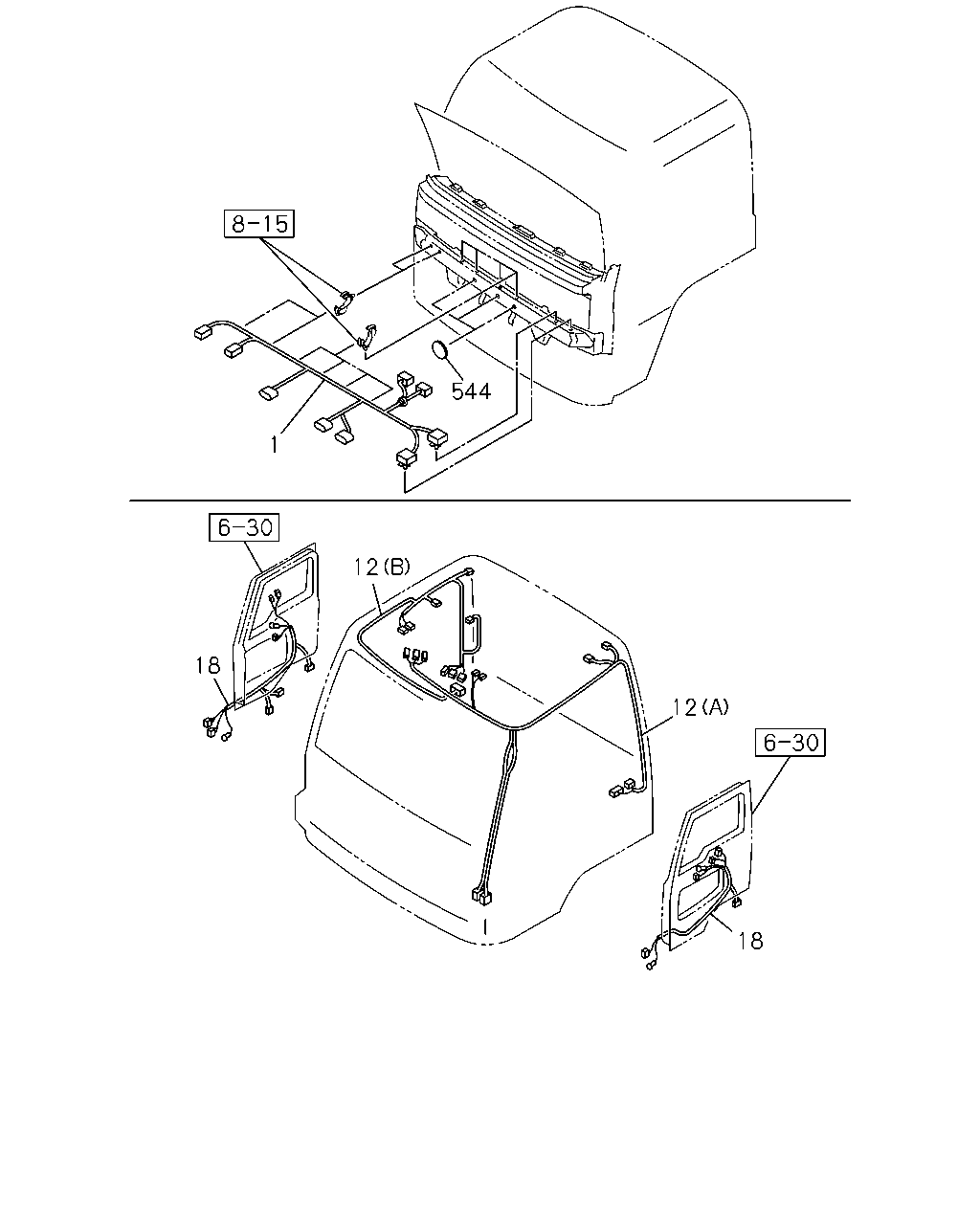

çizim 498242
18 12 12 18 1 544
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98153-468-0 01 1 1508-
1 HARNESS; CAB
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98153-469-0 01 1 1508-
12 HARNESS; ROOF
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) (B) 		8-98200-414-1 01 1 1508-
12 HARNESS; ROOF
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (A) 		8-98153-425-1 01 1 1508-
12 HARNESS; ROOF
EXC. REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (A) 		8-98153-424-1 01 1 1508-
12 HARNESS; ROOF
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98200-413-1 01 1 1508-
12 HARNESS; ROOF
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B) 		8-98200-413-1 01 1 1508-
18 HARNESS; DOOR 8-97627-194-1 01 1 1508-
18 HARNESS; DOOR 8-97627-193-1 01 1 1508-
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 03 1 1508-

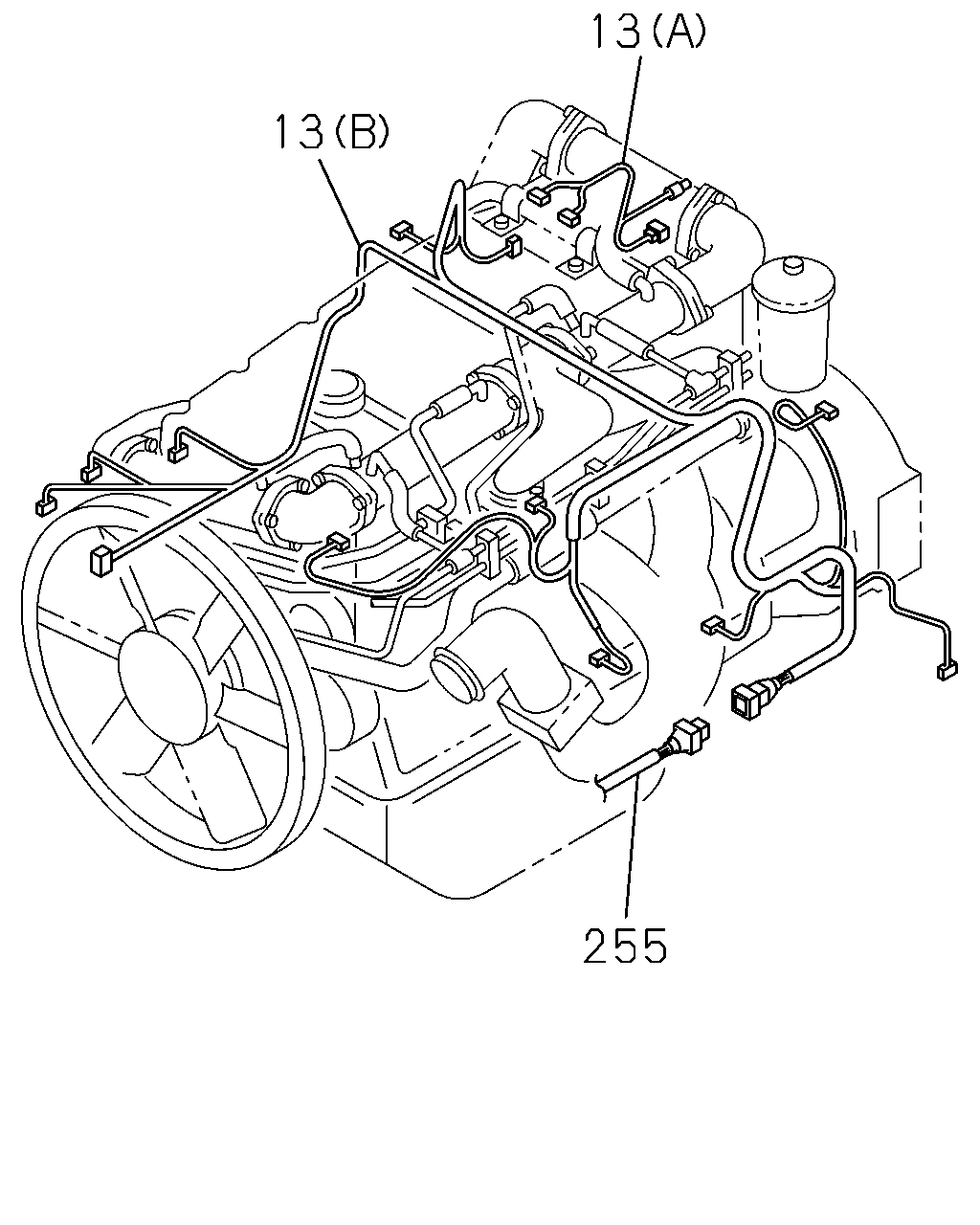

çizim 498243
13 13 255
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(A) 		8-98152-373-1 01 1 1508-
13 HARNESS; ENG
(B) 		8-98201-692-3 01 1 1508-
255 HARNESS; ELEC GOV 8-97633-104-5 01 1 1508-

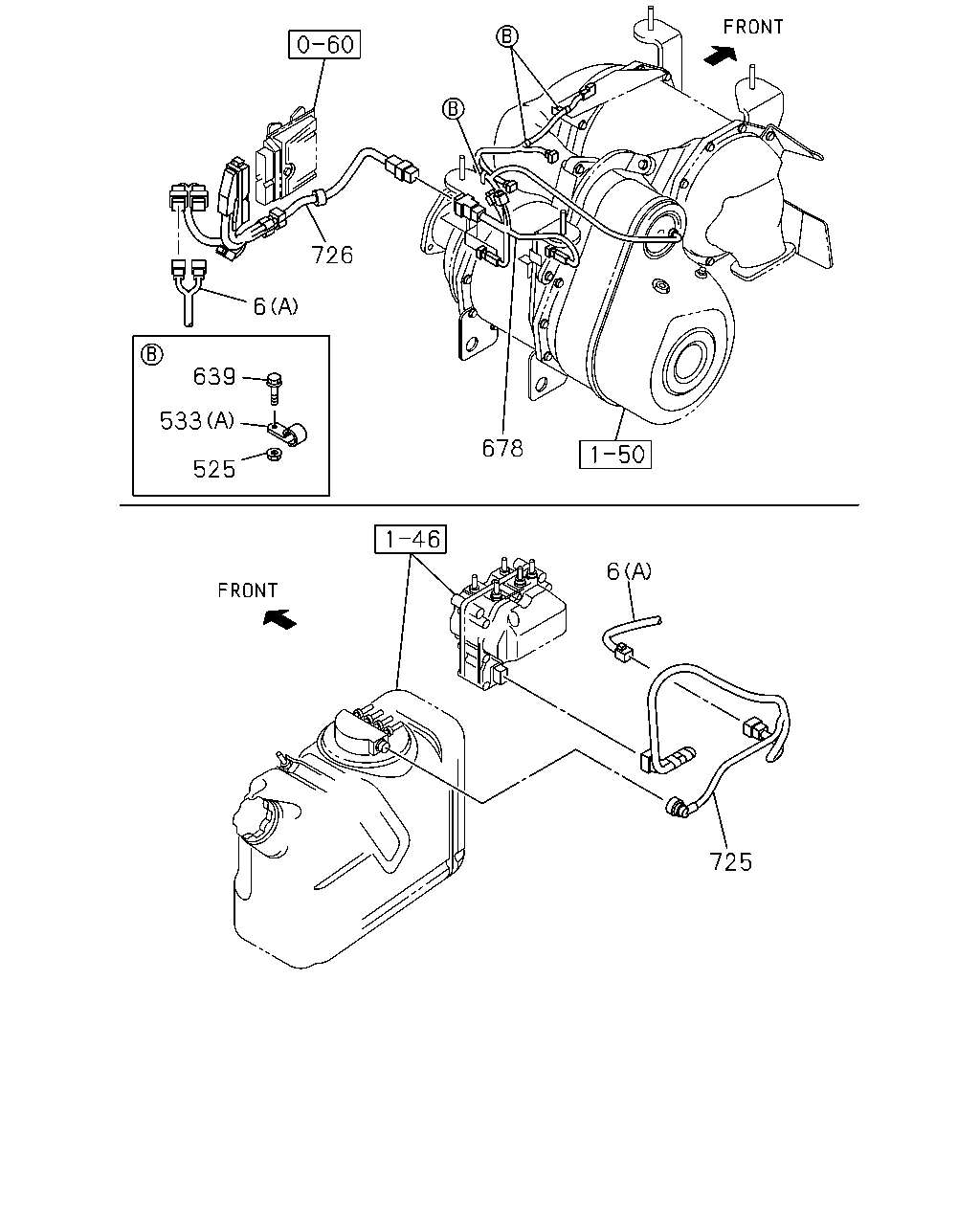

çizim 498244
726 6 639 533 525 678 6 725
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-97635-419-2 01 1 1508-
6 HARNESS; FRAME
MJT7U M/T(Y4X) (A) 		8-97640-683-2 01 1 1508-
6 HARNESS; FRAME
MJX12P M/T SMOOTHER-G(Y4S) (A) 		8-97640-684-2 01 1 1508-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1508-
533 CLIP
(A) ID=11 L=24 		0-95235-045-0 03 1 1508-
533 CLIP
(C) L=350 		1-09707-183-0 01 1 1508-
533 CLIP
(B) OD=9 H=6 		1-09709-178-0 01 1 1508-
533 CLIP
(E) ID=18-24 L=14.5 		1-09709-298-0 01 1 1508-
533 CLIP
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 1508-
533 CLIP
(D) L=251 		8-97619-917-0 04 1 1508-
533 CLIP
SMOOTHER-G(C1W) (H) ID=28 & 34 L=63 		1-09701-310-0 01 1 1508-
533 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (G) ID=31 L=35 		1-09700-329-1 01 1 1508-
639 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 03 1 1508-
678 HARNESS; DPD 8-98157-006-4 01 1 1508-
725 HARNESS; EXT,DEF 8-97635-932-2 01 1 1508-
726 HARNESS; EXT,DCU 8-97635-937-1 01 1 1508-

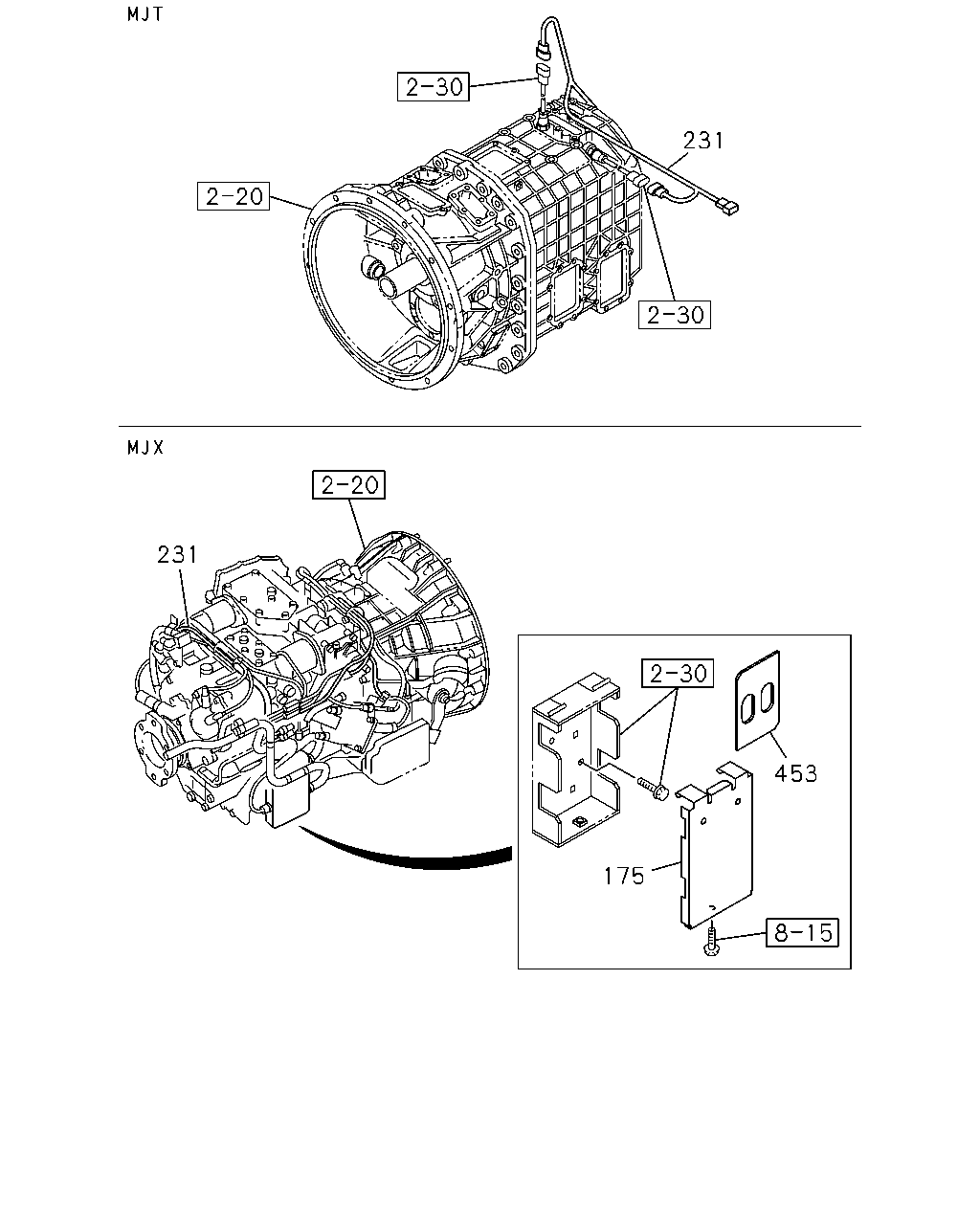

çizim 498245
231 231 175 453
BalonParca AdiParca NoAdetTipApplied Date
175 BOX; CONNECTOR
SMOOTHER-G(C1W) 		1-82569-435-1 01 1 1508-
231 HARNESS; TRANS
MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> 		8-97612-837-1 01 1 1508-
231 HARNESS; TRANS
MJT7U M/T(Y4X) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> 		8-97612-836-1 01 1 1508-
231 HARNESS; TRANS
MJX12P M/T SMOOTHER-G(Y4S) BRAKE SYSTEM RETARDER<RE2> 		8-97613-206-1 01 1 1508-
231 HARNESS; TRANS
MJX12P M/T SMOOTHER-G(Y4S) EXC. BRAKE SYSTEM RETARDER<RE2> 		8-97613-207-1 01 1 1508-
453 PROTECTOR; HARNESS
SMOOTHER-G(C1W) 		8-98213-847-1 01 1 1508-

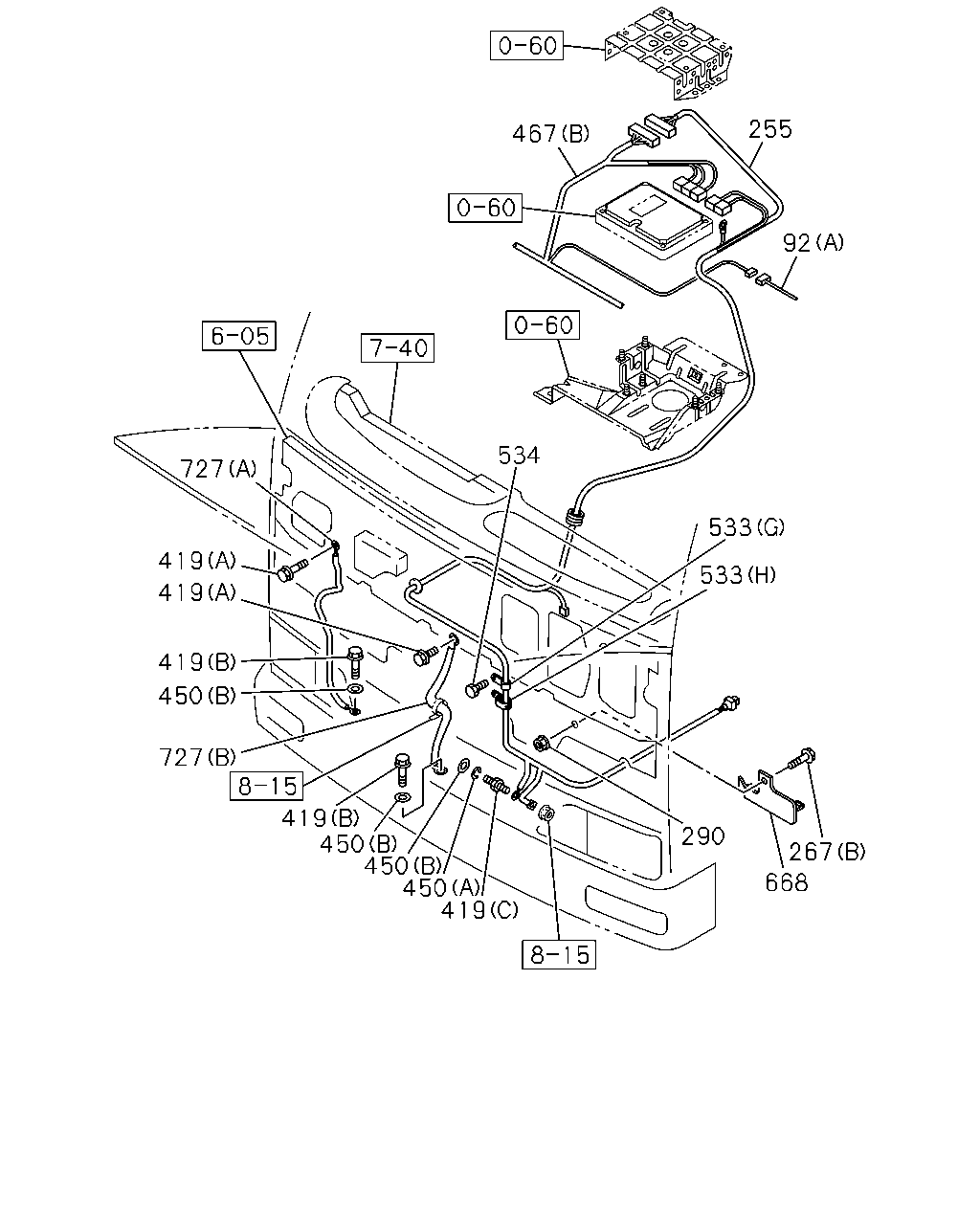

çizim 498350
267 668 290 419 450 450 450 419 727 450 419 419 419 727 534 533 533 92 255 467
BalonParca AdiParca NoAdetTipApplied Date
92 HARNESS; FLOOR
SMOOTHER-G(C1W) (B) 		8-98258-839-0 01 1 1508-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) (A) 		8-98274-841-1 01 1 1508-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) EXC. VIN MODEL YEAR 2014(VZE) (A) 		8-98223-473-1 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98202-631-0 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) (A) 		8-98274-834-1 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. VIN MODEL YEAR 2014(VZE) (A) 		8-98223-466-0 01 1 1508-
255 HARNESS; ELEC GOV 8-97633-104-5 01 1 1508-
267 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
267 BOLT; BRKT
(A) M6X16 W/PL WASHER 		1-09981-438-0 02 1 1508-
290 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1508-
419 BOLT; CAB EARTH
(C) M8X14,M8X14 L=33 		1-09300-058-1 01 1 1508-
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1508-
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1508-
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1508-
450 WASHER; PL,CAB EARTH
(A) ID=8.2 		0-91510-808-0 01 1 1508-
450 WASHER; PL,CAB EARTH
(B) ID=8.4 		1-09503-264-0 05 1 1508-
467 HARNESS; FACIA
(A) 		8-98223-987-0 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) IDLE STOP SYSTEM(E7N) EXC. VIN MODEL YEAR 2014(VZE),PARKING BRAKE - BRAKELOCK(6LL) (B) 		8-98201-777-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) PARKING BRAKE - BRAKE LOCK(6LL) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98201-777-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) IDLE STOP SYSTEM(E7N) VIN MODEL YEAR 2014(VZE) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-816-2 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-816-2 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. IDLE STOP SYSTEM(E7N),VIN MODEL YEAR 2014(VZE) ,PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98201-775-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) EXC. IDLE STOP SYSTEM(E7N),PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-815-1 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) IDLE STOP SYSTEM(E7N) EXC. VIN MODEL YEAR 2014(VZE),PARKING BRAKE - BRAKELOCK(6LL) (B) 		8-98200-401-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) PARKING BRAKE - BRAKE LOCK(6LL) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98200-401-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) IDLE STOP SYSTEM(E7N) VIN MODEL YEAR 2014(VZE) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-821-2 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-821-2 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. IDLE STOP SYSTEM(E7N),VIN MODEL YEAR 2014(VZE) ,PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98200-400-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) EXC. IDLE STOP SYSTEM(E7N),PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-820-1 01 1 1508-
533 CLIP
(A) ID=11 L=24 		0-95235-045-0 03 1 1508-
533 CLIP
(C) L=350 		1-09707-183-0 01 1 1508-
533 CLIP
(B) OD=9 H=6 		1-09709-178-0 01 1 1508-
533 CLIP
(E) ID=18-24 L=14.5 		1-09709-298-0 01 1 1508-
533 CLIP
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 1508-
533 CLIP
(D) L=251 		8-97619-917-0 04 1 1508-
533 CLIP
SMOOTHER-G(C1W) (H) ID=28 & 34 L=63 		1-09701-310-0 01 1 1508-
533 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (G) ID=31 L=35 		1-09700-329-1 01 1 1508-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 1508-
668 BRACKET; HARNESS 8-98159-141-1 01 1 1508-
727 HARNESS; CAB,EARTH
(A) L=760 		8-97632-854-0 01 1 1508-
727 HARNESS; CAB,EARTH
(B) 		8-97632-855-0 01 1 1508-

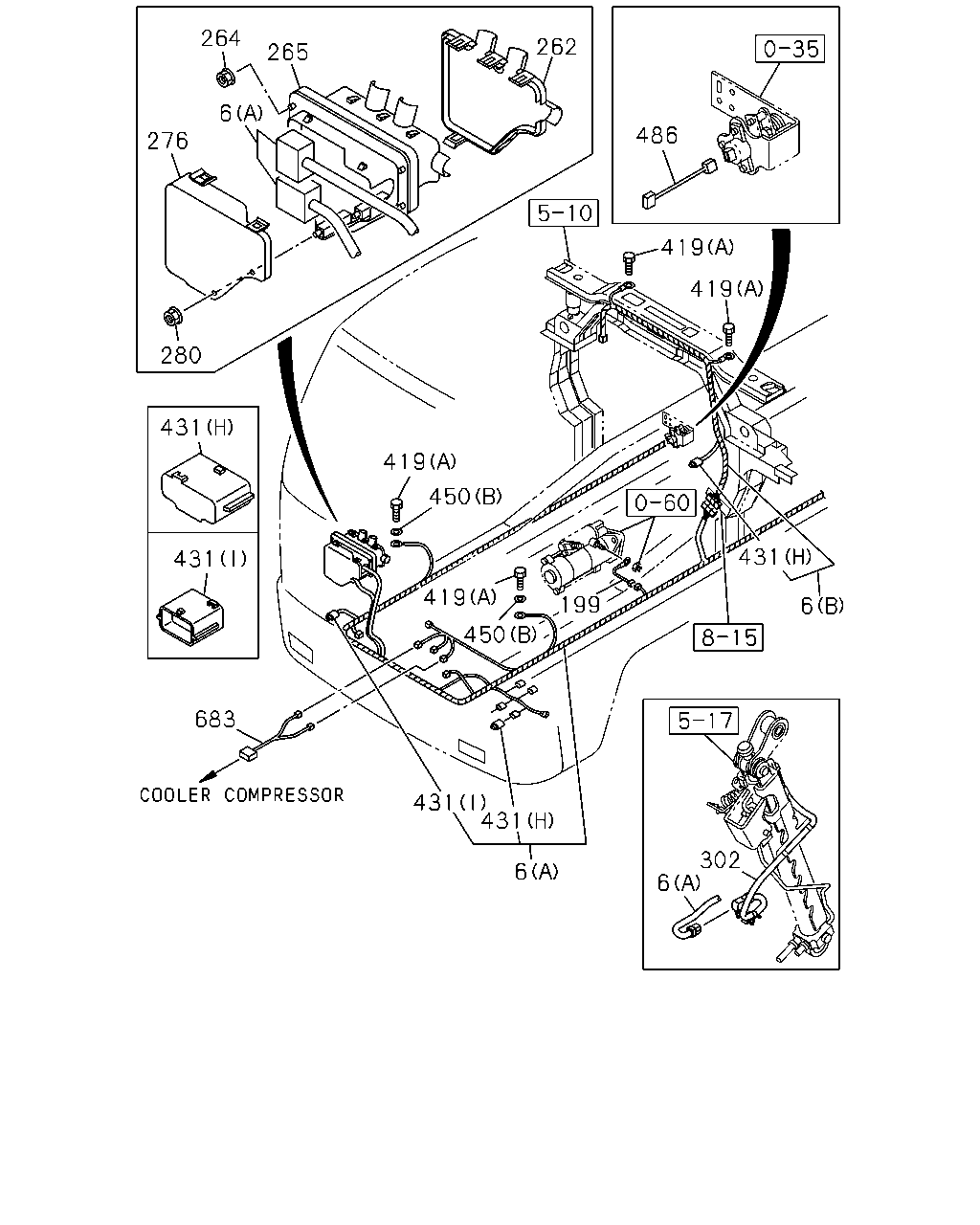

çizim 498354
264 265 6 276 280 431 431 683 431 431 6 450 419 450 419 6 302 431 6 419 419 486 262 199
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-97635-419-2 01 1 1508-
6 HARNESS; FRAME
MJT7U M/T(Y4X) (A) 		8-97640-683-2 01 1 1508-
6 HARNESS; FRAME
MJX12P M/T SMOOTHER-G(Y4S) (A) 		8-97640-684-2 01 1 1508-
199 HARNESS; STARTER 8-97633-653-0 01 1 1508-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 1508-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1508-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1508-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 1508-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1508-
302 HARNESS; POWER CAB TILT 8-97636-525-0 01 1 1508-
419 BOLT; CAB EARTH
(C) M8X14,M8X14 L=33 		1-09300-058-1 01 1 1508-
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1508-
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1508-
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1508-
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 04 1 1508-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1508-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 12 1 1508-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 15 1 1508-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 11 1 1508-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 1508-
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 16 1 1508-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1508-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 03 1 1508-
431 CONNECTOR; JOINT
(H) 6P LIGHT GRAY 		8-97616-195-0 01 1 1508-
431 CONNECTOR; JOINT
(I) 10P LIGHT GRAY 		8-97616-198-0 01 1 1508-
450 WASHER; PL,CAB EARTH
(A) ID=8.2 		0-91510-808-0 01 1 1508-
450 WASHER; PL,CAB EARTH
(B) ID=8.4 		1-09503-264-0 05 1 1508-
486 HARNESS; ALL SPEED ACCEL
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97624-338-0 01 1 1508-
683 HARNESS; EXT,COOLER 8-97609-020-1 01 1 1508-

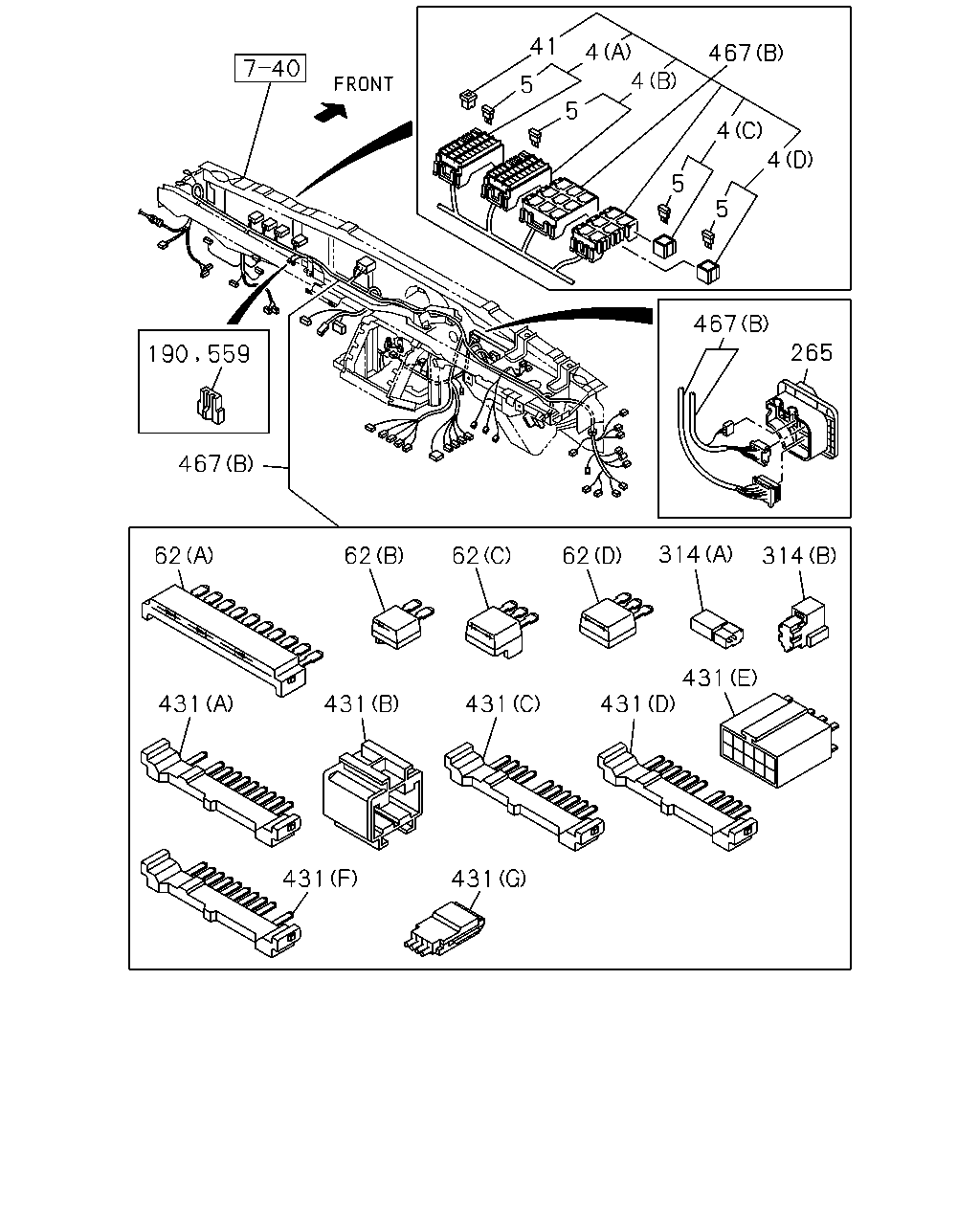

çizim 498384
431 431 431 314 431 314 62 62 62 62 431 431 431 265 467 559 190 467 41 5 4 5 4 467 4 5 4 5
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(C) 15AX1 		1-82510-504-0 01 1 1508-
4 BOX ASM; FUSE,HARNESS
(D) 40AX1 		8-97166-267-0 01 1 1508-
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX19 10AX6 15AX1 20AX1 		8-98166-423-0 01 1 1508-
4 BOX ASM; FUSE,HARNESS
(B) 15AX24 20AX1 25AX2 		8-98166-424-0 01 1 1508-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 06 1 1508-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 1508-
5 FUSE; FACIA HARNESS
20A YELLOW 		5-82516-004-0 02 1 1508-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 1508-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 20 1 1508-
5 FUSE; FACIA HARNESS
40A GREEN 		8-94468-662-0 01 1 1508-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1508-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1508-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 1508-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 03 1 1508-
62 DIODE; HARNESS
VIN MODEL YEAR 2014(VZE) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1508-
62 DIODE; HARNESS
EXC. VIN MODEL YEAR 2014(VZE) (B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1508-
190 CONNECTOR; SHORT CIRCUIT
AUTO CRUISE ELEC WITH AUXILIARY BRAKE CONTROL(NFC) 		8-97131-589-0 01 1 1508-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1508-
314 RESISTOR; HARNESS
(B) BLUE 		1-82691-204-0 01 1 1508-
314 RESISTOR; HARNESS
(A) 		8-94472-783-0 01 1 1508-
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 04 1 1508-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1508-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 12 1 1508-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 15 1 1508-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 11 1 1508-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 1508-
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 16 1 1508-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1508-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 03 1 1508-
431 CONNECTOR; JOINT
(H) 6P LIGHT GRAY 		8-97616-195-0 01 1 1508-
431 CONNECTOR; JOINT
(I) 10P LIGHT GRAY 		8-97616-198-0 01 1 1508-
467 HARNESS; FACIA
(A) 		8-98223-987-0 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) IDLE STOP SYSTEM(E7N) EXC. VIN MODEL YEAR 2014(VZE),PARKING BRAKE - BRAKELOCK(6LL) (B) 		8-98201-777-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) PARKING BRAKE - BRAKE LOCK(6LL) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98201-777-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) IDLE STOP SYSTEM(E7N) VIN MODEL YEAR 2014(VZE) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-816-2 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-816-2 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. IDLE STOP SYSTEM(E7N),VIN MODEL YEAR 2014(VZE) ,PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98201-775-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) EXC. IDLE STOP SYSTEM(E7N),PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-815-1 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) IDLE STOP SYSTEM(E7N) EXC. VIN MODEL YEAR 2014(VZE),PARKING BRAKE - BRAKELOCK(6LL) (B) 		8-98200-401-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) PARKING BRAKE - BRAKE LOCK(6LL) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98200-401-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) IDLE STOP SYSTEM(E7N) VIN MODEL YEAR 2014(VZE) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-821-2 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-821-2 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. IDLE STOP SYSTEM(E7N),VIN MODEL YEAR 2014(VZE) ,PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98200-400-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) EXC. IDLE STOP SYSTEM(E7N),PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-820-1 01 1 1508-
559 CONNECTOR; HARNESS,MIRROR 1-82690-999-0 01 1 1508-

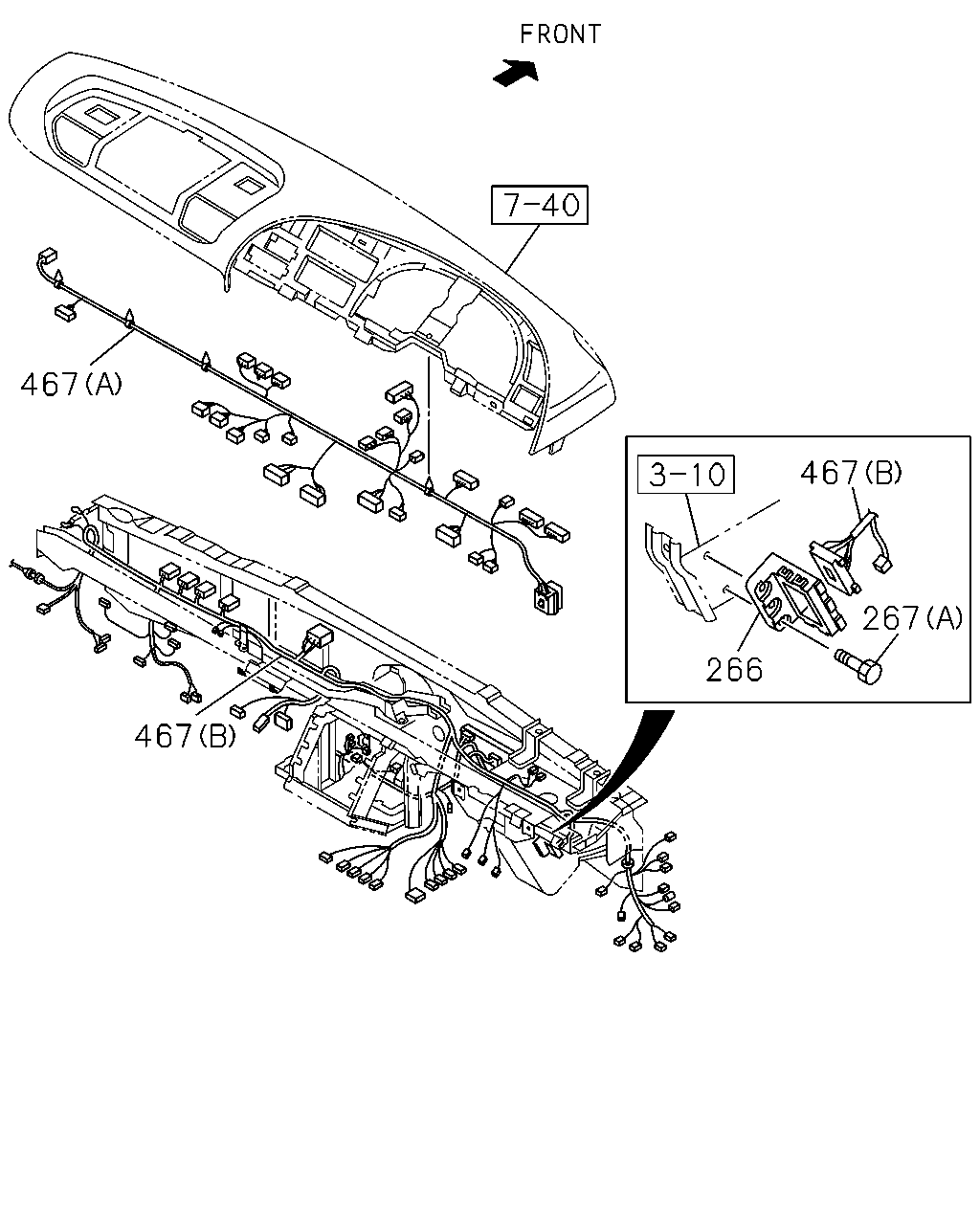

çizim 498418
266 267 467 467 467
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1508-
267 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
267 BOLT; BRKT
(A) M6X16 W/PL WASHER 		1-09981-438-0 02 1 1508-
467 HARNESS; FACIA
(A) 		8-98223-987-0 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) IDLE STOP SYSTEM(E7N) EXC. VIN MODEL YEAR 2014(VZE),PARKING BRAKE - BRAKELOCK(6LL) (B) 		8-98201-777-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) PARKING BRAKE - BRAKE LOCK(6LL) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98201-777-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) IDLE STOP SYSTEM(E7N) VIN MODEL YEAR 2014(VZE) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-816-2 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-816-2 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. IDLE STOP SYSTEM(E7N),VIN MODEL YEAR 2014(VZE) ,PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98201-775-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) EXC. IDLE STOP SYSTEM(E7N),PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-815-1 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) IDLE STOP SYSTEM(E7N) EXC. VIN MODEL YEAR 2014(VZE),PARKING BRAKE - BRAKELOCK(6LL) (B) 		8-98200-401-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) PARKING BRAKE - BRAKE LOCK(6LL) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98200-401-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) IDLE STOP SYSTEM(E7N) VIN MODEL YEAR 2014(VZE) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-821-2 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-821-2 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. IDLE STOP SYSTEM(E7N),VIN MODEL YEAR 2014(VZE) ,PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98200-400-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) EXC. IDLE STOP SYSTEM(E7N),PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-820-1 01 1 1508-

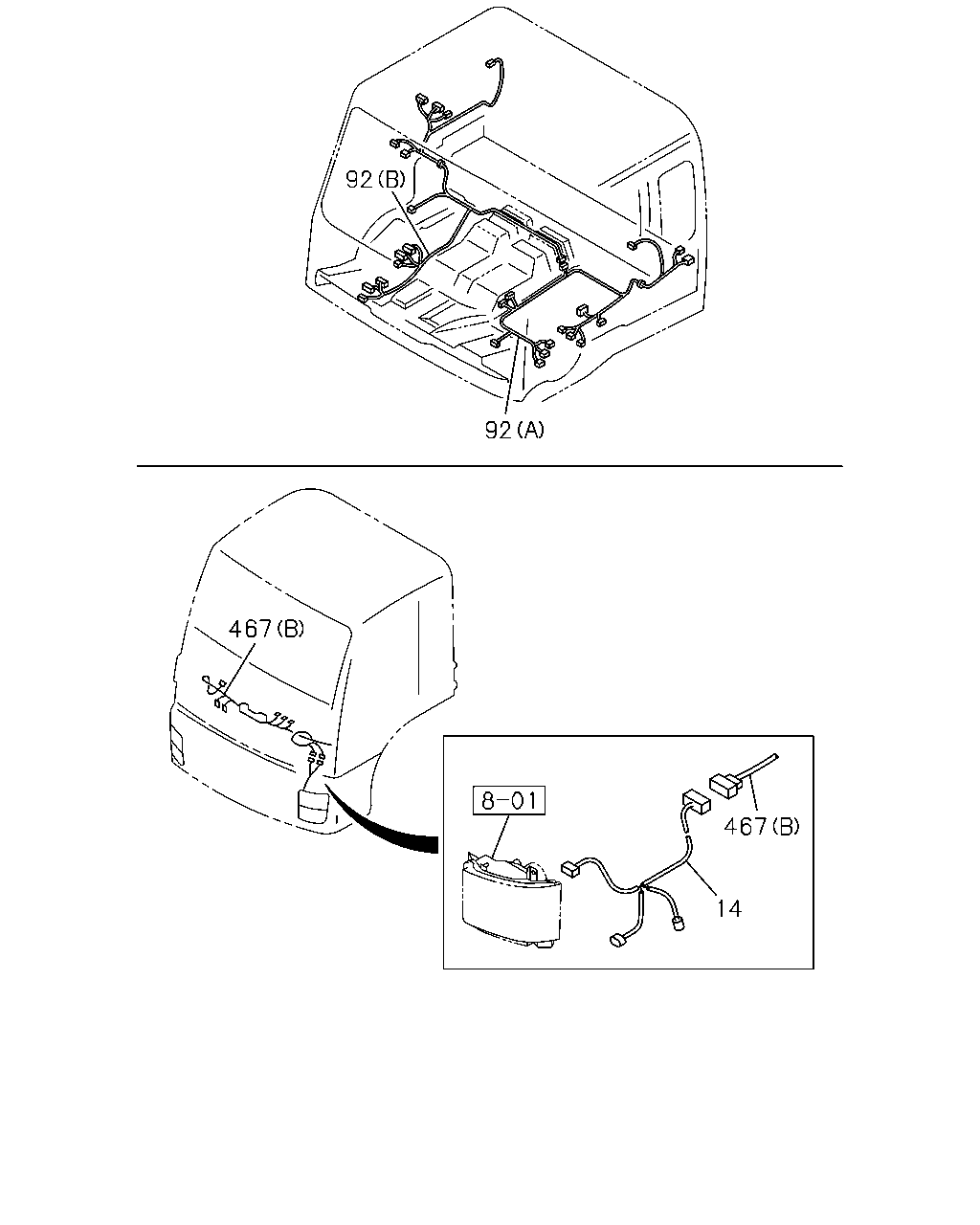

çizim 498495
467 14 92 92 467
BalonParca AdiParca NoAdetTipApplied Date
14 HARNESS; HEADLAMP 8-98156-954-2 02 1 1508-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) (B) 		8-98258-839-0 01 1 1508-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) (A) 		8-98274-841-1 01 1 1508-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) EXC. VIN MODEL YEAR 2014(VZE) (A) 		8-98223-473-1 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98202-631-0 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) (A) 		8-98274-834-1 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. VIN MODEL YEAR 2014(VZE) (A) 		8-98223-466-0 01 1 1508-
467 HARNESS; FACIA
(A) 		8-98223-987-0 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) IDLE STOP SYSTEM(E7N) EXC. VIN MODEL YEAR 2014(VZE),PARKING BRAKE - BRAKELOCK(6LL) (B) 		8-98201-777-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) PARKING BRAKE - BRAKE LOCK(6LL) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98201-777-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) IDLE STOP SYSTEM(E7N) VIN MODEL YEAR 2014(VZE) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-816-2 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-816-2 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. IDLE STOP SYSTEM(E7N),VIN MODEL YEAR 2014(VZE) ,PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98201-775-3 01 1 1508-
467 HARNESS; FACIA
MJT7U M/T(Y4X) TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) EXC. IDLE STOP SYSTEM(E7N),PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-815-1 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) IDLE STOP SYSTEM(E7N) EXC. VIN MODEL YEAR 2014(VZE),PARKING BRAKE - BRAKELOCK(6LL) (B) 		8-98200-401-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) PARKING BRAKE - BRAKE LOCK(6LL) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98200-401-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) IDLE STOP SYSTEM(E7N) VIN MODEL YEAR 2014(VZE) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-821-2 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-821-2 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. IDLE STOP SYSTEM(E7N),VIN MODEL YEAR 2014(VZE) ,PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98200-400-3 01 1 1508-
467 HARNESS; FACIA
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) EXC. IDLE STOP SYSTEM(E7N),PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98274-820-1 01 1 1508-
çizim 498498
533 533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date
533 CLIP
(A) ID=11 L=24 		0-95235-045-0 03 1 1508-
533 CLIP
(C) L=350 		1-09707-183-0 01 1 1508-
533 CLIP
(B) OD=9 H=6 		1-09709-178-0 01 1 1508-
533 CLIP
(E) ID=18-24 L=14.5 		1-09709-298-0 01 1 1508-
533 CLIP
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 1508-
533 CLIP
(D) L=251 		8-97619-917-0 04 1 1508-
533 CLIP
SMOOTHER-G(C1W) (H) ID=28 & 34 L=63 		1-09701-310-0 01 1 1508-
533 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (G) ID=31 L=35 		1-09700-329-1 01 1 1508-

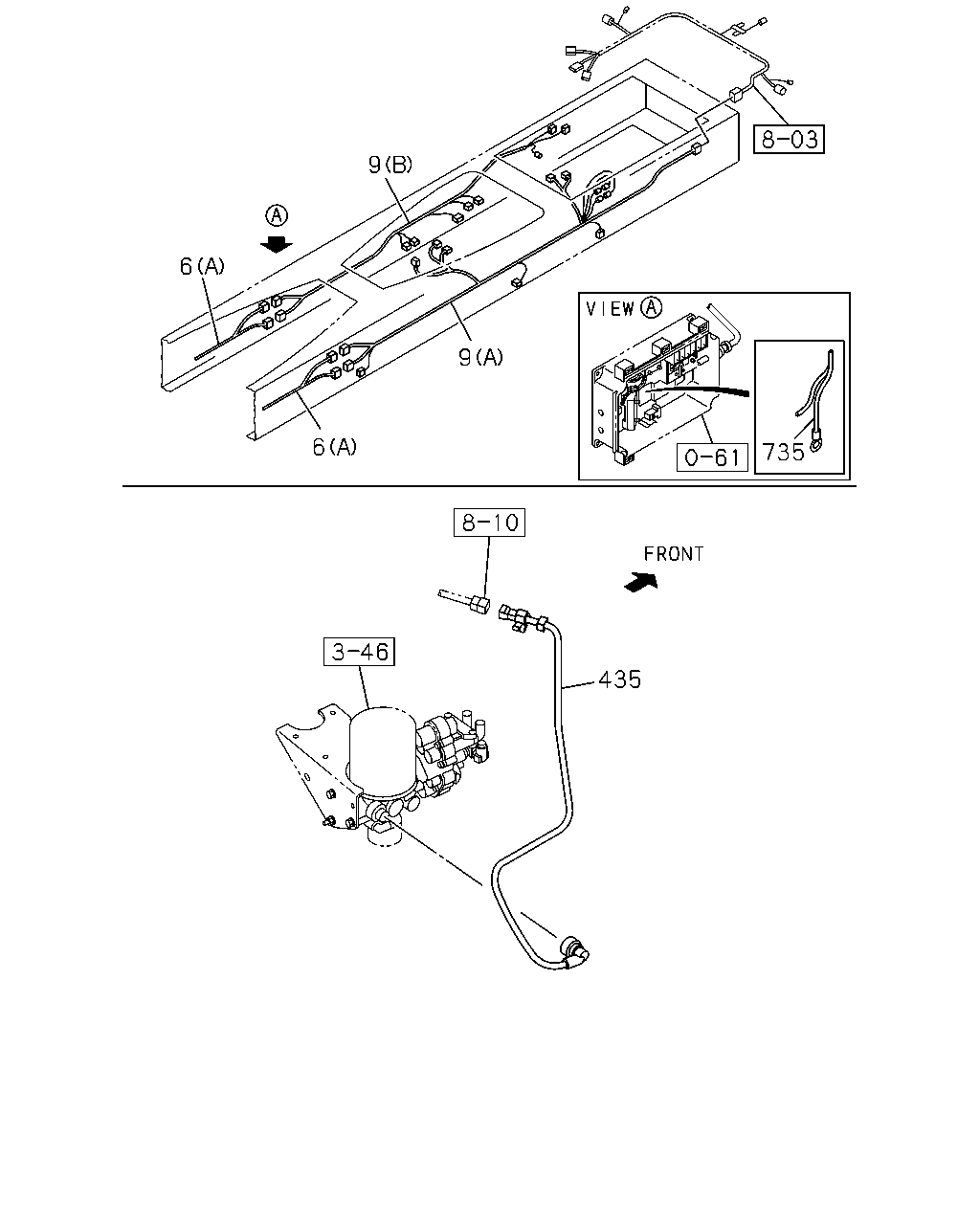

çizim 498574
6 9 6 9 735 435
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-97635-419-2 01 1 1508-
6 HARNESS; FRAME
MJT7U M/T(Y4X) (A) 		8-97640-683-2 01 1 1508-
6 HARNESS; FRAME
MJX12P M/T SMOOTHER-G(Y4S) (A) 		8-97640-684-2 01 1 1508-
9 HARNESS; FRAME,RR
(B) 		8-97637-548-0 01 1 1508-
9 HARNESS; FRAME,RR
(A) 		8-97637-602-0 01 1 1508-
435 HARNESS; AIR DRYER 8-97635-884-0 01 1 1508-
735 REPAIR KIT; FUSE & RELAY BOX 8-98194-251-0 01 1 1508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
