Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#168073) — 86 parça
◀

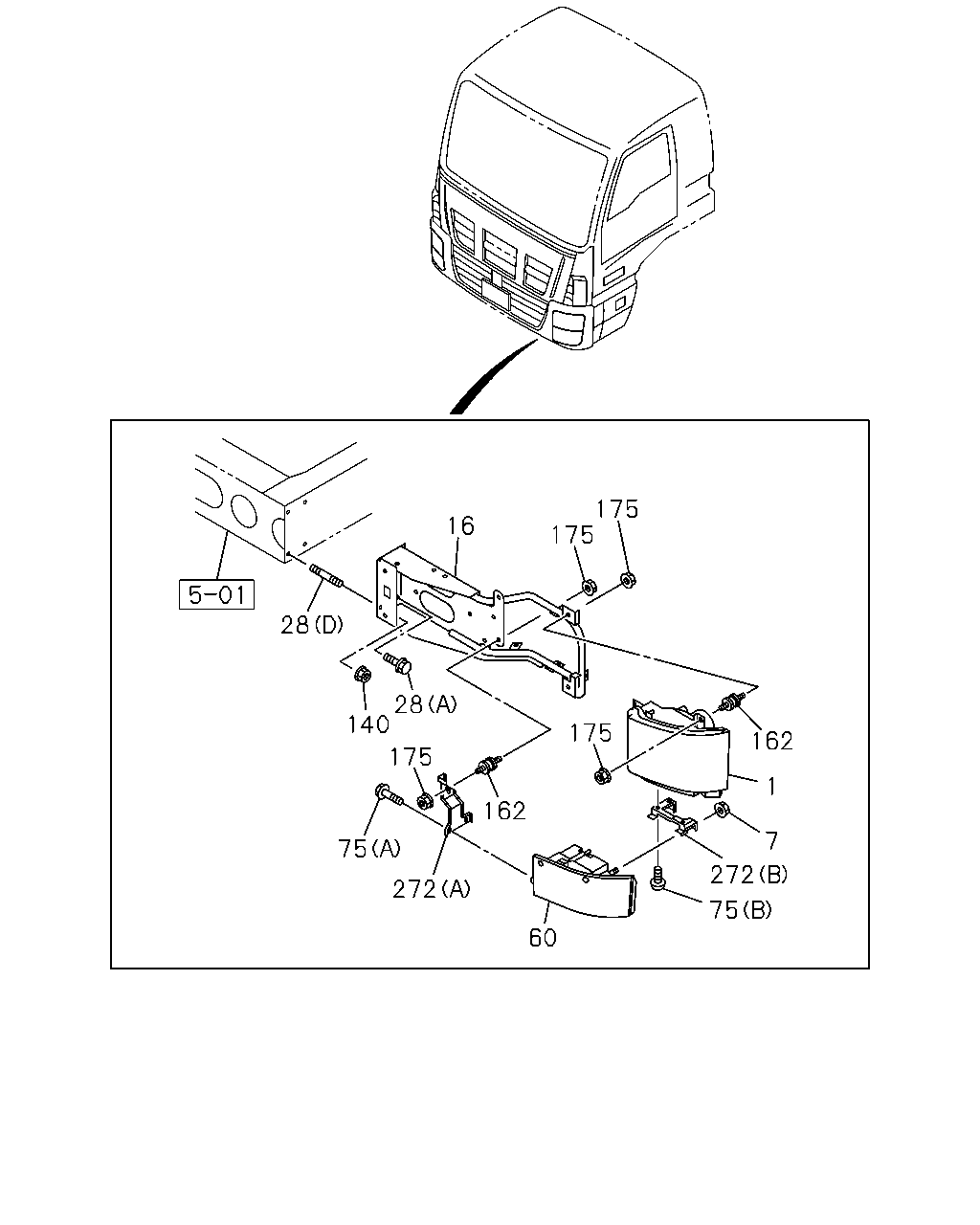

[801A] FIXING; HEADLAMP (21 parça)

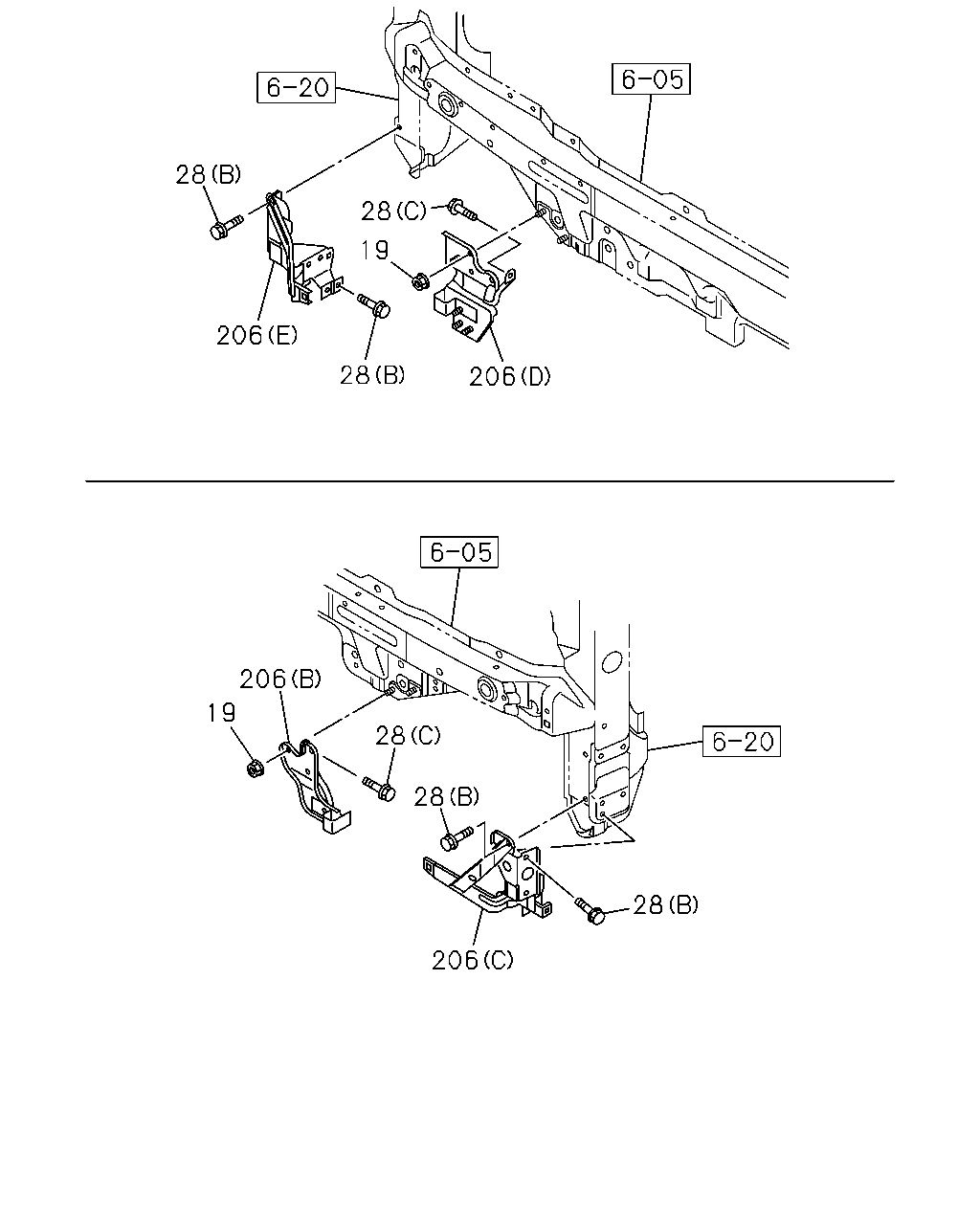

[801A] HOLDER (11 parça)

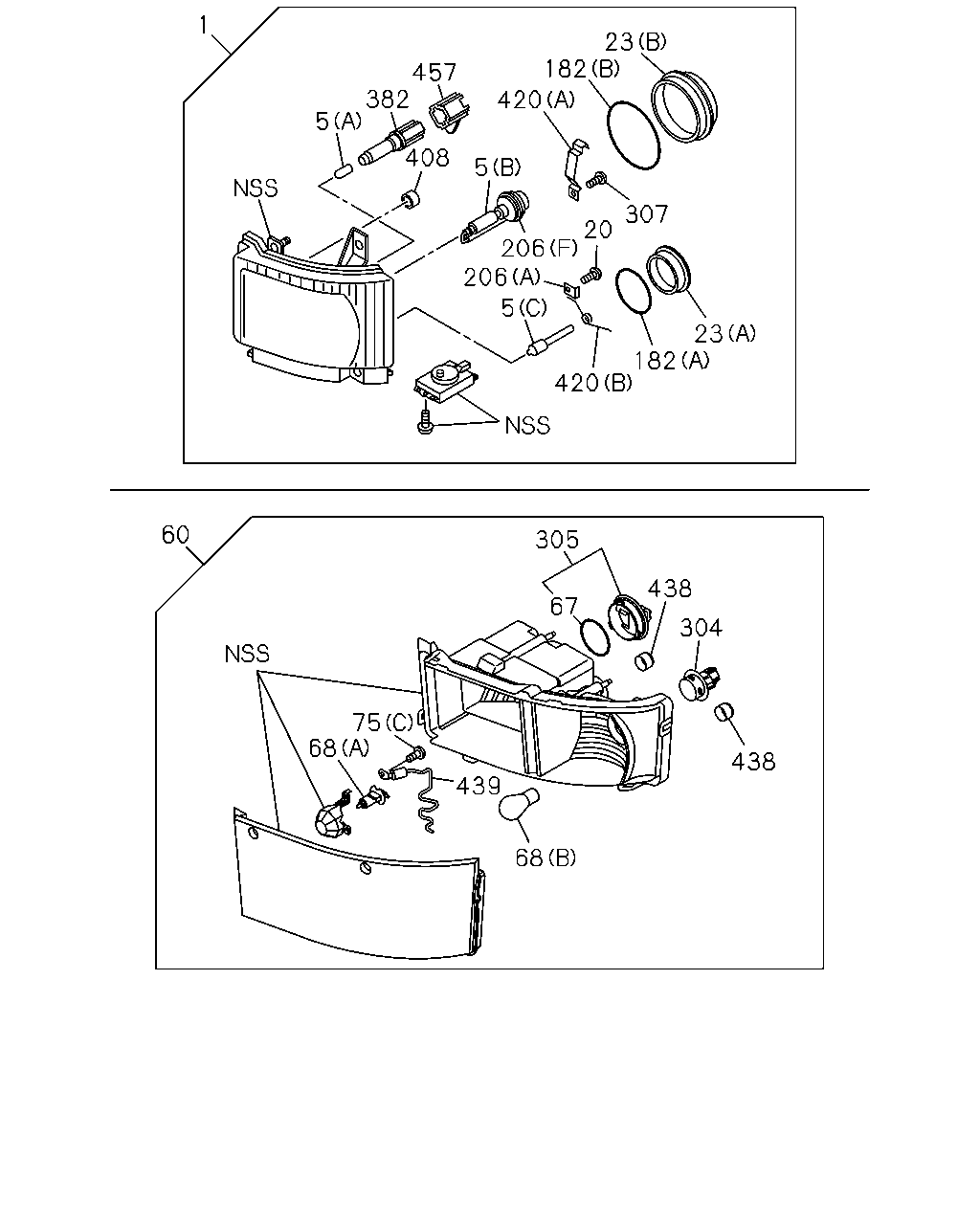

[801A] COMPONENT; HEADLAMP (34 parça)

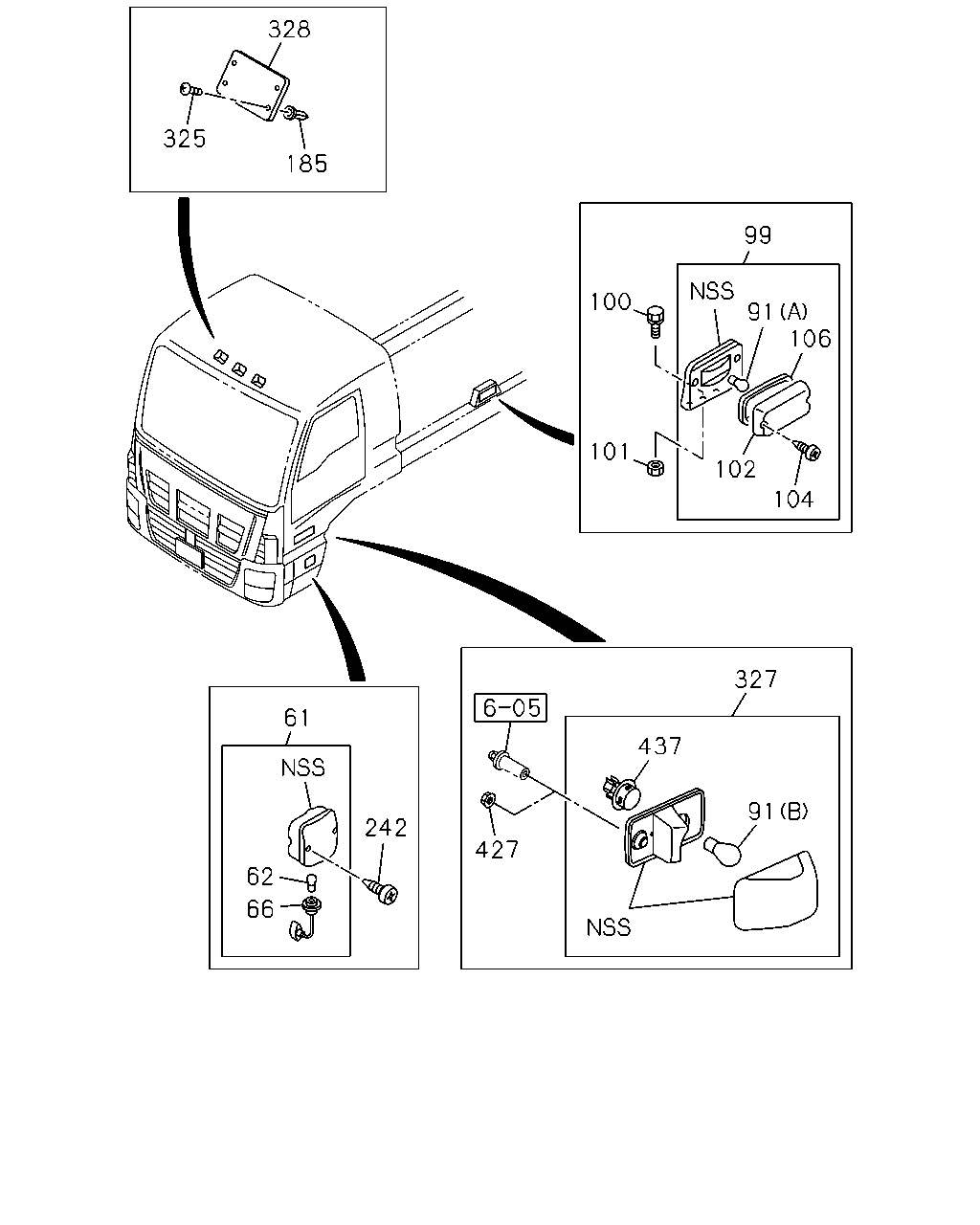

[801A] OTHER LAMP (20 parça)
▶
16
175
175
28
28
140
175
162
175
162
1
7
272
75
60
272
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98241-348-0
01
1
1508-
1
LAMP ASM; HEAD
8-98241-347-0
01
1
1508-
7
NUT; FRT COMB LAMP
M6 FLANGE
0-91180-106-0
04
1
1508-
16
BRACKET; HEADLAMP
8-98121-414-3
01
1
1508-
16
BRACKET; HEADLAMP
8-98121-415-3
01
1
1508-
28
BOLT; HEADLAMP
(A) M12X35 FLANGE
0-28051-235-0
04
1
1508-
28
BOLT; HEADLAMP
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
1508-
28
BOLT; HEADLAMP
(C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1508-
28
BOLT; HEADLAMP
(D) M12X30,M12X16 L=56
8-98144-947-0
04
1
1508-
60
LAMP ASM; FRT COMB
8-98238-628-0
01
1
1508-
60
LAMP ASM; FRT COMB
8-98238-627-0
01
1
1508-
75
SCREW; FRT COMB LAMP
(A) M6X16 FLANGE
0-28650-616-0
04
1
1508-
75
SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1508-
75
SCREW; FRT COMB LAMP
(C)
8-98074-439-0
02
1
1508-
140
NUT
M12 FLANGE
0-91180-212-0
04
1
1508-
162
RUBBER; CUSHION UPR
1-82117-086-0
08
1
1508-
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE
0-91180-108-0
16
1
1508-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-935-0
01
1
1508-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-938-0
01
1
1508-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-934-0
01
1
1508-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-937-0
01
1
1508-
206
19
28
28
206
28
28
206
28
28
206
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
1508-
28
BOLT; HEADLAMP
(A) M12X35 FLANGE
0-28051-235-0
04
1
1508-
28
BOLT; HEADLAMP
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
1508-
28
BOLT; HEADLAMP
(C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1508-
28
BOLT; HEADLAMP
(D) M12X30,M12X16 L=56
8-98144-947-0
04
1
1508-
206
HOLDER; HEADLAMP
(F)
8-97378-878-0
02
1
1508-
206
HOLDER; HEADLAMP
(A)
8-97378-879-0
02
1
1508-
206
HOLDER; HEADLAMP
(B)
8-98121-219-1
01
1
1508-
206
HOLDER; HEADLAMP
(C)
8-98121-335-0
01
1
1508-
206
HOLDER; HEADLAMP
(D)
8-98121-218-2
01
1
1508-
206
HOLDER; HEADLAMP
(E)
8-98121-330-0
01
1
1508-
1
5
382
457
182
23
420
5
408
307
20
206
206
5
420
182
23
305
438
304
438
68
439
75
68
60
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98241-348-0
01
1
1508-
1
LAMP ASM; HEAD
8-98241-347-0
01
1
1508-
5
BULB; HEADLAMP
(A) 24V 5W
1-82194-042-0
02
1
1508-
5
BULB; HEADLAMP
(B) 85V 35W
1-82194-092-0
02
1
1508-
5
BULB; HEADLAMP
(C) 24V 70W
8-94405-658-0
02
1
1508-
20
SCREW; HEADLAMP
8-97378-871-0
04
1
1508-
23
COVER; BULB,HEADLAMP
(A)
8-98051-392-0
02
1
1508-
23
COVER; BULB,HEADLAMP
(B)
8-98051-393-0
02
1
1508-
60
LAMP ASM; FRT COMB
8-98238-628-0
01
1
1508-
60
LAMP ASM; FRT COMB
8-98238-627-0
01
1
1508-
67
GASKET; FRT COMB LAMP
8-98238-656-0
02
1
1508-
68
BULB; FRT COMB LAMP
(A) 24V 55W
1-82194-079-0
02
1
1508-
68
BULB; FRT COMB LAMP
(B) 24V 21W
8-98051-495-0
02
1
1508-
75
SCREW; FRT COMB LAMP
(A) M6X16 FLANGE
0-28650-616-0
04
1
1508-
75
SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1508-
75
SCREW; FRT COMB LAMP
(C)
8-98074-439-0
02
1
1508-
182
GASKET; HEADLAMP
(A)
8-98051-391-0
02
1
1508-
182
GASKET; HEADLAMP
(B)
8-98051-394-0
02
1
1508-
206
HOLDER; HEADLAMP
(F)
8-97378-878-0
02
1
1508-
206
HOLDER; HEADLAMP
(A)
8-97378-879-0
02
1
1508-
206
HOLDER; HEADLAMP
(B)
8-98121-219-1
01
1
1508-
206
HOLDER; HEADLAMP
(C)
8-98121-335-0
01
1
1508-
206
HOLDER; HEADLAMP
(D)
8-98121-218-2
01
1
1508-
206
HOLDER; HEADLAMP
(E)
8-98121-330-0
01
1
1508-
304
PLUG; SOCKET,FRT COMB LAMP
8-98051-390-0
02
1
1508-
305
COVER; FRT COMB LAMP
8-98240-559-0
02
1
1508-
307
SCREW; TAPPING,HEAD LAMP
8-97378-871-0
06
1
1508-
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1508-
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1508-
420
SPRING; BULB,HEADLAMP
(A)
8-97378-876-0
02
1
1508-
420
SPRING; BULB,HEADLAMP
(B)
8-97378-877-0
02
1
1508-
438
CAP; BREATHER,FRT COMB LAMP
8-97378-874-0
02
1
1508-
439
SPRING SET; COMB LAMP
8-98075-644-0
02
1
1508-
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1508-
328
325
185
99
100
101
102
104
91
106
327
437
91
427
242
62
66
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
LAMP ASM; CORNERING
24V 21W
8-98020-174-0
01
1
1508-
61
LAMP ASM; CORNERING
24V 21W
8-98020-173-0
01
1
1508-
62
BULB; CORNERING LAMP
24V 21W
1-82194-107-0
02
1
1508-
66
HARNESS; CORNERING LAMP
1-86830-146-0
02
1
1508-
91
BULB; SIDE TURN SIGNAL
(A) 24V 21W
1-82194-104-0
02
1
1508-
91
BULB; SIDE TURN SIGNAL
(B) 24V 21W
8-98051-495-0
02
1
1508-
99
LAMP; SIDE FLASHER
1-82220-036-1
02
1
1508-
100
BOLT; LAMP,SIDE FLASHER
M8X25 W/LK&PL WASHER
1-09030-027-0
02
1
1508-
101
NUT; LAMP,SIDE FLASHER
M8 FLANGE
0-91180-108-0
02
1
1508-
102
LENS; SIDE TURN SIGNAL
1-82550-335-0
02
1
1508-
104
SCREW; SIDE TURN SIGNAL
1-82229-001-0
04
1
1508-
106
GASKET; SIDE TURN SIGNAL
1-82226-005-0
02
1
1508-
185
GROMMET; SCREW
M5 SCREW GROMMET
1-09983-131-0
12
1
1508-
242
SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS
0-71090-420-0
04
1
1508-
325
SCREW; SPD INDICATOR LAMP
M5X14 TAPPING
0-71040-514-0
12
1
1508-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1508-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1508-
328
COVER; LAMP
1-76217-122-1
03
1
1508-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1508-
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1508-
