◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#168071) — 17 parça

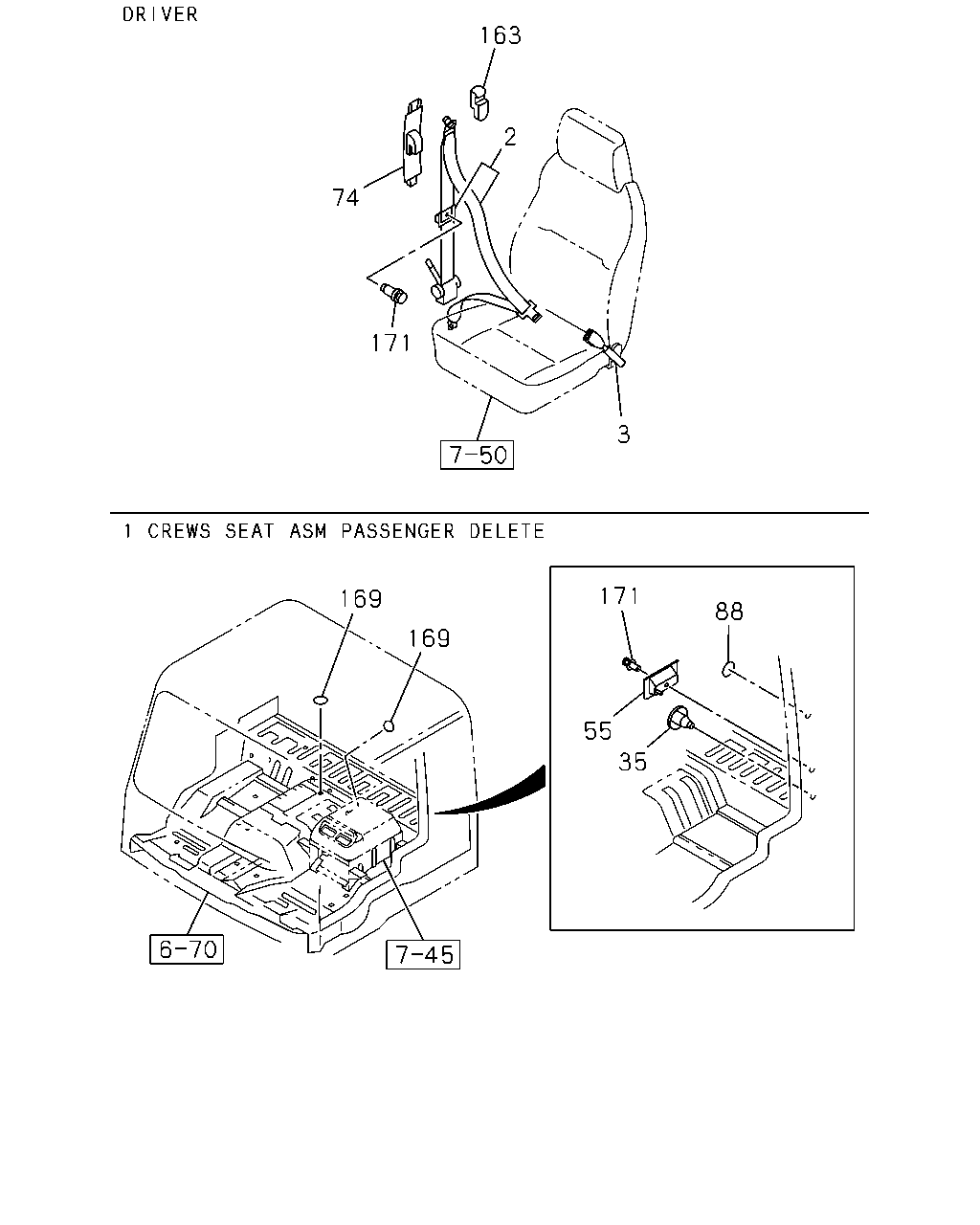

çizim 498457
163 2 74 171 3 169 169 171 88 55 35
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE 8-98184-483-1 01 1 1508-
3 BELT; SEAT,BUCKLE SIDE 8-98270-818-0 01 1 1508-
35 GROMMET; SEAT BELT ANCHOR
1 CREWS SEAT ASM PASSENGER DELETE(AP5) OD=22 		9-61168-535-0 01 1 1508-
55 GUIDE; SEAT BELT
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75617-556-0 01 1 1508-
74 RAIL ASM; SHOULDER ANCHOR 8-97386-855-2 01 1 1508-
88 PLUG; HOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) OD=31.6 		8-94198-177-0 01 1 1508-
163 COVER; ADJUSTER 8-97386-863-0 01 1 1508-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1508-
169 SEAL
1 CREWS SEAT ASM PASSENGER DELETE(AP5) OD=25 BLACK 		1-76798-019-0 02 1 1508-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1508-
çizim 498538
169 171 170 4 5 6 170 171
BalonParca AdiParca NoAdetTipApplied Date
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 1508-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT(7BC) 		8-98184-487-2 01 1 1508-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT(7BC) 		8-98184-488-1 01 1 1508-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1508-
169 SEAL
1 CREWS SEAT ASM PASSENGER DELETE(AP5) OD=25 BLACK 		1-76798-019-0 02 1 1508-
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) 		8-98184-486-1 01 1 1508-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1508-
