Sayfa 7-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶

7-50 — FRONT SEAT (#168070) — 133 parça

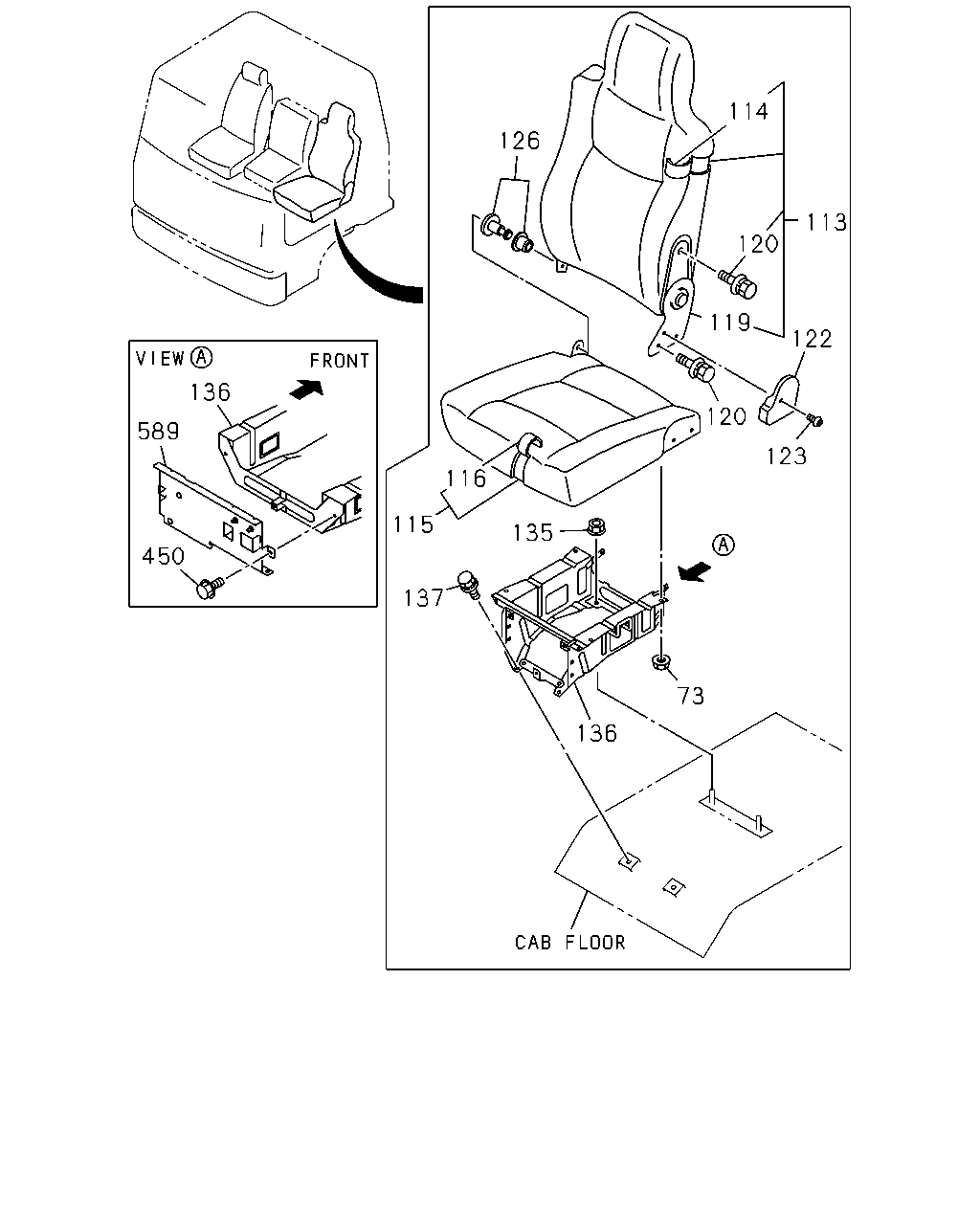

137 115 116 135 136 123 120 122 113 114 120 119 126 136 589 450 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	NUT; ADJ,HEIGHT CONT CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) M8 FLANGE	1-75538-207-0	04	1	1508-
113	BACK ASM; SEAT CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) SEAT CLOTH(7FL)	8-98168-280-0	01	1	1508-
113	BACK ASM; SEAT VINYL SEAT(A83) CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC)	1-75207-598-1	01	1	1508-
114	COVER; TRIM,PASSENGER SEAT,BACK CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) SEAT CLOTH(7FL)	8-98168-295-0	01	1	1508-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83) CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC)	1-75127-153-1	01	1	1508-
115	CUSHION ASM; PASSENGER SEAT CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) SEAT CLOTH(7FL)	8-98168-131-0	01	1	1508-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83) CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC)	1-75207-213-2	01	1	1508-
116	COVER; TRIM,PASSENGER SEAT,CUSHION CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) SEAT CLOTH(7FL)	8-98168-270-0	01	1	1508-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83) CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC)	1-75127-029-1	01	1	1508-
119	ADJ; SEAT RECLINING,ASSIST SIDE CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC)	1-75417-597-0	01	1	1508-
120	BOLT; RECLINING ADJ CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) M8X20	8-97255-906-0	04	1	1508-
122	COVER; ADJ,RECLINING CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC)	1-75417-598-0	01	1	1508-
123	SCREW; COVER,RECLINING CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) M6X12	9-03490-612-0	01	1	1508-
126	BUSHING; HINGE,RECLINING CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC)	8-97854-087-0	01	1	1508-
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	1508-
136	STAND; PASSENGER SEAT CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC)	8-98242-298-0	01	1	1508-
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	1508-
450	BOLT; BRKT M6X16	0-52000-616-0	03	1	1508-
589	BRACKET; SEAT STAND	1-75557-469-3	01	1	1508-

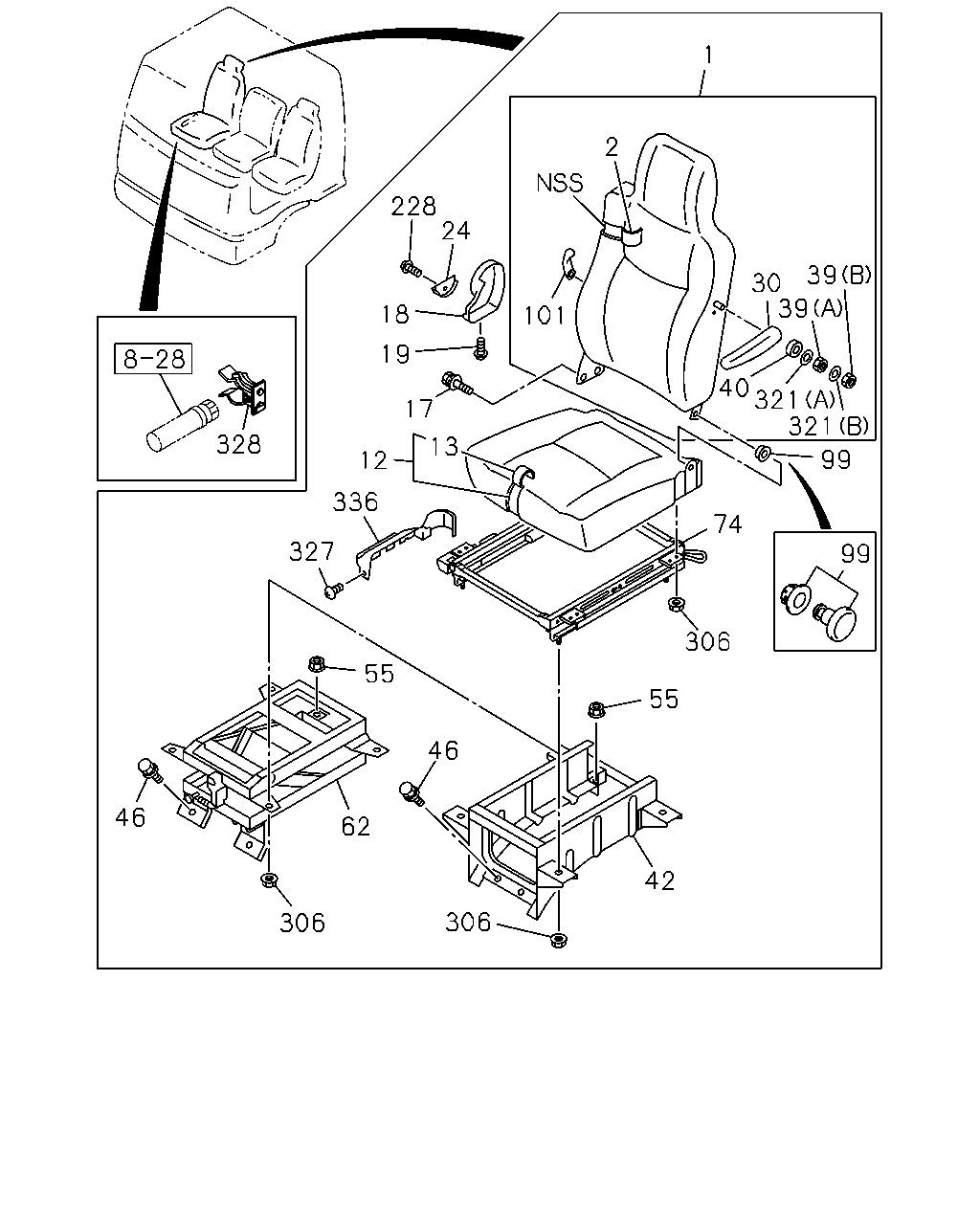

99 714 99 321 321 40 30 39 39 306 55 42 306 62 46 55 306 46 327 336 12 13 17 19 18 24 228 2 1 101 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT SEAT CLOTH(7FL)	8-98168-072-0	01	1	1508-
1	BACK ASM; SEAT VINYL SEAT(A83)	8-98135-630-0	01	1	1508-
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH(7FL)	8-98168-089-0	01	1	1508-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83)	1-75127-146-2	01	1	1508-
12	CUSHION; SEAT,FRT SEAT CLOTH(7FL)	8-98168-048-0	01	1	1508-
12	CUSHION; SEAT,FRT VINYL SEAT(A83)	1-75207-603-2	01	1	1508-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH(7FL)	8-98168-081-0	01	1	1508-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83)	1-75127-102-1	01	1	1508-
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	1508-
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	1508-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1508-
24	KNOB; RECLINING,FRT,SEAT	1-75418-066-0	01	1	1508-
30	REST ASM; ARM,FRT SEAT SEAT CLOTH(7FL)	8-98168-091-0	01	1	1508-
30	REST ASM; ARM,FRT SEAT VINYL SEAT(A83)	1-75127-015-1	01	1	1508-
39	NUT; ARM REST (B) M8	1-75147-657-0	01	1	1508-
39	NUT; ARM REST (A) M10	9-09110-410-0	01	1	1508-
40	SPACER; ARM REST	8-94285-921-0	02	1	1508-
42	STAND; DRIVER SEAT RIGID SEAT W/ARM REST(SGC)	1-75558-604-2	01	1	1508-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1508-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1508-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-449-0	01	1	1508-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	1508-
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	1508-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1508-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1508-
321	WASHER; PL,ARM REST (A) ID=10.5 OD=22	9-09160-610-0	01	1	1508-
321	WASHER; PL,ARM REST (B) ID=8.4 OD=22	9-09164-708-0	01	1	1508-
327	CLIP; COVER	1-09987-273-0	02	1	1508-
328	CLIP; HANDY WARNING	1-72537-239-0	01	1	1508-
336	COVER; DRIVER SEAT	1-75518-303-0	01	1	1508-

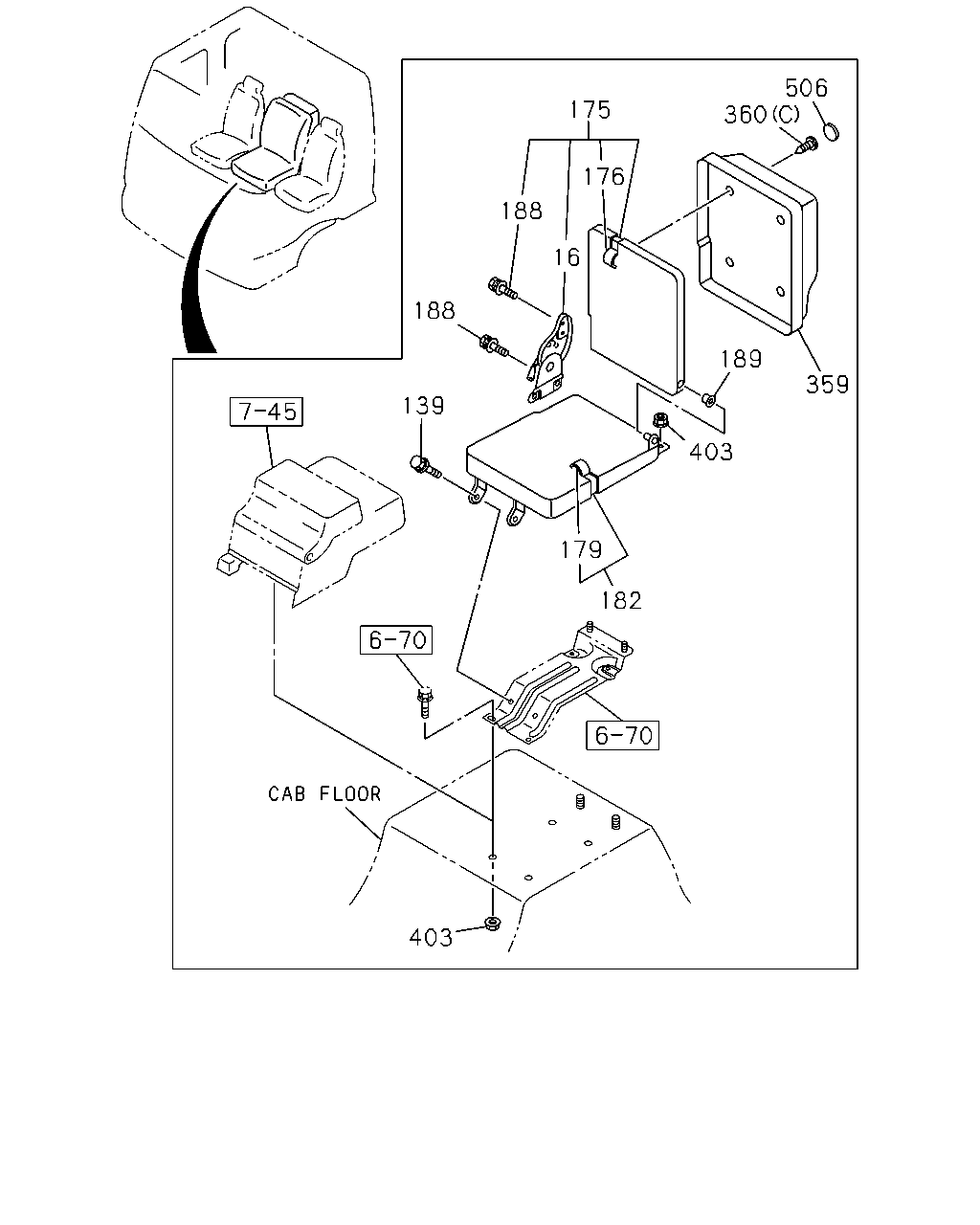

506 360 175 176 188 16 188 139 179 182 403 189 359 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT(7BC)	1-75418-062-1	01	1	1508-
139	BOLT; PASSENGER SEAT SEAT ASM - WITH CENTER SEAT(7BC) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1508-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT(7BC) SEAT CLOTH(7FL)	8-98168-329-1	01	1	1508-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT(A83) SEAT ASM - WITH CENTER SEAT(7BC)	1-75026-856-3	01	1	1508-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT(7BC) SEAT CLOTH(7FL)	8-98168-332-0	01	1	1508-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT(A83) SEAT ASM - WITH CENTER SEAT(7BC)	1-75116-710-1	01	1	1508-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT(7BC) SEAT CLOTH(7FL)	8-98210-135-1	01	1	1508-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) SEAT ASM - WITH CENTER SEAT(7BC)	8-98210-134-1	01	1	1508-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT(7BC) SEAT CLOTH(7FL)	8-98197-736-1	01	1	1508-
182	CUSHION ASM; CENTER SEAT VINYL SEAT(A83) SEAT ASM - WITH CENTER SEAT(7BC)	8-98197-734-1	01	1	1508-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT(7BC) M10X16 FLANGE	1-75198-053-0	04	1	1508-
189	BUSHING; HINGE,CENTER SEAT BACK SEAT ASM - WITH CENTER SEAT(7BC)	8-97854-900-0	01	1	1508-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT(7BC)	8-98145-114-0	01	1	1508-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT(7BC) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1508-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT(7BC) (B) M4X16	0-70080-416-0	06	1	1508-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT(7BC) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1508-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT(7BC) M8 FLANGE	0-91180-108-0	02	1	1508-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT(7BC)	1-09983-180-3	02	1	1508-

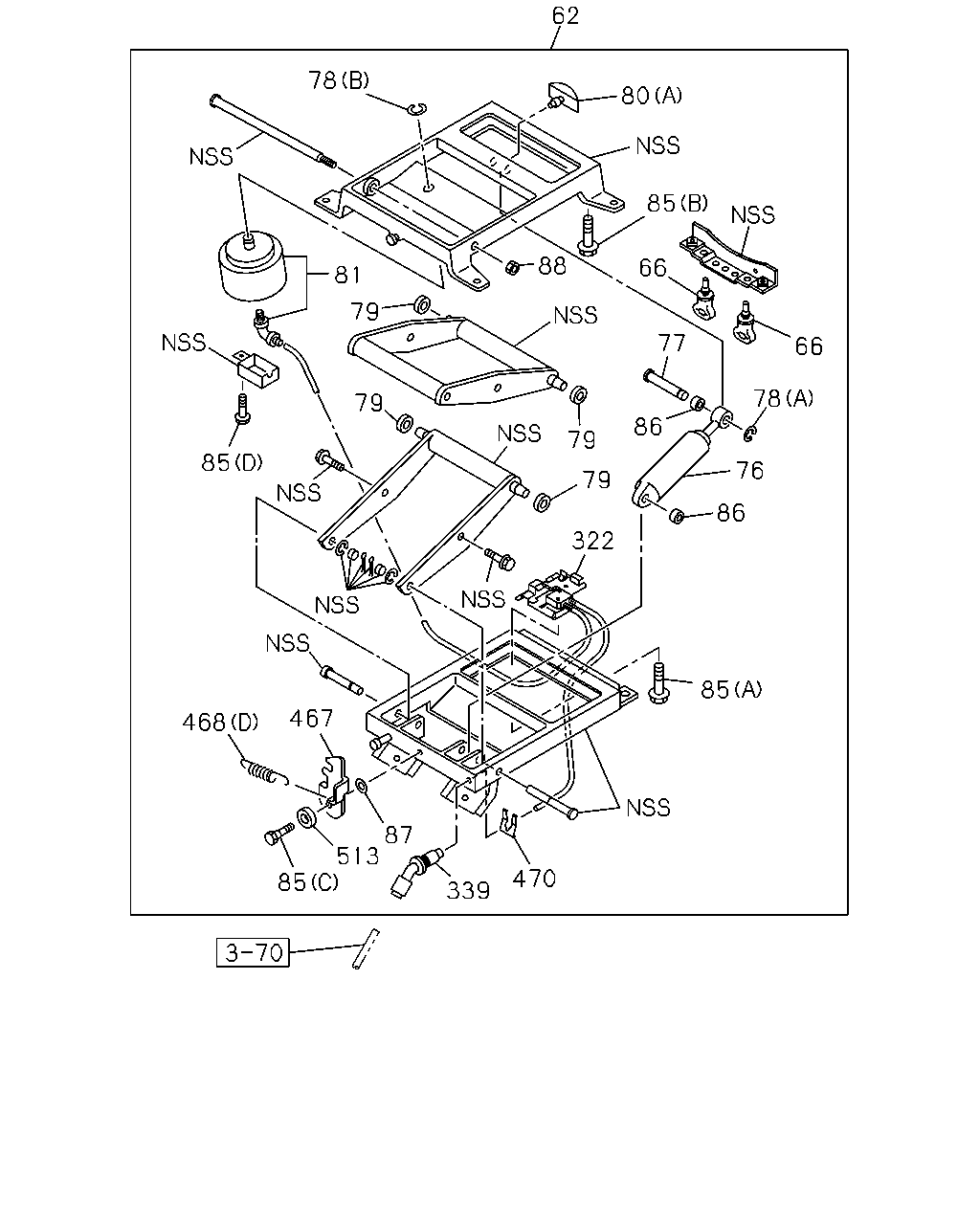

62 78 81 88 85 80 66 66 77 78 86 79 79 76 86 322 79 79 85 468 467 87 513 85 339 85 470

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-449-0	01	1	1508-
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	1508-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	1508-
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	1508-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1508-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1508-
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-489-0	04	1	1508-
80	RUBBER; STOPPER SEAT ASM - WITH CENTER SEAT(7BC) (B)	1-72538-187-0	02	1	1508-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1508-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98242-816-0	01	1	1508-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-1	01	1	1508-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-1	02	1	1508-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1508-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1508-
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1508-
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	1508-
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	1508-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-3	01	1	1508-
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	1508-
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	1508-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1508-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1508-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1508-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1508-
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	1508-
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1508-

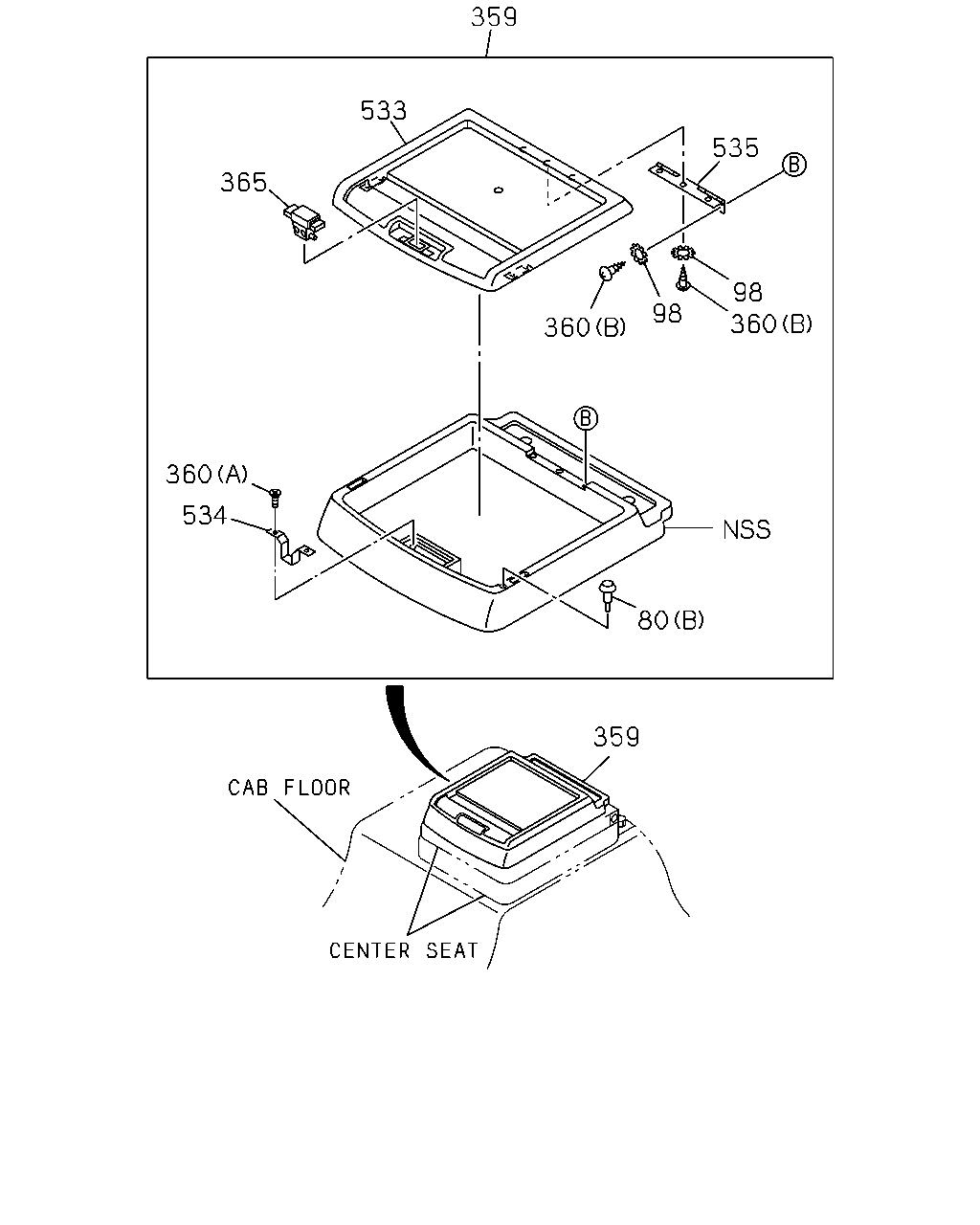

359 533 365 535 98 98 360 360 80 360 359 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER SEAT ASM - WITH CENTER SEAT(7BC) (B)	1-72538-187-0	02	1	1508-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1508-
98	WASHER; HINGE SEAT ASM - WITH CENTER SEAT(7BC) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1508-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT(7BC)	8-98145-114-0	01	1	1508-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT(7BC) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1508-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT(7BC) (B) M4X16	0-70080-416-0	06	1	1508-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT(7BC) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1508-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT(7BC)	1-72538-180-0	01	1	1508-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT(7BC)	8-98145-118-0	01	1	1508-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT(7BC)	1-72538-190-0	01	1	1508-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT(7BC)	1-72447-391-1	01	1	1508-

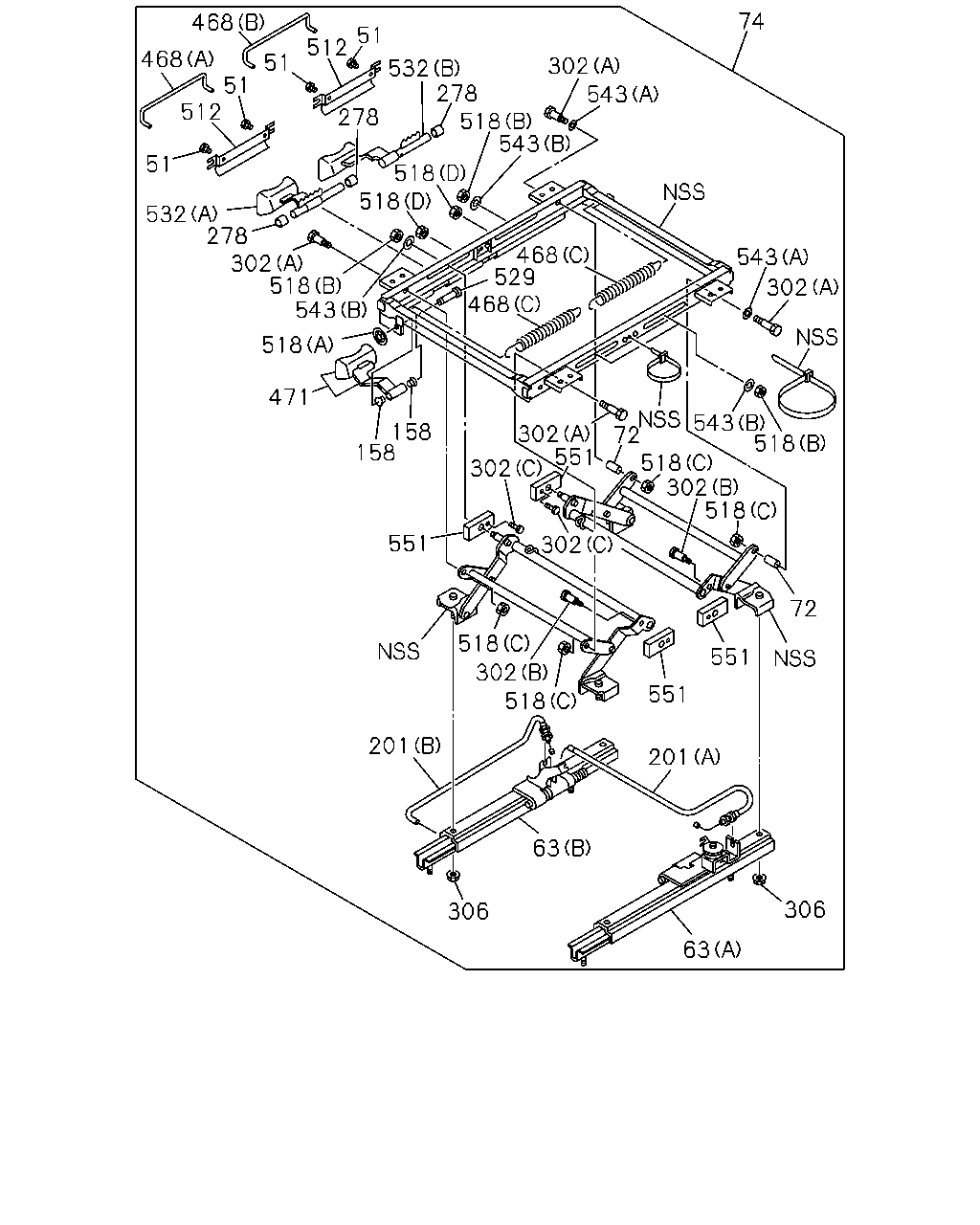

468 468 51 512 51 51 512 51 532 302 543 518 518 278 471 158 158 532 278 278 543 518 518 518 302 468 529 468 543 543 543 302 518 72 302 551 302 302 551 302 518 302 518 551 201 551 72 63 306 201 306 63 518 74 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER	1-75518-325-1	04	1	1508-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1508-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1508-
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1508-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-644-0	01	1	1508-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1508-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1508-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1508-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1508-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	1508-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	1508-
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1508-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1508-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1508-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1508-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1508-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1508-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1508-
512	COVER; LEVER	1-75518-243-1	02	1	1508-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1508-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1508-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1508-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1508-
529	PIN; LINK	1-75518-262-0	01	1	1508-
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1508-
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1508-
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1508-
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1508-
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1508-
