◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#168069) — 95 parça

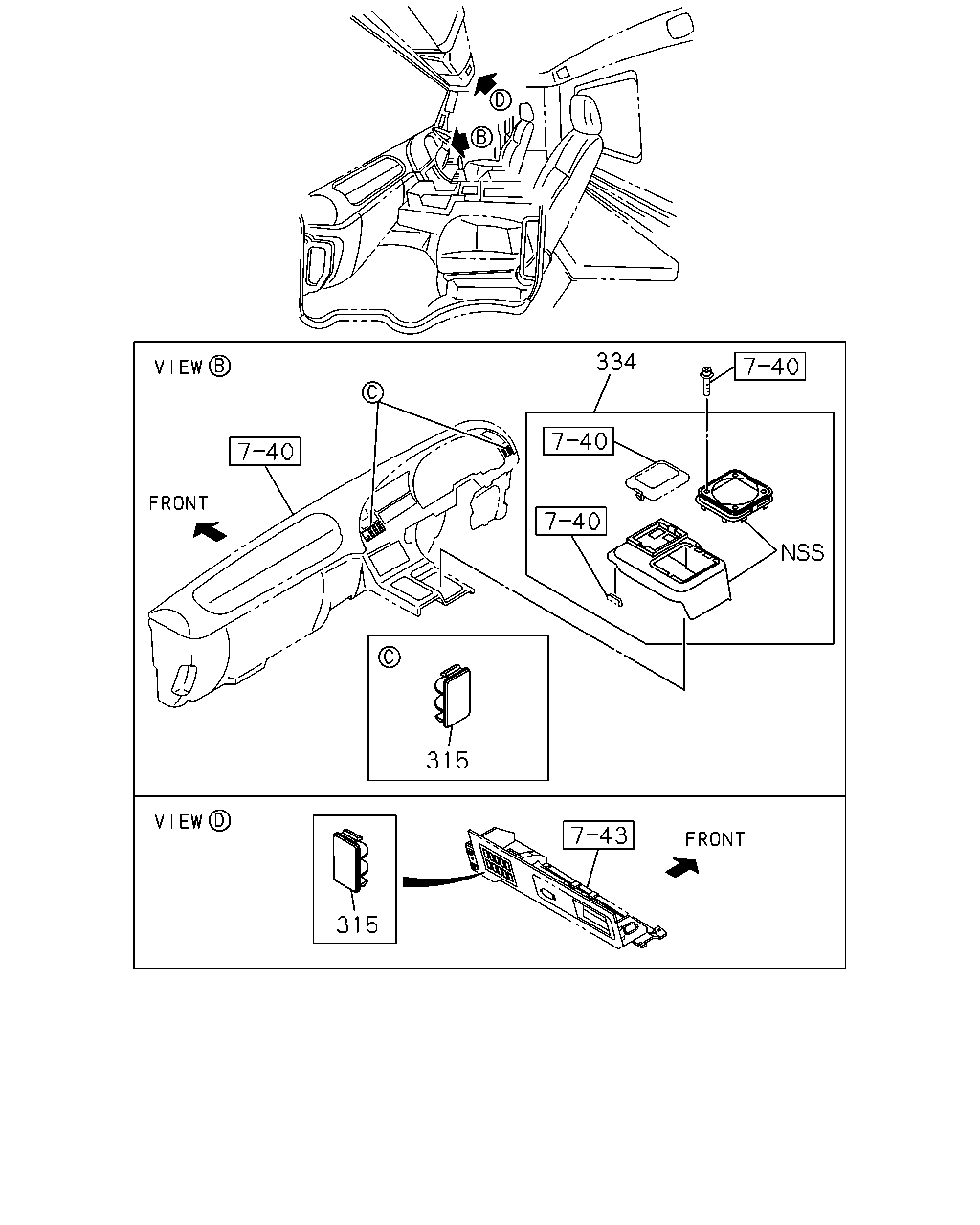

çizim 498237
334 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW 8-97043-732-1 03 1 1508-
334 COVER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-72447-969-1 01 1 1508-

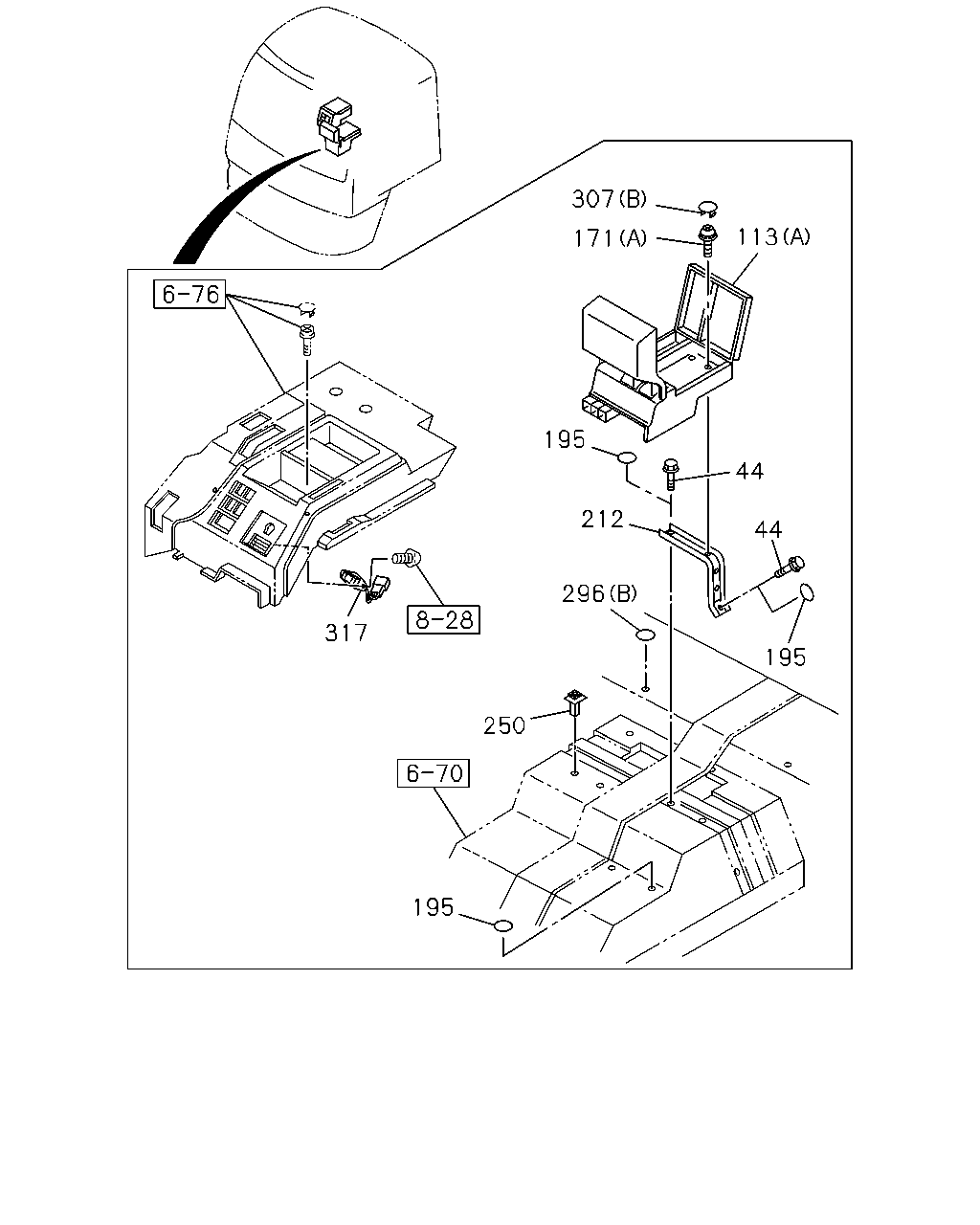

çizim 498335
195 44 44 212 195 296 250 195 317 307 171 113
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1508-
113 BOX; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		1-72538-315-1 01 1 1508-
113 BOX; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (A) 		1-72537-337-0 01 1 1508-
113 BOX; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-336-0 01 1 1508-
171 SCREW; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (A) M6X20 W/LK&PL WASHER 		0-36230-620-0 02 1 1508-
171 SCREW; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1508-
171 SCREW; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1508-
195 SEAL; CENTER CONSOLE
SEAT ASM - WITH CENTER SEAT(7BC) OD=25 BLACK 		1-76798-019-0 05 1 1508-
212 SUPPORT; CONSOLE TO COMPT
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 1508-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 1508-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1508-
296 SEAL
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1508-
307 COVER; HOLE,CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (C) 		1-72537-270-1 02 1 1508-
307 COVER; HOLE,CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1508-
307 COVER; HOLE,CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1508-
317 CONSENT 1-82523-020-2 01 1 1508-

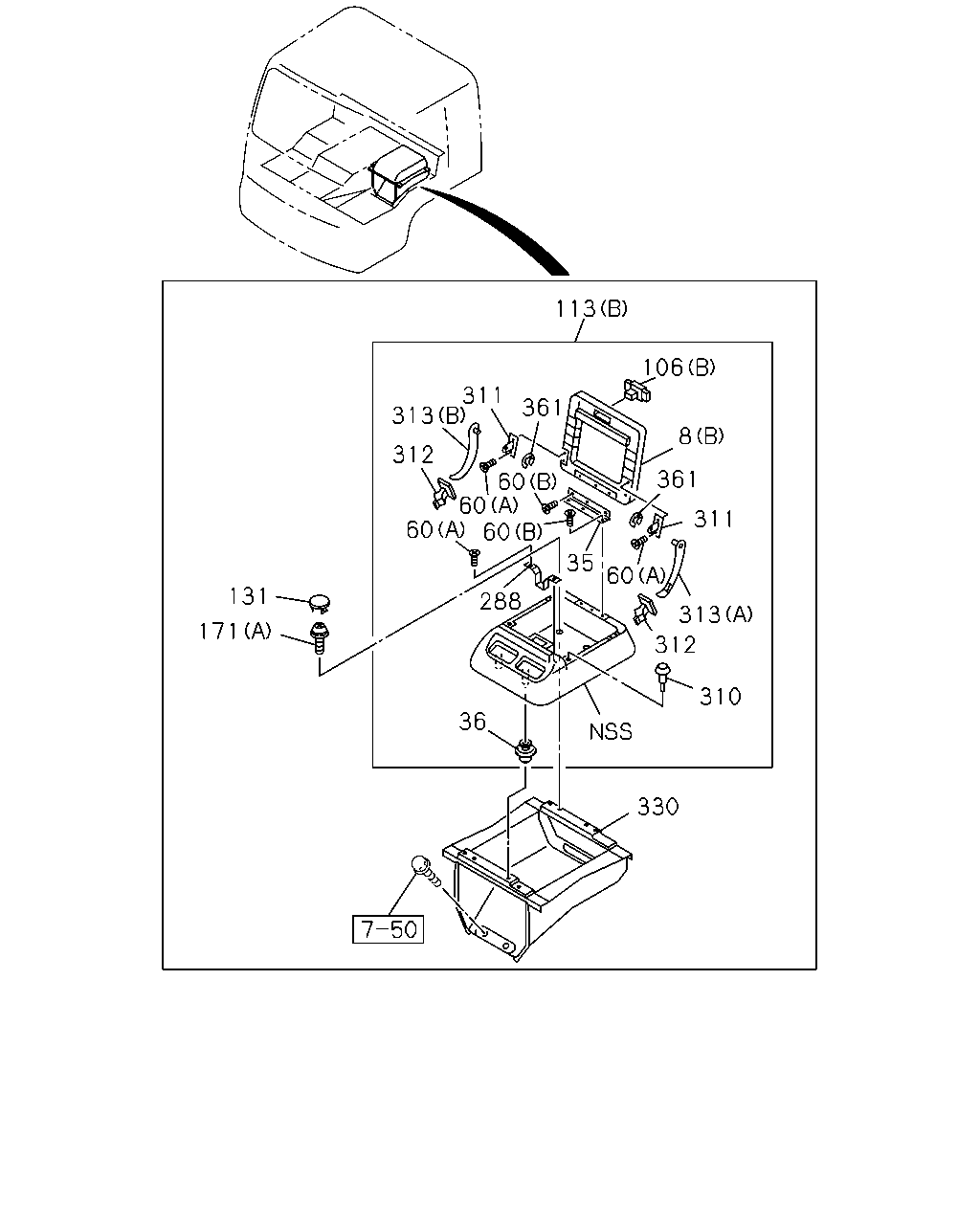

çizim 498336
310 312 313 60 311 361 8 106 113 361 311 313 60 312 131 171 36 330 35 288 60 60 60
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		1-72538-321-0 01 1 1508-
8 LID; CENTER CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72537-332-0 01 1 1508-
35 HINGE; CENTER CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-182-1 01 1 1508-
35 HINGE; CENTER CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 1508-
36 FASTENER; CENTER CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-09984-190-0 02 1 1508-
60 SCREW; BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 1508-
60 SCREW; BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) M5X14 		8-94279-325-0 04 1 1508-
106 LOCK; CONSOLE LID
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		1-72538-180-0 01 1 1508-
106 LOCK; CONSOLE LID
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72537-079-0 02 1 1508-
113 BOX; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		1-72538-315-1 01 1 1508-
113 BOX; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (A) 		1-72537-337-0 01 1 1508-
113 BOX; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-336-0 01 1 1508-
131 COVER; CONSOLE SIDE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-76337-461-0 02 1 1508-
171 SCREW; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (A) M6X20 W/LK&PL WASHER 		0-36230-620-0 02 1 1508-
171 SCREW; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1508-
171 SCREW; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1508-
288 STOPPER; LID,CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-190-0 01 1 1508-
310 CUSHION; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-187-0 02 1 1508-
310 CUSHION; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1508-
311 HOLDER; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-188-2 02 1 1508-
311 HOLDER; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 1508-
312 STOPPER; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-186-1 02 1 1508-
312 STOPPER; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 1508-
313 ARM; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (A) 		1-72538-184-3 01 1 1508-
313 ARM; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 1508-
313 ARM; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		1-72538-185-3 01 1 1508-
313 ARM; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 1508-
330 STAND; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		8-97589-727-1 01 1 1508-
361 RING; SNAP
1 CREWS SEAT ASM PASSENGER DELETE(AP5) ID=5 		9-09185-405-0 02 1 1508-

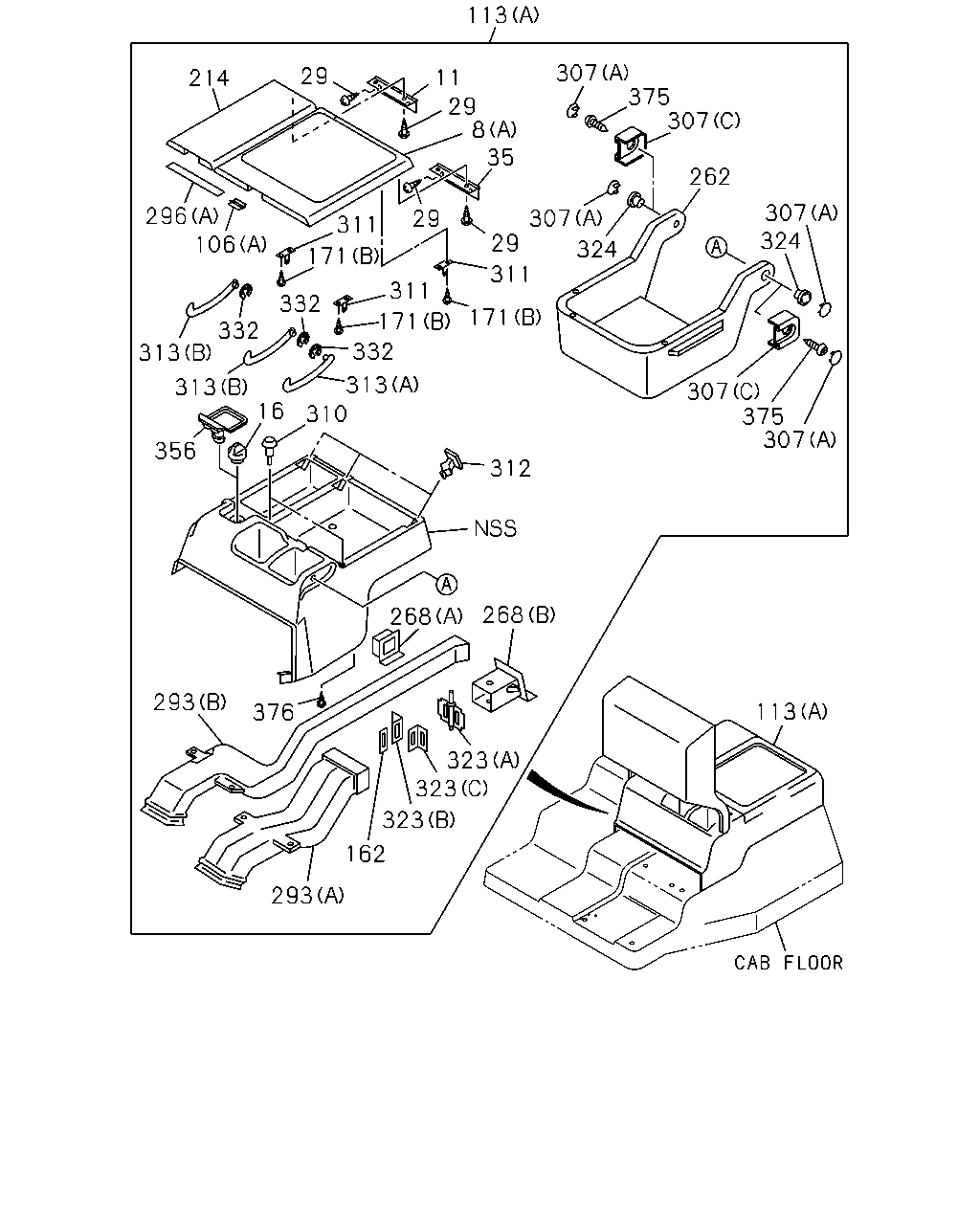

çizim 498431
214 296 332 313 356 313 310 293 376 293 323 162 323 268 323 268 312 313 332 171 311 332 311 106 29 11 113 29 35 307 307 262 375 307 307 307 324 113 171 311 29 307 375 16 324 171 29 8
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		1-72538-321-0 01 1 1508-
8 LID; CENTER CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72537-332-0 01 1 1508-
11 HINGE; CONSOLE LID
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 1508-
16 KNOB ASM
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 1508-
29 SCREW; HINGE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 1508-
35 HINGE; CENTER CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-182-1 01 1 1508-
35 HINGE; CENTER CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 1508-
106 LOCK; CONSOLE LID
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		1-72538-180-0 01 1 1508-
106 LOCK; CONSOLE LID
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72537-079-0 02 1 1508-
113 BOX; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		1-72538-315-1 01 1 1508-
113 BOX; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (A) 		1-72537-337-0 01 1 1508-
113 BOX; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-336-0 01 1 1508-
162 CUSHION; PARCEL BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 1508-
171 SCREW; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (A) M6X20 W/LK&PL WASHER 		0-36230-620-0 02 1 1508-
171 SCREW; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1508-
171 SCREW; CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1508-
214 LID; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-186-0 01 1 1508-
214 LID; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 1508-
262 TABLE ASM
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 1508-
268 COVER; DUCT
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 1508-
268 COVER; DUCT
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 1508-
268 COVER; DUCT
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B) 		1-72537-268-0 01 1 1508-
268 COVER; DUCT
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-269-0 01 1 1508-
293 DUCT
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 1508-
293 DUCT
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 1508-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1508-
296 SEAL
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1508-
307 COVER; HOLE,CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (C) 		1-72537-270-1 02 1 1508-
307 COVER; HOLE,CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1508-
307 COVER; HOLE,CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1508-
310 CUSHION; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-187-0 02 1 1508-
310 CUSHION; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1508-
311 HOLDER; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-188-2 02 1 1508-
311 HOLDER; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 1508-
312 STOPPER; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-186-1 02 1 1508-
312 STOPPER; CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 1508-
313 ARM; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (A) 		1-72538-184-3 01 1 1508-
313 ARM; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 1508-
313 ARM; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		1-72538-185-3 01 1 1508-
313 ARM; CTR CONSOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 1508-
323 SHUTTER
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 1508-
323 SHUTTER
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 1508-
323 SHUTTER
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 1508-
324 BUSHING
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 1508-
332 RING; SNAP,CONSOLE BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 1508-
356 COVER; KNOB
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-271-1 01 1 1508-
375 SCREW; TAP BUSHING
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 1508-
376 SCREW; TAP DUCT
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) M4X14 		1-72537-320-0 03 1 1508-
