7-43 — SUN VISOR AND ASSIST GRIP (#168068) — 78 parça

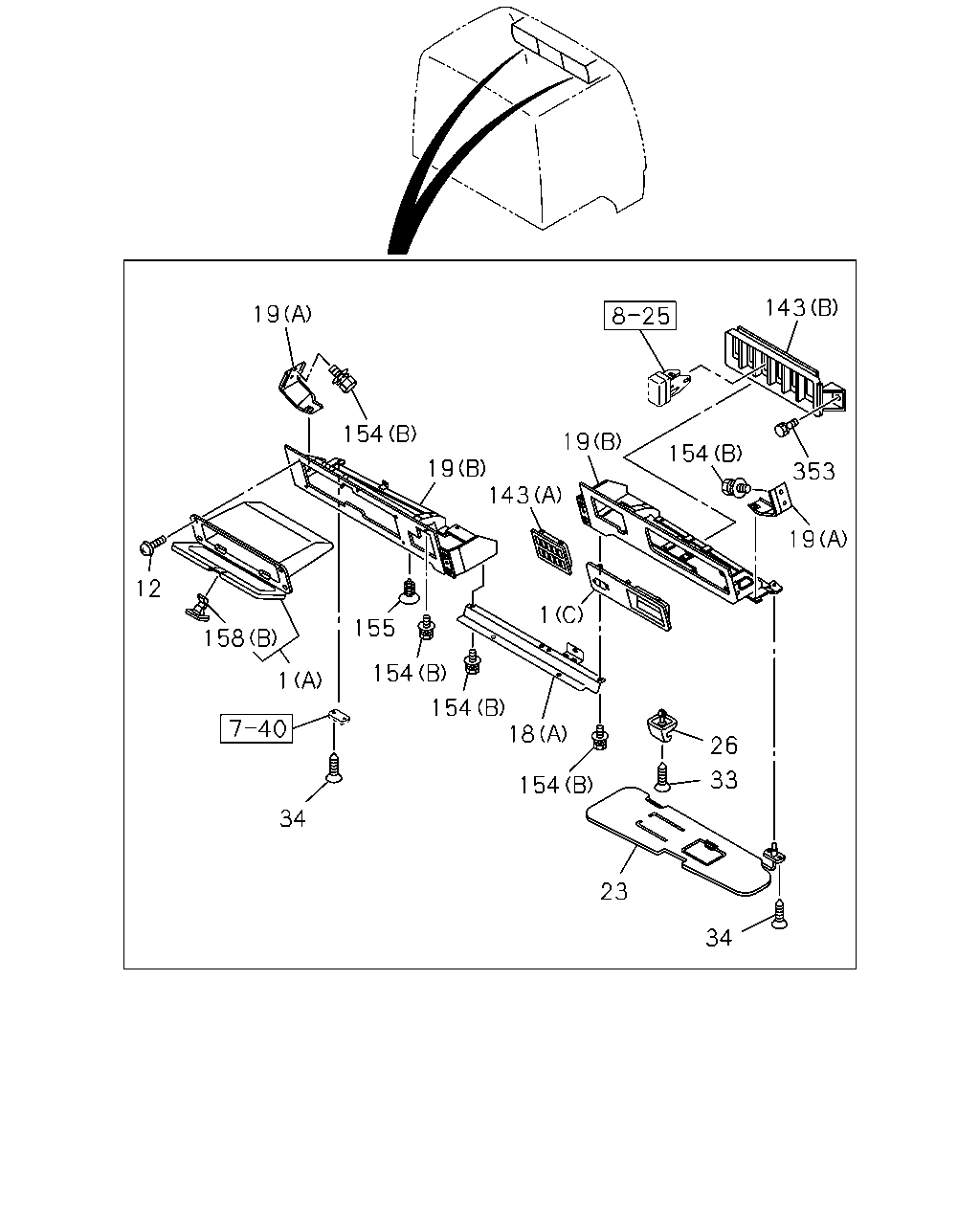

353 154 19 143 26 33 18 154 154 154 155 158 12 1 34 23 34 143 19 154 19 19 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1508-
1	BOARD; HEADER SHELF HEADER CONSOLE BOX ASSIST<EBA> (A)	1-72447-761-6	01	1	1508-
1	BOARD; HEADER SHELF TACHOGRAPH DELETE<SCY> (C)	1-72447-979-0	01	1	1508-
1	BOARD; HEADER SHELF EXC. TACHOGRAPH DELETE<SCY> (C)	1-72447-875-4	01	1	1508-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1508-
12	SCREW; HEADER SHELF HEADER CONSOLE BOX ASSIST<EBA> M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1508-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1508-
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	1508-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	1508-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1508-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1508-
19	SUPPORT ASM; HEADER SHELF REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (B)	8-98111-377-1	01	1	1508-
19	SUPPORT ASM; HEADER SHELF EXC. REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (B)	1-72447-878-4	01	1	1508-
23	SUN VISOR	1-73137-176-1	01	1	1508-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1508-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1508-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1508-
143	BEZEL (A)	1-72447-768-2	01	1	1508-
143	BEZEL (B)	1-72447-980-2	01	1	1508-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1508-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1508-
155	FASTENER; HOLDER	1-09983-181-0	01	1	1508-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	1508-
158	LOCK; HEADER SHELF HEADER CONSOLE BOX ASSIST<EBA> (B)	1-72448-376-0	01	1	1508-
353	BOLT; BEZEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1508-

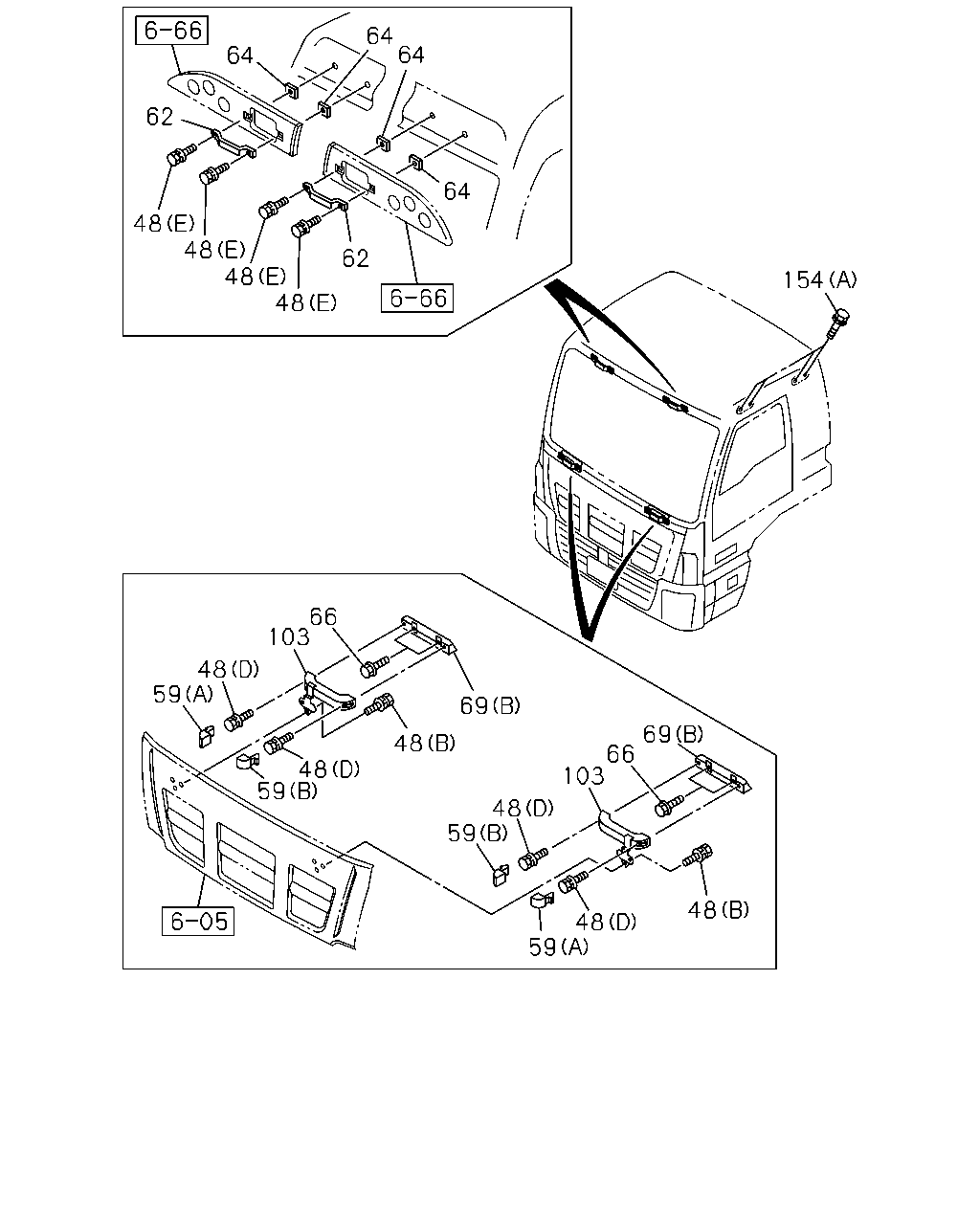

59 48 48 59 48 66 103 69 69 48 48 59 59 103 48 66 154 62 64 64 64 64 62 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1508-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1508-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1508-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1508-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1508-
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	1508-
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	1508-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	1508-
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1508-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1508-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1508-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	1508-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	1508-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	1508-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1508-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1508-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1508-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1508-

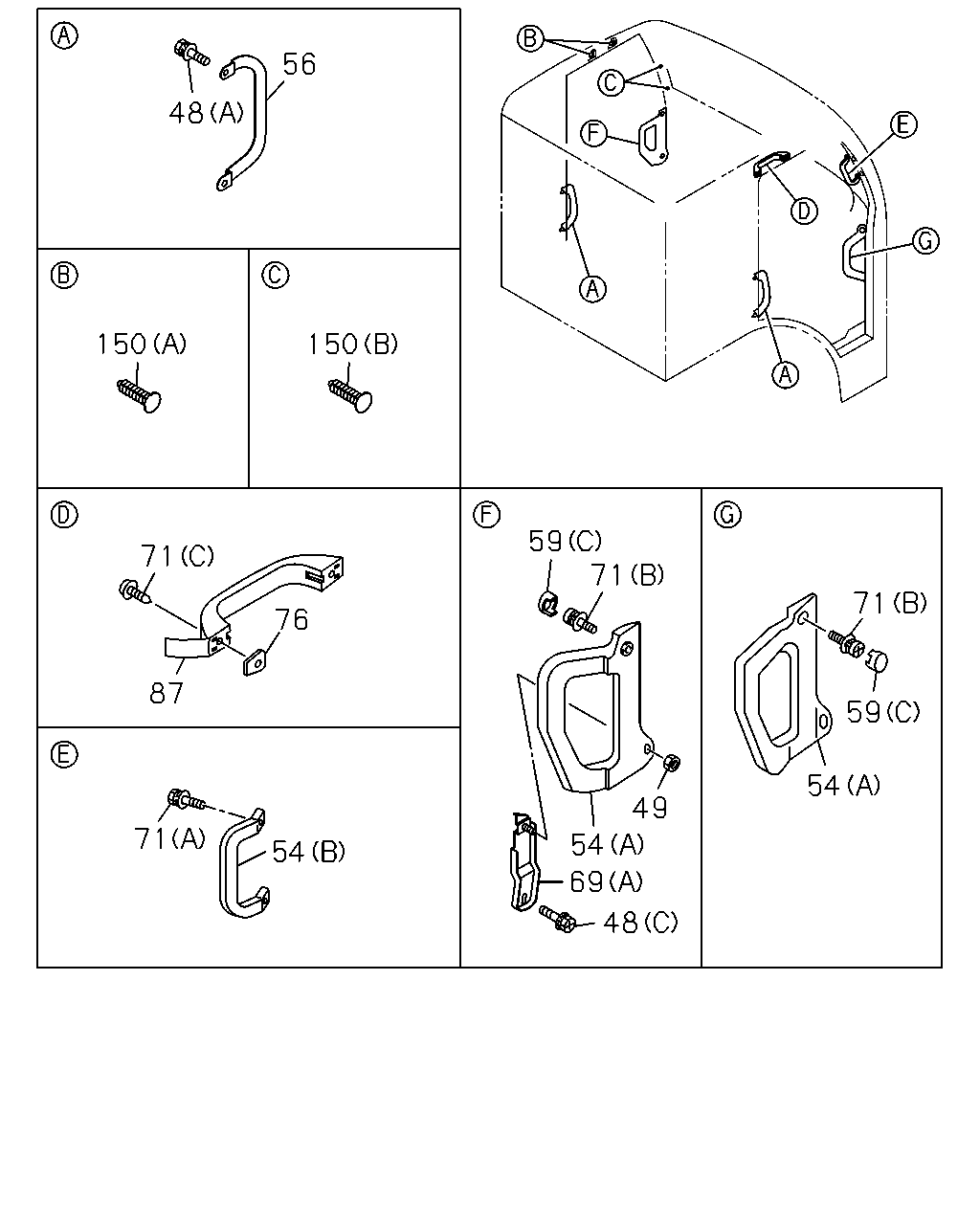

71 59 54 54 69 49 48 71 59 76 54 71 87 71 150 150 48 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1508-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1508-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1508-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1508-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1508-
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	1508-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	1508-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	1508-
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	01	1	1508-
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	1508-
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	1508-
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	1508-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	1508-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	1508-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	1508-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	1508-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	1508-
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	1508-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	1508-
76	SPACER; ASSIST GRIP	1-73618-180-0	02	1	1508-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	1508-
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1508-
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1508-

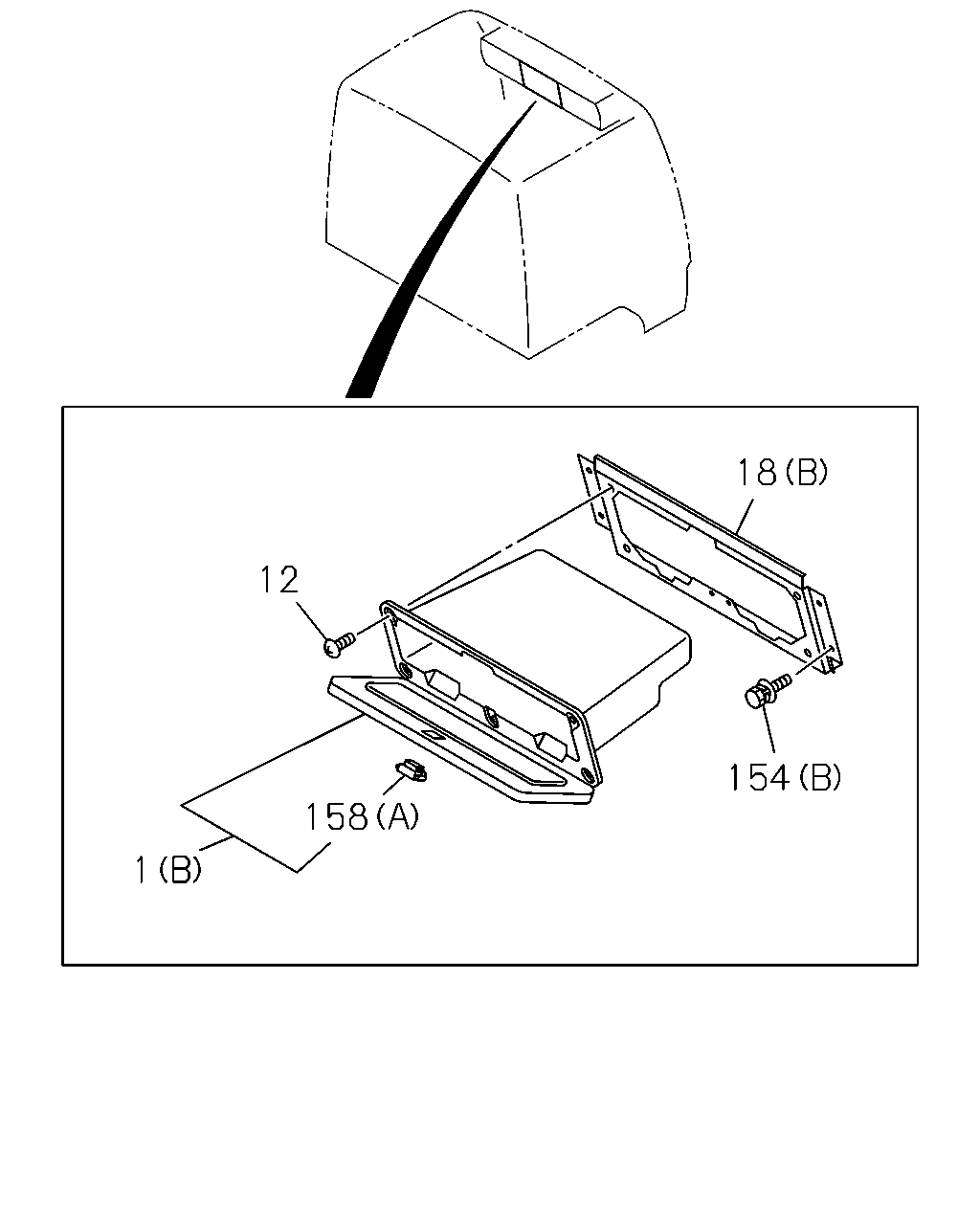

154 18 12 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1508-
1	BOARD; HEADER SHELF HEADER CONSOLE BOX ASSIST<EBA> (A)	1-72447-761-6	01	1	1508-
1	BOARD; HEADER SHELF TACHOGRAPH DELETE<SCY> (C)	1-72447-979-0	01	1	1508-
1	BOARD; HEADER SHELF EXC. TACHOGRAPH DELETE<SCY> (C)	1-72447-875-4	01	1	1508-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1508-
12	SCREW; HEADER SHELF HEADER CONSOLE BOX ASSIST<EBA> M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1508-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1508-
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	1508-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1508-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1508-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	1508-
158	LOCK; HEADER SHELF HEADER CONSOLE BOX ASSIST<EBA> (B)	1-72448-376-0	01	1	1508-
