7-20 — MIRROR AND MIRROR STAY (#168065) — 188 parça

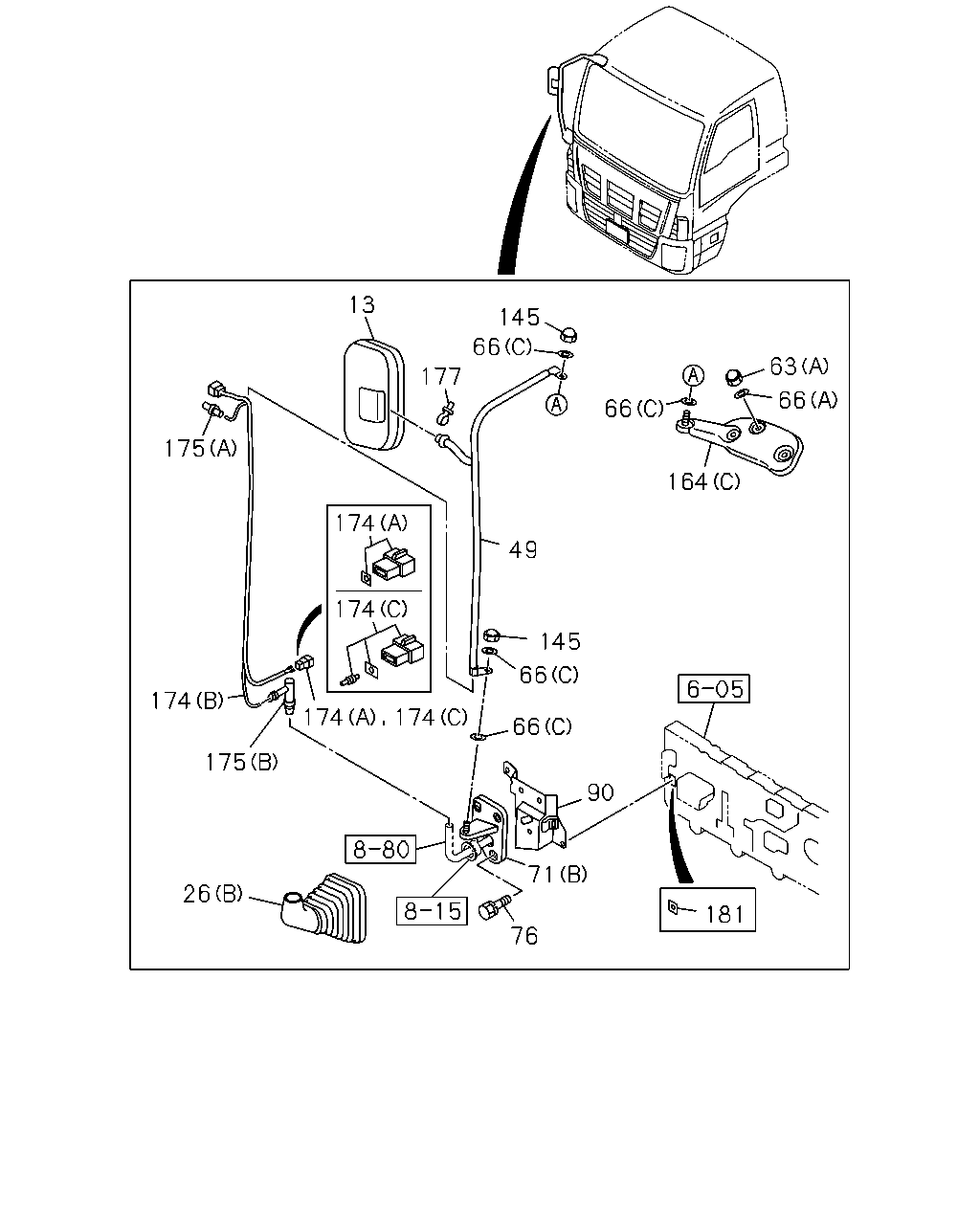

çizim 498328
13 175 177 66 145 66 63 66 164 49 174 174 174 175 26 76 71 90 66 66 145 174 174
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98316-491-1 01 1 1508-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-71707-182-0 01 1 1508-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98249-294-1 01 1 1508-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98288-715-1 01 1 1508-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1508-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (C) 		8-98111-284-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (C) 		8-98111-283-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-71707-222-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-71707-221-0 01 1 1508-
49 STAY; MIRROR SIDE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98132-448-0 01 1 1508-
49 STAY; MIRROR SIDE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98128-393-0 01 1 1508-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-71707-177-1 01 1 1508-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-71707-175-1 01 1 1508-
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1508-
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1508-
63 NUT; STAY
(B) M8 		1-71798-603-1 02 1 1508-
63 NUT; STAY
(C) M10 CAP NUT 		1-71798-859-0 01 1 1508-
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1508-
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1508-
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1508-
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1508-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71797-809-2 01 1 1508-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-309-4 01 1 1508-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (D) 		1-71798-475-1 02 1 1508-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-71707-224-0 02 1 1508-
76 BOLT; STAY BRKT
M8X40 W/LK&PL WASHER 		0-50640-840-0 06 1 1508-
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 1508-
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 1508-
145 NUT; CAP,SUB STAY
M10 		1-09984-183-0 02 1 1508-
164 STAY; ROOF
(A) 		1-71798-602-1 01 1 1508-
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1508-
164 STAY; ROOF
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (B) 		1-71798-299-4 01 1 1508-
164 STAY; ROOF
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) 		8-98109-829-1 01 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (A) 		1-82625-276-0 02 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-82626-092-5 01 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-82626-088-2 01 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		1-82662-365-1 02 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) 		8-97610-653-0 01 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) 		8-97610-652-0 01 1 1508-
175 JOINT
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (A) 		1-86815-015-0 02 1 1508-
175 JOINT
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-86815-031-0 02 1 1508-
177 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,HEATED<7SV> L=140 		5-09707-031-1 04 1 1508-
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1508-

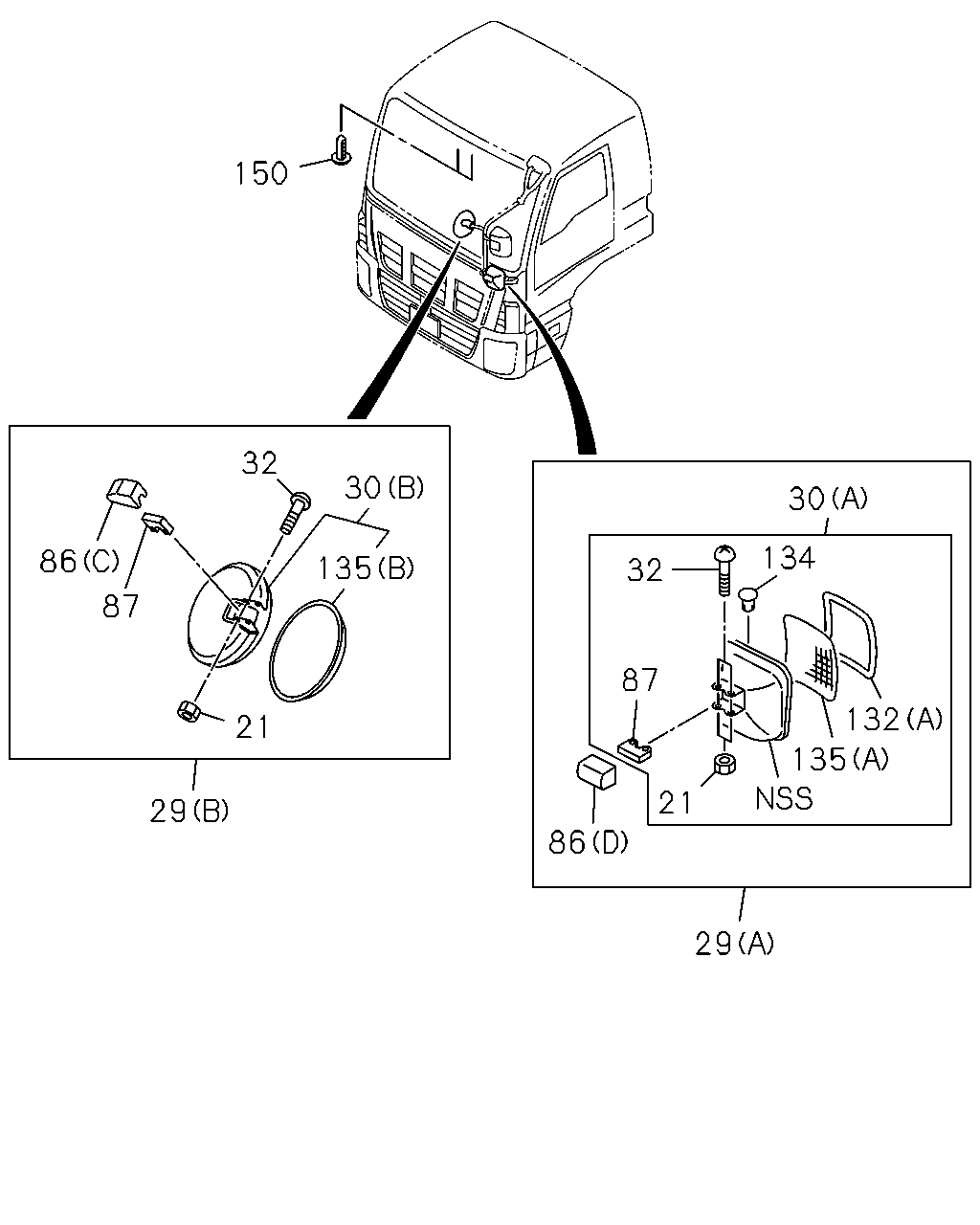

çizim 498330
150 30 135 32 86 87 21 29 86 87 29 21 134 32 30 132 135
BalonParca AdiParca NoAdetTipApplied Date
21 NUT; MIRROR
M5 		1-09984-124-0 04 1 1508-
29 MIRROR ASM; UNDER
(B) 		1-71797-137-1 01 1 1508-
29 MIRROR ASM; UNDER
(A) 		1-71798-421-1 01 1 1508-
30 MIRROR; UNDER
(B) 		1-71797-853-1 01 1 1508-
30 MIRROR; UNDER
(A) 		1-71798-592-1 01 1 1508-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 04 1 1508-
86 COVER; STAY,OUTSIDE MIRROR
(C) BLACK 		1-71737-649-1 01 1 1508-
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1508-
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1508-
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1508-
87 SPACER 1-71737-646-2 02 1 1508-
132 RING; MIRROR
(A) 		1-71737-935-0 01 1 1508-
132 RING; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		8-98120-032-1 01 1 1508-
132 RING; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		8-98120-031-1 01 1 1508-
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 1508-
135 LENS; MIRROR,SIDE UNDER
(B) 		1-71707-130-0 01 1 1508-
135 LENS; MIRROR,SIDE UNDER
(A) 		1-71737-929-0 01 1 1508-
150 PLUG; MIRROR HOLE
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 01 1 1508-
150 PLUG; MIRROR HOLE
EXC. REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 1508-
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1508-

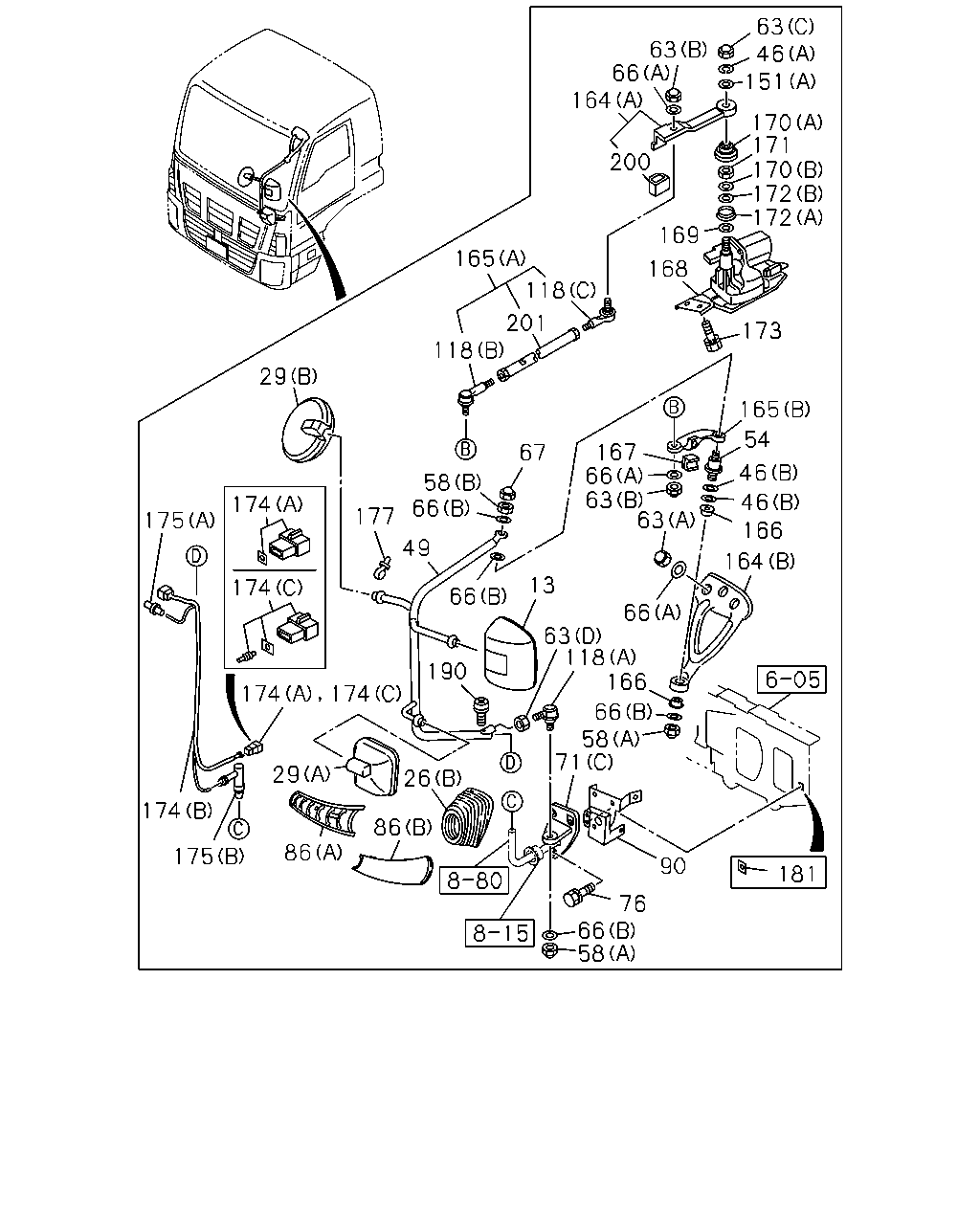

çizim 498430
58 66 90 76 86 86 175 174 174 29 26 174 174 174 175 29 118 165 201 118 167 67 58 177 66 66 66 49 13 63 190 118 166 66 58 71 66 164 46 46 54 165 63 63 173 168 169 172 172 170 171 170 200 164 66 63 63 151 46 166
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98316-491-1 01 1 1508-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-71707-182-0 01 1 1508-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98249-294-1 01 1 1508-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98288-715-1 01 1 1508-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1508-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (C) 		8-98111-284-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (C) 		8-98111-283-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-71707-222-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-71707-221-0 01 1 1508-
29 MIRROR ASM; UNDER
(B) 		1-71797-137-1 01 1 1508-
29 MIRROR ASM; UNDER
(A) 		1-71798-421-1 01 1 1508-
46 WASHER; LK,STAY
(A) ID=10 		1-09985-345-0 01 1 1508-
46 WASHER; LK,STAY
(B) ID=16.7 OD=22.5 WAVE WASHER 		9-61166-107-0 02 1 1508-
49 STAY; MIRROR SIDE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98132-448-0 01 1 1508-
49 STAY; MIRROR SIDE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98128-393-0 01 1 1508-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-71707-177-1 01 1 1508-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-71707-175-1 01 1 1508-
54 BOLT; STAY 1-09980-618-0 01 1 1508-
58 NUT; MIRROR STAY
(A) M12 		1-09984-178-1 02 1 1508-
58 NUT; MIRROR STAY
(B) M12 		1-09984-184-1 01 1 1508-
63 NUT; STAY
(A) M8 		1-09984-187-0 06 1 1508-
63 NUT; STAY
(D) M14 		0-91110-514-0 01 1 1508-
63 NUT; STAY
(B) M8 		1-71798-603-1 02 1 1508-
63 NUT; STAY
(C) M10 CAP NUT 		1-71798-859-0 01 1 1508-
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1508-
66 WASHER; PL
(B) ID=12.5 		1-09985-334-0 04 1 1508-
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1508-
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1508-
67 NUT; STAY
M12 		1-09984-178-1 01 1 1508-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71797-809-2 01 1 1508-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-309-4 01 1 1508-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (D) 		1-71798-475-1 02 1 1508-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-71707-224-0 02 1 1508-
76 BOLT; STAY BRKT
M8X40 W/LK&PL WASHER 		0-50640-840-0 06 1 1508-
86 COVER; STAY,OUTSIDE MIRROR
(C) BLACK 		1-71737-649-1 01 1 1508-
86 COVER; STAY,OUTSIDE MIRROR
(D) BLACK 		1-71737-652-1 01 1 1508-
86 COVER; STAY,OUTSIDE MIRROR
(A) 		1-71798-732-0 01 1 1508-
86 COVER; STAY,OUTSIDE MIRROR
(B) 		1-71798-733-0 01 1 1508-
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 1508-
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 1508-
118 JOINT ASM; BALL
(C) RH THREAD 		1-71798-819-2 01 1 1508-
118 JOINT ASM; BALL
(B) LH THREAD 		1-71798-820-2 01 1 1508-
118 JOINT ASM; BALL
(A) 		1-71797-805-1 01 1 1508-
151 WASHER; PL,MIRROR
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1508-
151 WASHER; PL,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-71797-913-0 02 1 1508-
164 STAY; ROOF
(A) 		1-71798-602-1 01 1 1508-
164 STAY; ROOF
(C) 		1-71707-090-0 01 1 1508-
164 STAY; ROOF
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (B) 		1-71798-299-4 01 1 1508-
164 STAY; ROOF
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) 		8-98109-829-1 01 1 1508-
165 LINK; POWER MIRROR
(B) 		1-71798-600-1 01 1 1508-
165 LINK; POWER MIRROR
(A) 		1-71798-782-2 01 1 1508-
166 BUSHING; STAY 1-09983-179-0 02 1 1508-
167 RUBBER; STOPPER 1-71798-308-0 01 1 1508-
168 POWER UNIT; MIRROR STAY 8-98251-163-0 01 1 1508-
169 WASHER; PL,POWER UNIT
ID=26.2 OD=44 T=2 		1-86855-011-1 01 1 1508-
170 CAP; POWER UNIT
(A) 		1-86855-012-0 01 1 1508-
170 CAP; POWER UNIT
(B) 		1-86855-014-1 01 1 1508-
171 NUT; POWER UNIT
M26 		1-86855-013-1 01 1 1508-
172 SEAL; RUBBER,POWER UNIT
(A) 		1-79928-003-1 01 1 1508-
172 SEAL; RUBBER,POWER UNIT
(B) 		1-86855-015-0 01 1 1508-
173 BOLT; POWER UNIT
M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (A) 		1-82625-276-0 02 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-82626-092-5 01 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-82626-088-2 01 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		1-82662-365-1 02 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) 		8-97610-653-0 01 1 1508-
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) 		8-97610-652-0 01 1 1508-
175 JOINT
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (A) 		1-86815-015-0 02 1 1508-
175 JOINT
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-86815-031-0 02 1 1508-
177 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,HEATED<7SV> L=140 		5-09707-031-1 04 1 1508-
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1508-
190 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 1508-
200 STOPPER; STAY 1-71798-597-0 01 1 1508-
201 ROD; MIRROR 1-71798-821-0 01 1 1508-

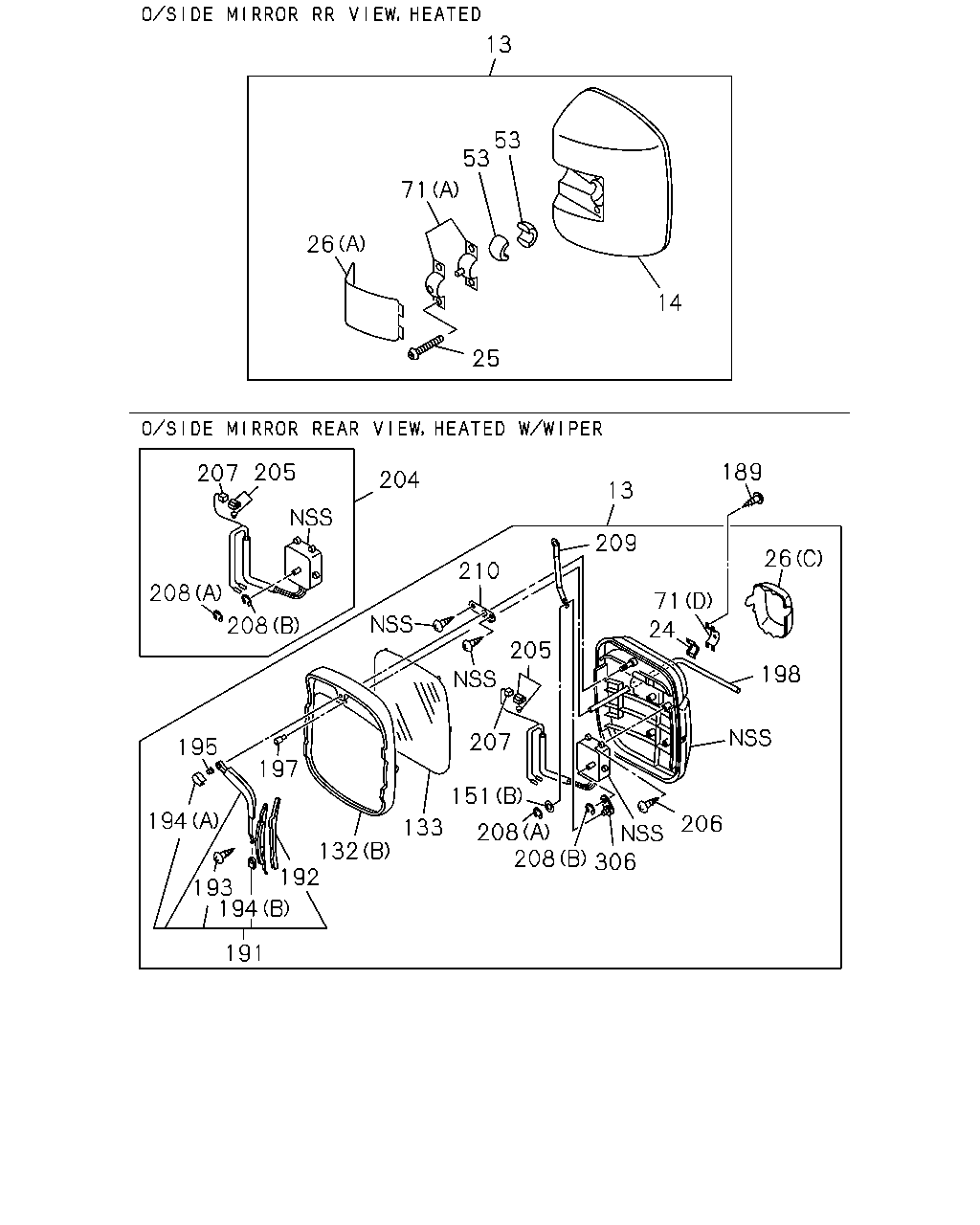

çizim 498527
13 53 53 71 26 14 25 189 13 26 71 209 24 198 206 306 208 208 133 132 151 207 205 210 208 197 195 194 193 194 191 192 204 208 205 207
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98316-491-1 01 1 1508-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-71707-182-0 01 1 1508-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98249-294-1 01 1 1508-
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98288-715-1 01 1 1508-
14 MIRROR ASM; OUTSIDE
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-71707-231-0 01 1 1508-
14 MIRROR ASM; OUTSIDE
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98288-714-0 01 1 1508-
24 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71798-474-0 02 1 1508-
25 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> M6X40 		1-71707-223-0 04 1 1508-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-316-2 01 1 1508-
26 COVER; OUTSIDE MIRROR
(B) 		1-71798-695-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (C) 		8-98111-284-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (C) 		8-98111-283-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-71707-222-0 01 1 1508-
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-71707-221-0 01 1 1508-
53 PIVOT; SIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> ID=22.2 		1-71736-489-2 04 1 1508-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71797-809-2 01 1 1508-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-309-4 01 1 1508-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (D) 		1-71798-475-1 02 1 1508-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-71707-224-0 02 1 1508-
132 RING; MIRROR
(A) 		1-71737-935-0 01 1 1508-
132 RING; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		8-98120-032-1 01 1 1508-
132 RING; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		8-98120-031-1 01 1 1508-
133 LENS; MIRROR,OUTSIDE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71797-177-1 01 1 1508-
133 LENS; MIRROR,OUTSIDE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		8-98319-161-0 01 1 1508-
151 WASHER; PL,MIRROR
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 01 1 1508-
151 WASHER; PL,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-71797-913-0 02 1 1508-
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1508-
189 SCREW; PIVOT
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> M5X25 W/LK&PL WASHER 		0-36230-525-0 04 1 1508-
191 WIPER ASM; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71798-468-3 01 1 1508-
191 WIPER ASM; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71798-467-2 01 1 1508-
192 RUBBER; MIRROR WIPER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71798-535-0 01 1 1508-
192 RUBBER; MIRROR WIPER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71798-471-0 01 1 1508-
193 SCREW; WIPER BRADE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-09981-538-0 02 1 1508-
194 COVER; MIRROR WIPER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (A) 		1-71798-472-0 02 1 1508-
194 COVER; MIRROR WIPER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-71798-473-0 02 1 1508-
195 NUT; MIRROR WIPER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> M5 FLANGE 		1-09984-181-0 02 1 1508-
197 NOZZLE; WIPER MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71797-906-0 02 1 1508-
198 TUBE; WIPER MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> L=230 		1-71797-905-0 02 1 1508-
204 MOTOR KIT; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71797-985-0 02 1 1508-
205 CONNECTOR KIT; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71797-901-0 02 1 1508-
206 SCREW; MOTOR,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71797-910-0 08 1 1508-
207 HOLDER; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71797-903-0 02 1 1508-
208 RING; SNAP,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (A) 		1-71797-908-0 02 1 1508-
208 RING; SNAP,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-71797-909-0 02 1 1508-
209 LINK ASM; MOTOR,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71797-982-0 01 1 1508-
209 LINK ASM; MOTOR,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71797-915-0 01 1 1508-
210 PLATE ASM; LINK,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71798-836-0 01 1 1508-
210 PLATE ASM; LINK,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71797-907-0 01 1 1508-
306 ARM; CRANK,MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-71798-860-0 02 1 1508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
