◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#168064) — 10 parça

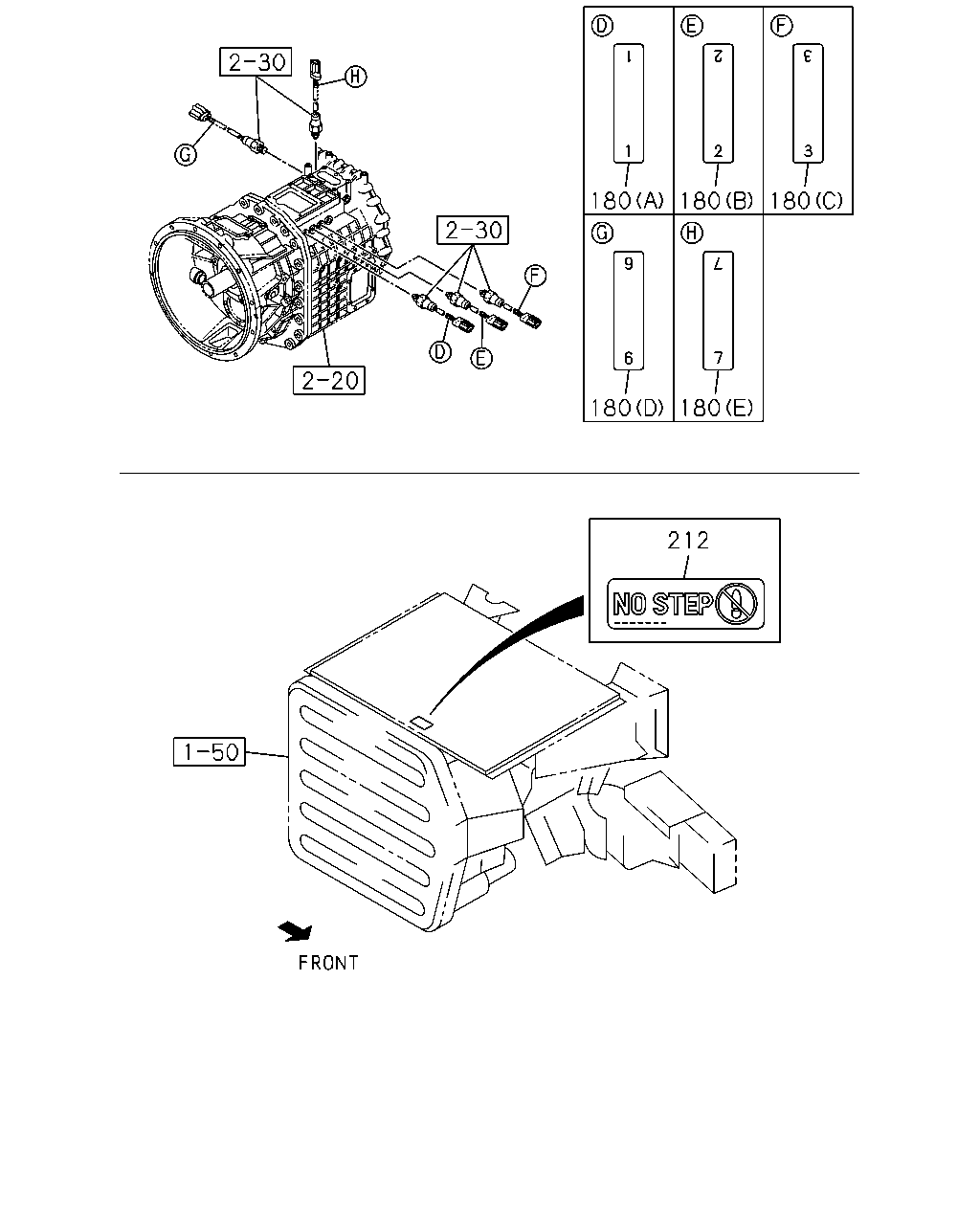

çizim 498239
212 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (A) 		1-85881-871-0 01 1 1508-
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (B) 		1-85881-872-0 01 1 1508-
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (C) 		1-85881-873-0 01 1 1508-
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (D) 		1-85881-880-0 01 1 1508-
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (E) 		1-85881-881-0 01 1 1508-
212 LABEL; SAFETY 8-97624-096-0 01 1 1508-

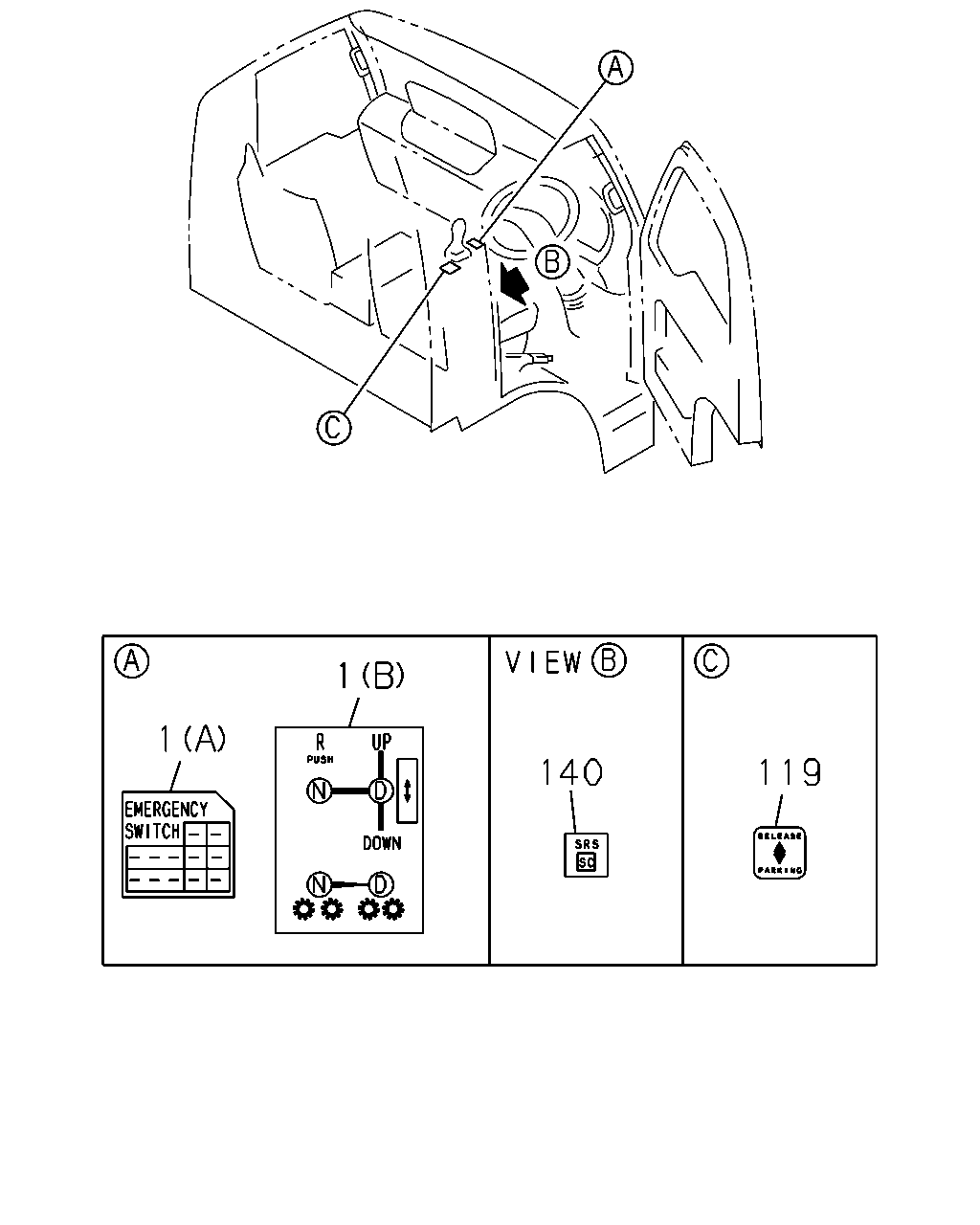

çizim 498507
1 1 140 119
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (B) 		1-85881-842-0 01 1 1508-
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (A) 		1-85881-879-1 01 1 1508-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1508-
140 PLATE; CAUTION,SRS
MARK SC 		1-85878-040-0 01 1 1508-
