◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#168062) — 34 parça

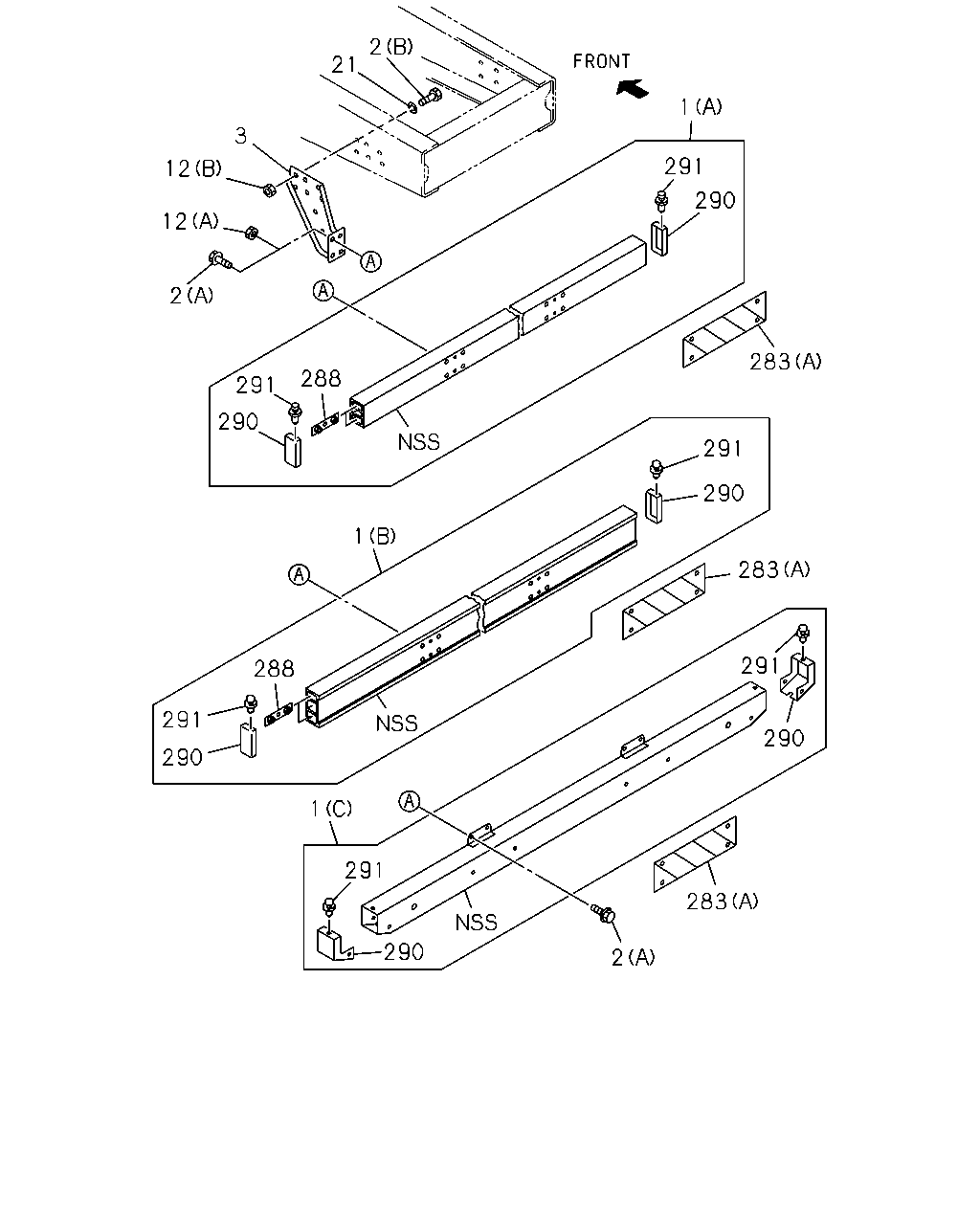

çizim 498327
2 21 3 12 12 2 291 288 290 1 288 291 290 1 291 290 283 2 290 291 283 290 291 283 290 291 1
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER; RR
ALUMINUM REAR BUMPER<SMU> (A) ALUMINUM BUMPER STAMP E5W 		8-98194-030-0 01 1 1508-
1 BUMPER; RR
BUMPER REAR REINFORCEMENT VAR5<SMV> (B) ALUMINUM BUMPER STAMP E4W 		8-98194-029-0 01 1 1508-
1 BUMPER; RR
STEEL REAR BUMPER<SLM> (C) STEEL BUMPER STAMP F1W 		8-98194-028-0 01 1 1508-
2 BOLT; BACK BAR
STEEL REAR BUMPER<SLM>,ALUMINUM REAR BUMPER<SMU>, BUMPER REAR REINFORCEMENT VAR5<SMV> (B) M16X40 		0-20851-640-0 12 1 1508-
2 BOLT; BACK BAR
STEEL REAR BUMPER<SLM>,ALUMINUM REAR BUMPER<SMU>, BUMPER REAR REINFORCEMENT VAR5<SMV> (A) M12X30 FLANGE 		0-28651-230-0 08 1 1508-
3 BRACKET; BUMPER
ALUMINUM REAR BUMPER<SMU> STAMP DL1 		1-71230-597-0 01 1 1508-
3 BRACKET; BUMPER
ALUMINUM REAR BUMPER<SMU> STAMP DL1 		1-71230-590-0 01 1 1508-
3 BRACKET; BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> STAMP DU1 		1-71230-596-0 01 1 1508-
3 BRACKET; BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> STAMP DU1 		1-71230-589-0 01 1 1508-
3 BRACKET; BUMPER
STEEL REAR BUMPER<SLM> STAMP DNU 		8-98199-173-0 01 1 1508-
3 BRACKET; BUMPER
STEEL REAR BUMPER<SLM> STAMP DNU 		8-98199-172-0 01 1 1508-
12 NUT; BRKT
STEEL REAR BUMPER<SLM> (A) M12 FLANGE 		0-91180-212-0 08 1 1508-
12 NUT; BRKT
STEEL REAR BUMPER<SLM>,ALUMINUM REAR BUMPER<SMU>, BUMPER REAR REINFORCEMENT VAR5<SMV> (B) M16 		0-91110-516-0 12 1 1508-
21 WASHER; LK,BUMPER
STEEL REAR BUMPER<SLM>,ALUMINUM REAR BUMPER<SMU>, BUMPER REAR REINFORCEMENT VAR5<SMV> ID=16.2 		0-91510-816-0 12 1 1508-
283 REFLECTOR; REFLEX,RR
(B) 		1-82290-011-1 08 1 1508-
283 REFLECTOR; REFLEX,RR
(A) 		8-98104-026-0 01 1 1508-
283 REFLECTOR; REFLEX,RR
(A) 		8-98104-020-0 01 1 1508-
288 PLATE; RR BUMPER,REFLECTOR
ALUMINUM REAR BUMPER<SMU>,BUMPER REAR REINFORCEMENTVAR5<SMV> 		1-71290-066-0 04 1 1508-
290 COVER; RR
ALUMINUM REAR BUMPER<SMU> 		8-98194-051-0 02 1 1508-
290 COVER; RR
BUMPER REAR REINFORCEMENT VAR5<SMV> 		1-71290-067-0 02 1 1508-
290 COVER; RR
STEEL REAR BUMPER<SLM> 		8-98194-050-0 02 1 1508-
291 RIVET; REFLECTOR
ALUMINUM REAR BUMPER<SMU>,BUMPER REAR REINFORCEMENTVAR5<SMV> 		1-71290-062-0 04 1 1508-
291 RIVET; REFLECTOR
STEEL REAR BUMPER<SLM> 		8-98194-052-0 06 1 1508-

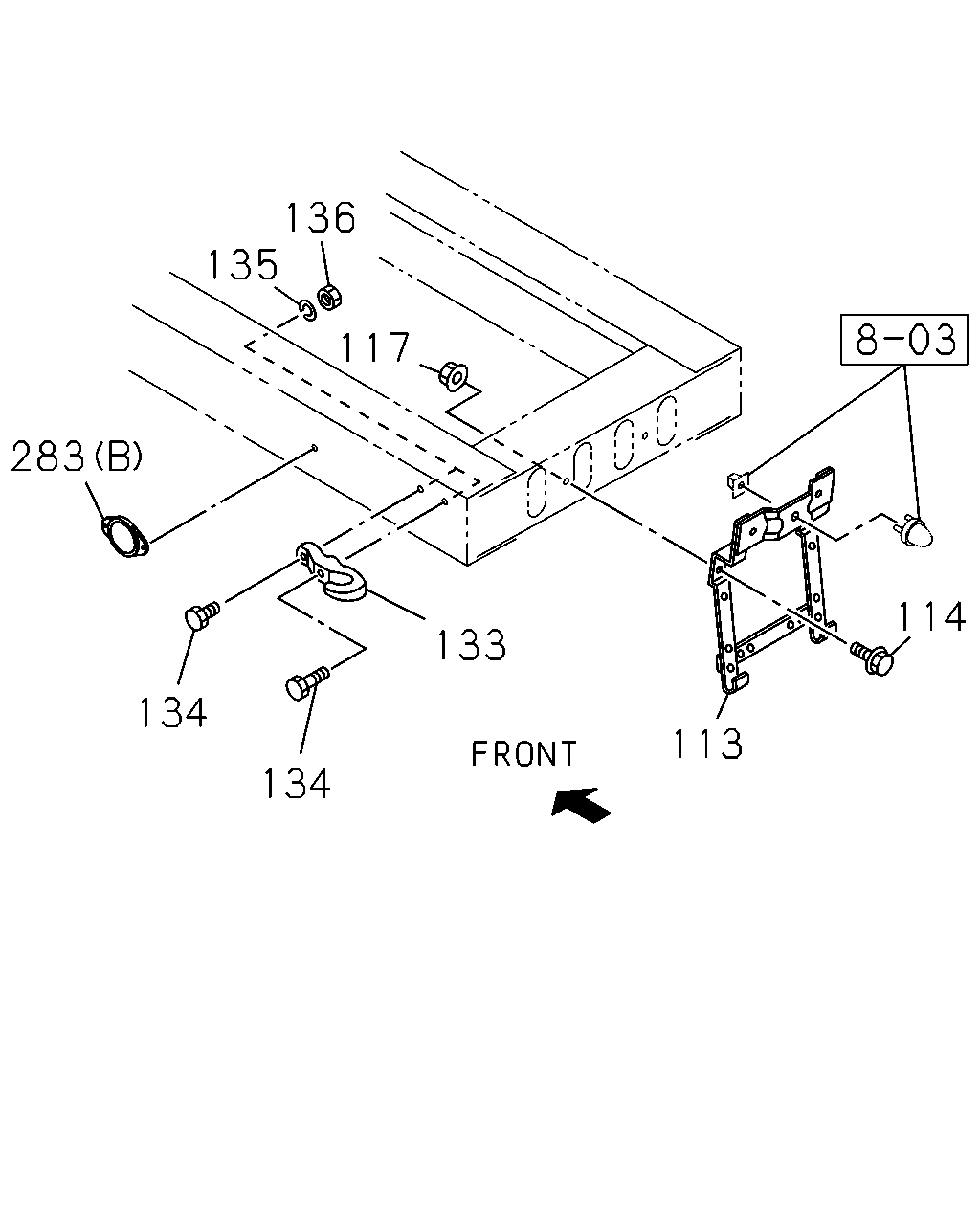

çizim 498443
114 113 133 117 136 135 283 134 134
BalonParca AdiParca NoAdetTipApplied Date
113 BRACKET; LICENSE PLATE 8-98052-734-1 01 1 1508-
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 1508-
117 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1508-
133 HOOK 1-57181-027-1 01 1 1508-
134 BOLT; HOOK
M16X60 		0-10861-660-0 01 1 1508-
134 BOLT; HOOK
M16X50 		0-20851-650-0 01 1 1508-
135 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1508-
136 NUT; HOOK
M16 		0-91110-516-0 02 1 1508-
283 REFLECTOR; REFLEX,RR
(B) 		1-82290-011-1 08 1 1508-
283 REFLECTOR; REFLEX,RR
(A) 		8-98104-026-0 01 1 1508-
283 REFLECTOR; REFLEX,RR
(A) 		8-98104-020-0 01 1 1508-
