Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

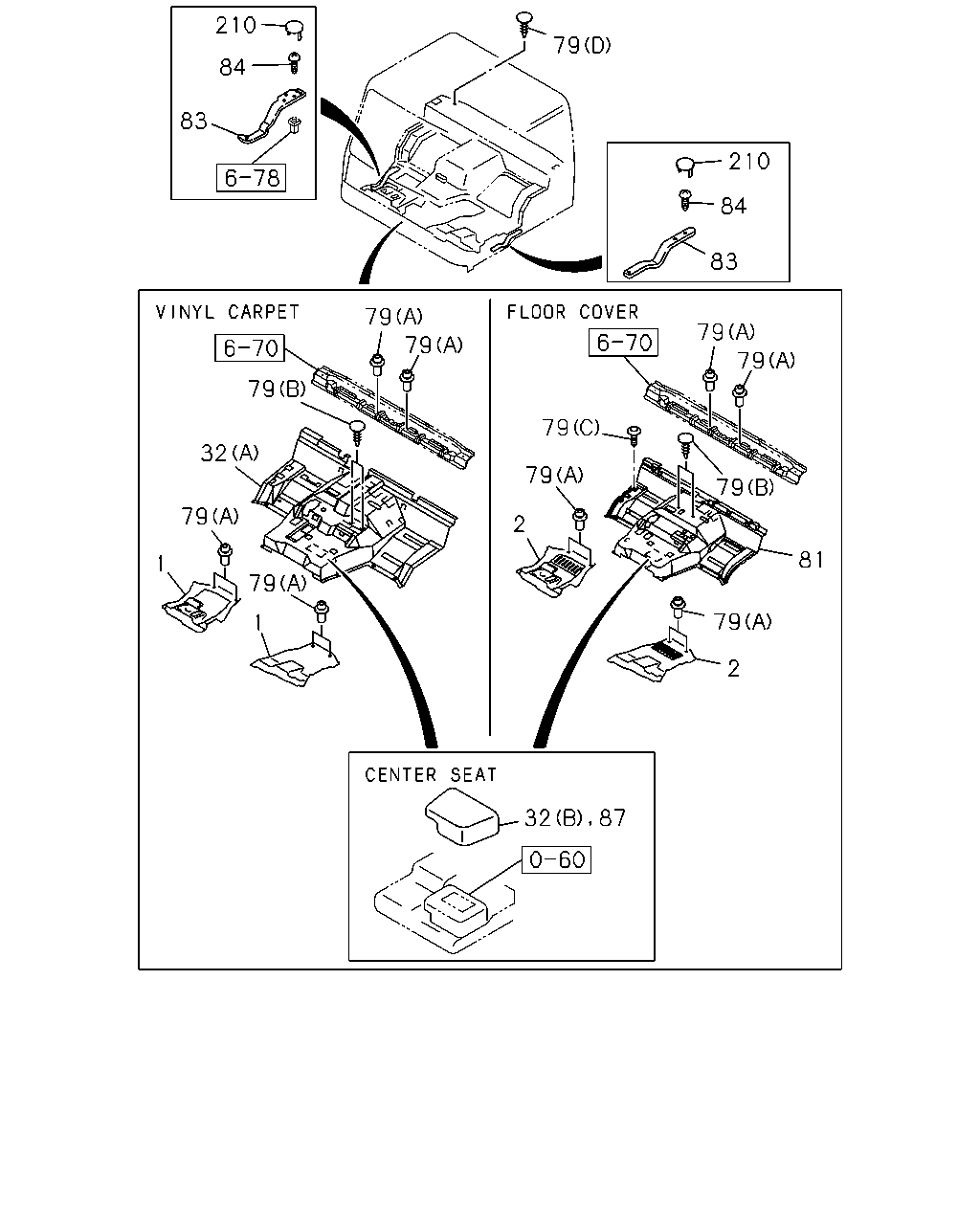

6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#168055) — 18 parça
210
84
83
79
210
84
83
79
79
79
81
79
2
2
79
79
32
87
1
79
1
79
32
79
79
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CARPET; FLOOR,FRT
VINYL CARPET<B30>
1-73237-863-2
01
1
1508-
1
CARPET; FLOOR,FRT
VINYL CARPET<B30>
1-73237-864-2
01
1
1508-
2
MAT; FLOOR
FLOOR COVER<6WX>
1-73237-784-1
01
1
1508-
2
MAT; FLOOR
FLOOR COVER<6WX>
1-73237-786-1
01
1
1508-
32
CARPET; FLOOR
VINYL CARPET<B30> SEAT ASM - WITH CENTER SEAT(7BC) (B)
1-73237-835-1
01
1
1508-
32
CARPET; FLOOR
VINYL CARPET<B30> SEAT ASM - WITH CENTER SEAT(7BC) (A)
8-98205-317-1
01
1
1508-
32
CARPET; FLOOR
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) VINYL CARPET<B30> (A)
1-73237-885-3
01
1
1508-
79
HOOK; MALE
(B) D6X23 BLACK
1-09987-114-0
02
1
1508-
79
HOOK; MALE
(D)
1-73317-480-0
01
1
1508-
79
HOOK; MALE
(A) BLACK
8-94279-089-0
08
1
1508-
79
HOOK; MALE
FLOOR COVER<6WX> (C) OD=16 L=11
1-76378-155-0
01
1
1508-
81
MAT; FLOOR,CENTER
FLOOR COVER<6WX> SEAT ASM - WITH CENTER SEAT(7BC)
8-98205-315-0
01
1
1508-
81
MAT; FLOOR,CENTER
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) FLOOR COVER<6WX>
1-73237-887-2
01
1
1508-
83
PLATE; KICKING,FLOOR MAT
1-76798-046-0
01
1
1508-
83
PLATE; KICKING,FLOOR MAT
1-76798-045-0
01
1
1508-
84
SCREW; PLATE TO FLOOR
M5X16
8-94279-312-0
08
1
1508-
87
MAT; FLOOR
FLOOR COVER<6WX> SEAT ASM - WITH CENTER SEAT(7BC)
1-73237-779-1
01
1
1508-
210
COVER; KICKING PLATE
1-76337-461-0
09
1
1508-
