◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#168054) — 23 parça

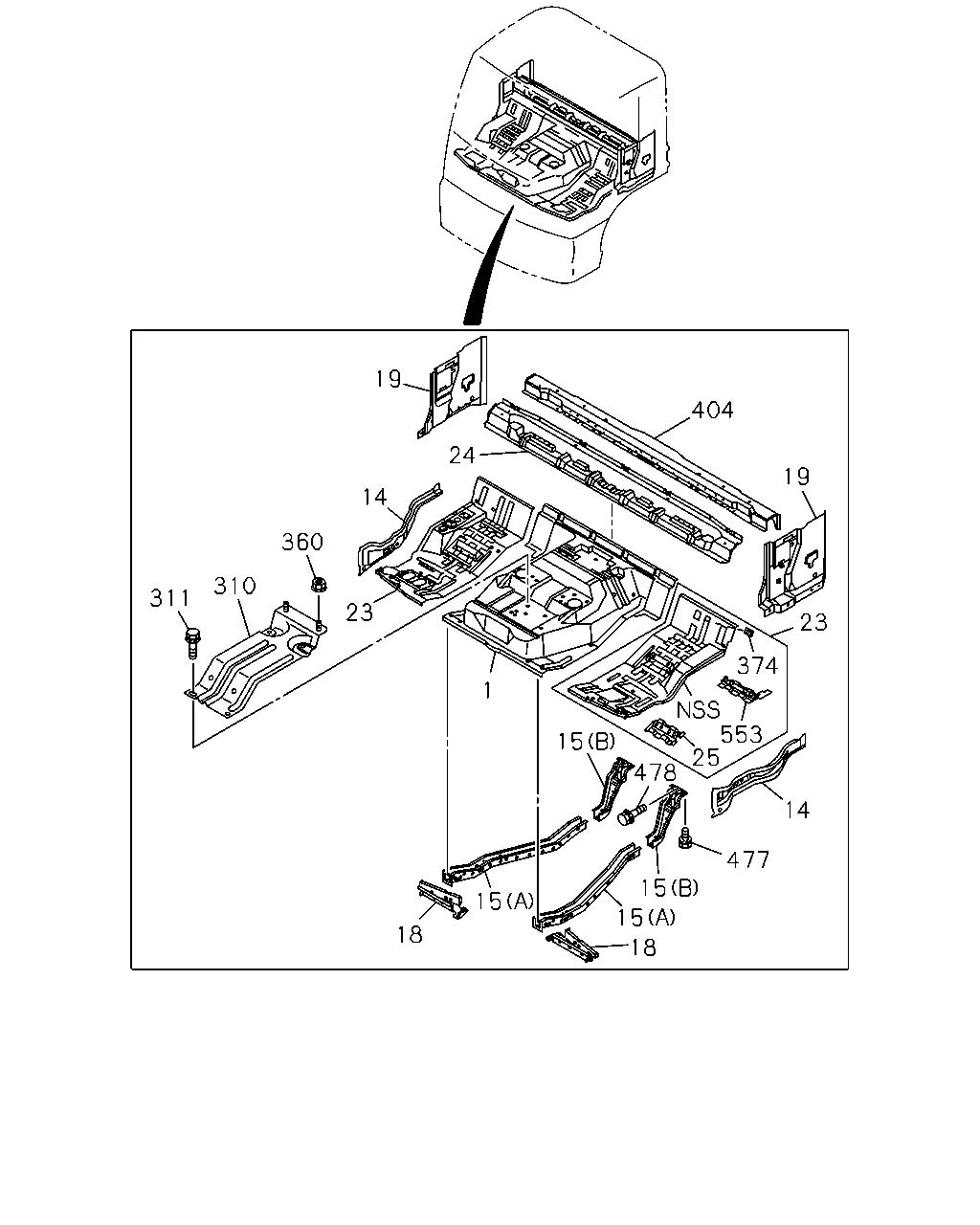

çizim 498322
19 404 23 374 14 477 25 553 15 15 15 18 18 15 311 310 360 23 14 24 19 1 478
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62172-994-0 01 1 1508-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 1508-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 1508-
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 1508-
15 FRAME; UNDER
(B) 		1-62472-743-3 01 1 1508-
15 FRAME; UNDER
(B) 		1-62472-747-3 01 1 1508-
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 1508-
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 1508-
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 1508-
19 PANEL; FLOOR SIDE,REAR 1-62483-288-1 01 1 1508-
19 PANEL; FLOOR SIDE,REAR 1-62483-289-1 01 1 1508-
23 PANEL; FLOOR,SIDE 1-62172-564-7 01 1 1508-
23 PANEL; FLOOR,SIDE 1-62172-860-0 01 1 1508-
24 PANEL; BED PAN 1-62172-773-4 01 1 1508-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 1508-
310 BRACKET; SEAT STAND
SEAT ASM - WITH CENTER SEAT(7BC) 		8-98200-647-0 01 1 1508-
311 BOLT; BRKT
SEAT ASM - WITH CENTER SEAT(7BC) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1508-
360 NUT; BRKT
SEAT ASM - WITH CENTER SEAT(7BC) M8 FLANGE 		0-91180-108-0 02 1 1508-
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 1508-
404 RAIL ASM; MTG,RR 1-62472-749-4 01 1 1508-
477 BOLT; BED PAN TO UNDER FRAME
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1508-
478 BOLT; UNDER FRAME
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 1508-
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 1508-
