◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#168053) — 16 parça

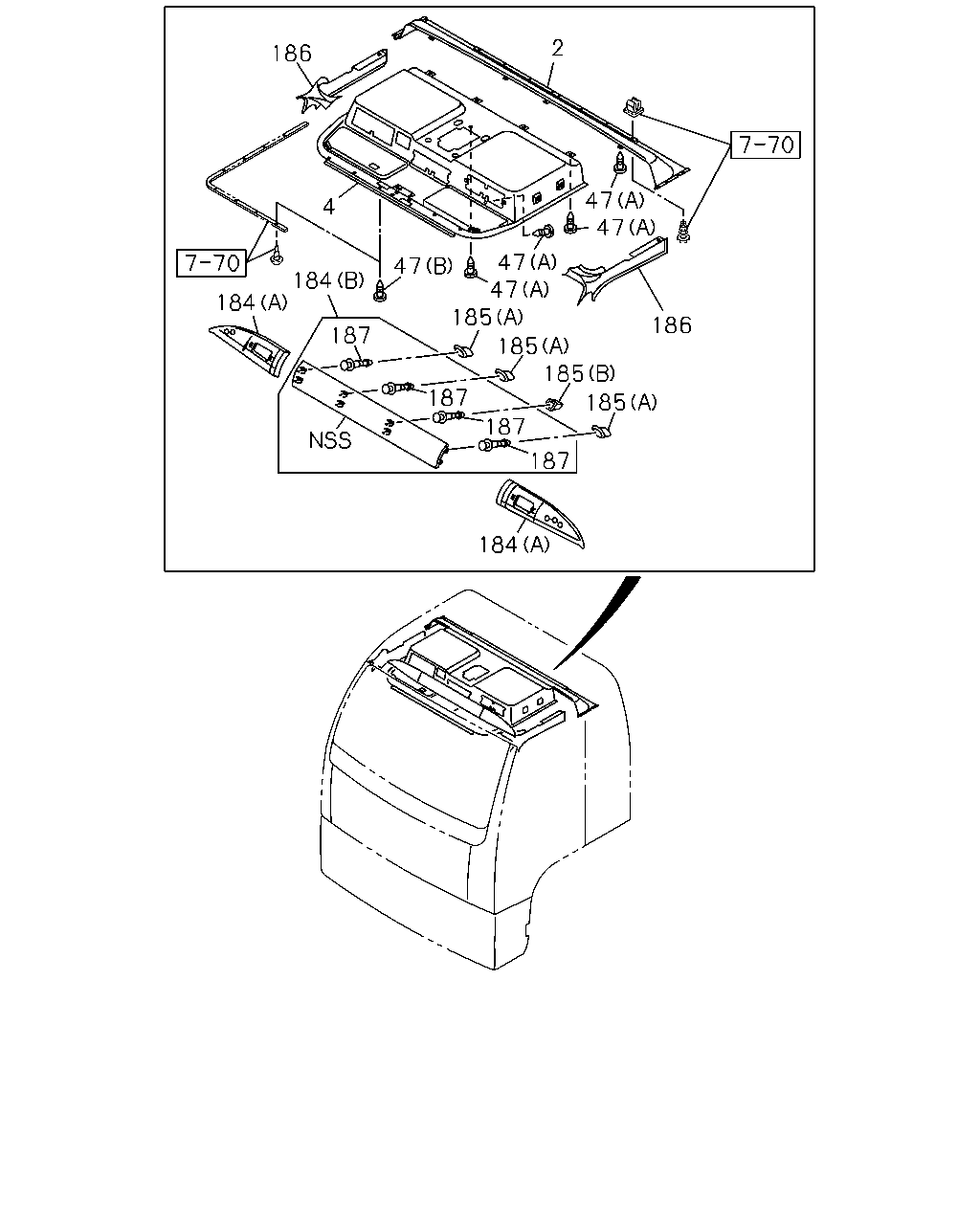

çizim 498320
2 186 4 184 184 47 187 187 184 187 185 184 185 185 185 47 47 186 47 47
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR 1-73317-506-2 01 1 1508-
4 LINING; ROOF,FRT
HEADER CONSOLE BOX ASSIST<EBA> REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> 		8-98111-024-2 01 1 1508-
4 LINING; ROOF,FRT
HEADER CONSOLE BOX ASSIST<EBA> EXC. REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> 		8-98111-023-2 01 1 1508-
4 LINING; ROOF,FRT
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> EXC. HEADER CONSOLE BOX ASSIST<EBA> 		8-98111-026-2 01 1 1508-
4 LINING; ROOF,FRT
EXC. REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ>,HEADER CONSOLE BOX ASSIST<EBA> 		8-98111-025-2 01 1 1508-
47 CLIP; HEADLINING
(A) D5X14.7 		1-09983-183-0 05 1 1508-
47 CLIP; HEADLINING
(A) D6X23 LIGHT GRAY 		1-73318-629-0 10 1 1508-
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (B) D7.7X25 LIGHT GRAY 		1-73317-371-0 08 1 1508-
184 ORNAMENT; ROOF
(B) 		1-73318-660-3 01 1 1508-
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 1508-
184 ORNAMENT; ROOF
(A) 		1-73317-452-1 01 1 1508-
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 1508-
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 1508-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 1508-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 1508-
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
