Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
5 - Frame, Cab Mounting
▶

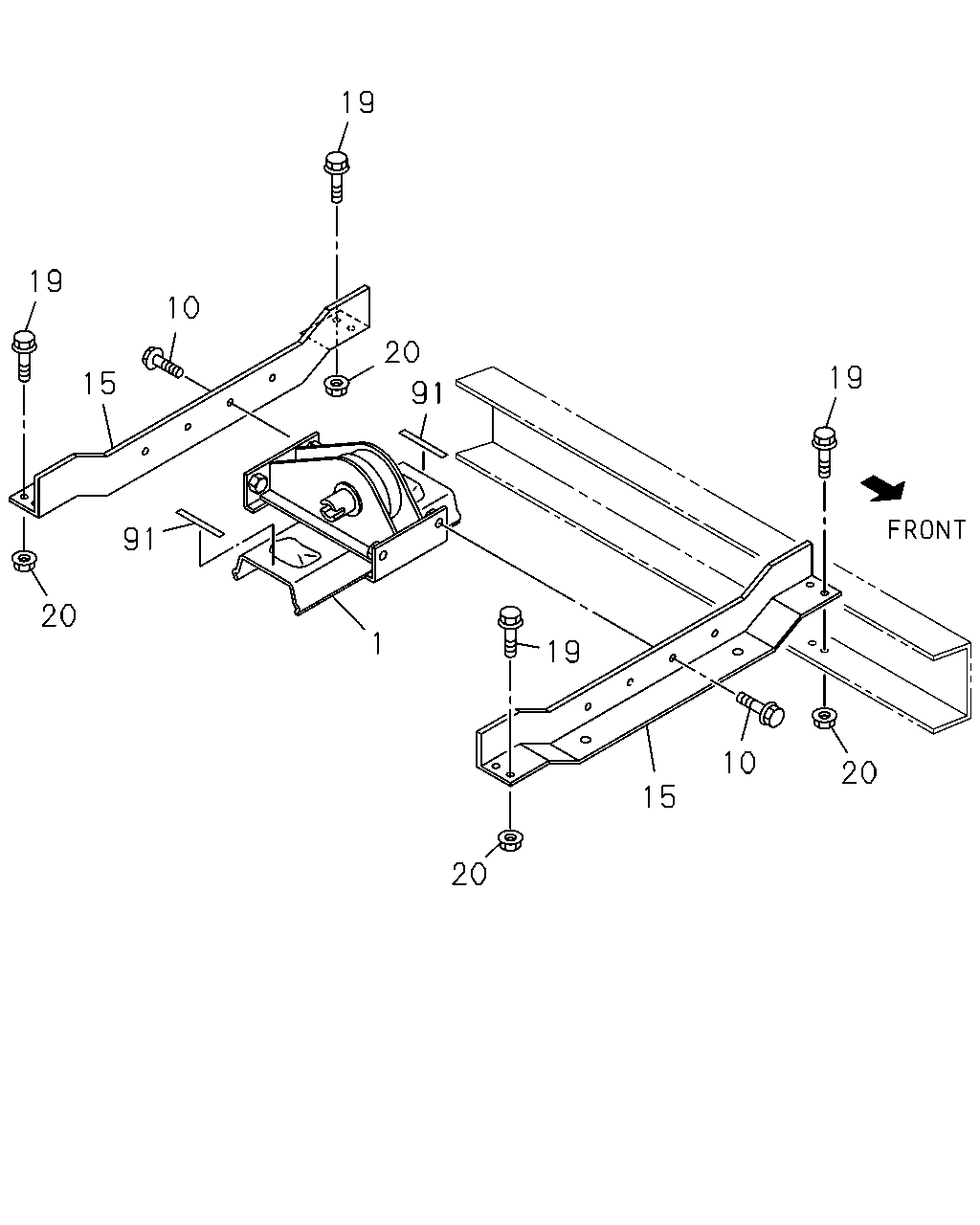

5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#168040) — 7 parça
19
20
10
15
19
91
20
1
19
20
15
20
10
19
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53630-208-3
01
1
1508-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE
0-28651-230-0
04
1
1508-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM>
1-53631-455-0
02
1
1508-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. DISC WHEEL AL<SDM>
1-53631-395-1
02
1
1508-
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE
0-28051-030-0
08
1
1508-
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
1508-
91
PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM>
1-53639-042-0
02
1
1508-
