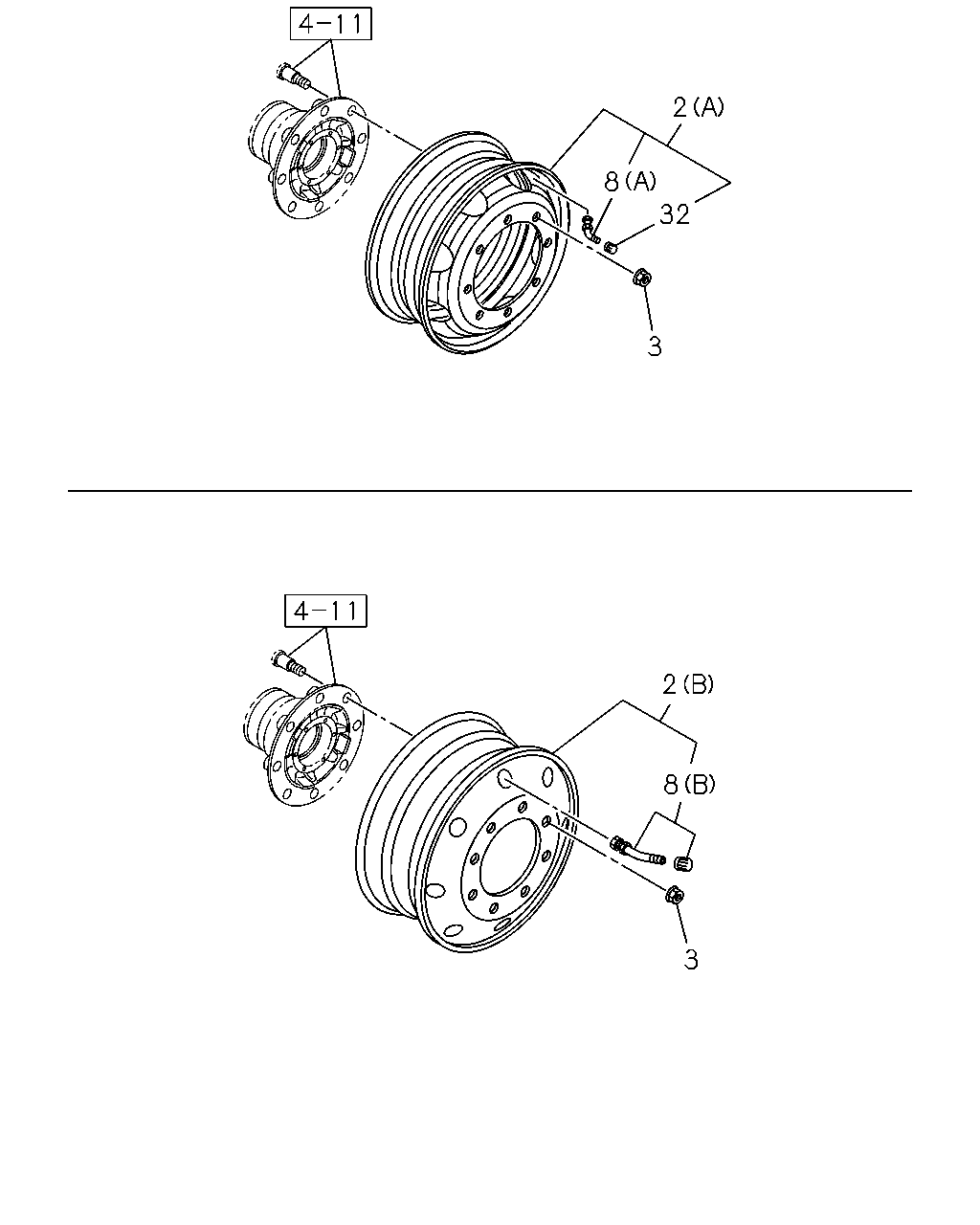

4-80 — ROAD WHEEL (#168033) — 31 parça

2 32 3 8 2 8 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (A) FRONT,REAR	8-98222-134-0	12	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98222-134-0	01	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-19 AL SUMIKIN(FJS) (B) FRONT,REAR	8-98211-730-0	12	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-19 AL SUMIKIN(FJS) SPARE TIRE&DISC WHEEL FRONT TIRE ONE AL<TFM> (B) SPARE	8-98211-730-0	01	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) (B) FRONT,REAR	8-98252-170-0	12	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE&DISC WHEEL FRONT TIRE ONE AL<TFM> (B) SPARE	8-98252-170-0	01	1	1508-
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	32	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (A) FRONT,REAR	1-42370-048-0	12	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-19 AL SUMIKIN(FJS) (B) FRONT,REAR	1-42370-047-0	12	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-19 AL SUMIKIN(FJS) SPARE TIRE&DISC WHEEL FRONT TIRE ONE AL<TFM> (B) SPARE	1-42370-047-0	01	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) (B) FRONT,REAR	1-42370-044-0	12	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE&DISC WHEEL FRONT TIRE ONE AL<TFM> (B) SPARE	1-42370-044-0	01	1	1508-
32	CAP; VALVE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) FRONT,REAR	1-42374-001-0	12	1	1508-
32	CAP; VALVE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42374-001-0	01	1	1508-

2 8 16 32 4 8 32 2 8 2 4 16 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (A) FRONT,REAR	8-98222-134-0	12	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98222-134-0	01	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-19 AL SUMIKIN(FJS) (B) FRONT,REAR	8-98211-730-0	12	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-19 AL SUMIKIN(FJS) SPARE TIRE&DISC WHEEL FRONT TIRE ONE AL<TFM> (B) SPARE	8-98211-730-0	01	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) (B) FRONT,REAR	8-98252-170-0	12	1	1508-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE&DISC WHEEL FRONT TIRE ONE AL<TFM> (B) SPARE	8-98252-170-0	01	1	1508-
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	32	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (A) FRONT,REAR	1-42370-048-0	12	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-19 AL SUMIKIN(FJS) (B) FRONT,REAR	1-42370-047-0	12	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-19 AL SUMIKIN(FJS) SPARE TIRE&DISC WHEEL FRONT TIRE ONE AL<TFM> (B) SPARE	1-42370-047-0	01	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) (B) FRONT,REAR	1-42370-044-0	12	1	1508-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-20 AL ALCOA(FJT) SPARE TIRE&DISC WHEEL FRONT TIRE ONE AL<TFM> (B) SPARE	1-42370-044-0	01	1	1508-
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	8-98167-051-0	04	1	1508-
32	CAP; VALVE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) FRONT,REAR	1-42374-001-0	12	1	1508-
32	CAP; VALVE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42374-001-0	01	1	1508-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
