◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#168028) — 59 parça

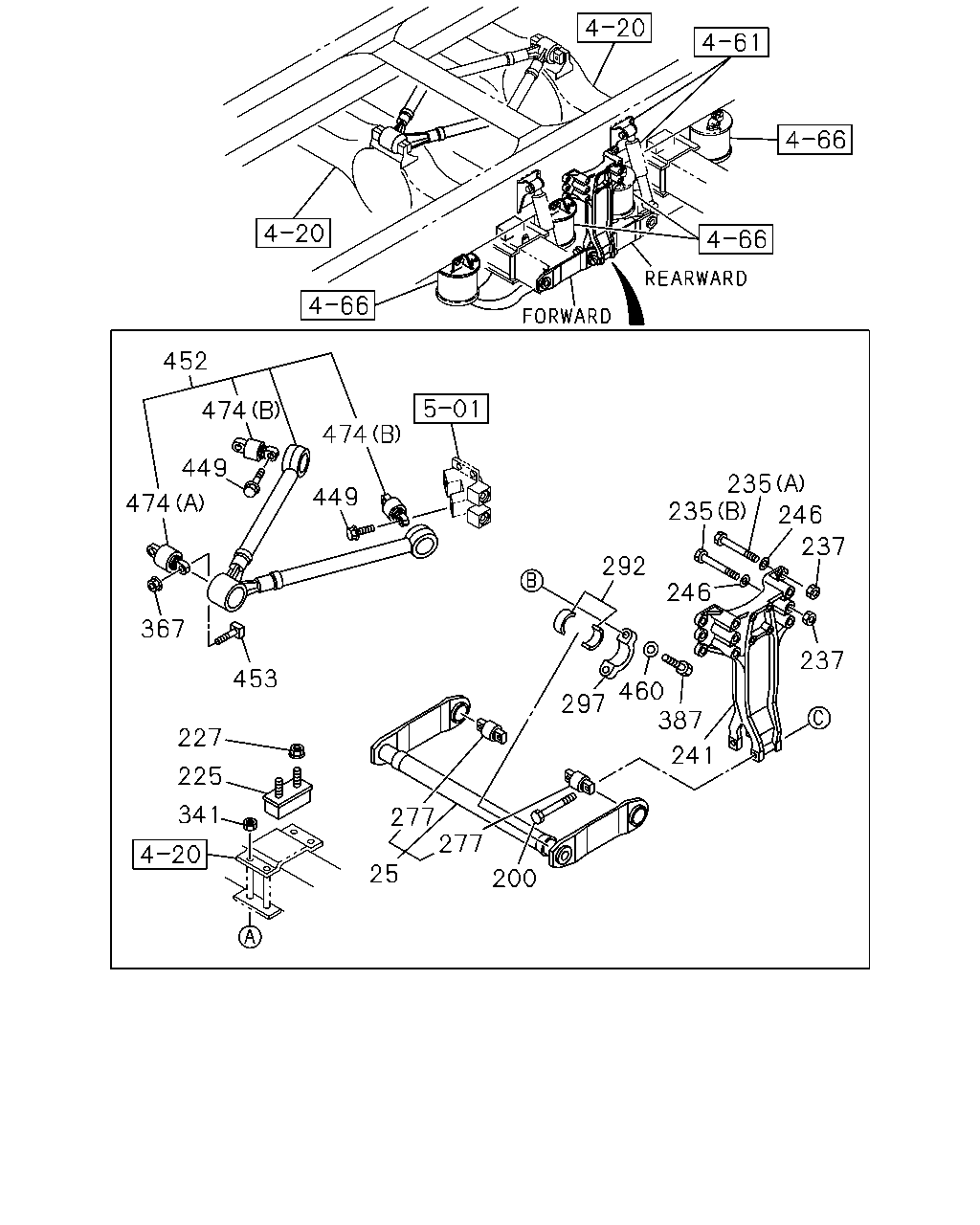

çizim 498256
474 474 452 449 474 449 367 453 227 225 341 277 277 200 25 297 460 387 241 292 246 235 235 246 237 237
BalonParca AdiParca NoAdetTipApplied Date
25 BAR ASM; STAB,RR SUSP 8-98235-512-0 02 1 1508-
200 BOLT; BRKT
M18X190 		1-09000-772-1 04 1 1508-
225 RUBBER; CUSHION,RR SPR 1-53366-041-2 04 1 1508-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1508-
235 BOLT; TORQUE ROD
(A) M20X60 		8-98225-110-0 12 1 1508-
235 BOLT; TORQUE ROD
(B) M20X110 		8-98225-111-0 12 1 1508-
237 NUT; TORQUE ROD
M20 		0-91110-520-0 20 1 1508-
241 BRACKET; TORQUE ROD 8-98215-728-1 02 1 1508-
246 WASHER; TORQUE ROD
ID=21 		8-98010-403-0 24 1 1508-
277 BUSHING; STAB,RR UPR 8-98226-232-0 04 1 1508-
292 BUSHING; RUBBER,STAB 1-51779-126-0 04 1 1508-
297 CAP; STAB BAR 1-52175-025-0 04 1 1508-
341 NUT; BEAM
M24 		0-91110-524-0 16 1 1508-
367 NUT
M24 FLANGE 		8-98019-963-0 04 1 1508-
387 BOLT; CAP FIX,STAB BAR
M18X55 		8-98019-973-0 08 1 1508-
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 08 1 1508-
452 ROD ASM; V 8-98239-062-0 02 1 1508-
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 04 1 1508-
460 WASHER; CAP
ID=19 		8-98010-401-0 08 1 1508-
474 REPAIR KIT; V-ROD
(A) 		8-98240-108-0 02 1 1508-
474 REPAIR KIT; V-ROD
(B) 		8-98240-109-0 04 1 1508-

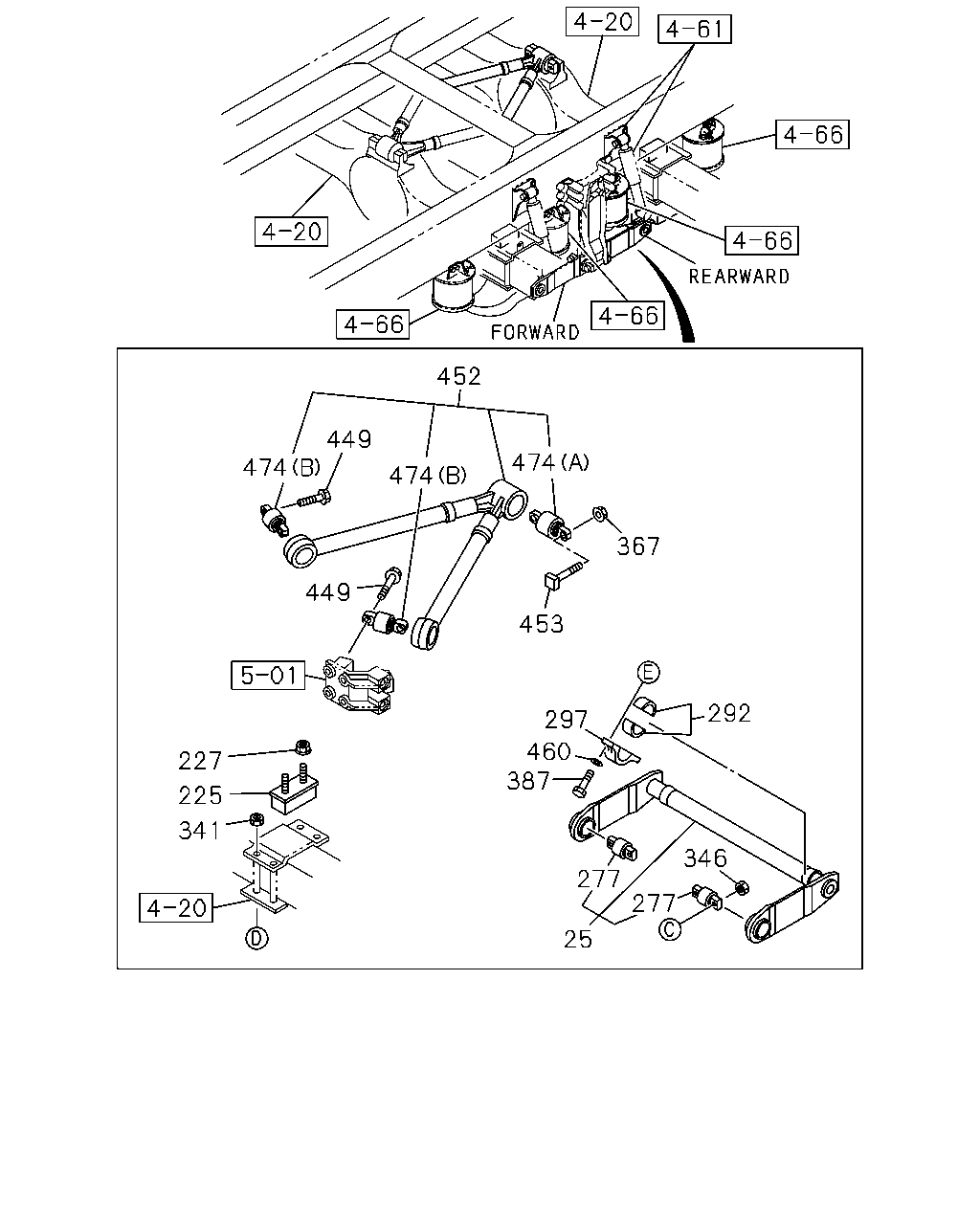

çizim 498262
452 474 367 453 449 474 449 474 227 225 341 25 277 277 387 297 292 346 460
BalonParca AdiParca NoAdetTipApplied Date
25 BAR ASM; STAB,RR SUSP 8-98235-512-0 02 1 1508-
225 RUBBER; CUSHION,RR SPR 1-53366-041-2 04 1 1508-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1508-
277 BUSHING; STAB,RR UPR 8-98226-232-0 04 1 1508-
292 BUSHING; RUBBER,STAB 1-51779-126-0 04 1 1508-
297 CAP; STAB BAR 1-52175-025-0 04 1 1508-
341 NUT; BEAM
M24 		0-91110-524-0 16 1 1508-
346 NUT; BRKT
M18 SELF LOCK 		8-98010-391-0 04 1 1508-
367 NUT
M24 FLANGE 		8-98019-963-0 04 1 1508-
387 BOLT; CAP FIX,STAB BAR
M18X55 		8-98019-973-0 08 1 1508-
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 08 1 1508-
452 ROD ASM; V 8-98239-062-0 02 1 1508-
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 04 1 1508-
460 WASHER; CAP
ID=19 		8-98010-401-0 08 1 1508-
474 REPAIR KIT; V-ROD
(A) 		8-98240-108-0 02 1 1508-
474 REPAIR KIT; V-ROD
(B) 		8-98240-109-0 04 1 1508-

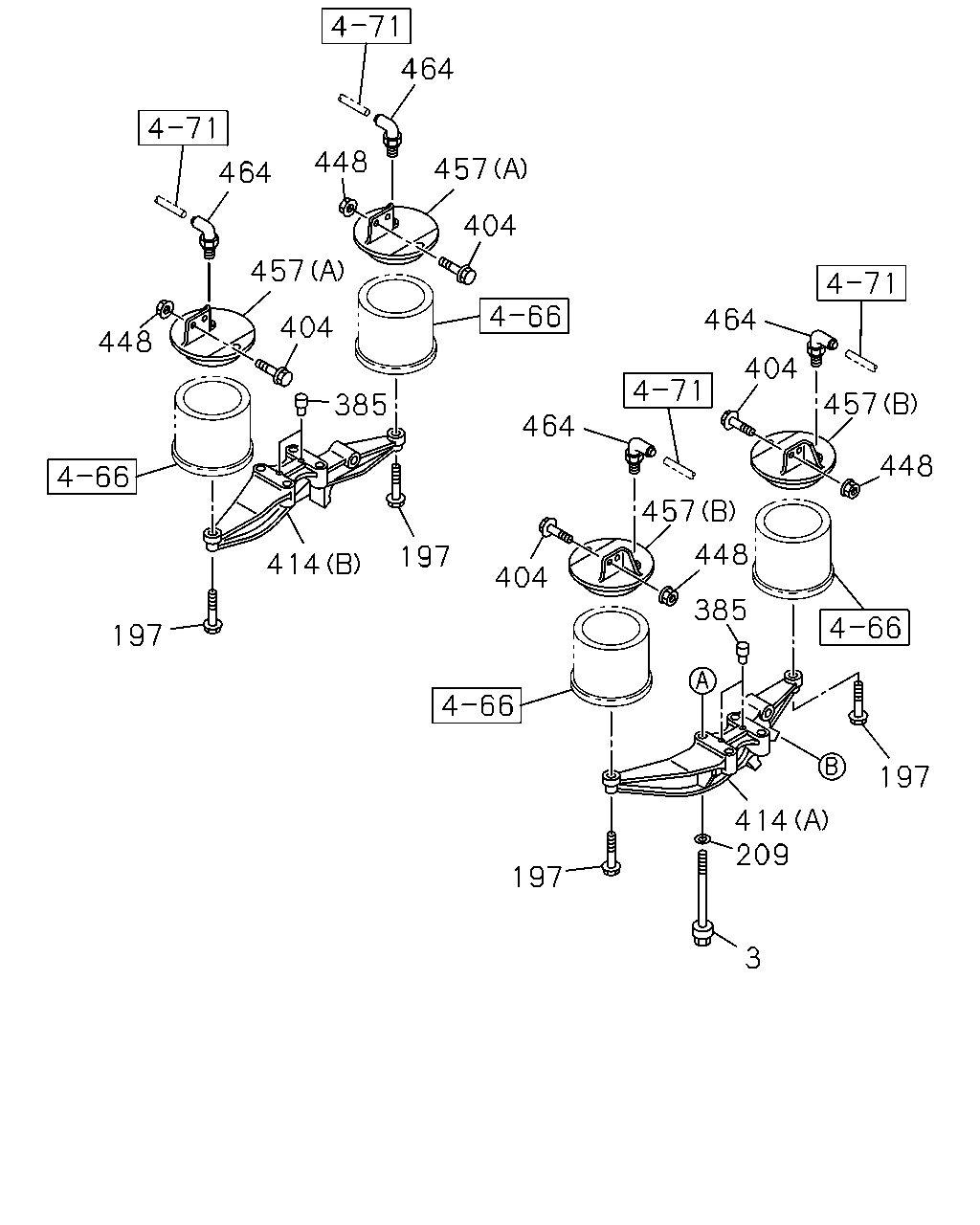

çizim 498263
464 457 404 457 464 448 404 448 197 414 197 464 464 457 404 457 448 385 414 209 197 448 197 3 404 385
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BEAM 1-09000-763-1 16 1 1508-
197 BOLT
M16X90 FLANGE 		8-98010-538-0 08 1 1508-
209 WASHER; PL
ID=25 		1-09503-282-0 16 1 1508-
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 08 1 1508-
404 BOLT; PLATE
M14X45 FLANGE 		8-98019-971-0 16 1 1508-
414 BEAM; AIR SPR
(A) 		8-97604-494-3 02 1 1508-
414 BEAM; AIR SPR
(B) 		8-97604-495-3 02 1 1508-
448 NUT; PLATE
M14 FLANGE 		8-98010-395-0 16 1 1508-
457 PLATE; AIR SPRING,UPR
(A) 		8-98153-652-0 04 1 1508-
457 PLATE; AIR SPRING,UPR
(B) 		8-98153-653-0 04 1 1508-
464 UNION; AIR
DIN8 & M16 ELBOW 		1-09661-520-0 08 1 1508-

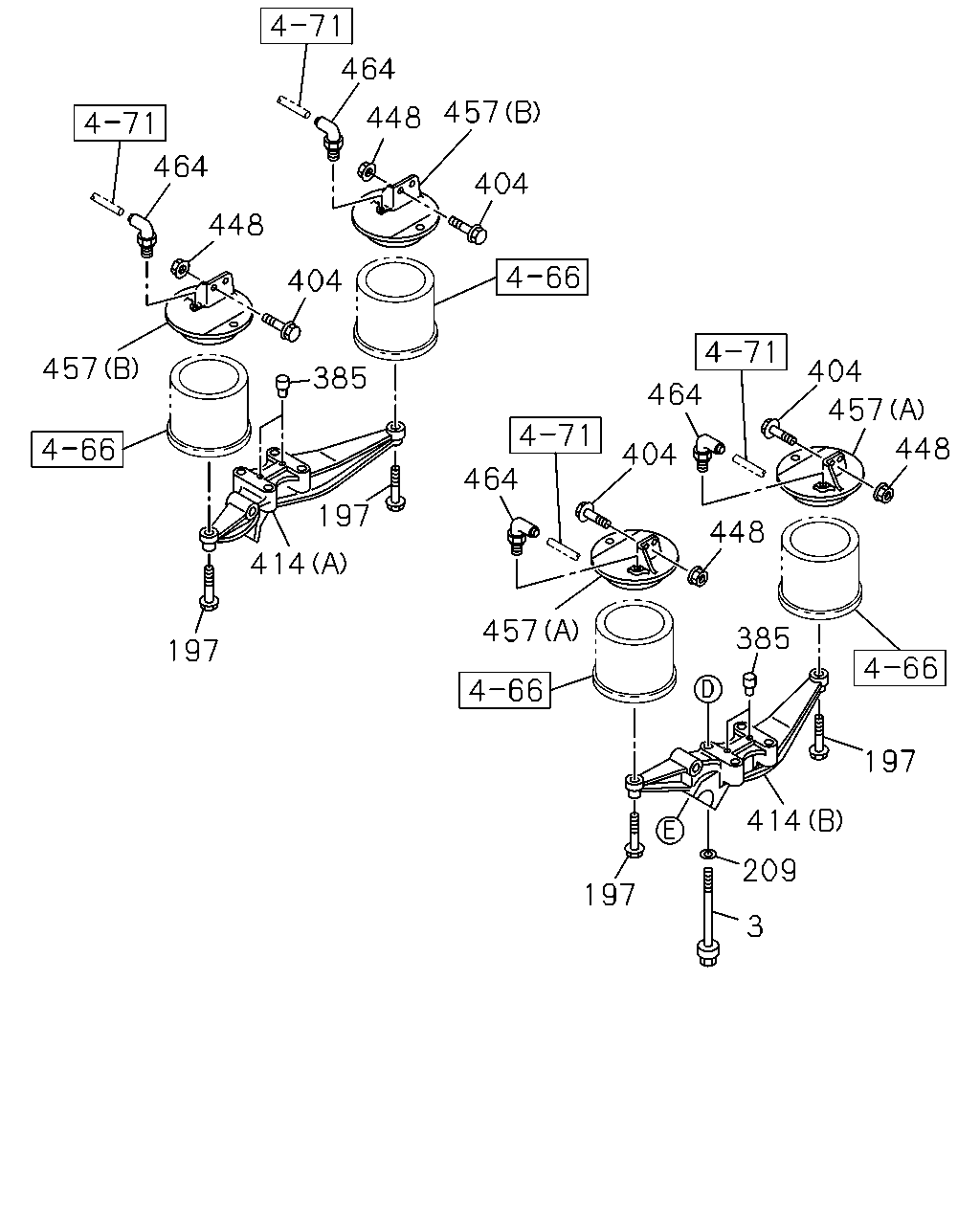

çizim 498264
464 404 457 448 404 448 464 457 197 414 197 385 464 457 404 464 404 448 457 448 385 197 414 209 3 197
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BEAM 1-09000-763-1 16 1 1508-
197 BOLT
M16X90 FLANGE 		8-98010-538-0 08 1 1508-
209 WASHER; PL
ID=25 		1-09503-282-0 16 1 1508-
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 08 1 1508-
404 BOLT; PLATE
M14X45 FLANGE 		8-98019-971-0 16 1 1508-
414 BEAM; AIR SPR
(A) 		8-97604-494-3 02 1 1508-
414 BEAM; AIR SPR
(B) 		8-97604-495-3 02 1 1508-
448 NUT; PLATE
M14 FLANGE 		8-98010-395-0 16 1 1508-
457 PLATE; AIR SPRING,UPR
(A) 		8-98153-652-0 04 1 1508-
457 PLATE; AIR SPRING,UPR
(B) 		8-98153-653-0 04 1 1508-
464 UNION; AIR
DIN8 & M16 ELBOW 		1-09661-520-0 08 1 1508-
