◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#168027) — 37 parça

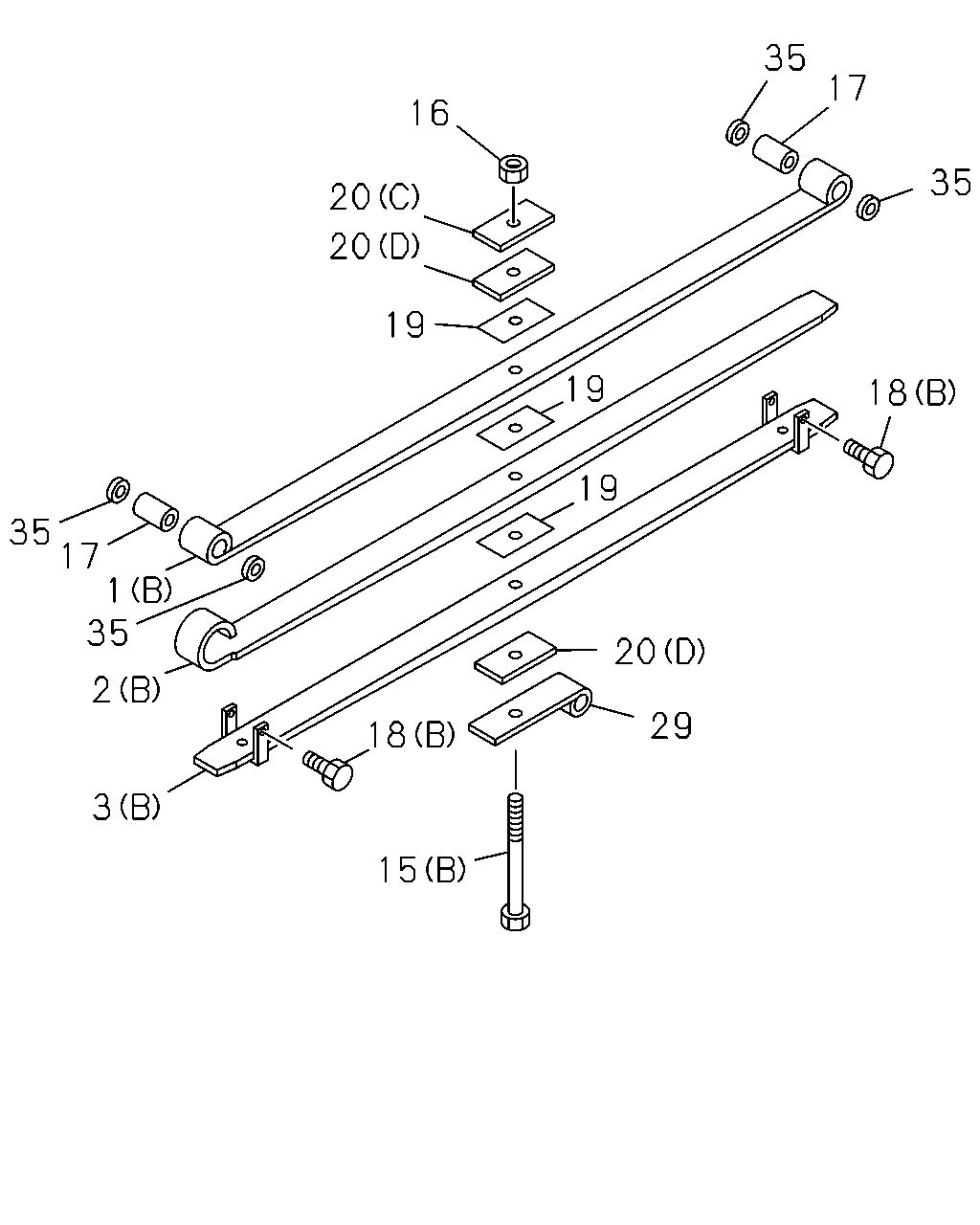

çizim 498251
35 35 17 3 2 1 18 15 20 29 19 19 19 20 20 16 35 17 35 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-353-0 		1-51131-905-1 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-97617-354-0 		1-51131-933-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-353-0 		1-51132-905-1 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-97617-354-0 		1-51132-933-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-353-0 		1-51133-905-1 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-97617-354-0 		1-51133-933-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=125 ASM PART: A = 8-97617-353-0 		1-51156-291-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=120 ASM PART: B = 8-97617-354-0 		1-51156-299-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-353-0, B = 8-97617-354-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-97617-353-0, B = 8-97617-354-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-97617-354-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-97617-353-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-353-0, B = 8-97617-354-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(C), T=6 ASM PART: B = 8-97617-354-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=9 ASM PART: A = 8-97617-353-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: A = 8-97617-353-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=11 ASM PART: B = 8-97617-354-0 		1-51177-347-0 02 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: B = 8-97617-354-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-353-0, B = 8-97617-354-0 		1-51177-321-0 04 1 -

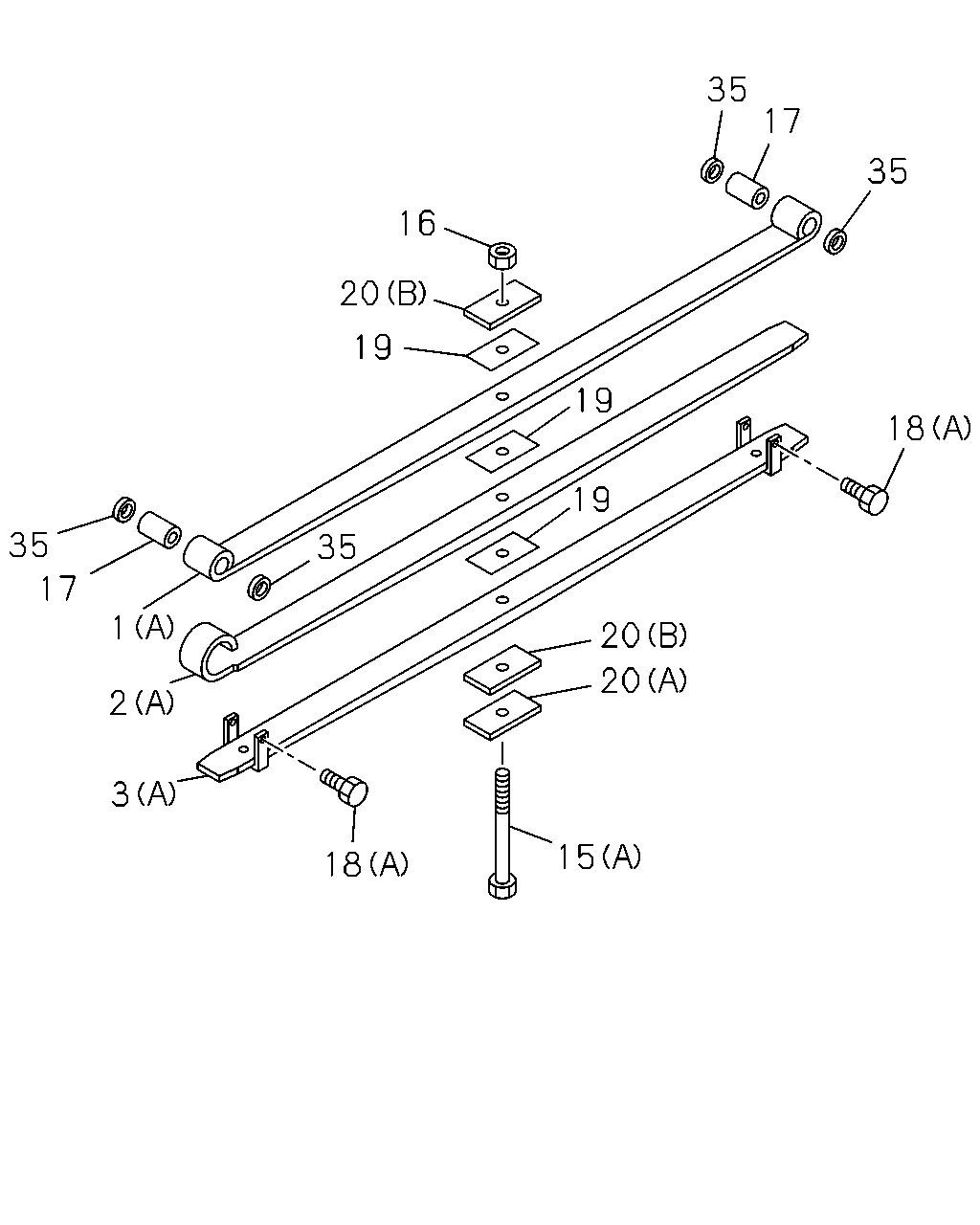

çizim 498258
19 19 16 20 19 35 17 35 1 2 3 18 15 20 20 18 35 17 35
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-353-0 		1-51131-905-1 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-97617-354-0 		1-51131-933-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-353-0 		1-51132-905-1 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-97617-354-0 		1-51132-933-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-353-0 		1-51133-905-1 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-97617-354-0 		1-51133-933-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=125 ASM PART: A = 8-97617-353-0 		1-51156-291-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=120 ASM PART: B = 8-97617-354-0 		1-51156-299-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-353-0, B = 8-97617-354-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-97617-353-0, B = 8-97617-354-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-97617-354-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-97617-353-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-353-0, B = 8-97617-354-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(C), T=6 ASM PART: B = 8-97617-354-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=9 ASM PART: A = 8-97617-353-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: A = 8-97617-353-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=11 ASM PART: B = 8-97617-354-0 		1-51177-347-0 02 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-353-0, B = 8-97617-354-0 		1-51177-321-0 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
