Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#168017) — 427 parça

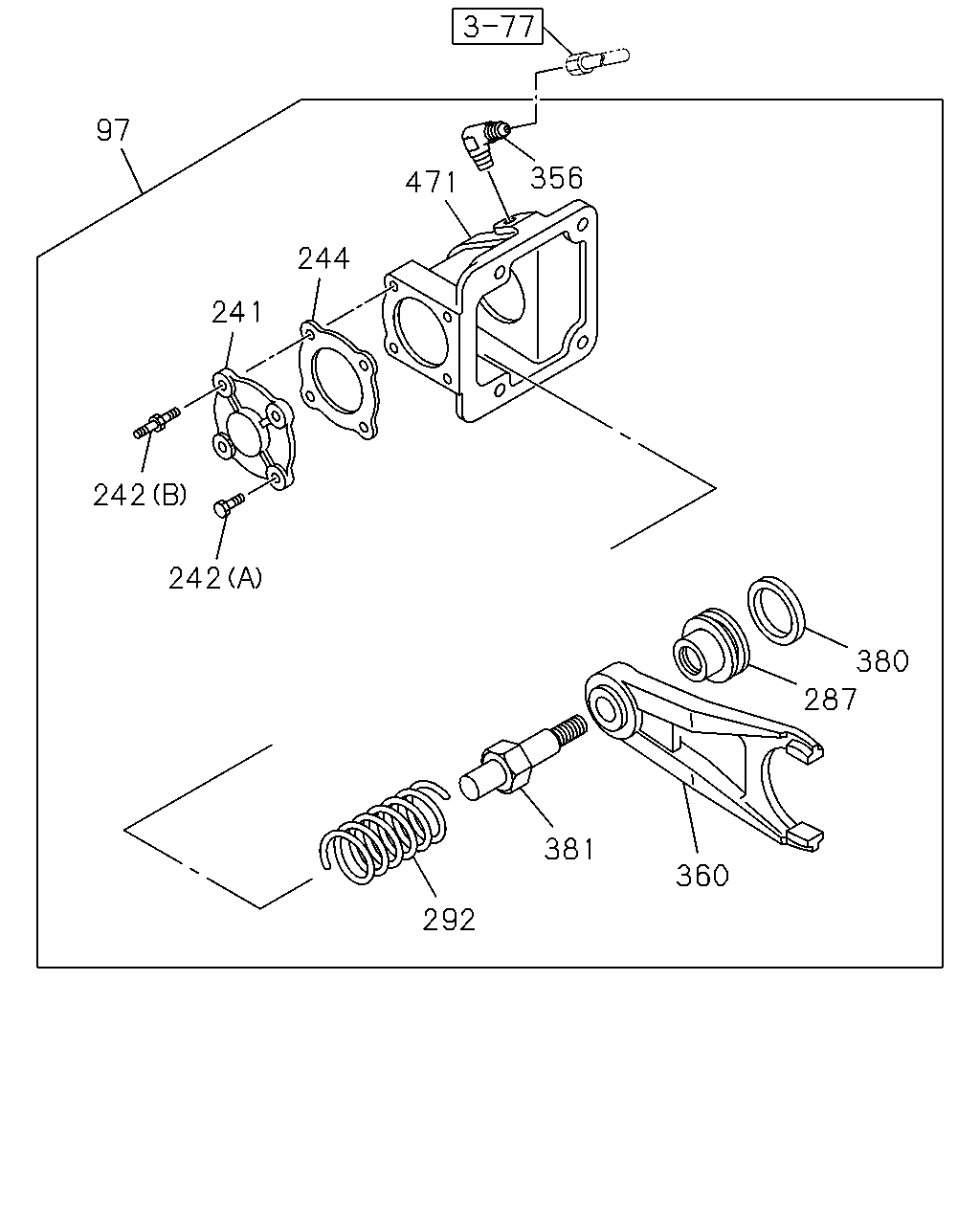

380 287 360 381 292 356 471 244 97 241 242 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
97	SHIFT UNIT; DIFF LOCK	1-48260-090-0	01	1	1508-	●	●	●	●	●	●
241	COVER; SHIFT HSG	1-48266-011-0	01	1	1508-	●	●	●	●	●	●
242	BOLT; COVER (A) M8X20	0-20800-820-0	03	1	1508-	●	●	●	●	●	●
242	BOLT; COVER (B) M8X14.5,M8X20 L=40	8-98025-349-0	01	1	1508-	●	●	●	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	1508-	●	●	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	1508-	●	●	●	●	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	1508-	●	●	●	●	●	●
356	NIPPLE; SHIFT UNIT DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1508-	●	●	●	●	●	●
360	FORK; SHIFT	1-48269-063-0	01	1	1508-	●	●	●	●	●	●
380	GASKET; PISTON	1-48269-107-0	01	1	1508-	●	●	●	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	1508-	●	●	●	●	●	●
471	CYLINDER ASM; SHIFT UNIT	1-48269-224-0	01	1	1508-	●	●	●	●	●	●

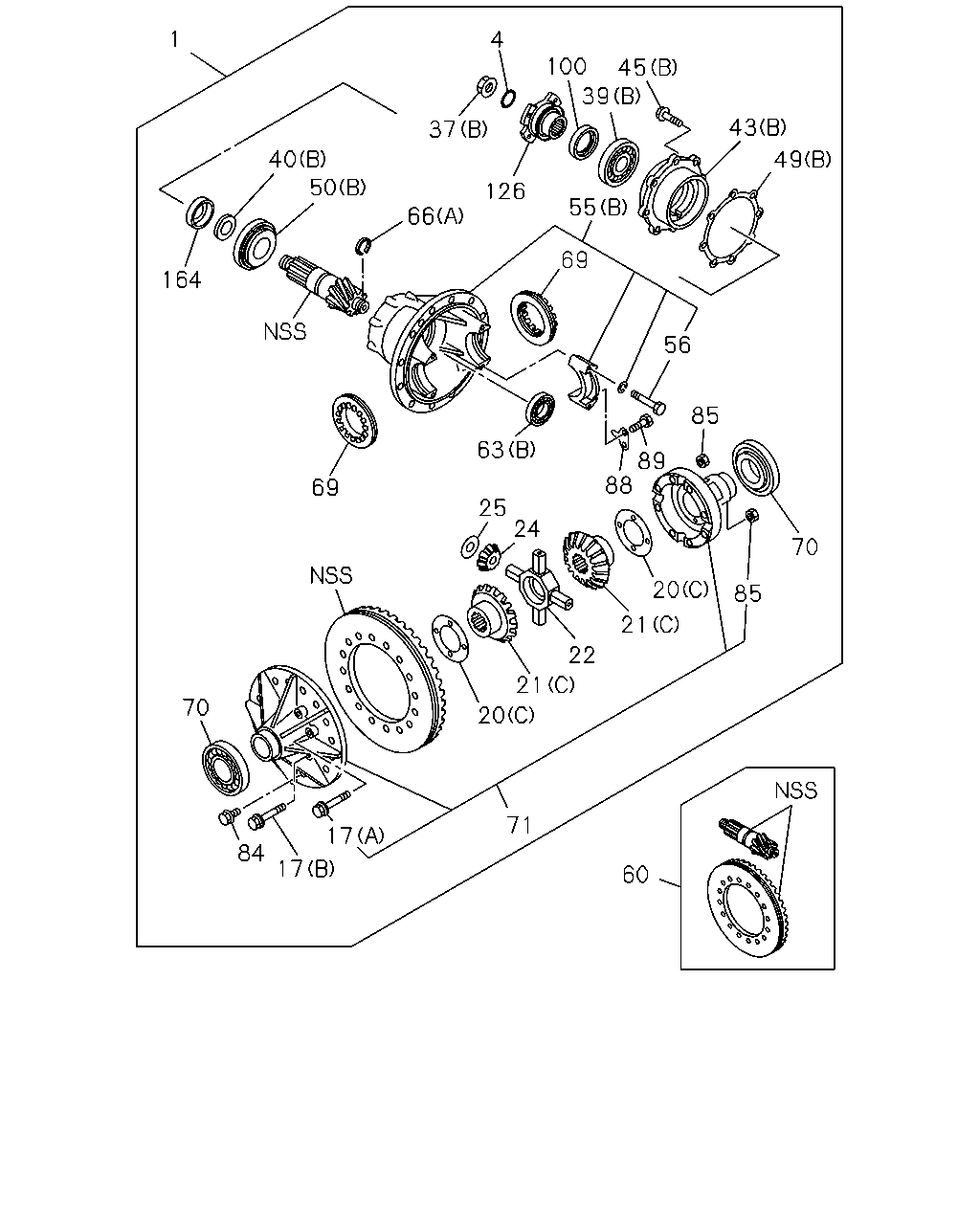

60 70 85 20 21 22 21 20 71 17 17 84 70 25 85 89 88 24 63 69 49 43 45 100 55 39 69 56 4 126 66 37 1 40 164 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR REARWARD 43/13	1-41003-241-0	01	1	1508-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 39/7 X 22/37	1-41003-236-0	01	1	1508-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 39/7 X 22/37	1-41003-232-0	01	1	1508-	●
1	DRIVE ASM; FINAL,RR REARWARD 43/14	1-41003-205-0	01	1	1508-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 41/8 X 22/37	1-41003-237-0	01	1	1508-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 41/8 X 22/37	1-41003-207-0	01	1	1508-		●
1	DRIVE ASM; FINAL,RR REARWARD 43/15	1-41003-204-0	01	1	1508-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 39/8 X 22/37	1-41003-238-0	01	1	1508-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 39/8 X 22/37	1-41003-206-0	01	1	1508-			●
1	DRIVE ASM; FINAL,RR REARWARD 41/17	1-41003-184-0	01	1	1508-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 41/10 X 22/37	1-41003-138-0	01	1	1508-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 41/10 X 22/37	1-41003-182-0	01	1	1508-				●
1	DRIVE ASM; FINAL,RR REARWARD 43/17	1-41003-242-0	01	1	1508-					●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 39/9 X 22/37	1-41003-239-0	01	1	1508-					●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 39/9 X 22/37	1-41003-234-0	01	1	1508-					●
1	DRIVE ASM; FINAL,RR REARWARD 43/16	1-41003-183-0	01	1	1508-						●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 41/9 X 22/37	1-41003-181-0	01	1	1508-						●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 41/9 X 22/37	1-41003-233-0	01	1	1508-						●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (C) M14X75 FLANGE	1-09070-008-0	08	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (D) M14X112 FLANGE	1-09070-057-1	04	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-061-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-061-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-062-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-062-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-063-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-063-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-064-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-064-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-080-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-080-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-081-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-081-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-082-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-082-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.7	1-41562-127-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	1508-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-149-0	02	1	1508-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-149-0	02	1	1508-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-156-0	01	1	1508-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-157-0	01	1	1508-	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1508-	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	02	1	1508-	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1508-	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	08	1	1508-	●	●	●	●	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1508-	●	●	●	●	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	08	1	1508-	●	●	●	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	1508-	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-041-2	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-042-1	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.50	1-41229-106-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.51	1-41229-107-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.52	1-41229-108-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.53	1-41229-109-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.54	1-41229-110-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.55	1-41229-111-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.56	1-41229-112-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.57	1-41229-113-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.58	1-41229-114-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.59	1-41229-115-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.60	1-41229-116-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.50	9-41229-324-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.51	9-41229-325-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.52	9-41229-326-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.53	9-41229-327-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.54	9-41229-328-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.55	9-41229-329-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.56	9-41229-330-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.57	9-41229-331-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.58	9-41229-332-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.59	9-41229-333-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.60	9-41229-334-0	AR	1	1508-	●	●	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-029-0	01	1	1508-	●	●	●	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-088-1	01	1	1508-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M12X35	0-23801-235-0	06	1	1508-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28751-440-0	08	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-021-1	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-051-1	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-052-1	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-053-1	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-099-0	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-100-0	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-101-0	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-102-0	AR	1	1508-	●	●	●	●	●	●
50	BEARING; FINAL PINION (B) NTN	1-09812-013-0	01	1	1508-	●	●	●	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-041-2	01	1	1508-	●	●	●	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-042-1	01	1	1508-	●	●	●	●	●	●
50	BEARING; FINAL PINION (B) JTEKT	1-09812-070-1	01	1	1508-	●	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-115-1	01	1	1508-	●	●	●	●	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (A)	1-41310-063-1	01	1	1508-	●	●	●	●	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41310-065-0	01	1	1508-	●	●	●	●	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1508-	●	●	●	●	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1508-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/13	1-41210-579-0	01	1	1508-	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-692-0	01	1	1508-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/14	1-41210-580-0	01	1	1508-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/8	1-41210-696-0	01	1	1508-		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/15	1-41210-577-1	01	1	1508-			●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-697-0	01	1	1508-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/17	1-41210-576-1	01	1	1508-				●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/10	1-41210-693-0	01	1	1508-				●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/17	1-41210-575-1	01	1	1508-					●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/9	1-41210-699-0	01	1	1508-					●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/16	1-41210-578-1	01	1	1508-						●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/9	1-41210-695-0	01	1	1508-						●
63	BEARING; PINION PILOT (A) NSK	1-09810-073-2	01	1	1508-	●	●	●	●	●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-074-1	01	1	1508-	●	●	●	●	●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-150-0	01	1	1508-	●	●	●	●	●	●
63	BEARING; PINION PILOT (B) NSK	1-09810-151-0	01	1	1508-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1508-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1508-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD M138 H=30	1-41121-054-0	01	1	1508-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE REARWARD M128 H=22	1-41121-013-0	01	1	1508-	●			●	●	●
69	NUT; ADJ,DIFF CAGE REARWARD M128 H=22	1-41121-013-0	01	1	1508-		●	●
69	NUT; ADJ,DIFF CAGE FORWARD M128 H=22	1-41121-013-0	01	1	1508-	●
69	NUT; ADJ,DIFF CAGE REARWARD M128 H=30	1-41121-015-0	01	1	1508-	●			●	●	●
69	NUT; ADJ,DIFF CAGE REARWARD M128 H=30	1-41121-015-0	01	1	1508-		●	●
69	NUT; ADJ,DIFF CAGE FORWARD M128 H=30	1-41121-015-0	01	1	1508-		●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1508-	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1508-	●	●	●	●	●	●
70	BEARING; DIFF CAGE REARWARD NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1508-	●				●	●
70	BEARING; DIFF CAGE REARWARD NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1508-		●	●	●
70	BEARING; DIFF CAGE FORWARD NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1508-	●	●	●	●	●	●
70	BEARING; DIFF CAGE REARWARD NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1508-	●				●	●
70	BEARING; DIFF CAGE REARWARD NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1508-		●	●	●
70	BEARING; DIFF CAGE REARWARD JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1508-	●				●	●
70	BEARING; DIFF CAGE REARWARD JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1508-		●	●	●
70	BEARING; DIFF CAGE FORWARD JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1508-	●	●	●	●	●	●
70	BEARING; DIFF CAGE REARWARD JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1508-	●				●	●
70	BEARING; DIFF CAGE REARWARD JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1508-		●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> FORWARD	1-41510-335-0	01	1	1508-	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> FORWARD	1-41510-338-1	01	1	1508-	●
71	CAGE ASM; DIFF,FINAL DRIVE REARWARD	1-41510-112-0	01	1	1508-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> FORWARD	1-41510-334-0	01	1	1508-		●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> FORWARD	1-41510-339-1	01	1	1508-		●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1508-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1508-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1508-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1508-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1508-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1508-	●	●	●	●	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1508-	●	●	●	●	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1508-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1508-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-396-0	01	1	1508-	●	●	●	●	●	●
164	COLLAR; DIST,PINION T=7.600	1-41229-101-0	01	1	1508-	●	●	●	●	●	●
164	COLLAR; DIST,PINION T=7.800	1-41229-102-0	01	1	1508-	●	●	●	●	●	●
164	COLLAR; DIST,PINION T=8.000	1-41229-103-0	01	1	1508-	●	●	●	●	●	●
164	COLLAR; DIST,PINION T=8.200	1-41229-104-0	01	1	1508-	●	●	●	●	●	●
164	COLLAR; DIST,PINION T=8.400	1-41229-105-0	01	1	1508-	●	●	●	●	●	●

60 65 64 63 62 50 49 43 48 45 37 11 10 9 8 5 66 61 61 40 40 41 39 31 25 2 30 29 28 30 195 55 27 20 24 21 20 21 22 16 17 15 14 6 3 12 34 89 32 52 88 56 96 93 90 95 94 92 91 90 1 54 53 98 97 36 442 339 464 33 373 70 85 69 85 20 21 71 22 21 17 17 69 210 70 194 84 20 411 25 24 222 408 437 439 253 440 416 413 46 194 252 438 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR REARWARD 43/13	1-41003-241-0	01	1	1508-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 39/7 X 22/37	1-41003-236-0	01	1	1508-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 39/7 X 22/37	1-41003-232-0	01	1	1508-	●
1	DRIVE ASM; FINAL,RR REARWARD 43/14	1-41003-205-0	01	1	1508-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 41/8 X 22/37	1-41003-237-0	01	1	1508-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 41/8 X 22/37	1-41003-207-0	01	1	1508-		●
1	DRIVE ASM; FINAL,RR REARWARD 43/15	1-41003-204-0	01	1	1508-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 39/8 X 22/37	1-41003-238-0	01	1	1508-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 39/8 X 22/37	1-41003-206-0	01	1	1508-			●
1	DRIVE ASM; FINAL,RR REARWARD 41/17	1-41003-184-0	01	1	1508-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 41/10 X 22/37	1-41003-138-0	01	1	1508-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 41/10 X 22/37	1-41003-182-0	01	1	1508-				●
1	DRIVE ASM; FINAL,RR REARWARD 43/17	1-41003-242-0	01	1	1508-					●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 39/9 X 22/37	1-41003-239-0	01	1	1508-					●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 39/9 X 22/37	1-41003-234-0	01	1	1508-					●
1	DRIVE ASM; FINAL,RR REARWARD 43/16	1-41003-183-0	01	1	1508-						●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> FORWARD 41/9 X 22/37	1-41003-181-0	01	1	1508-						●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> FORWARD 41/9 X 22/37	1-41003-233-0	01	1	1508-						●
2	DIFF ASM; INTER,FINAL	1-41320-034-0	01	1	1508-	●	●	●	●	●	●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	1508-	●	●	●	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	1508-	●	●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-343-0	01	1	1508-	●	●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-09625-323-0	01	1	1508-	●	●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	1508-	●	●	●	●	●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	1508-	●	●	●	●	●	●
11	COVER; INTER AXLE DIFF	1-41323-033-0	01	1	1508-	●	●	●	●	●	●
12	BOLT; COVER TO CASE M12X35 FLANGE	0-28751-235-0	08	1	1508-	●	●	●	●	●	●
14	PLUG; FILLER PT1/2	9-09204-521-0	01	1	1508-	●	●	●	●	●	●
15	CATCHER; OIL	1-41349-028-1	01	1	1508-	●	●	●	●	●	●
16	SHAFT ASM; INPUT	1-41340-063-0	01	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (C) M14X75 FLANGE	1-09070-008-0	08	1	1508-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (D) M14X112 FLANGE	1-09070-057-1	04	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-061-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-061-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-062-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-062-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-063-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-063-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-064-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-064-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-080-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-080-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-081-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-081-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-082-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-082-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.7	1-41562-127-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	1508-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	1508-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-149-0	02	1	1508-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-149-0	02	1	1508-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-156-0	01	1	1508-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-157-0	01	1	1508-	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1508-	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	02	1	1508-	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1508-	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	08	1	1508-	●	●	●	●	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1508-	●	●	●	●	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	08	1	1508-	●	●	●	●	●	●
27	BOLT; BRG RET M10X25 FLANGE	0-28751-025-0	08	1	1508-	●	●	●	●	●	●
28	RETAINER; BRG,DRIVE GEAR	1-41353-018-0	01	1	1508-	●	●	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41355-047-0	AR	1	1508-	●	●	●	●	●	●
29	SHIM; BRG RET T=0.40	1-41355-048-0	AR	1	1508-	●	●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41355-049-0	AR	1	1508-	●	●	●	●	●	●
29	SHIM; BRG RET T=1.00	1-41355-050-0	AR	1	1508-	●	●	●	●	●	●
30	BEARING; TAPER ROLLER JTEKT	1-09812-215-0	02	1	1508-	●	●	●	●	●	●
30	BEARING; TAPER ROLLER NSK	1-09812-216-0	02	1	1508-	●	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL Z=22	1-41352-038-0	01	1	1508-	●	●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	1508-	●	●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-037-1	01	1	1508-	●	●	●	●	●	●
34	BOLT; CASE TO CARRIER M12X35 FLANGE	0-28751-235-0	11	1	1508-	●	●	●	●	●	●
36	PIN; STRAIGHT	9-08151-222-0	02	1	1508-	●	●	●	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	1508-	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-041-2	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-042-1	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	1508-	●	●	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.50	1-41229-106-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.51	1-41229-107-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.52	1-41229-108-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.53	1-41229-109-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.54	1-41229-110-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.55	1-41229-111-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.56	1-41229-112-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.57	1-41229-113-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.58	1-41229-114-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.59	1-41229-115-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (B) T=3.60	1-41229-116-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.50	9-41229-324-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.51	9-41229-325-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.52	9-41229-326-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.53	9-41229-327-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.54	9-41229-328-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.55	9-41229-329-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.56	9-41229-330-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.57	9-41229-331-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.58	9-41229-332-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.59	9-41229-333-0	AR	1	1508-	●	●	●	●	●	●
40	SHIM; FINAL PINION (A) T=3.60	9-41229-334-0	AR	1	1508-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.2	1-41229-088-0	AR	1	1508-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.4	1-41229-089-0	AR	1	1508-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.8	9-41229-318-0	AR	1	1508-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.0	9-41229-319-0	AR	1	1508-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.2	9-41229-320-0	AR	1	1508-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.4	9-41229-321-0	AR	1	1508-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.6	9-41229-322-0	AR	1	1508-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.8	9-41229-323-0	AR	1	1508-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.0	9-41229-389-0	AR	1	1508-	●	●	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-029-0	01	1	1508-	●	●	●	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-088-1	01	1	1508-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M12X35	0-23801-235-0	06	1	1508-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28751-440-0	08	1	1508-	●	●	●	●	●	●
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1508-	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-021-1	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-051-1	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-052-1	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-053-1	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-099-0	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-100-0	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-101-0	AR	1	1508-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-102-0	AR	1	1508-	●	●	●	●	●	●
50	BEARING; FINAL PINION (B) NTN	1-09812-013-0	01	1	1508-	●	●	●	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-041-2	01	1	1508-	●	●	●	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-042-1	01	1	1508-	●	●	●	●	●	●
50	BEARING; FINAL PINION (B) JTEKT	1-09812-070-1	01	1	1508-	●	●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-028-0	01	1	1508-	●	●	●	●	●	●
53	NUT; FINAL DRIVE SET M12	0-91110-512-0	01	1	1508-	●	●	●	●	●	●
54	STUD; FINAL DRIVE SET M12X32 L=54	1-09300-096-0	01	1	1508-	●	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-115-1	01	1	1508-	●	●	●	●	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (A)	1-41310-063-1	01	1	1508-	●	●	●	●	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41310-065-0	01	1	1508-	●	●	●	●	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1508-	●	●	●	●	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1508-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/13	1-41210-579-0	01	1	1508-	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-692-0	01	1	1508-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/14	1-41210-580-0	01	1	1508-		●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/8	1-41210-696-0	01	1	1508-		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/15	1-41210-577-1	01	1	1508-			●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/8	1-41210-697-0	01	1	1508-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/17	1-41210-576-1	01	1	1508-				●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/10	1-41210-693-0	01	1	1508-				●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/17	1-41210-575-1	01	1	1508-					●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/9	1-41210-699-0	01	1	1508-					●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/16	1-41210-578-1	01	1	1508-						●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/9	1-41210-695-0	01	1	1508-						●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1508-	●	●	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1508-	●	●	●	●	●	●
63	BEARING; PINION PILOT (A) NSK	1-09810-073-2	01	1	1508-	●	●	●	●	●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-074-1	01	1	1508-	●	●	●	●	●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-150-0	01	1	1508-	●	●	●	●	●	●
63	BEARING; PINION PILOT (B) NSK	1-09810-151-0	01	1	1508-	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1508-	●	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1508-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1508-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1508-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FORWARD M138 H=30	1-41121-054-0	01	1	1508-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE REARWARD M128 H=22	1-41121-013-0	01	1	1508-	●			●	●	●
69	NUT; ADJ,DIFF CAGE REARWARD M128 H=22	1-41121-013-0	01	1	1508-		●	●
69	NUT; ADJ,DIFF CAGE FORWARD M128 H=22	1-41121-013-0	01	1	1508-	●
69	NUT; ADJ,DIFF CAGE REARWARD M128 H=30	1-41121-015-0	01	1	1508-	●			●	●	●
69	NUT; ADJ,DIFF CAGE REARWARD M128 H=30	1-41121-015-0	01	1	1508-		●	●
69	NUT; ADJ,DIFF CAGE FORWARD M128 H=30	1-41121-015-0	01	1	1508-		●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1508-	●	●	●	●	●	●
70	BEARING; DIFF CAGE FORWARD JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1508-	●	●	●	●	●	●
70	BEARING; DIFF CAGE REARWARD NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1508-	●				●	●
70	BEARING; DIFF CAGE REARWARD NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1508-		●	●	●
70	BEARING; DIFF CAGE FORWARD NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1508-	●	●	●	●	●	●
70	BEARING; DIFF CAGE REARWARD NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1508-	●				●	●
70	BEARING; DIFF CAGE REARWARD NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1508-		●	●	●
70	BEARING; DIFF CAGE REARWARD JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1508-	●				●	●
70	BEARING; DIFF CAGE REARWARD JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1508-		●	●	●
70	BEARING; DIFF CAGE FORWARD JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1508-	●	●	●	●	●	●
70	BEARING; DIFF CAGE REARWARD JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1508-	●				●	●
70	BEARING; DIFF CAGE REARWARD JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1508-		●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> FORWARD	1-41510-335-0	01	1	1508-	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> FORWARD	1-41510-338-1	01	1	1508-	●
71	CAGE ASM; DIFF,FINAL DRIVE REARWARD	1-41510-112-0	01	1	1508-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> FORWARD	1-41510-334-0	01	1	1508-		●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> FORWARD	1-41510-339-1	01	1	1508-		●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1508-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1508-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1508-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1508-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1508-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1508-	●	●	●	●	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1508-	●	●	●	●	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1508-	●	●	●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	1508-	●	●	●	●	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	1508-	●	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	1508-	●	●	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	1508-	●	●	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	1508-	●	●	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	1508-	●	●	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	1508-	●	●	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	1508-	●	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-090-0	01	1	1508-	●	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	1508-	●	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	1508-	●	●	●	●	●	●
194	PLUG DIFF LOCK<C3N> (A) M12X9	0-92002-412-0	01	1	1508-	●	●	●	●	●	●
194	PLUG DIFF LOCK<C3N> (B) M14X9	8-98042-944-0	01	1	1508-	●	●	●	●	●	●
195	GEAR; DRIVEN Z=37	1-41351-043-0	01	1	1508-	●	●	●	●	●	●
210	CONNECTOR; SHIFT UNIT DIFF LOCK<C3N> DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	1508-	●	●	●	●	●	●
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1508-	●	●	●	●	●	●
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1508-	●	●	●	●	●	●
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1508-	●	●	●	●	●	●
339	BOLT; COVER M8X16 W/LK WASHER	0-50540-816-0	04	1	1508-	●	●	●	●	●	●
373	PLUG; CASE M24X17 FLANGE	1-09604-023-0	01	1	1508-	●	●	●	●	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1508-	●	●	●	●	●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1508-	●	●	●	●	●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1508-	●	●	●	●	●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1508-	●	●	●	●	●	●
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1508-	●	●	●	●	●	●
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1508-	●	●	●	●	●	●
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1508-	●	●	●	●	●	●
440	SCREW SET; DIFF LK DIFF LOCK<C3N>	1-09120-020-0	01	1	1508-	●	●	●	●	●	●
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1508-	●	●	●	●	●	●
442	COVER; CARRIER,DIFF LK	1-41117-005-0	01	1	1508-	●	●	●	●	●	●
464	GASKET; PLUG ID=26.8	1-09623-058-0	01	1	1508-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
