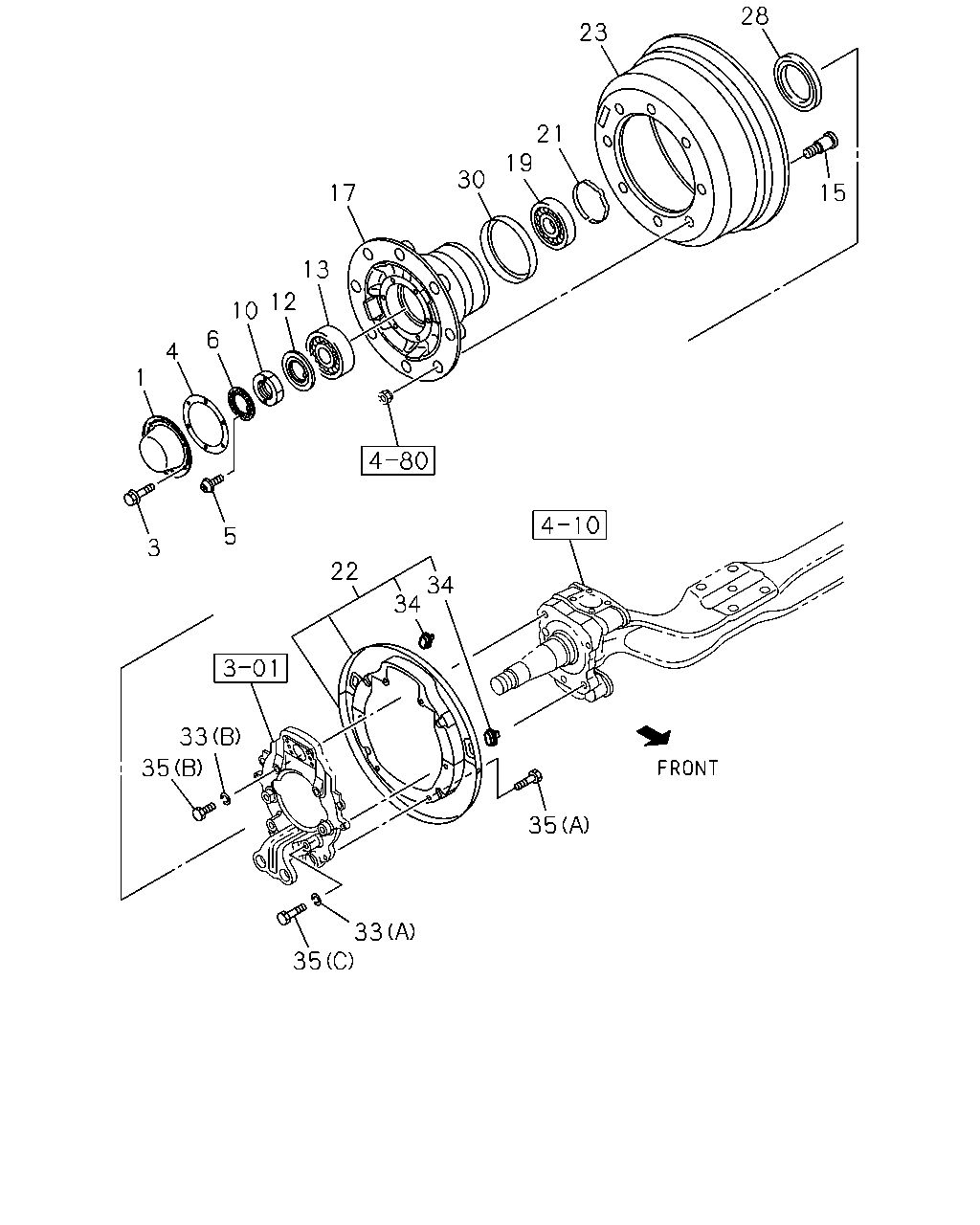

1 |
CAP; HUB,FRT AXLE
OD=156
|
9-42313-123-2 |
02 |
1 |
1508- |
| |
1 |
CAP; HUB,FRT AXLE
OD=156
|
9-42313-123-2 |
02 |
1 |
1508- |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28050-812-0 |
12 |
1 |
1508- |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28050-812-0 |
12 |
1 |
1508- |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-185-2 |
02 |
1 |
1508- |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-185-2 |
02 |
1 |
1508- |
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98200-943-0 |
04 |
1 |
1508- |
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98200-943-0 |
04 |
1 |
1508- |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
8-98084-561-0 |
02 |
1 |
1508- |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
8-98084-561-0 |
02 |
1 |
1508- |
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-5 |
02 |
1 |
1508- |
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-5 |
02 |
1 |
1508- |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
8-98156-755-0 |
02 |
1 |
1508- |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
8-98156-755-0 |
02 |
1 |
1508- |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
1-09812-234-0 |
02 |
1 |
1508- |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
1-09812-234-0 |
02 |
1 |
1508- |
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM>
M22X91 RH THREAD
|
1-42337-094-1 |
16 |
1 |
1508- |
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM>
M22X91 RH THREAD
|
1-42337-094-1 |
16 |
1 |
1508- |
| |
15 |
PIN; WHEEL,FRT AXLE
EXC. DISC WHEEL AL<SDM>
M22X82 RH THREAD
|
1-42337-093-1 |
16 |
1 |
1508- |
| |
15 |
PIN; WHEEL,FRT AXLE
EXC. DISC WHEEL AL<SDM>
M22X82 RH THREAD
|
1-42337-093-1 |
16 |
1 |
1508- |
| |
17 |
HUB; FRT AXLE
|
8-98114-009-1 |
02 |
1 |
1508- |
| |
17 |
HUB; FRT AXLE
|
8-98114-009-1 |
02 |
1 |
1508- |
| |
19 |
BEARING; HUB INNER,FRT AXLE
|
1-09812-217-0 |
02 |
1 |
1508- |
| |
19 |
BEARING; HUB INNER,FRT AXLE
|
1-09812-217-0 |
02 |
1 |
1508- |
| |
21 |
RING; SNAP,HUB
OD=132
|
9-09950-164-0 |
02 |
1 |
1508- |
| |
21 |
RING; SNAP,HUB
OD=132
|
9-09950-164-0 |
02 |
1 |
1508- |
| |
22 |
COVER SET; FRT BRK DRUM
|
1-47151-870-0 |
02 |
1 |
1508- |
| |
22 |
COVER SET; FRT BRK DRUM
|
1-47151-870-0 |
02 |
1 |
1508- |
| |
23 |
DRUM; BRK,FRT
|
8-98085-726-0 |
02 |
1 |
1508- |
| |
23 |
DRUM; BRK,FRT
|
8-98085-726-0 |
02 |
1 |
1508- |
| |
28 |
SEAL; OIL,FRT HUB
OD=128
|
1-09625-129-0 |
02 |
1 |
1508- |
| |
28 |
SEAL; OIL,FRT HUB
OD=128
|
1-09625-129-0 |
02 |
1 |
1508- |
| |
30 |
RING; EXCITER,FRT HUB
|
1-42319-204-0 |
02 |
1 |
1508- |
| |
33 |
WASHER; LK,DRUM COVER
(A)
ID=22.5
|
0-91510-622-0 |
04 |
1 |
1508- |
| |
33 |
WASHER; LK,DRUM COVER
(A)
ID=22.5
|
0-91510-622-0 |
04 |
1 |
1508- |
| |
33 |
WASHER; LK,DRUM COVER
(B)
ID=16.2
|
0-91510-816-0 |
04 |
1 |
1508- |
| |
33 |
WASHER; LK,DRUM COVER
(B)
ID=16.2
|
0-91510-816-0 |
04 |
1 |
1508- |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
1508- |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
1508- |
| |
35 |
BOLT; DRUM COVER
(C)
M22X65
|
1-09000-387-0 |
04 |
1 |
1508- |
| |
35 |
BOLT; DRUM COVER
(C)
M22X65
|
1-09000-387-0 |
04 |
1 |
1508- |
| |
35 |
BOLT; DRUM COVER
(B)
M16X55
|
1-09000-480-0 |
04 |
1 |
1508- |
| |
35 |
BOLT; DRUM COVER
(B)
M16X55
|
1-09000-480-0 |
04 |
1 |
1508- |
| |
35 |
BOLT; DRUM COVER
(A)
M10X12
|
1-47159-187-0 |
12 |
1 |
1508- |
| |
35 |
BOLT; DRUM COVER
(A)
M10X12
|
1-47159-187-0 |
12 |
1 |
1508- |
