◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#168014) — 141 parça

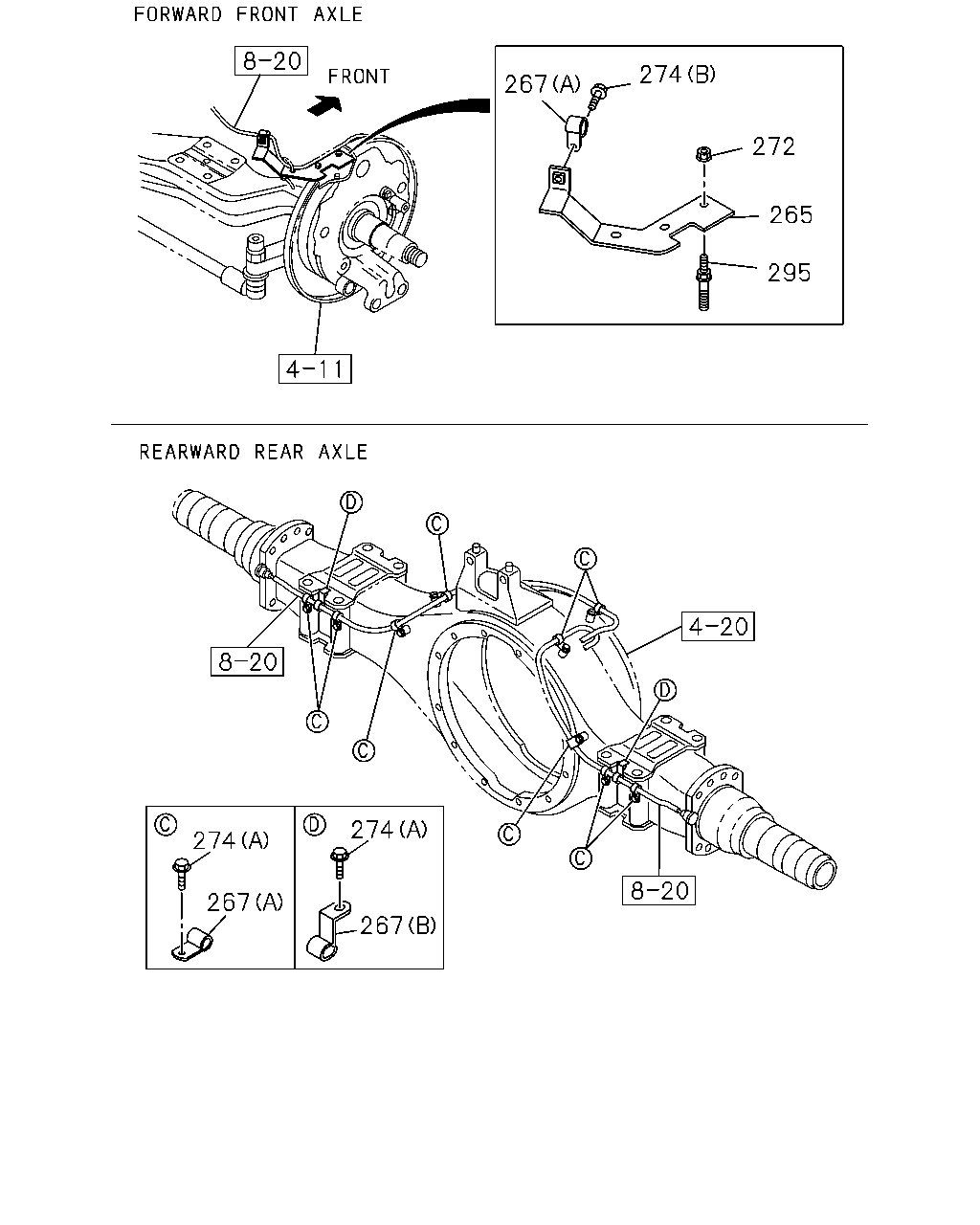

çizim 498170
274 267 272 265 295 267 274 274 267
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-437-0 01 1 1508-
265 BRACKET; CLIP I BEAM 1-82698-438-0 01 1 1508-
267 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 09 1 1508-
267 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 02 1 1508-
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1508-
272 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1508-
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 11 1 1508-
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1508-
295 STUD; COVER,KING PIN
M8X14,M12X16 L=41.7 		1-09029-097-0 04 1 1508-

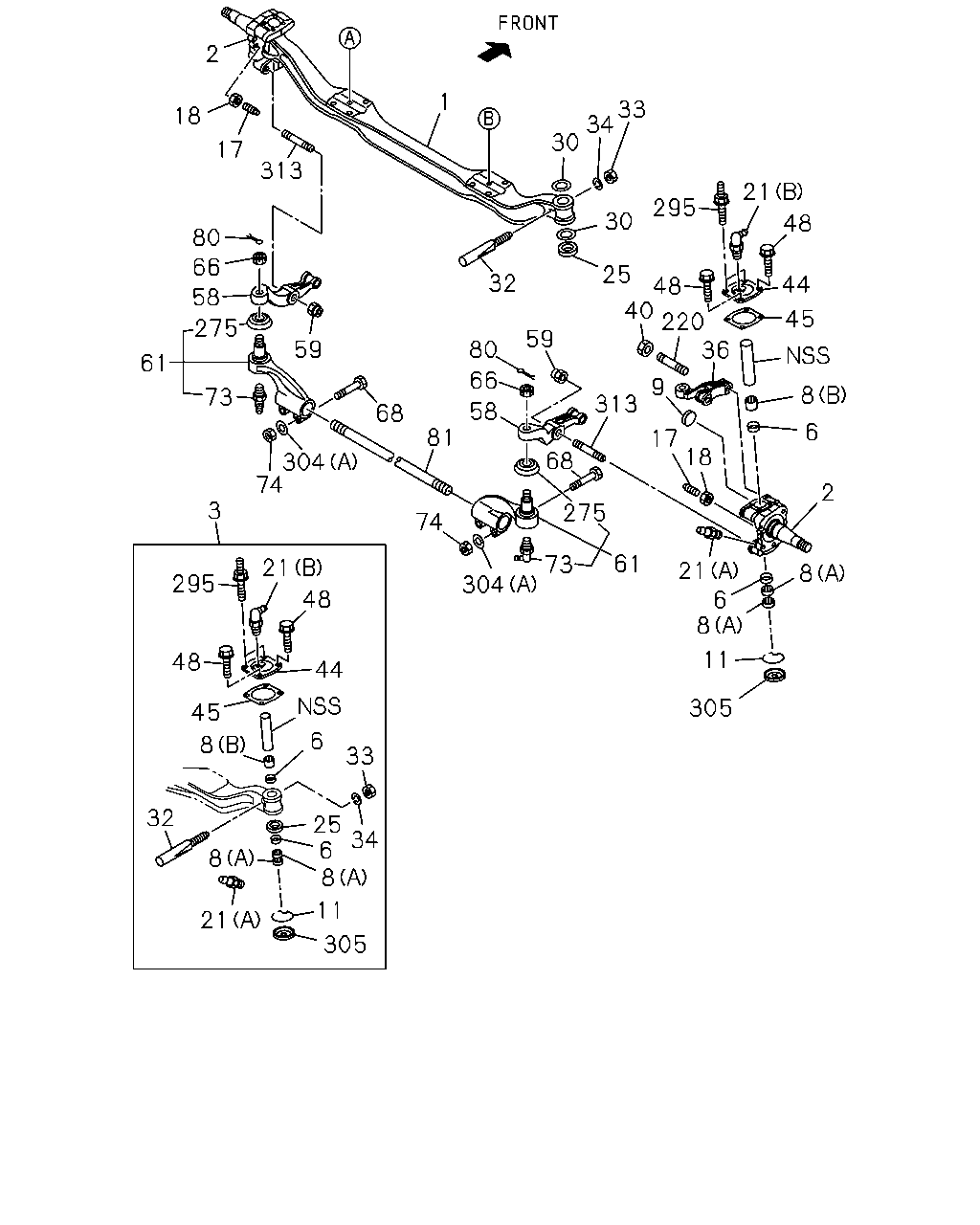

çizim 498503
313 68 73 304 61 275 21 8 11 305 8 2 6 8 45 44 48 21 295 30 25 59 58 66 80 81 68 304 59 33 34 30 1 313 17 18 2 80 58 66 275 61 3 295 48 21 48 44 6 33 25 34 8 8 6 32 21 305 11 74 73 32 17 9 40 48 220 18 36 74 45 8 6
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-177-4 01 1 1508-
1 AXLE; FRT 1-43111-177-4 01 1 1508-
2 KNUCKLE; FRT AXLE 8-98272-217-0 01 1 1508-
2 KNUCKLE; FRT AXLE 8-98272-217-0 01 1 1508-
2 KNUCKLE; FRT AXLE 8-98272-216-0 01 1 1508-
2 KNUCKLE; FRT AXLE 8-98272-216-0 01 1 1508-
3 KING PIN SET
REARWARD 		1-87831-425-0 02 1 1508-
3 KING PIN SET
FORWARD 		1-87831-426-0 02 1 1508-
6 SEAL; KING PIN 9-09926-024-0 04 1 1508-
6 SEAL; KING PIN 9-09926-024-0 04 1 1508-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1508-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1508-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1508-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1508-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 1508-
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 1508-
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 1508-
17 BOLT; STOPPER KNUCKLE
REARWARD M18X53 		1-09009-066-0 02 1 1508-
17 BOLT; STOPPER KNUCKLE
FORWARD M18X38 		1-09009-164-0 02 1 1508-
18 NUT; STOPPER BOLT,KNUCKLE
M18 		0-91110-518-0 02 1 1508-
18 NUT; STOPPER BOLT,KNUCKLE
M18 		0-91110-518-0 02 1 1508-
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1508-
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1508-
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1508-
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1508-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1508-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1508-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1508-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1508-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1508-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1508-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1508-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1508-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1508-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1508-
36 ARM; KNUCKLE 8-98061-893-0 01 1 1508-
36 ARM; KNUCKLE 8-98061-893-0 01 1 1508-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1508-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1508-
44 COVER; KING PIN 1-43175-014-1 02 1 1508-
44 COVER; KING PIN 1-43175-014-1 02 1 1508-
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 1508-
45 GASKET; KING PIN COVER 1-42319-044-0 02 1 1508-
48 BOLT; COVER
M12X16 FLANGE 		0-28051-216-0 04 1 1508-
48 BOLT; COVER
M12X16 FLANGE 		0-28051-216-0 08 1 1508-
58 ARM; TIE ROD
FORWARD 		1-43134-049-4 01 1 1508-
58 ARM; TIE ROD
REARWARD 		1-43134-060-2 01 1 1508-
58 ARM; TIE ROD
FORWARD 		1-43135-049-4 01 1 1508-
58 ARM; TIE ROD
REARWARD 		1-43135-060-2 01 1 1508-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1508-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1508-
61 ROD END; TIE ROD 8-98228-106-0 01 1 1508-
61 ROD END; TIE ROD 8-98228-106-0 01 1 1508-
61 ROD END; TIE ROD 8-98228-107-0 01 1 1508-
61 ROD END; TIE ROD 8-98228-107-0 01 1 1508-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1508-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1508-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1508-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1508-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1508-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1508-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1508-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1508-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1508-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1508-
81 ROD; TIE 8-98105-064-0 01 1 1508-
81 ROD; TIE 8-98105-064-0 01 1 1508-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1508-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1508-
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1508-
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1508-
295 STUD; COVER,KING PIN
M8X14,M12X16 L=41.7 		1-09029-097-0 04 1 1508-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1508-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1508-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1508-
305 COVER; KNUCKLE 8-98052-291-0 02 1 1508-
305 COVER; KNUCKLE 8-98052-291-0 02 1 1508-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1508-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1508-

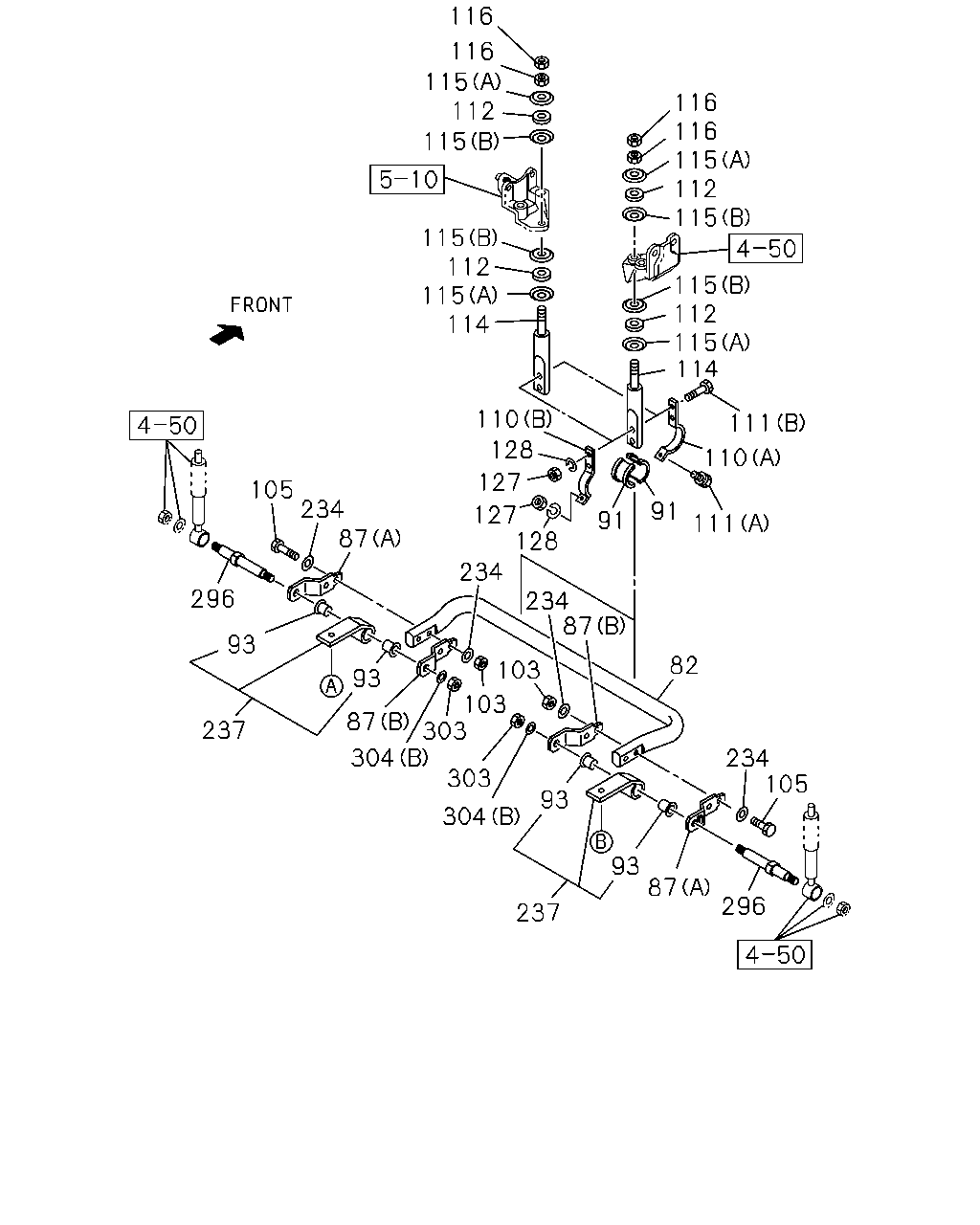

çizim 498545
111 110 111 114 115 112 115 115 112 115 116 116 116 115 116 115 112 115 115 112 114 110 127 128 127 234 234 91 128 87 82 87 93 237 93 296 105 87 234 103 103 303 303 304 237 87 93 296 105 234 93 91 304
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51771-136-1 01 1 1508-
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1508-
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1508-
91 BUSHING; RUBBER,STAB BAR 1-51779-087-1 04 1 1508-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1508-
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1508-
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1508-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1508-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1508-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1508-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1508-
112 BUSHING; ROD 9-51631-039-0 04 1 1508-
114 ROD; STAB BAR 1-51773-083-2 02 1 1508-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 1508-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 1508-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1508-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1508-
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1508-
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1508-
237 SUPPORT; STAB BAR 1-51681-842-0 02 1 1508-
296 PIN; STAB 8-98022-874-1 02 1 1508-
303 NUT; PIN
M20 		0-91110-520-0 02 1 1508-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1508-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1508-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1508-
