7-50 — FRONT SEAT (#1680) — 159 parça

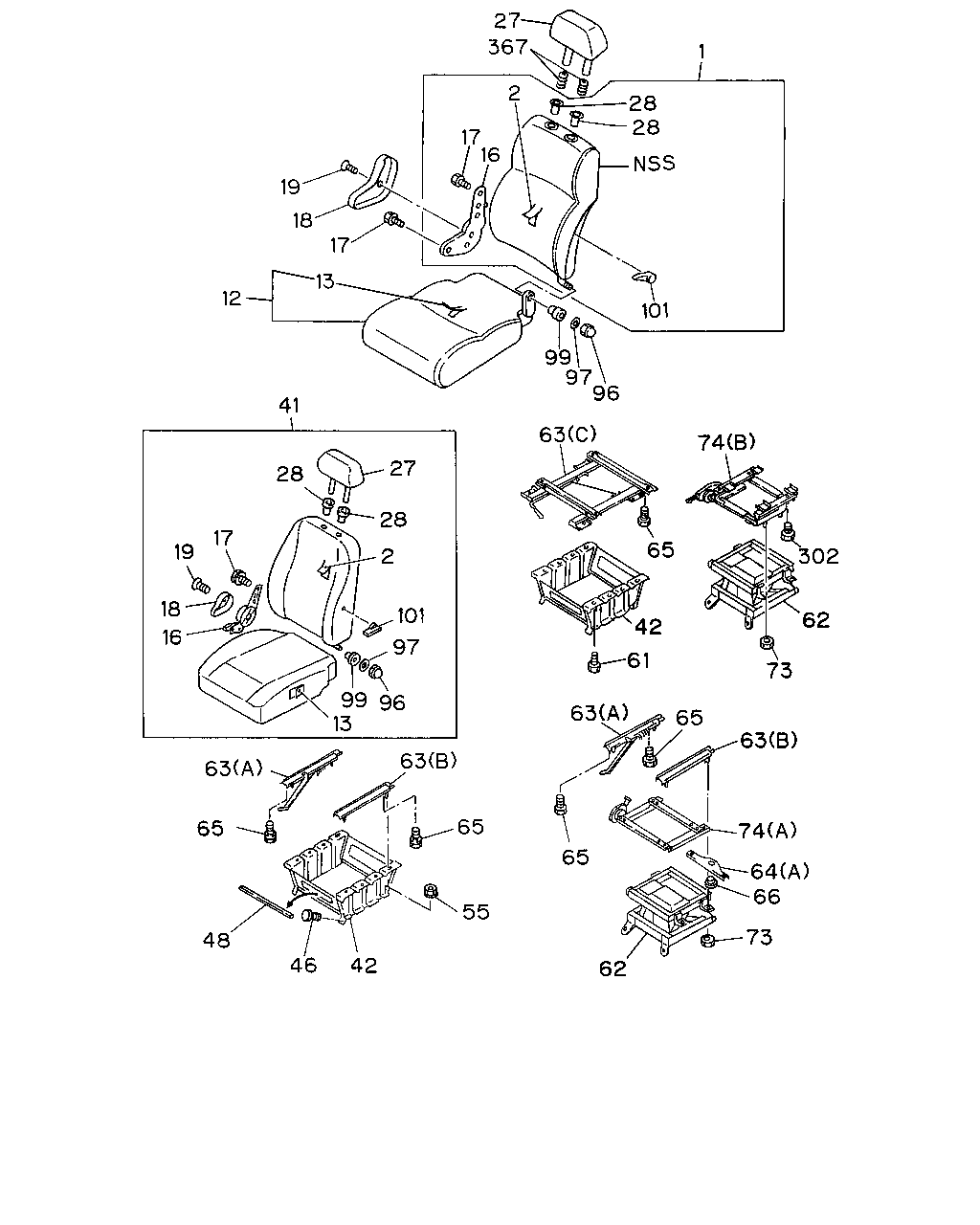

çizim 27932
1 28 28 27 367 2 17 16 19 18 17 13 12 101 99 97 96 63 74 65 42 61 63 65 65 62 73 66 64 74 63 73 62 302 41 27 28 2 101 97 96 99 13 28 17 19 18 16 63 63 65 55 42 46 48 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BACK ASM; SEAT
EXC. DELUXE CAB<W14> 		1-75028-315-0 01 1 9207- ● ● ● ● ●
1 BACK ASM; SEAT
DELUXE CAB<W14> 		1-75028-314-0 01 1 9207- ● ● ●
1 BACK ASM; SEAT
DELUXE CAB<W14> EXC. DELUXE SEAT<PQ8> 		1-75028-314-0 01 1 9207- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. DELUXE CAB<W14> 		1-75116-118-0 01 1 9207- ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB<W14> 		1-75116-119-0 01 1 9207- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB<W14> EXC. DELUXE SEAT<PQ8> 		1-75116-119-0 01 1 9207- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE SEAT<PQ8> 		1-75118-889-3 01 1 9207- ● ●
12 CUSHION; SEAT,FRT 1-75028-322-0 01 1 9207- ● ● ●
12 CUSHION; SEAT,FRT
EXC. DELUXE SEAT<PQ8> 		1-75028-322-0 01 1 9207- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DELUXE SEAT<PQ8> 		1-75116-119-0 01 1 9207- ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75116-111-0 01 1 9207- ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE SEAT<PQ8> 		1-75118-888-3 01 1 9207- ● ●
16 ADJUSTER ASM; RECLINING 1-75418-014-2 01 1 9207- ● ● ● ● ●
17 BOLT; RECLINING
M8X20 		1-09980-438-0 04 1 9207- ● ● ● ● ●
18 COVER; RECLINING 1-75417-060-0 01 1 9207- ● ● ●
18 COVER; RECLINING
EXC. DELUXE SEAT<PQ8> 		1-75417-060-0 01 1 9207- ● ●
18 COVER; RECLINING
DELUXE SEAT<PQ8> BLACK 		8-94266-789-0 01 1 9207- ● ●
19 SCREW; COVER
M6X6 		1-09981-499-0 01 1 9207- ● ● ● ● ●
27 REST; HD,FRT SEAT 1-75657-020-0 01 1 9207- ● ● ●
27 REST; HD,FRT SEAT
EXC. DELUXE SEAT<PQ8> 		1-75657-020-0 01 1 9207- ● ●
27 REST; HD,FRT SEAT
DELUXE SEAT<PQ8> 		1-75658-032-3 01 1 9207- ● ●
28 HOLDER; GUIDE,HD REST
LIGHT BLUE 		8-94477-441-0 02 1 9207- ● ● ●
28 HOLDER; GUIDE,HD REST
EXC. DELUXE SEAT<PQ8> LIGHT BLUE 		8-94477-441-0 02 1 9207- ● ●
28 HOLDER; GUIDE,HD REST
LIGHT BLUE 		8-94477-444-0 02 1 9207- ● ● ●
28 HOLDER; GUIDE,HD REST
EXC. DELUXE SEAT<PQ8> LIGHT BLUE 		8-94477-444-0 02 1 9207- ● ●
28 HOLDER; GUIDE,HD REST
DELUXE SEAT<PQ8> GRAY 		8-94477-443-0 02 1 9207- ● ●
28 HOLDER; GUIDE,HD REST
DELUXE SEAT<PQ8> GRAY 		8-94477-446-0 02 1 9207- ● ●
41 SEAT ASM; DRIVER
DELUXE SEAT<PQ8> 		1-75106-488-7 01 1 9207- ● ●
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75558-294-4 01 1 9207- ● ● ● ● ●
42 STAND; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75557-391-8 01 1 9207- ● ● ● ● ●
46 BOLT; STAND TO FLOOR 1-09980-566-0 02 1 9207- ● ● ● ● ●
46 BOLT; STAND TO FLOOR
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>, DELUXE CAB<W14> 		1-09980-566-0 04 1 9207-9504 ● ● ● ● ●
48 PROTECTOR; SEAT STAND
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB<W14> SERVICED BY L=500 		1-79937-746-0 01 1 9207- ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M8 FLANGE 		8-94279-504-1 02 1 9207- ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB<W14> M8 FLANGE 		8-94279-504-1 04 1 9207-9504 ● ● ● ● ●
61 BOLT; SEAT TO STAND
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-09980-566-0 04 1 9505- ● ● ● ● ●
61 BOLT; SEAT TO STAND 1-09980-566-0 04 1 9505- ● ● ● ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75538-113-7 01 1 9207- ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DELUXE SEAT<PQ8>,DRIVING POSITION WIDE LEGSPACE<PR2> (A) 		1-75518-019-1 01 1 9207- ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DELUXE SEAT<PQ8>,DRIVING POSITION WIDE LEGSPACE<PR2> (B) 		1-75518-020-1 01 1 9207- ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) 		1-75518-034-2 01 1 9207- ● ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-09987-123-0 01 1 9207- ● ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75537-194-0 01 1 9207- ● ● ● ● ●
65 SCREW; ADJ TO SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, DELUXE CAB<W14> M8X23 W/LK WASHER 		8-94254-743-0 01 1 9207- ● ● ● ● ●
65 SCREW; ADJ TO SEAT
EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X23 W/LK WASHER 		8-94254-743-0 04 1 9207- ● ● ● ● ●
65 SCREW; ADJ TO SEAT
DELUXE CAB<W14> EXC. DELUXE SEAT<PQ8>,DRIVING POSITION WIDE LEGSPACE<PR2> M8X23 W/LK WASHER 		8-94254-743-0 04 1 9207- ● ● ● ● ●
66 RUBBER; LWR STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75537-130-0 01 1 9207- ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE 		5-09440-005-0 04 1 9207- ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		5-09440-005-0 04 1 9207- ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE 		8-94279-518-0 04 1 9505- ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		5-09440-005-0 08 1 9207- ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75518-045-5 01 1 9207- ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-045-5 01 1 9207- ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75517-013-7 01 1 9207- ● ● ● ● ●
96 NUT; LK,HINGE
M8 		1-09984-109-0 01 1 9207- ● ● ● ● ●
97 WASHER; PL,RECLINING
ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9207- ● ● ● ● ●
99 BUSHING; SEAT BACK 1-75508-004-0 01 1 9207- ● ● ● ● ●
101 LEVER ASM; LUMBAR
DELUXE CAB<W14> 		1-75508-002-0 01 1 9207- ● ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18 		8-94279-109-1 04 1 9207- ● ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8X18 		8-94279-109-1 04 1 9207- ● ● ● ● ●
367 BOOT; HD REST 8-94412-828-0 04 1 9207- ● ● ●
367 BOOT; HD REST
EXC. DELUXE SEAT<PQ8> 		8-94412-828-0 04 1 9207- ● ●

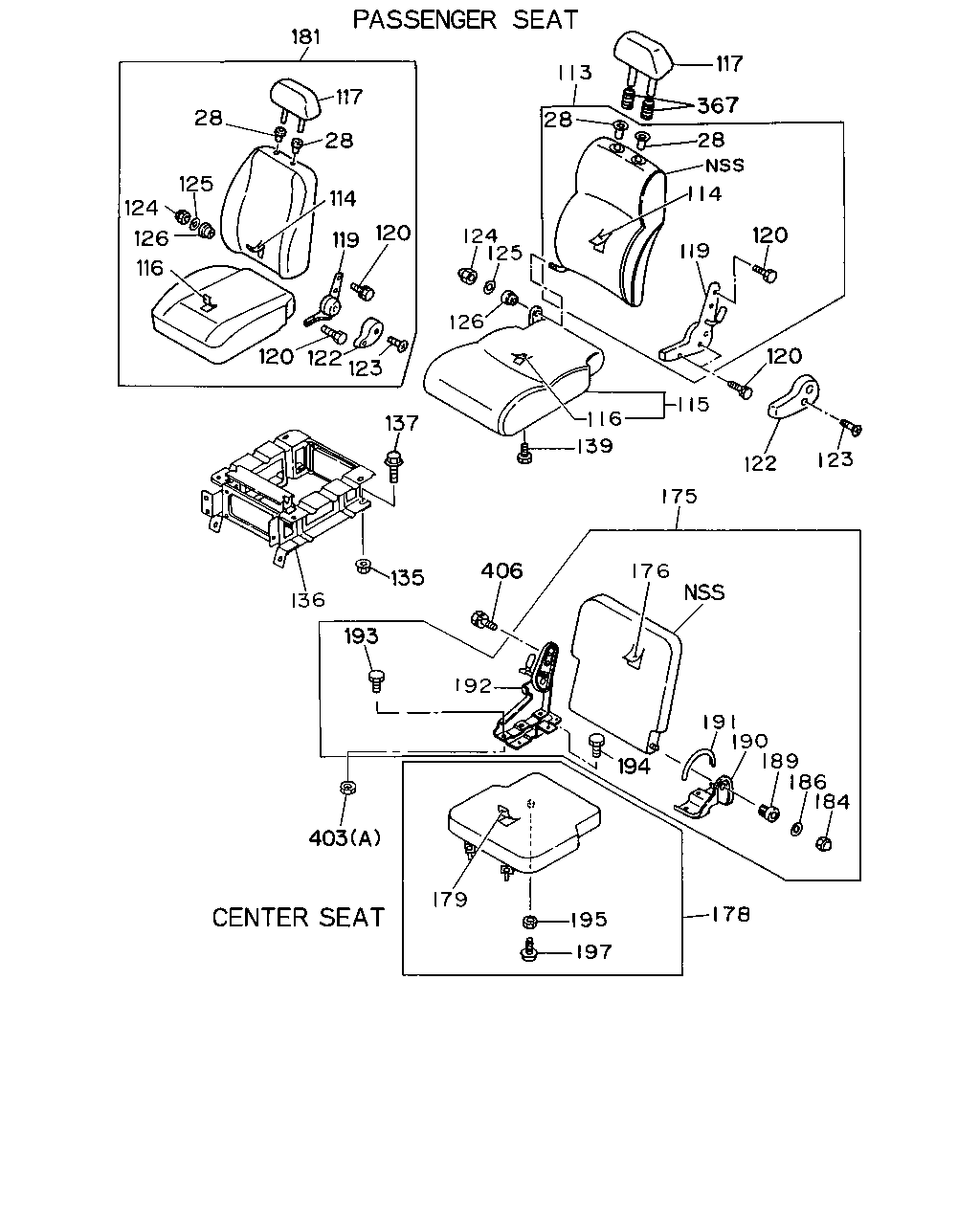

çizim 29209
117 367 113 28 28 114 119 120 120 122 123 175 115 124 125 126 116 139 176 194 191 190 189 186 184 178 197 195 179 406 192 137 135 136 193 403 181 117 28 114 119 120 120 122 123 28 125 124 126 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E
28 HOLDER; GUIDE,HD REST
LIGHT BLUE 		8-94477-441-0 02 1 9207- ● ● ●
28 HOLDER; GUIDE,HD REST
EXC. DELUXE SEAT<PQ8> LIGHT BLUE 		8-94477-441-0 02 1 9207- ● ●
28 HOLDER; GUIDE,HD REST
LIGHT BLUE 		8-94477-444-0 02 1 9207- ● ● ●
28 HOLDER; GUIDE,HD REST
EXC. DELUXE SEAT<PQ8> LIGHT BLUE 		8-94477-444-0 02 1 9207- ● ●
28 HOLDER; GUIDE,HD REST
DELUXE SEAT<PQ8> GRAY 		8-94477-443-0 02 1 9207- ● ●
28 HOLDER; GUIDE,HD REST
DELUXE SEAT<PQ8> GRAY 		8-94477-446-0 02 1 9207- ● ●
113 BACK ASM; SEAT 1-75028-319-0 01 1 9207- ● ● ●
113 BACK ASM; SEAT
EXC. DELUXE SEAT<PQ8> 		1-75028-319-0 01 1 9207- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-115-0 01 1 9207- ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. DELUXE SEAT<PQ8> 		1-75116-115-0 01 1 9207- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DELUXE SEAT<PQ8> 		1-75118-891-3 01 1 9207- ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75028-327-0 01 1 9207- ● ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. DELUXE SEAT<PQ8> 		1-75028-327-0 01 1 9207- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-113-0 01 1 9207- ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. DELUXE SEAT<PQ8> 		1-75116-113-0 01 1 9207- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DELUXE SEAT<PQ8> 		1-75118-890-2 01 1 9207- ● ●
117 REST; HD 1-75657-020-0 01 1 9207- ● ● ●
117 REST; HD
EXC. DELUXE SEAT<PQ8> 		1-75657-020-0 01 1 9207- ● ●
117 REST; HD
DELUXE SEAT<PQ8> 		1-75658-032-3 01 1 9207- ● ●
119 ADJ; SEAT RECLINING,ASSIST SIDE 1-75418-015-2 01 1 9207- ● ● ● ● ●
120 BOLT; RECLINING ADJ
M8X20 		1-09980-438-0 04 1 9207- ● ● ● ● ●
122 COVER; ADJ,RECLINING 1-75417-061-0 01 1 9207- ● ● ●
122 COVER; ADJ,RECLINING
EXC. DELUXE SEAT<PQ8> 		1-75417-061-0 01 1 9207- ● ●
122 COVER; ADJ,RECLINING
DELUXE SEAT<PQ8> 		8-94266-795-0 01 1 9207- ● ●
123 SCREW; COVER,RECLINING
M6X6 		1-09981-499-0 01 1 9207- ● ● ● ● ●
124 NUT; CAP,RECLINING
M8 		1-09984-109-0 01 1 9207- ● ● ● ● ●
125 WASHER; PL,RECLINING
ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9207- ● ● ●
125 WASHER; PL,RECLINING
EXC. DELUXE SEAT<PQ8> ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9207- ● ●
125 WASHER; PL,RECLINING
DELUXE SEAT<PQ8> 		5-09984-056-0 01 1 9207- ● ●
126 BUSHING; HINGE,RECLINING 1-75508-004-0 01 1 9207- ● ● ● ● ●
135 NUT; SEAT STAND
M8 FLANGE 		8-94279-504-1 02 1 9207- ● ● ● ● ●
136 STAND; PASSENGER SEAT 1-75558-294-4 01 1 9207- ● ● ● ● ●
137 BOLT; STAND 1-09980-566-0 02 1 9207- ● ● ● ● ●
139 BOLT; PASSENGER SEAT 1-09980-566-0 08 1 9207-9504 ● ● ● ● ●
139 BOLT; PASSENGER SEAT 1-09980-566-0 04 1 9505- ● ● ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
DELUXE CENTER SEAT<WP2> 		1-75028-303-0 01 1 9207- ● ● ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. DELUXE CENTER SEAT<WP2> 		1-75028-307-0 01 1 9207- ● ● ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
DELUXE SEAT<PQ8> 		1-75106-496-5 01 1 9207- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DELUXE CENTER SEAT<WP2> 		1-75118-989-0 01 1 9207- ● ● ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. DELUXE CENTER SEAT<WP2> 		1-75118-990-0 01 1 9207- ● ● ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DELUXE SEAT<PQ8> 		1-75118-893-2 01 1 9207- ● ●
178 CUSHION ASM; PASSENGER CENTER SEAT
DELUXE CAB<W14> 		1-75028-304-0 01 1 9207- ● ● ● ● ●
178 CUSHION ASM; PASSENGER CENTER SEAT
EXC. DELUXE SEAT<PQ8>,AUSTRALIA EQUIPMENT(RR3) 		1-75028-304-0 01 1 9207- ● ● ●
178 CUSHION ASM; PASSENGER CENTER SEAT
EXC. DELUXE CENTER SEAT<WP2> 		1-75028-313-0 01 1 9207- ● ● ● ● ●
178 CUSHION ASM; PASSENGER CENTER SEAT
AUSTRALIA EQUIPMENT(RR3) EXC. DELUXE SEAT<PQ8> 		1-75028-302-0 01 1 9207- ● ●
178 CUSHION ASM; PASSENGER CENTER SEAT
AUSTRALIA EQUIPMENT(RR3) 		1-75028-302-0 01 1 9207- ●
178 CUSHION ASM; PASSENGER CENTER SEAT
DELUXE SEAT<PQ8> 		1-75106-495-3 01 1 9207- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DELUXE CAB<W14> 		1-75118-987-0 01 1 9207- ● ● ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. DELUXE SEAT<PQ8>,AUSTRALIA EQUIPMENT(RR3) 		1-75118-987-0 01 1 9207- ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. DELUXE CENTER SEAT<WP2> 		1-75118-988-0 01 1 9207- ● ● ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
AUSTRALIA EQUIPMENT(RR3) EXC. DELUXE SEAT<PQ8> 		1-75118-985-0 01 1 9207- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
AUSTRALIA EQUIPMENT(RR3) 		1-75118-985-0 01 1 9207- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DELUXE SEAT<PQ8> 		1-75118-892-1 01 1 9207- ● ●
181 SEAT ASM; PASSENGER
DELUXE SEAT<PQ8> 		1-75106-491-7 01 1 9207- ● ●
184 NUT; CAP,CENTER SEAT
M8 		1-09984-109-0 01 1 9207- ● ● ● ● ●
184 NUT; CAP,CENTER SEAT
DELUXE SEAT<PQ8> M8 		1-09984-109-0 01 1 9207- ● ●
186 WASHER; PL,HINGE,CENTER SEAT BACK
ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9207- ● ● ● ● ●
186 WASHER; PL,HINGE,CENTER SEAT BACK
DELUXE SEAT<PQ8> ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9207- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK 1-75508-004-0 01 1 9207- ● ● ● ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
DELUXE SEAT<PQ8> 		1-75508-004-0 01 1 9207- ● ●
190 BRACKET ASM; HINGE,CENTER SEAT
DELUXE CENTER SEAT<WP2> 		1-75418-022-1 01 1 9207- ● ● ● ● ●
190 BRACKET ASM; HINGE,CENTER SEAT
DELUXE SEAT<PQ8> 		1-75418-022-1 01 1 9207- ● ●
190 BRACKET ASM; HINGE,CENTER SEAT
EXC. DELUXE CENTER SEAT<WP2> 		1-75418-019-2 01 1 9207- ● ● ● ● ●
191 FINISHER; HINGE,CENTER SEAT BACK
L=190 		1-71998-300-0 01 1 9207- ● ● ● ● ●
191 FINISHER; HINGE,CENTER SEAT BACK
DELUXE SEAT<PQ8> L=190 		1-71998-300-0 01 1 9207- ● ●
192 ADJUSTER ASM; RECLINING,CENTER SEAT BA
DELUXE CENTER SEAT<WP2> 		1-75418-021-2 01 1 9207- ● ● ● ● ●
192 ADJUSTER ASM; RECLINING,CENTER SEAT BA
DELUXE SEAT<PQ8> 		1-75418-021-2 01 1 9207- ● ●
192 ADJUSTER ASM; RECLINING,CENTER SEAT BA
EXC. DELUXE CENTER SEAT<WP2> 		1-75418-016-3 01 1 9207- ● ● ● ● ●
193 BOLT; RECLINING ADJ,CENTER SEAT BACK
M10X16 FLANGE 		1-75198-053-0 02 1 9207- ● ● ● ● ●
193 BOLT; RECLINING ADJ,CENTER SEAT BACK
DELUXE SEAT<PQ8> M10X16 FLANGE 		1-75198-053-0 02 1 9207- ● ●
194 RUBBER; BUFFER,CENTER SEAT BACK
EXC. DELUXE CENTER SEAT<WP2> 		1-75198-054-0 01 1 9207- ● ● ● ● ●
195 SPACER; CUSHION,CENTER SEAT
EXC. DELUXE CENTER SEAT<WP2> M8 		9-09110-408-0 01 1 9207- ● ● ● ● ●
197 SCREW; TAPPING,SPACER FIX,CENTER SEAT
EXC. DELUXE CENTER SEAT<WP2> M6X16 TAPPING W/PL WASHER 		0-74110-616-0 01 1 9207- ● ● ● ● ●
367 BOOT; HD REST 8-94412-828-0 04 1 9207- ● ● ●
367 BOOT; HD REST
EXC. DELUXE SEAT<PQ8> 		8-94412-828-0 04 1 9207- ● ●
403 NUT; CENTER SEAT
(A) 		8-94279-504-1 02 1 9207- ● ● ● ● ●
403 NUT; CENTER SEAT
DELUXE CENTER SEAT<WP2> (B) 		5-09466-004-1 02 1 9207- ● ● ● ● ●
406 SCREW; CENTER SEAT
DELUXE CENTER SEAT<WP2> M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9207- ● ● ● ● ●

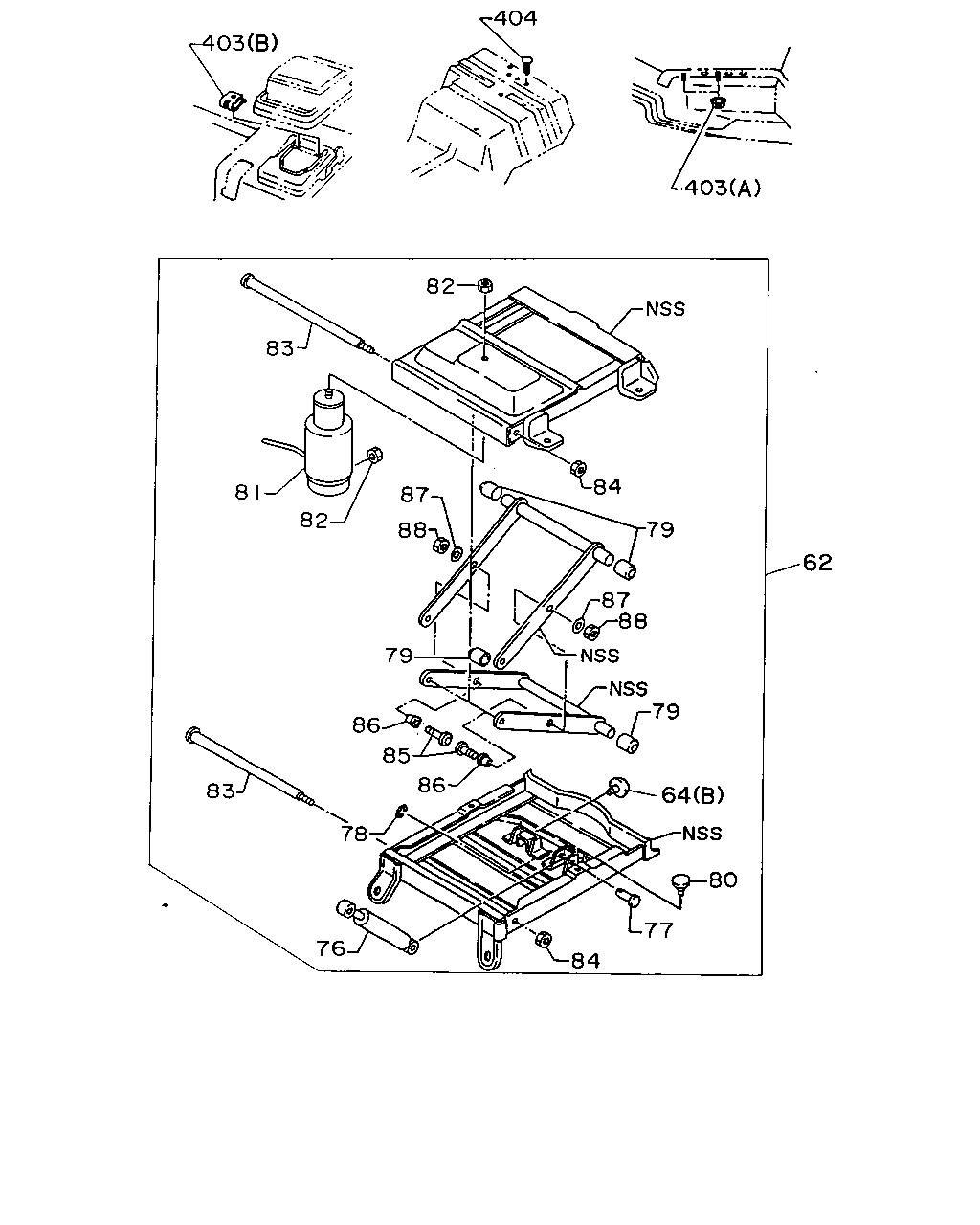

çizim 94131
403 404 403 83 82 81 82 87 88 79 86 85 86 83 78 76 84 79 62 87 88 79 64 80 77 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75538-113-7 01 1 9207- ● ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-09987-123-0 01 1 9207- ● ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75537-194-0 01 1 9207- ● ● ● ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75537-197-0 01 1 9207- ● ● ● ● ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		9-08201-035-0 02 1 9207- ● ● ● ● ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8 		9-09185-008-0 02 1 9207- ● ● ● ● ●
79 ROLLER ASM; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75538-119-0 04 1 9207- ● ● ● ● ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		9-61468-039-0 02 1 9207- ● ● ● ● ●
81 SPRING; AIR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75537-192-0 01 1 9207- ● ● ● ● ●
82 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-09984-096-0 02 1 9207- ● ● ● ● ●
83 PIN; LOW & UPR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-016-0 02 1 9207- ● ● ● ● ●
84 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-014-0 02 1 9207- ● ● ● ● ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75538-118-0 02 1 9207- ● ● ● ● ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75148-153-0 02 1 9207- ● ● ● ● ●
87 WASHER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26 		9-09160-710-0 02 1 9207- ● ● ● ● ●
88 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10 		8-94279-519-0 02 1 9207- ● ● ● ● ●
403 NUT; CENTER SEAT
(A) 		8-94279-504-1 02 1 9207- ● ● ● ● ●
403 NUT; CENTER SEAT
DELUXE CENTER SEAT<WP2> (B) 		5-09466-004-1 02 1 9207- ● ● ● ● ●
404 PLUG; SEAT
OD=15 L=14.5 		1-76378-157-0 05 1 9207- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
