Isuzu WW
▶
TRUCKS
▶
FSR
▶
10625 - FSR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

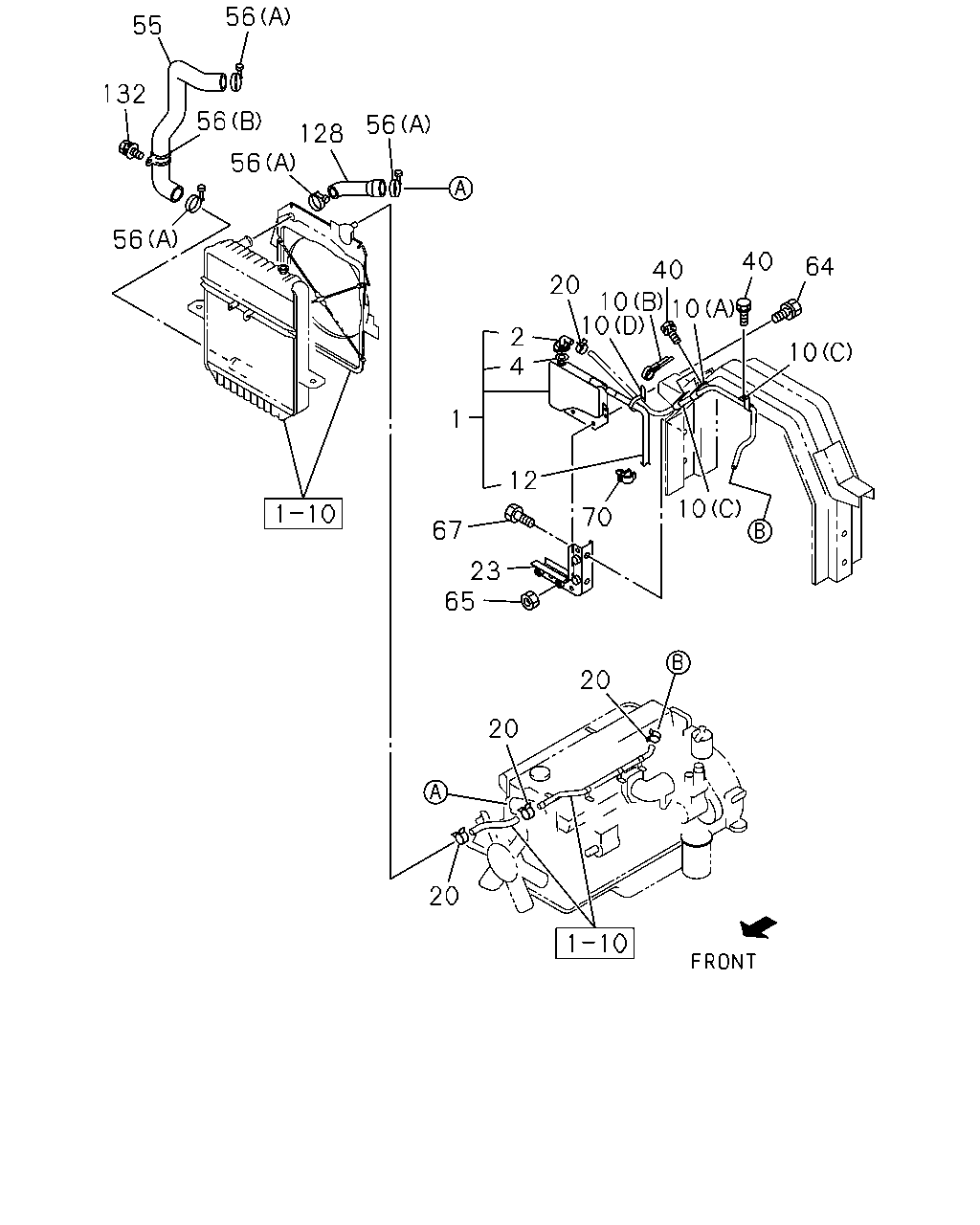

1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#168) — 21 parça
Tümü
A - 6HE1 STD ENG
B - 6HE1 N ENG
56
55
132
56
56
128
56
56
40
64
40
20
10
10
10
2
4
10
1
12
10
70
67
23
65
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
1-21480-077-2
01
1
9212-
●
●
2
CAP; SURGE TANK
5-21483-001-1
01
1
9212-
●
●
4
GASKET; SURGE TANK
5-21489-006-0
01
1
9212-
●
●
10
CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20
1-09700-606-0
02
1
9212-
●
●
10
CLIP; RUBBER HOSE
(D) L=140
5-09707-031-0
01
1
9212-
●
●
10
CLIP; RUBBER HOSE
(A) ID=13 L=40
9-09525-276-0
01
1
9212-
●
●
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
01
1
9212-
●
●
12
HOSE; SURGE TANK
L=300
1-09366-199-0
01
1
9212-
●
●
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
9212-
●
●
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
9212-
●
●
40
BOLT; CLIP
M8X20 FLANGE
0-28080-820-0
03
1
9212-
●
●
55
HOSE; WATER,RAD OUTLET
1-21437-361-0
01
1
9212-
●
●
56
CLIP; WATER HOSE,RAD
(B)
1-09700-842-1
01
1
9212-
●
●
56
CLIP; WATER HOSE,RAD
(A) ID=63
1-09704-067-0
04
1
9212-
●
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
9212-
●
●
65
NUT; BRKT,SUB TANK
M8
9-09110-408-0
04
1
9212-
●
●
67
BOLT; BRKT
M10X20 W/LK WASHER
0-50041-020-0
02
1
9212-9312
●
●
67
BOLT; BRKT
M10X20 FLANGE
0-28081-020-0
02
1
9401-
●
●
70
CLIP; PIPE,OVERFLOW
ID=9.5
5-09709-020-0
01
1
9212-9405
●
●
128
HOSE; WATER,RAD INL
1-21437-356-0
01
1
9212-
●
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X20 FLANGE
0-28080-820-0
01
1
9212-
●
●
