Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#16798) — 166 parça

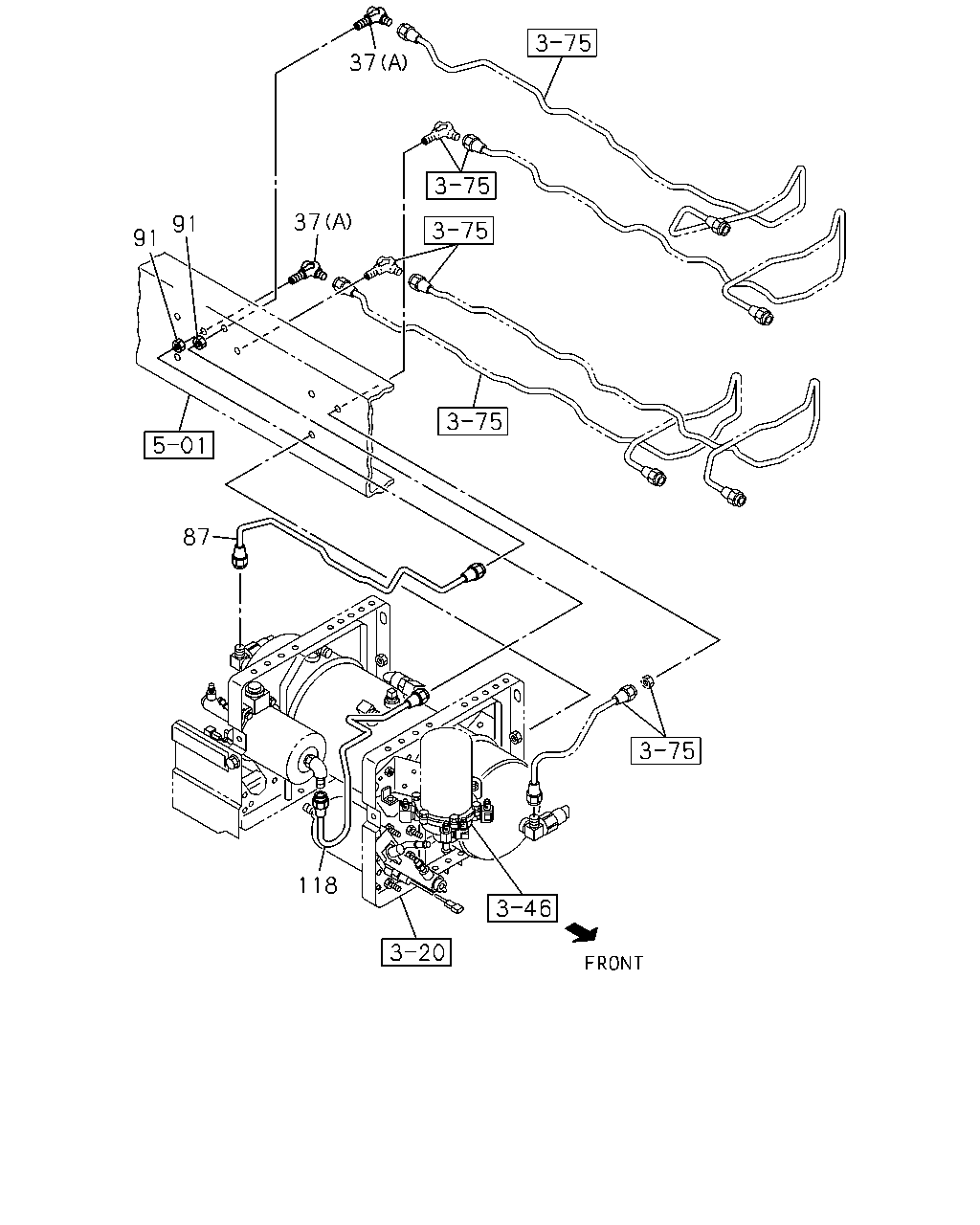

37 37 91 91 87 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0906-1204	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1205-	●	●
37	UNION; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0906-	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0906-1204	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1205-	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1205-		●
87	PIPE; AIR,AIR TANK TO UNION L=700 SERVICED BY L=700	1-47428-870-0	01	1	0906-1204	●
87	PIPE; AIR,AIR TANK TO UNION L=700 SERVICED BY L=700	1-47428-870-0	01	1	1205-	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0906-1204	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1205-	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700	1-47428-870-0	01	1	0906-1204	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700	1-47428-870-0	01	1	1205-	●	●

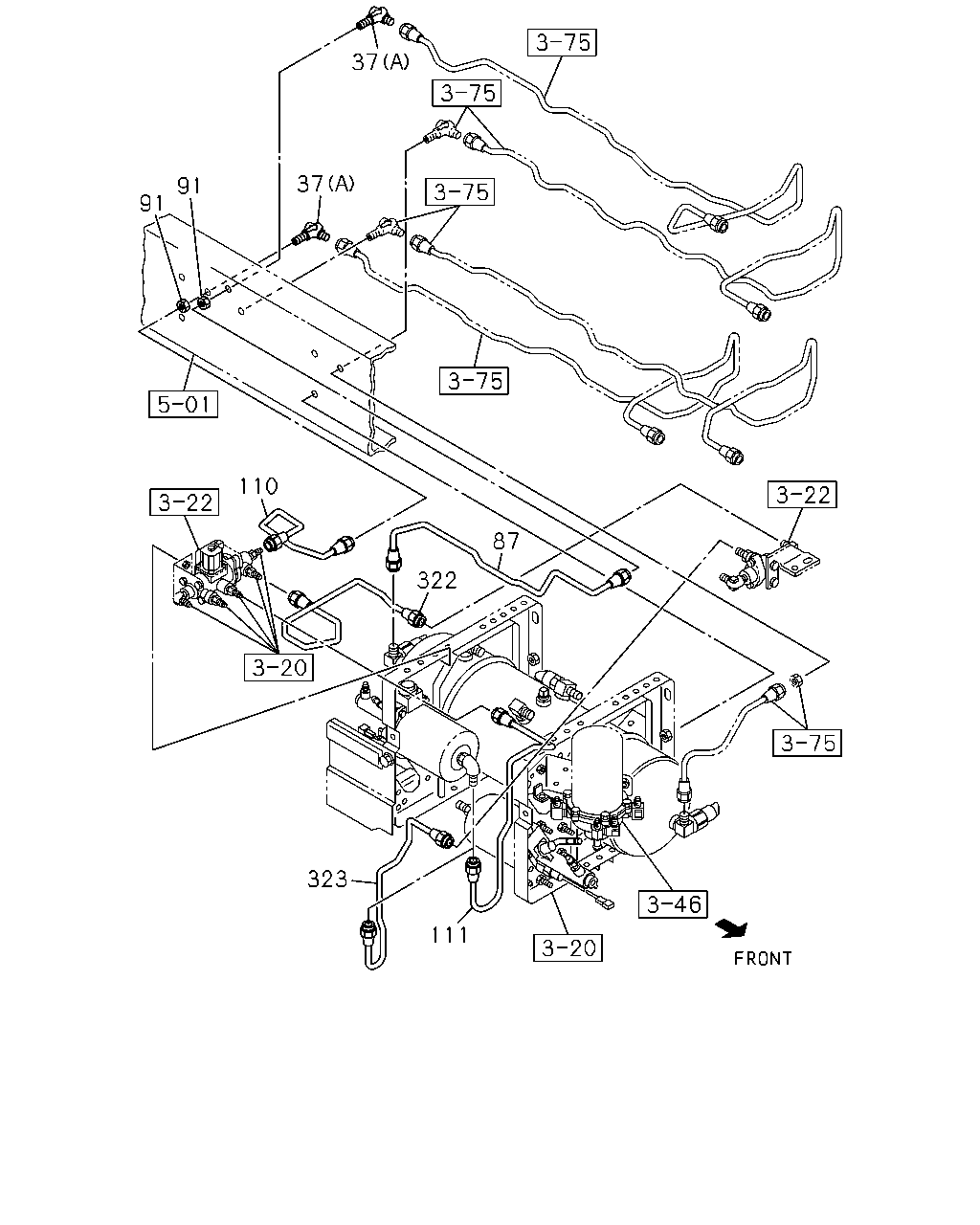

37 37 91 91 110 87 322 323 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0906-1204	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1205-	●	●
37	UNION; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0906-	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0906-1204	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1205-	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1205-		●
87	PIPE; AIR,AIR TANK TO UNION L=700 SERVICED BY L=700	1-47428-870-0	01	1	0906-1204	●
87	PIPE; AIR,AIR TANK TO UNION L=700 SERVICED BY L=700	1-47428-870-0	01	1	1205-	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0906-1204	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1205-	●	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> L=473	8-98067-756-0	01	1	0906-1204	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> L=473	8-98067-756-0	01	1	1205-	●	●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600	1-47428-868-0	01	1	0906-1204	●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600	1-47428-868-0	01	1	1205-	●	●
322	PIPE; AIR,HSA VLV TO DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-47428-870-0	01	1	0906-1204	●
322	PIPE; AIR,HSA VLV TO DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-47428-870-0	01	1	1205-	●	●
323	PIPE; AIR,DBL CHK VLV THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600	1-47428-868-0	01	1	0906-1204	●
323	PIPE; AIR,DBL CHK VLV THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600	1-47428-868-0	01	1	1205-	●	●

223 192 144 97 37 98 37 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0906-1204	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1205-	●	●
37	UNION; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0906-	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0906-1204	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1205-	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1205-		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=42	0-92123-010-0	01	1	0906-1204	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=42	0-92123-010-0	01	1	1205-	●
97	UNION; AIR PIPE M16 L=42	0-92123-010-0	01	1	1205-		●
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0906-1204	●
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	1205-	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	1205-		●
144	PIPE; AIR,UNION TO UNION MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1059 SERVICED BY L=1100	1-47428-875-0	01	1	0906-	●
144	PIPE; AIR,UNION TO UNION MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1454 SERVICED BY L=1550	1-47428-879-0	01	1	0906-1204	●
144	PIPE; AIR,UNION TO UNION MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1454 SERVICED BY L=1550	1-47428-879-0	01	1	1205-	●
144	PIPE; AIR,UNION TO UNION MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=850 SERVICED BY L=900	1-47428-873-0	01	1	0906-	●
144	PIPE; AIR,UNION TO UNION MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250	1-47428-876-0	01	1	0906-1204	●
144	PIPE; AIR,UNION TO UNION MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250	1-47428-876-0	01	1	1205-	●
144	PIPE; AIR,UNION TO UNION L=1204 SERVICED BY L=1250	1-47428-876-0	01	1	1205-		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0906-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0906-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0906-	●	●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0906-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=4000 ID=15	1-87411-026-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0906-	●	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4000MM(40W) L=810 SERVICED BY L=900	1-47428-873-0	01	1	1205-		●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4600MM(46W) L=1410 SERVICED BY L=1550	1-47428-879-0	01	1	1205-		●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4900MM(49W) L=1740 SERVICED BY L=1900	1-47428-881-0	01	1	1205-		●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2118 SERVICED BY L=2500	1-47428-883-0	01	1	1205-	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=593 SERVICED BY L=600	1-47428-868-0	01	1	0906-	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=858 SERVICED BY L=900	1-47428-873-0	01	1	0906-	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	0906-	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1788 SERVICED BY L=1900	1-47428-881-0	01	1	0906-	●

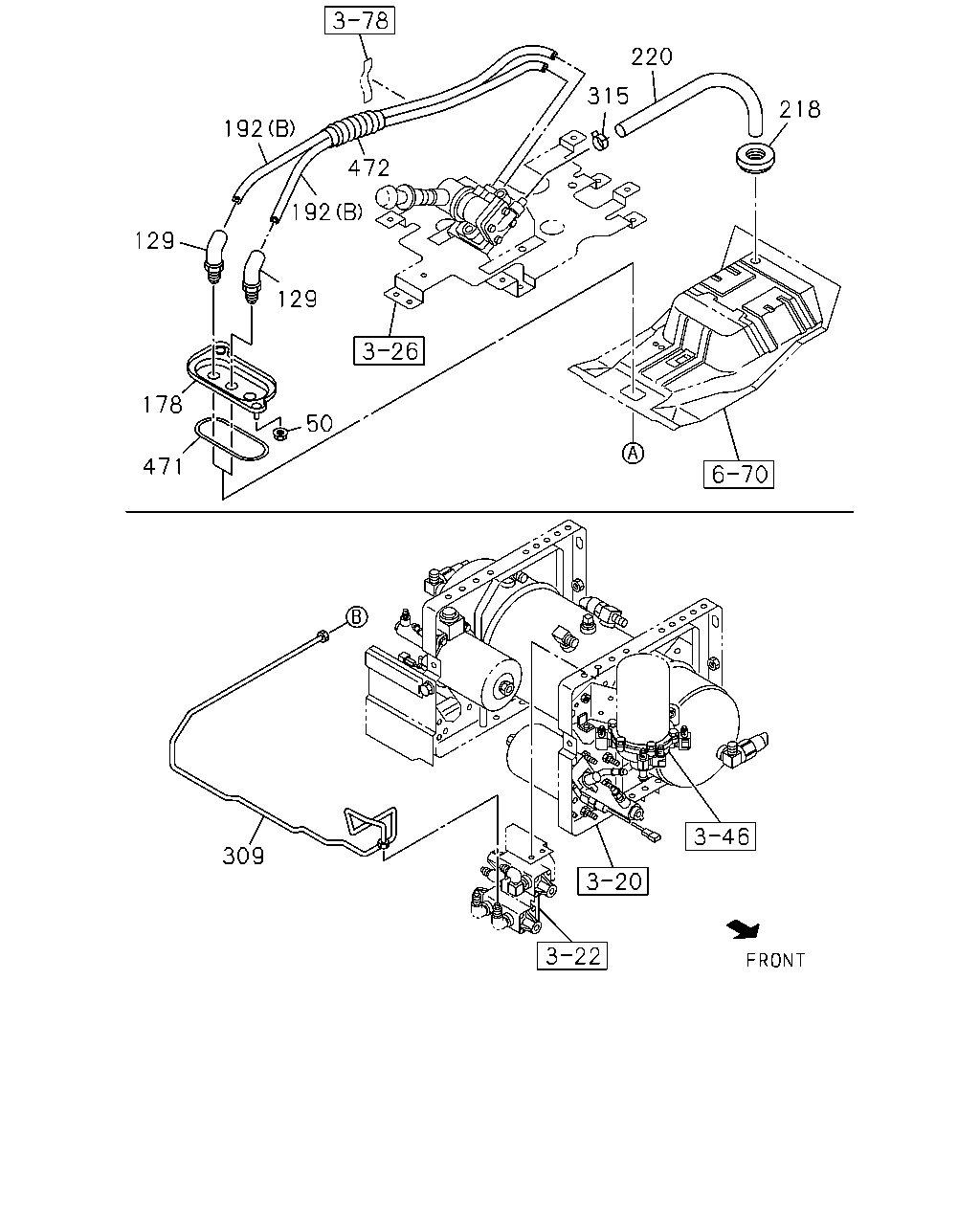

220 315 218 472 192 192 129 178 471 50 129 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0906-1204	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1205-	●
129	CONNECTOR; NYLON TUBE DIN13 & M18 ELBOW	8-97611-963-1	02	1	1205-		●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-054-1	01	1	0906-1204	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-054-1	01	1	1205-	●
178	BRACKET; UNION	8-98017-054-1	01	1	1205-		●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-052-1	01	1	0906-	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0906-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0906-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0906-	●	●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0906-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0906-	●	●
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0906-1204	●
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	1205-	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1205-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0906-1204	●
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1205-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1205-		●
309	PIPE; AIR,MPV TO UNION MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=626 SERVICED BY L=660	1-47428-869-0	01	1	0906-	●
309	PIPE; AIR,MPV TO UNION MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550	1-47428-879-0	01	1	0906-1204	●
309	PIPE; AIR,MPV TO UNION MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550	1-47428-879-0	01	1	1205-	●
309	PIPE; AIR,MPV TO UNION MZW6P M/T(RSZ) L=1428 SERVICED BY L=1550	1-47428-879-0	01	1	1205-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0906-1204	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	1205-	●
315	CLIP ID=14	8-94238-572-0	01	1	1205-		●
471	SEAL; BRKT	1-79738-832-0	01	1	0906-1204	●
471	SEAL; BRKT	1-79738-832-0	01	1	1205-	●	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0906-1204	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1205-	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1205-		●

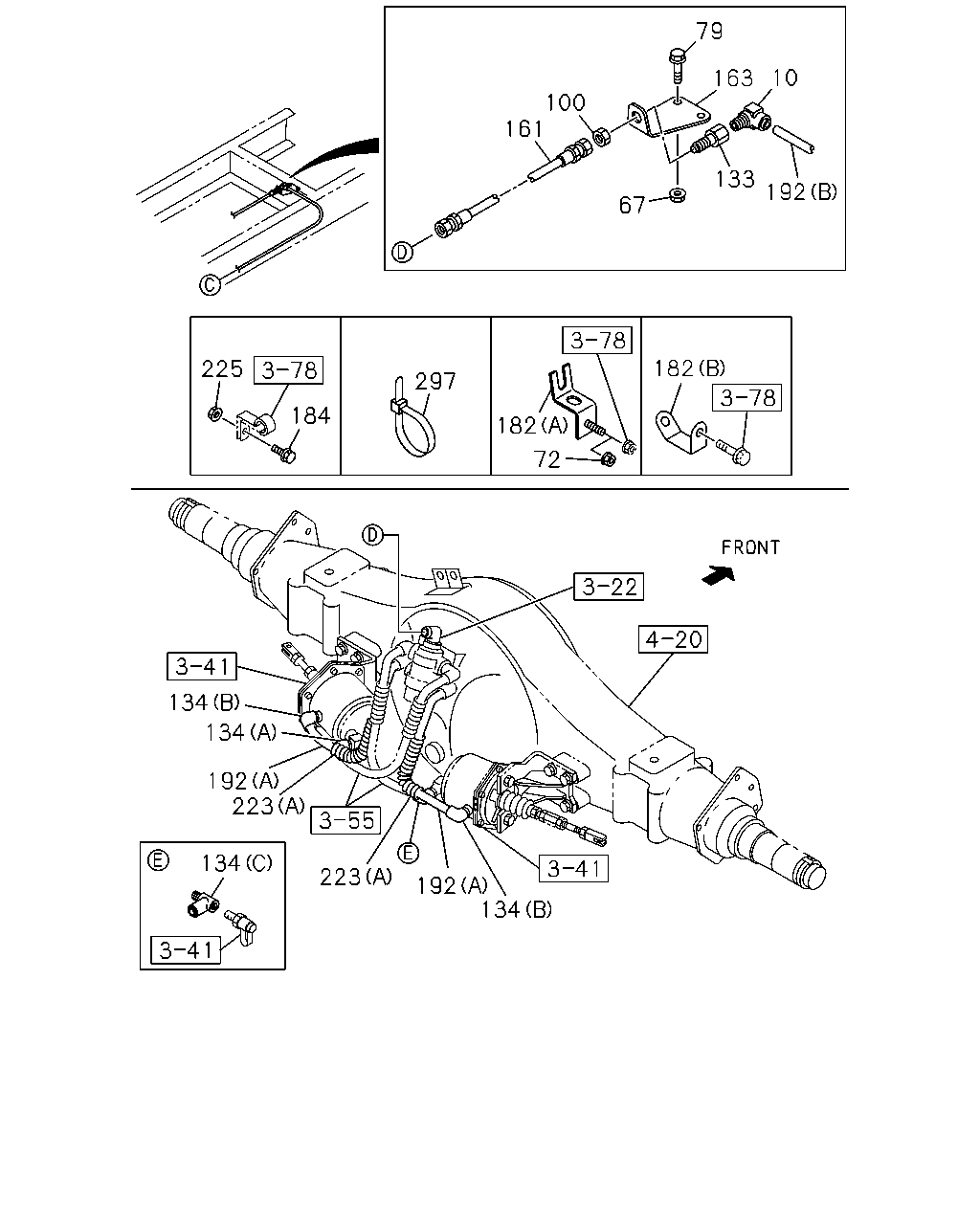

79 163 10 192 133 67 100 161 225 184 297 182 72 182 134 134 192 223 223 192 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-1204	●
10	CONNECTOR; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1205-	●
10	CONNECTOR; FLEX HOSE DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1205-		●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1205-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1205-		●
72	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) DIFF LOCK<C3N> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1205-	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1205-		●
100	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0906-1204	●
100	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	1205-	●
100	NUT; UNION M16	0-91111-516-0	01	1	1205-		●
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09654-258-2	01	1	0906-1111	●
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98202-001-0	01	1	1112-1204	●
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98202-001-0	01	1	1205-	●
133	UNION; NIPPLE	8-98202-001-0	01	1	1205-		●
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0906-1204	●
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	1205-	●
134	CONNECTOR (C) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	1205-		●
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0906-1204	●
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1205-	●
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1205-		●
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0906-1204	●
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1205-	●
134	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1205-		●
161	HOSE; FLEX,QUICK RELEASE VLV L=420	1-09363-805-0	01	1	1205-		●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460	1-09363-963-0	01	1	0906-	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-842-0	01	1	0906-1204	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-842-0	01	1	1205-	●
163	BRACKET; FLEX HOSE	8-98044-842-0	01	1	1205-		●
182	BRACKET; TUBE CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98096-272-0	01	1	0906-1204	●
182	BRACKET; TUBE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) DIFF LOCK<C3N> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98096-272-0	01	1	1205-	●
182	BRACKET; TUBE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98096-272-0	01	1	1205-	●
182	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98096-272-0	02	1	0906-0910	●
182	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98117-686-0	01	1	0906-0909	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0906-1204	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	1205-	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1205-		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0906-	●	●
192	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0906-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0906-	●	●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0906-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=4000 ID=15	1-87411-026-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	0906-	●	●
223	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0906-	●	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0906-1107	●
297	CLIP; BAND WHEEL BASE 4900MM(49W) DIFF LOCK<C3N> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	08	1	1205-	●
297	CLIP; BAND WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	08	1	1205-	●
297	CLIP; BAND WHEEL BASE 4000MM(40W) DIFF LOCK<C3N> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	05	1	1205-	●
297	CLIP; BAND WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1205-	●
297	CLIP; BAND WHEEL BASE 5300MM(53W) DIFF LOCK<C3N> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1205-	●
297	CLIP; BAND WHEEL BASE 4600MM(46W) DIFF LOCK<C3N> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	06	1	1205-	●
297	CLIP; BAND WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	12	1	1205-	●
297	CLIP; BAND WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	04	1	0906-1008	●
297	CLIP; BAND WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	05	1	0906-1008	●
297	CLIP; BAND WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	04	1	1009-	●
297	CLIP; BAND WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	05	1	0906-1008	●
297	CLIP; BAND WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	08	1	0906-1204	●
297	CLIP; BAND L=350	1-09707-183-0	01	1	1205-		●
297	CLIP; BAND WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	0906-1204	●
297	CLIP; BAND WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	02	1	1205-	●
297	CLIP; BAND WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	10	1	0906-1008	●
297	CLIP; BAND WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	0906-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
