◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11230 - FRR-LHD(EU)SPACE EU5 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#16797) — 88 parça

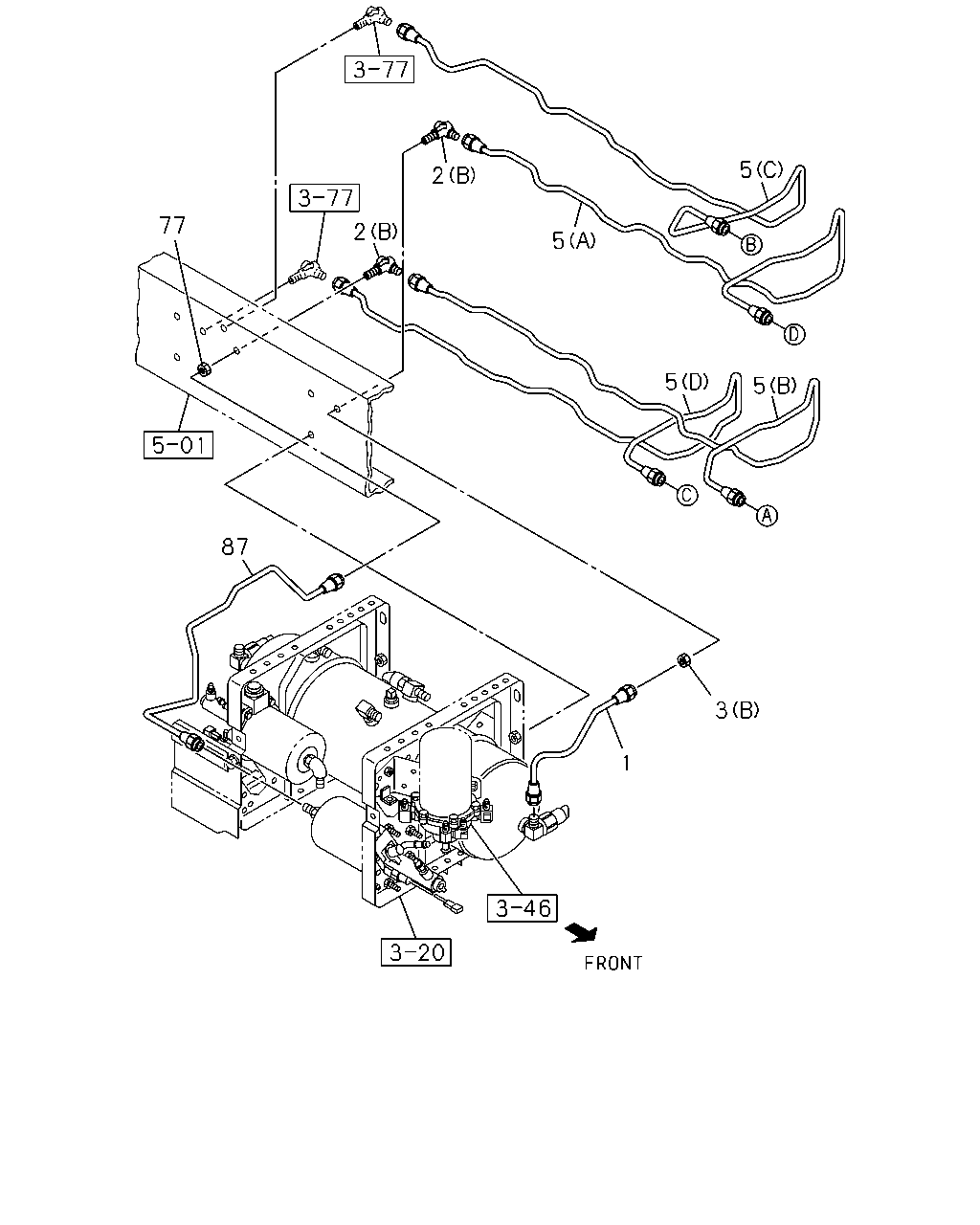

çizim 15220
5 2 77 2 5 5 5 87 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0906-1204 ●
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 1205- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0906-1204 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1205- ● ●
2 UNION; AIR PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 0906-1204 ●
2 UNION; AIR PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 0906-1204 ●
2 UNION; AIR PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 1205- ● ●
2 UNION; AIR PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 1205- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0906-1204 ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1205- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2817 SERVICED BY L=2900 		1-47428-885-0 01 1 0906-1204 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2817 SERVICED BY L=2900 		1-47428-885-0 01 1 1205- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=3191 SERVICED BY L=3300 		1-47428-886-0 01 1 0906-1204 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3191 SERVICED BY L=3300 		1-47428-886-0 01 1 1205- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=3137 SERVICED BY L=3300 		1-47428-886-0 01 1 0906-1204 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3137 SERVICED BY L=3300 		1-47428-886-0 01 1 1205- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=3203 		8-98111-802-1 01 1 0906-1204 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3203 		8-98111-802-1 01 1 1205- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0906-1204 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1205- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0906-1204 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 1205- ● ●

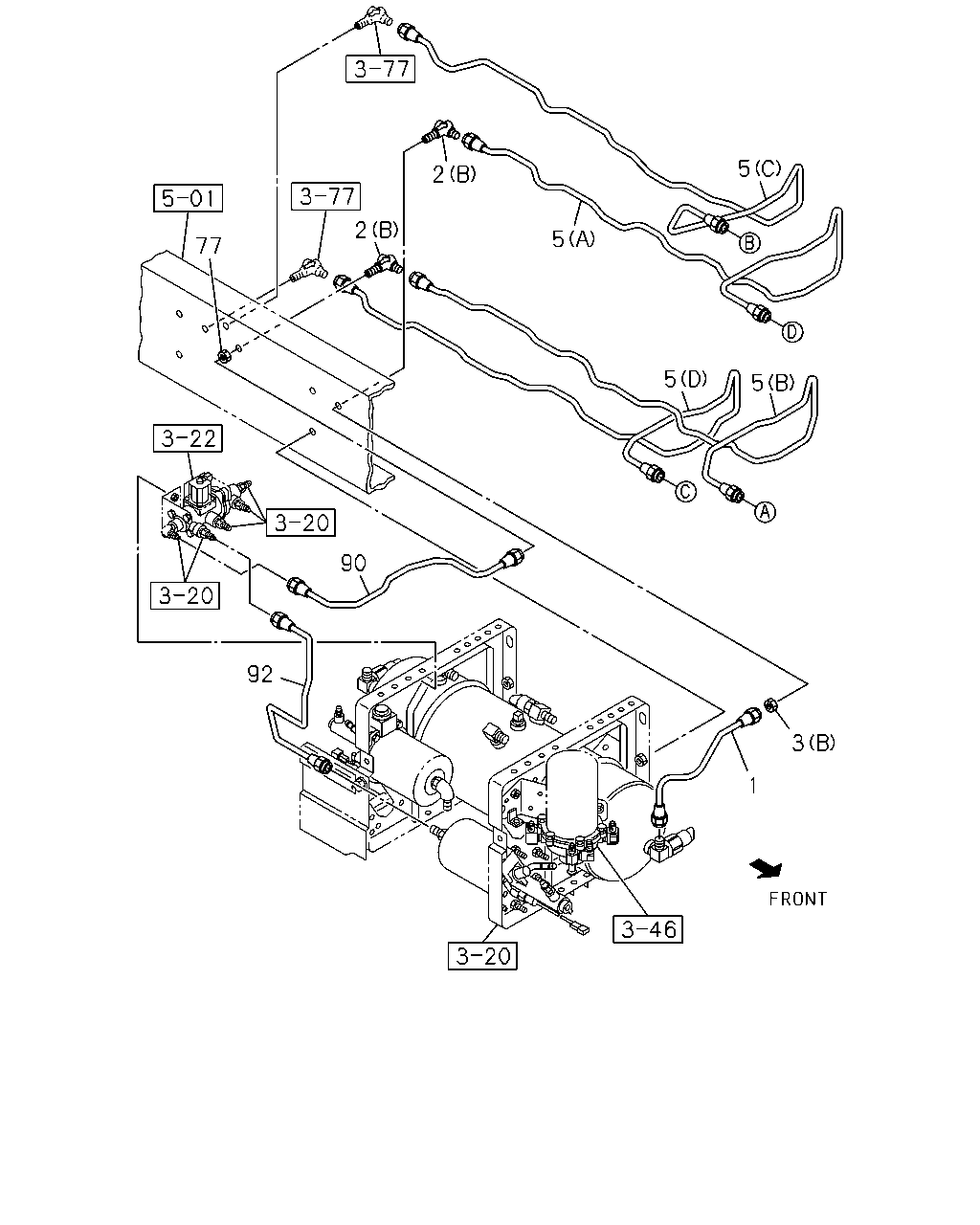

çizim 62090
5 2 2 5 77 5 5 90 92 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0906-1204 ●
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 1205- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0906-1204 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1205- ● ●
2 UNION; AIR PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 0906-1204 ●
2 UNION; AIR PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 0906-1204 ●
2 UNION; AIR PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 1205- ● ●
2 UNION; AIR PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 1205- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0906-1204 ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1205- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2817 SERVICED BY L=2900 		1-47428-885-0 01 1 0906-1204 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2817 SERVICED BY L=2900 		1-47428-885-0 01 1 1205- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=3191 SERVICED BY L=3300 		1-47428-886-0 01 1 0906-1204 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3191 SERVICED BY L=3300 		1-47428-886-0 01 1 1205- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=3137 SERVICED BY L=3300 		1-47428-886-0 01 1 0906-1204 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3137 SERVICED BY L=3300 		1-47428-886-0 01 1 1205- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=3203 		8-98111-802-1 01 1 0906-1204 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3203 		8-98111-802-1 01 1 1205- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0906-1204 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1205- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 0906-1204 ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 1205- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0906-1204 ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550 		1-47428-867-0 01 1 1205- ● ●

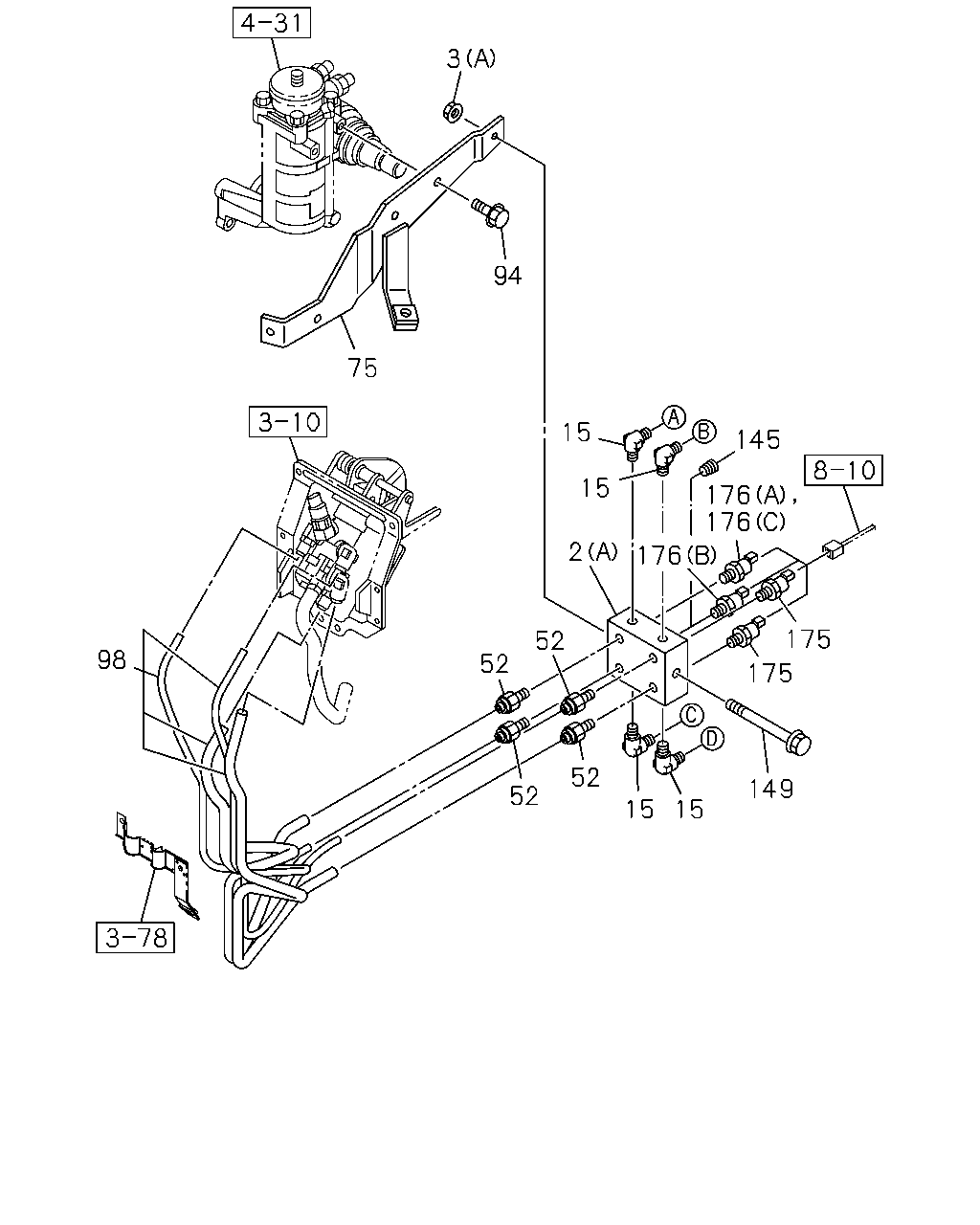

çizim 62815
3 94 75 15 145 15 176 176 2 176 175 52 98 52 175 52 149 52 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0906-1204 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1205- ● ●
2 UNION; AIR PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 0906-1204 ●
2 UNION; AIR PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 0906-1204 ●
2 UNION; AIR PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 1205- ● ●
2 UNION; AIR PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98057-394-1 01 1 1205- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0906-1204 ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1205- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
15 CONNECTOR; AIR PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0906-1204 ●
15 CONNECTOR; AIR PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0906-1204 ●
15 CONNECTOR; AIR PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1205- ● ●
15 CONNECTOR; AIR PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1205- ● ●
52 CONNECTOR; NYLON TUBE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0906-1204 ●
52 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0906-1204 ●
52 CONNECTOR; NYLON TUBE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1205- ● ●
52 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1205- ● ●
75 BRACKET; UNION 8-98124-802-0 01 1 0906-1204 ●
75 BRACKET; UNION 8-98124-802-0 01 1 1205- ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0906-1204 ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1205- ● ●
98 TUBE; NYLON 8-98124-954-1 01 1 0906-1204 ●
98 TUBE; NYLON 8-98124-954-1 01 1 1205- ● ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0906-1204 ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 1205- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0906-1204 ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1205- ● ●
175 SENSOR; AIR PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) THREAD R1/4 		1-80220-023-1 02 1 0906-1204 ●
175 SENSOR; AIR PRESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) THREAD R1/4 		1-80220-023-1 02 1 0906-1204 ●
175 SENSOR; AIR PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) THREAD R1/4 		1-80220-023-1 02 1 1205- ● ●
175 SENSOR; AIR PRESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) THREAD R1/4 		1-80220-023-1 02 1 1205- ● ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7 		8-97622-710-0 01 1 0906-1204 ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7 		8-97622-710-0 01 1 1205- ● ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 0906-1204 ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 1205- ● ●
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) STAMP 0.3 		8-98010-857-0 01 1 0906-1204 ●
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) STAMP 0.3 		8-98010-857-0 01 1 1205- ● ●
