Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#16796) — 345 parça

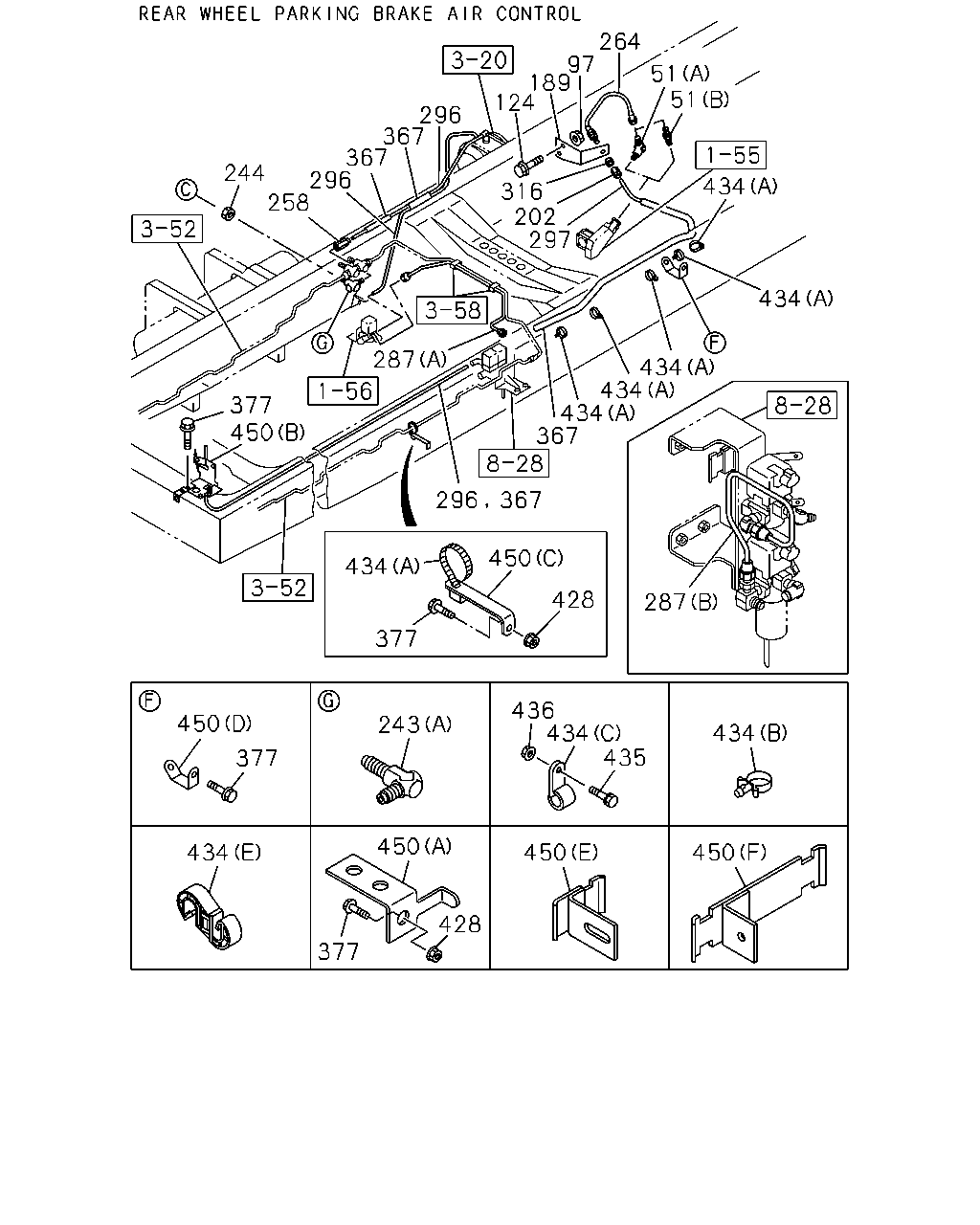

264 97 189 124 51 51 296 367 367 296 258 244 434 316 202 297 434 287 434 434 434 367 377 450 296 367 450 434 428 287 377 436 434 435 450 243 434 377 450 434 450 450 428 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1204	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-	●	●
51	UNION WHEEL BASE 3400MM(34W) (B) M12 ELBOW	0-92125-006-0	01	1	0906-	●
97	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1204	●
97	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
124	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0906-1204	●
124	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
189	BRACKET; FLEX HOSE	8-98054-640-0	01	1	0906-1204	●
189	BRACKET; FLEX HOSE	8-98054-640-0	01	1	1205-	●	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0906-1204	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1205-	●	●
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 ELBOW	0-92125-206-0	01	1	0906-1204	●
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 ELBOW	0-92125-206-0	01	1	1205-	●
243	UNION; AIR PIPE (A) M12 ELBOW	0-92125-206-0	01	1	1205-		●
243	UNION; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 3WAY	0-92138-906-0	01	1	0906-	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0906-1204	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1205-	●	●
258	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0906-1204	●
258	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1205-	●
258	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1205-		●
264	HOSE; FLEX WHEEL BASE 3400MM(34W) L=270	1-09363-687-0	01	1	0906-	●
264	HOSE; FLEX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) L=220	1-09363-627-0	01	1	0906-1204	●
264	HOSE; FLEX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=220	1-09363-627-0	01	1	1205-	●
264	HOSE; FLEX L=220	1-09363-627-0	01	1	1205-		●
287	PIPE; AIR,MAG VLV MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) PTO CONTROL<SV6> (B) L=367	8-98117-489-0	01	1	0906-	●
287	PIPE; AIR,MAG VLV MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=773 SERVICED BY L=800	1-47428-812-0	01	1	0906-	●
287	PIPE; AIR,MAG VLV MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=749 SERVICED BY L=800	1-47428-812-0	01	1	0906-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=816 SERVICED BY L=900	1-47428-813-0	01	1	0906-1204	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=816 SERVICED BY L=900	1-47428-813-0	01	1	1205-	●
287	PIPE; AIR,MAG VLV (A) L=816 SERVICED BY L=900	1-47428-813-0	01	1	1205-		●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0906-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0906-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0906-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0906-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0906-	●	●
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0906-1204	●
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	1205-	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	0906-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0906-	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	0906-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0906-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	02	1	0906-1204	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
377	BOLT; BRKT FIX MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	1205-	●	●
377	BOLT; BRKT FIX MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
377	BOLT; BRKT FIX WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	0906-	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0906-1204	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1205-	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	03	1	1205-		●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1205-	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1205-		●
428	NUT; BRKT WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0906-	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	03	1	0906-1204	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	03	1	1205-	●
428	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1205-		●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1110-1203	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1110-1203	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	05	1	1204-1204	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1204-1204	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	05	1	1205-		●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1205-		●
434	CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	02	1	1009-1109	●
434	CLIP MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	02	1	1110-	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	0906-1204	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1205-	●	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	0906-1204	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1205-	●	●
434	CLIP (A) L=350	1-09707-183-0	08	1	0906-1204	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1205-	●	●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	0906-1204	●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1205-	●	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0906-1008	●
434	CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0906-1008	●
434	CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0906-1008	●
434	CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-1204	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1205-		●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=10 & 15	1-09709-279-1	01	1	0906-1204	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=10 & 15	1-09709-279-1	01	1	1205-	●
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	1205-		●
434	CLIP WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	06	1	0906-	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	05	1	0906-1109	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	0906-1109	●
434	CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	04	1	1110-	●
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	07	1	0906-1204	●
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	07	1	1205-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0906-1204	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1205-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
450	BRACKET; CLIP (C)	1-47477-694-0	01	1	0906-1204	●
450	BRACKET; CLIP (C)	1-47477-694-0	01	1	1205-	●	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0906-1107	●
450	BRACKET; CLIP (B)	8-98180-947-0	01	1	1108-1204	●
450	BRACKET; CLIP (B)	8-98180-947-0	01	1	1205-	●	●
450	BRACKET; CLIP (D)	8-98117-686-0	02	1	0906-1204	●
450	BRACKET; CLIP (D)	8-98117-686-0	02	1	1205-	●	●
450	BRACKET; CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98116-680-0	01	1	0906-	●
450	BRACKET; CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-216-1	01	1	0906-	●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47479-693-0	01	1	0906-1204	●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47479-693-0	01	1	1205-	●
450	BRACKET; CLIP (E)	1-47479-693-0	01	1	1205-		●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-216-1	03	1	0906-1204	●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-216-1	03	1	1205-	●
450	BRACKET; CLIP (A)	8-98100-216-1	03	1	1205-		●

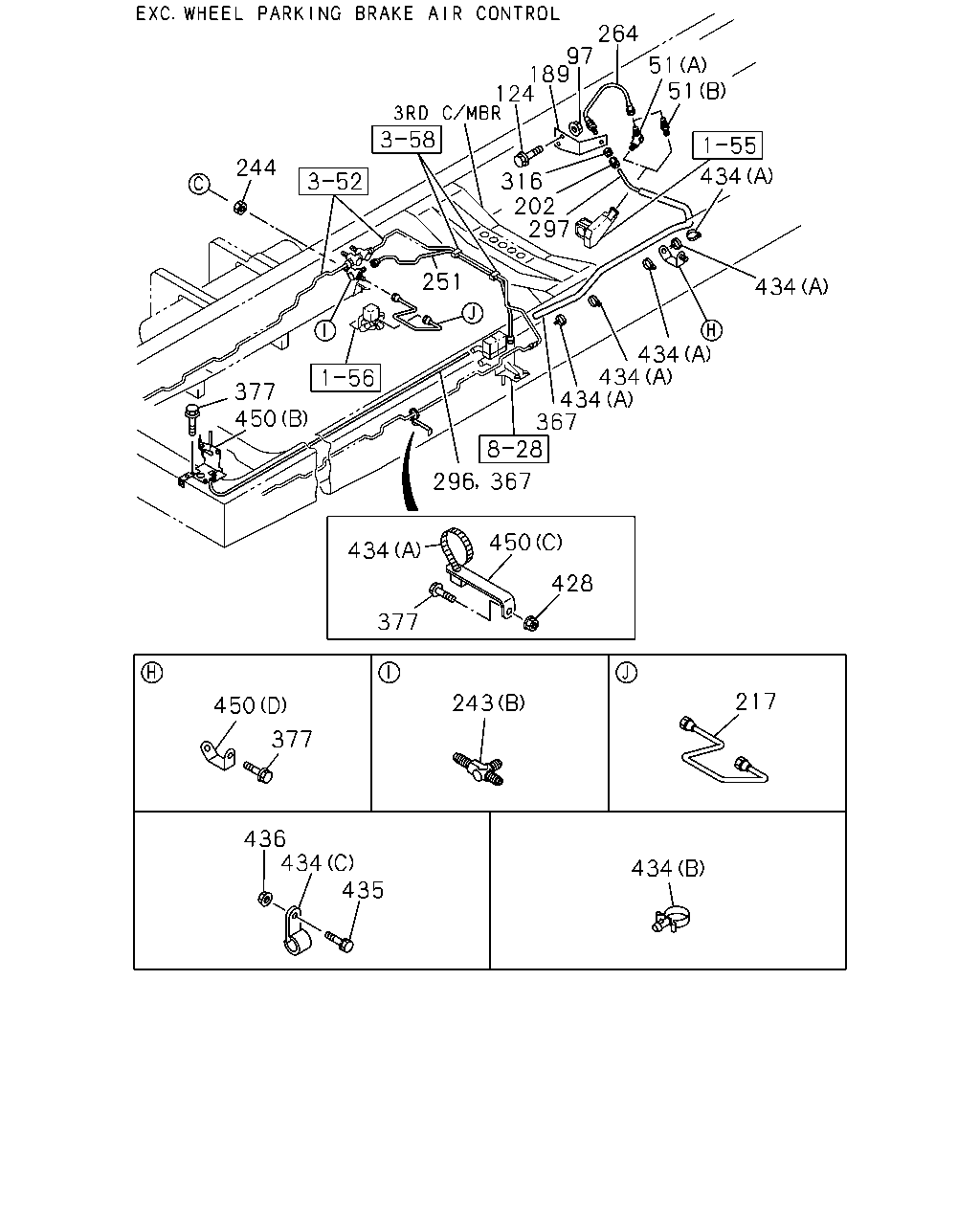

264 97 189 124 51 51 244 434 316 202 297 251 434 434 434 434 367 377 450 296 367 450 434 428 377 217 243 450 377 436 434 435 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1204	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-	●	●
51	UNION WHEEL BASE 3400MM(34W) (B) M12 ELBOW	0-92125-006-0	01	1	0906-	●
97	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1204	●
97	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
124	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0906-1204	●
124	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
189	BRACKET; FLEX HOSE	8-98054-640-0	01	1	0906-1204	●
189	BRACKET; FLEX HOSE	8-98054-640-0	01	1	1205-	●	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0906-1204	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1205-	●	●
217	PIPE; VAC,UNION TO MAG VLV MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=339	8-98115-449-0	01	1	0906-	●
217	PIPE; VAC,UNION TO MAG VLV MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=298	8-98067-432-0	01	1	0906-	●
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=265	8-98067-433-0	01	1	0906-1204	●
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=265	8-98067-433-0	01	1	1205-	●
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 ELBOW	0-92125-206-0	01	1	0906-1204	●
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 ELBOW	0-92125-206-0	01	1	1205-	●
243	UNION; AIR PIPE (A) M12 ELBOW	0-92125-206-0	01	1	1205-		●
243	UNION; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 3WAY	0-92138-906-0	01	1	0906-	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0906-1204	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1205-	●	●
251	PIPE; AIR,UNION TO MAG VLV MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=890	8-98117-490-0	01	1	0906-	●
251	PIPE; AIR,UNION TO MAG VLV MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=869 SERVICED BY L=900	1-47428-813-0	01	1	0906-	●
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=931 SERVICED BY L=1000	1-47428-814-0	01	1	0906-1204	●
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=931 SERVICED BY L=1000	1-47428-814-0	01	1	1205-	●
264	HOSE; FLEX WHEEL BASE 3400MM(34W) L=270	1-09363-687-0	01	1	0906-	●
264	HOSE; FLEX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) L=220	1-09363-627-0	01	1	0906-1204	●
264	HOSE; FLEX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=220	1-09363-627-0	01	1	1205-	●
264	HOSE; FLEX L=220	1-09363-627-0	01	1	1205-		●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0906-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0906-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0906-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0906-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0906-	●	●
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0906-1204	●
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	1205-	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	0906-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0906-	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	0906-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0906-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	02	1	0906-1204	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
377	BOLT; BRKT FIX MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	1205-	●	●
377	BOLT; BRKT FIX MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
377	BOLT; BRKT FIX WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	0906-	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0906-1204	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1205-	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	03	1	1205-		●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1205-	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1205-		●
428	NUT; BRKT WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0906-	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	03	1	0906-1204	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	03	1	1205-	●
428	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1205-		●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1110-1203	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1110-1203	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	05	1	1204-1204	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1204-1204	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	05	1	1205-		●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1205-		●
434	CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	02	1	1009-1109	●
434	CLIP MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	02	1	1110-	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	0906-1204	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1205-	●	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	0906-1204	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1205-	●	●
434	CLIP (A) L=350	1-09707-183-0	08	1	0906-1204	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1205-	●	●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	0906-1204	●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1205-	●	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0906-1008	●
434	CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0906-1008	●
434	CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0906-1008	●
434	CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-1204	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1205-		●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=10 & 15	1-09709-279-1	01	1	0906-1204	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=10 & 15	1-09709-279-1	01	1	1205-	●
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	1205-		●
434	CLIP WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	06	1	0906-	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	05	1	0906-1109	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	0906-1109	●
434	CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	04	1	1110-	●
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	07	1	0906-1204	●
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	07	1	1205-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0906-1204	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1205-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
450	BRACKET; CLIP (C)	1-47477-694-0	01	1	0906-1204	●
450	BRACKET; CLIP (C)	1-47477-694-0	01	1	1205-	●	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0906-1107	●
450	BRACKET; CLIP (B)	8-98180-947-0	01	1	1108-1204	●
450	BRACKET; CLIP (B)	8-98180-947-0	01	1	1205-	●	●
450	BRACKET; CLIP (D)	8-98117-686-0	02	1	0906-1204	●
450	BRACKET; CLIP (D)	8-98117-686-0	02	1	1205-	●	●
450	BRACKET; CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98116-680-0	01	1	0906-	●
450	BRACKET; CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-216-1	01	1	0906-	●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47479-693-0	01	1	0906-1204	●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47479-693-0	01	1	1205-	●
450	BRACKET; CLIP (E)	1-47479-693-0	01	1	1205-		●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-216-1	03	1	0906-1204	●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-216-1	03	1	1205-	●
450	BRACKET; CLIP (A)	8-98100-216-1	03	1	1205-		●

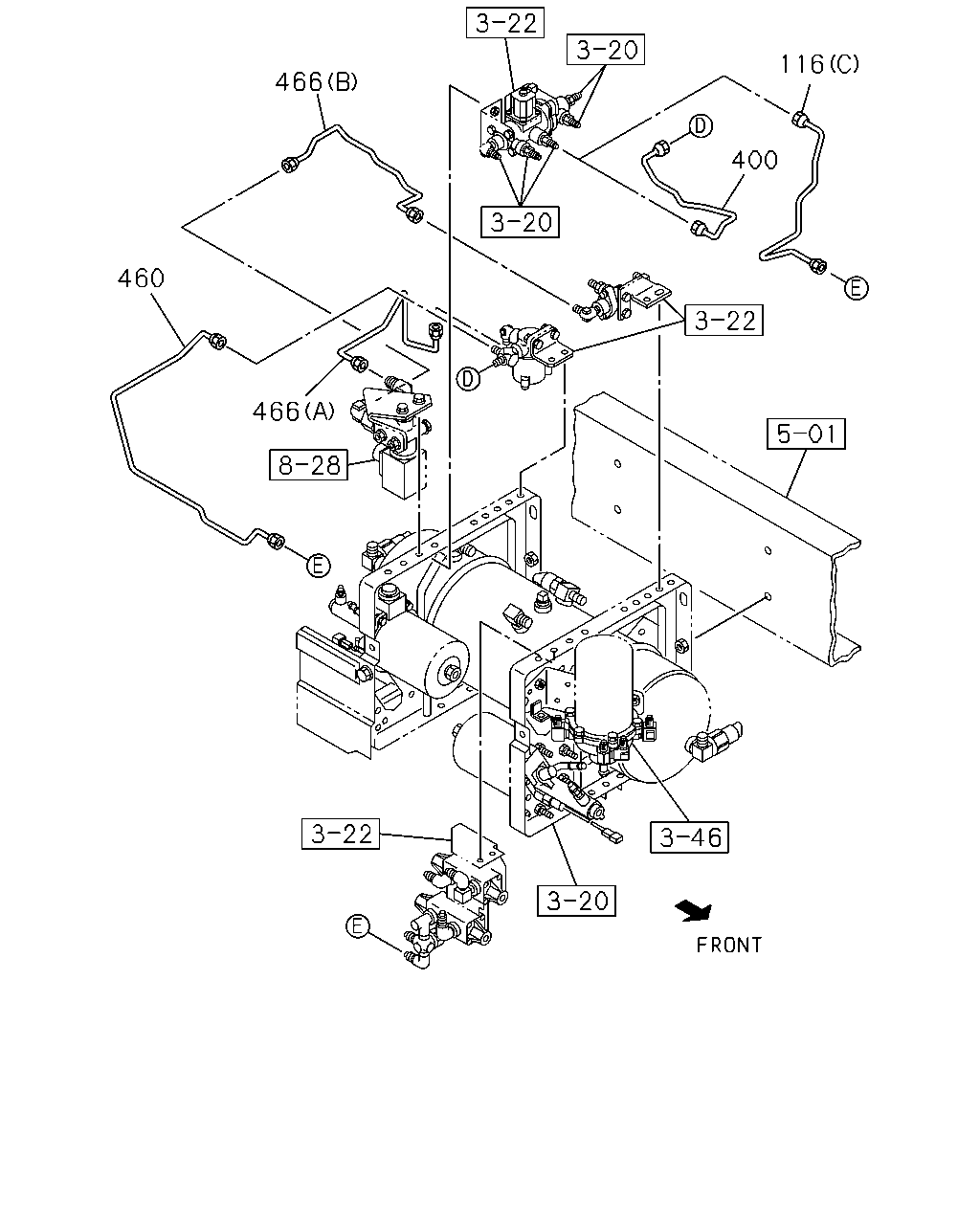

116 466 400 460 466

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0906-1204	●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	0906-1204	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	0906-1204	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1205-	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1205-		●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	0906-	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	0906-1204	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1205-	●
116	PIPE; AIR,PROTECTION VLV (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1205-		●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	0906-	●
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	0906-0907	●
400	PIPE; AIR,HSA VLV THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	0908-1005	●
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1006-1204	●
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1205-	●	●
460	PIPE; AIR,PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	0906-1204	●
460	PIPE; AIR,PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	1205-	●
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	1205-		●
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98066-847-0	01	1	0906-	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800	1-47428-872-0	01	1	0906-1204	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800	1-47428-872-0	01	1	1205-	●	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	0906-1204	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1205-	●	●

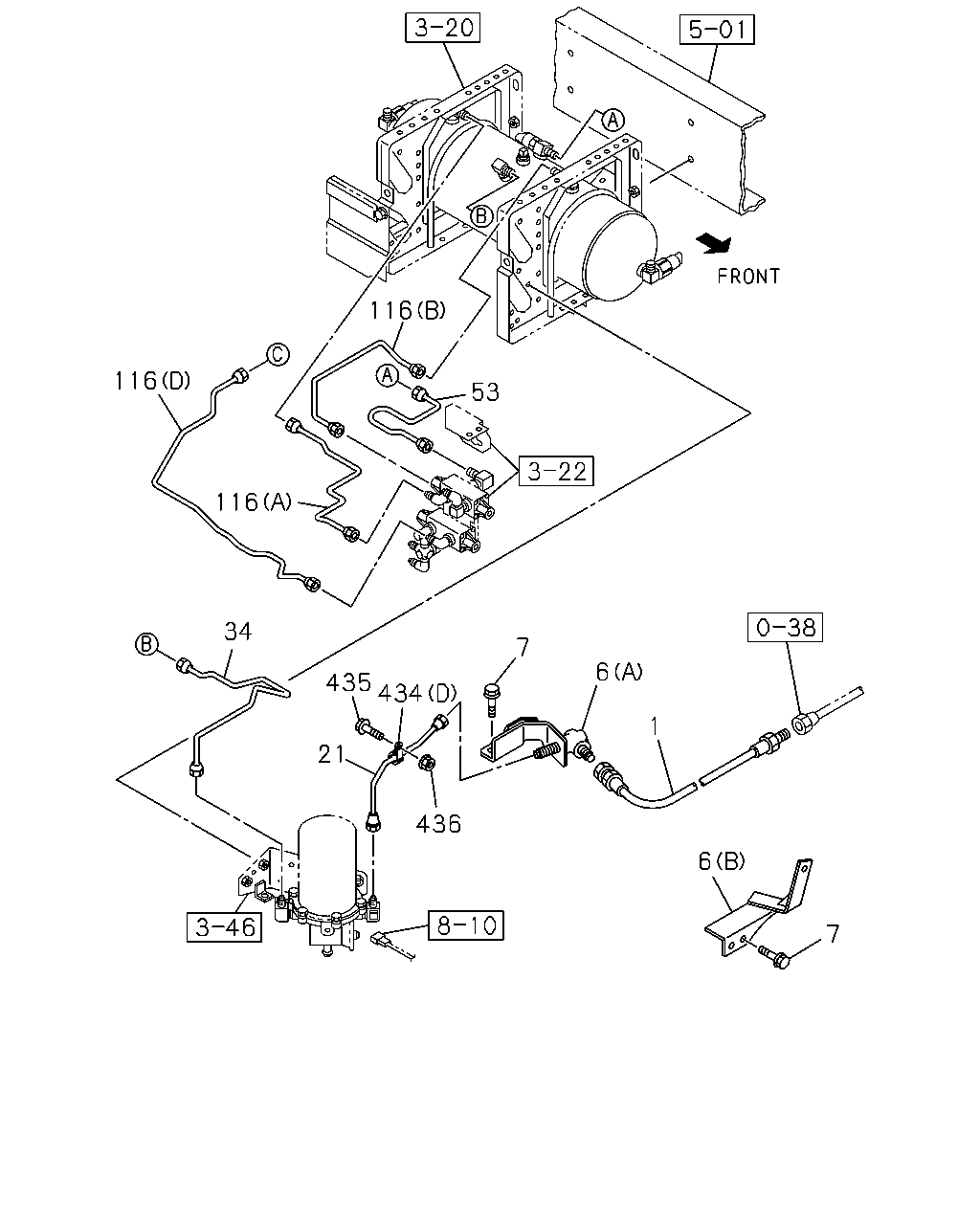

116 116 53 116 34 7 6 435 434 1 21 436 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	8-98134-768-0	01	1	0906-1204	●
1	HOSE; FLEX,AIR TANK	8-98134-768-0	01	1	1205-	●	●
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98131-070-0	01	1	0906-0909	●
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98155-606-1	01	1	0910-1204	●
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98155-606-1	01	1	1205-	●	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98134-700-0	01	1	0906-1204	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98134-700-0	01	1	1205-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=739	8-98134-697-0	01	1	0906-1204	●
21	PIPE; AIR,UNION TO AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=739	8-98134-697-0	01	1	1205-	●
21	PIPE; AIR,UNION TO AIR DRYER L=739	8-98134-697-0	01	1	1205-		●
21	PIPE; AIR,UNION TO AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=763	8-98134-696-0	01	1	0906-	●
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	0906-1204	●
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1205-	●
34	PIPE; AIR L=673 SERVICED BY L=700	1-49115-481-0	01	1	1205-		●
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=659 SERVICED BY L=660	1-49115-480-0	01	1	0906-	●
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	0906-1204	●
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0906-1204	●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	0906-1204	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1205-	●	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	0906-1204	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1205-	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1205-		●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	0906-	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	0906-1204	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1205-	●
116	PIPE; AIR,PROTECTION VLV (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1205-		●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	0906-	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1110-1203	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1110-1203	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	05	1	1204-1204	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1204-1204	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	05	1	1205-		●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1205-		●
434	CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	02	1	1009-1109	●
434	CLIP MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	02	1	1110-	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	0906-1204	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1205-	●	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	0906-1204	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1205-	●	●
434	CLIP (A) L=350	1-09707-183-0	08	1	0906-1204	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1205-	●	●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	0906-1204	●
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1205-	●	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0906-1008	●
434	CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0906-1008	●
434	CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0906-1008	●
434	CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-1204	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1205-	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1205-		●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=10 & 15	1-09709-279-1	01	1	0906-1204	●
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=10 & 15	1-09709-279-1	01	1	1205-	●
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	1205-		●
434	CLIP WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	06	1	0906-	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	05	1	0906-1109	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	0906-1109	●
434	CLIP MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	04	1	1110-	●
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	07	1	0906-1204	●
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	07	1	1205-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0906-1204	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1205-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
