3-55 — BRAKE PIPING; OIL,REAR (#16794) — 101 parça

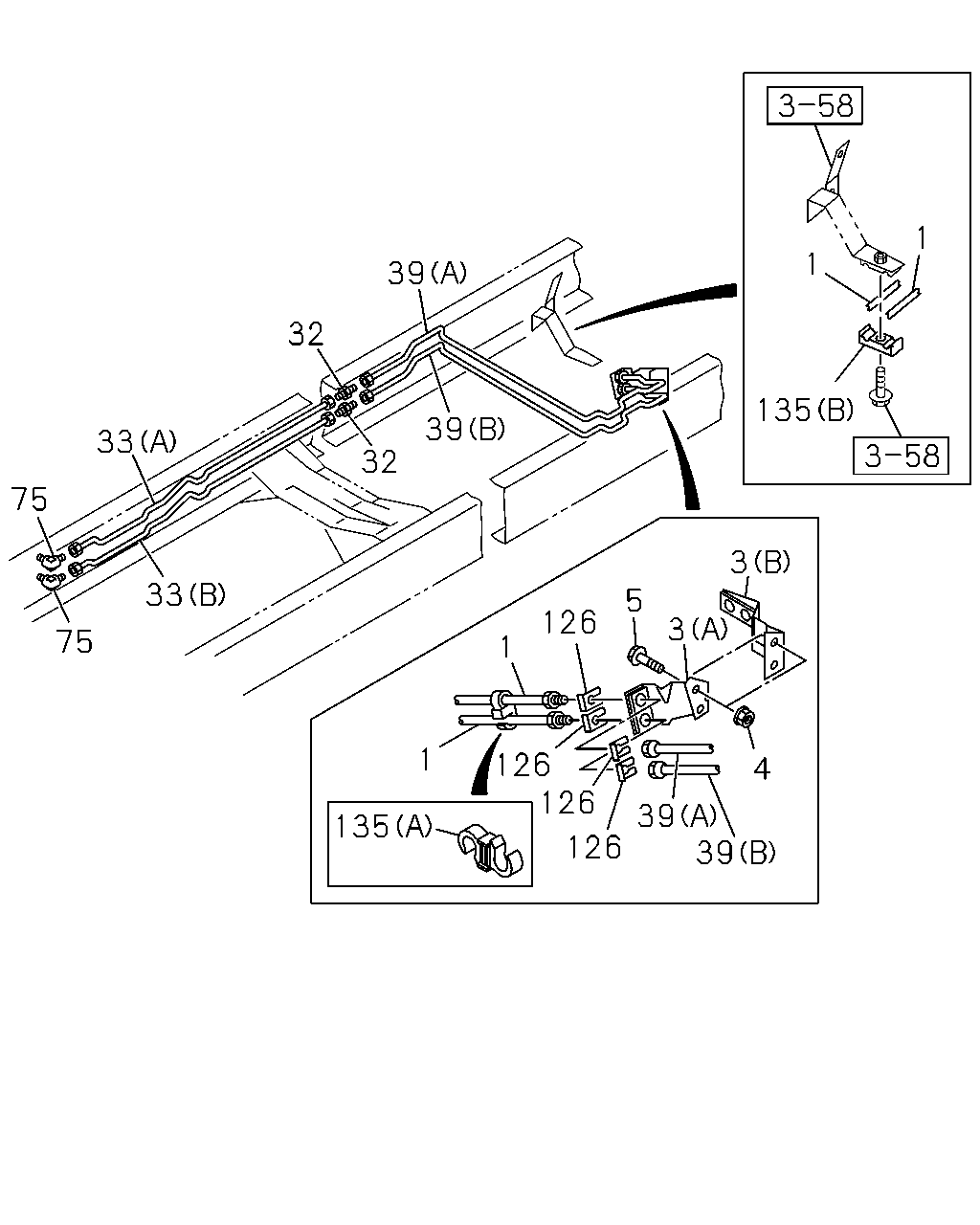

çizim 61816
1 1 39 32 135 39 33 32 75 3 33 5 126 3 75 1 1 126 126 4 39 39 135 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=480 		8-98067-398-0 02 1 1205- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3400MM(34W) L=320 		8-98067-397-0 02 1 0906- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) L=350 		8-97138-885-0 02 1 0906-1204 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=350 		8-97138-885-0 02 1 1205- ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98012-144-1 01 1 1205- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 0906- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0906- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28650-820-0 02 1 1205- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0906- ●
32 UNION; OIL PIPE
WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) M10 STRAIGHT 		0-92107-005-0 02 1 0906-1204 ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1205- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1205- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) LH LINE L=1111 		8-98138-758-0 01 1 0906- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) RH LINE L=954 		8-98071-239-0 01 1 0906- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2536 		8-98071-249-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2533 		8-98183-303-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2533 		8-98183-303-0 01 1 1205- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 1205- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 1205- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 0906- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772 		8-98106-486-0 01 1 0906- ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0906-1204 ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 1205- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0906-1204 ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1205- ● ●
135 CLIP; FLEX HOSE
(B) 		1-09701-278-2 01 1 1205- ●
135 CLIP; FLEX HOSE
(A) ID=10 & 10 		1-09709-277-1 01 1 0906-1204 ●
135 CLIP; FLEX HOSE
(A) ID=10 & 10 		1-09709-277-1 01 1 1205- ● ●

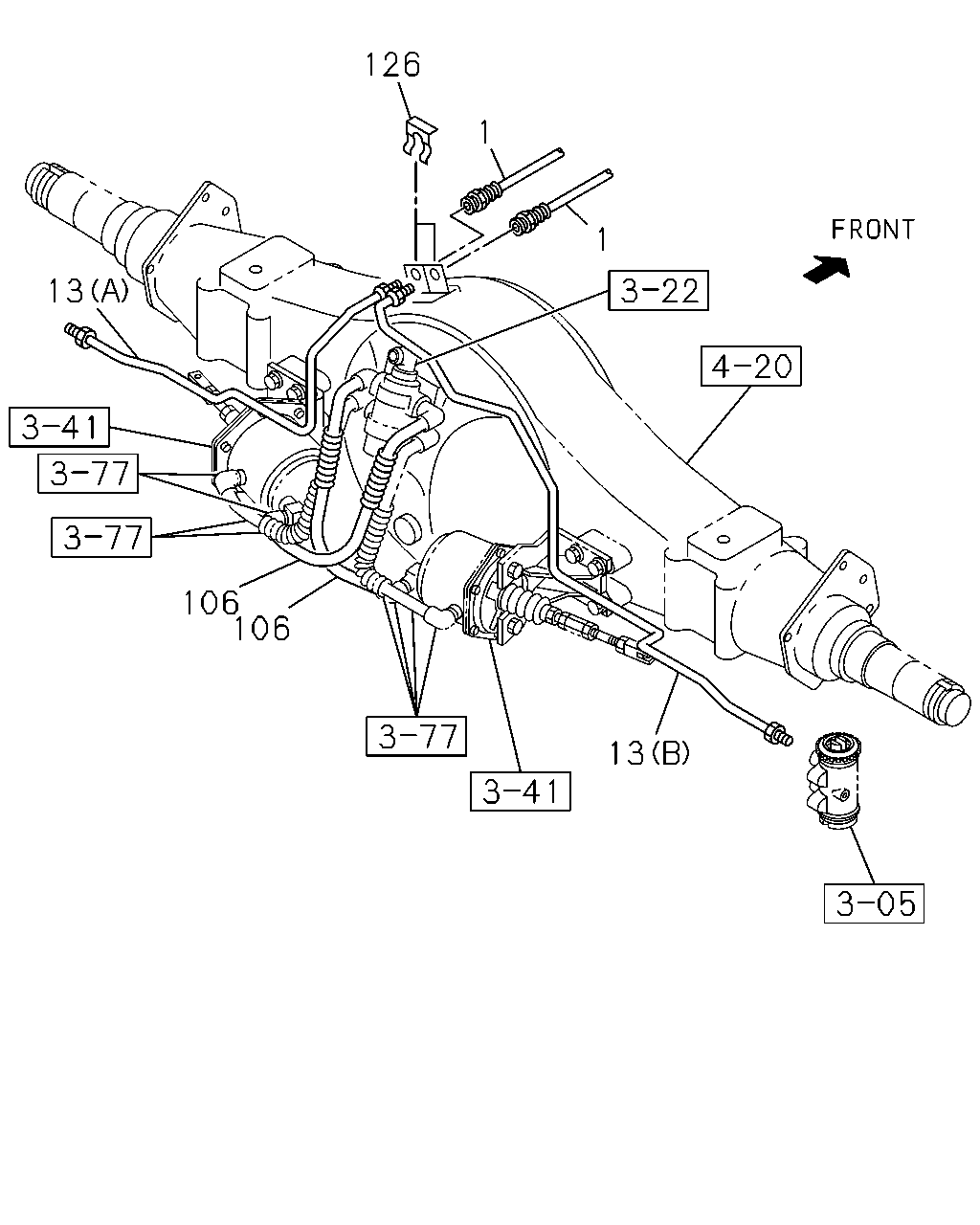

çizim 63244
13 106 106 13 126 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=480 		8-98067-398-0 02 1 1205- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3400MM(34W) L=320 		8-98067-397-0 02 1 0906- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) L=350 		8-97138-885-0 02 1 0906-1204 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=350 		8-97138-885-0 02 1 1205- ●
13 PIPE; BRK,RR AXLE
DIFF LOCK<C3N> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98107-928-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
DIFF LOCK<C3N> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98107-929-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DIFF LOCK<C3N> (B) RH LINE 		8-98073-530-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DIFF LOCK<C3N> (A) LH LINE 		8-98073-531-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98107-929-0 01 1 0906-1204 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98107-929-0 01 1 1205-1409 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 1205-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98281-558-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98107-928-0 01 1 0906-1204 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98107-928-0 01 1 1205-1409 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 1205-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98059-742-0 01 1 0906- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98059-741-0 01 1 0906- ●
106 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98061-971-0 02 1 0906-1204 ●
106 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98061-971-0 02 1 1205- ●
106 TUBE; NYLON 8-98061-971-0 02 1 1205- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0906-1204 ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1205- ● ●

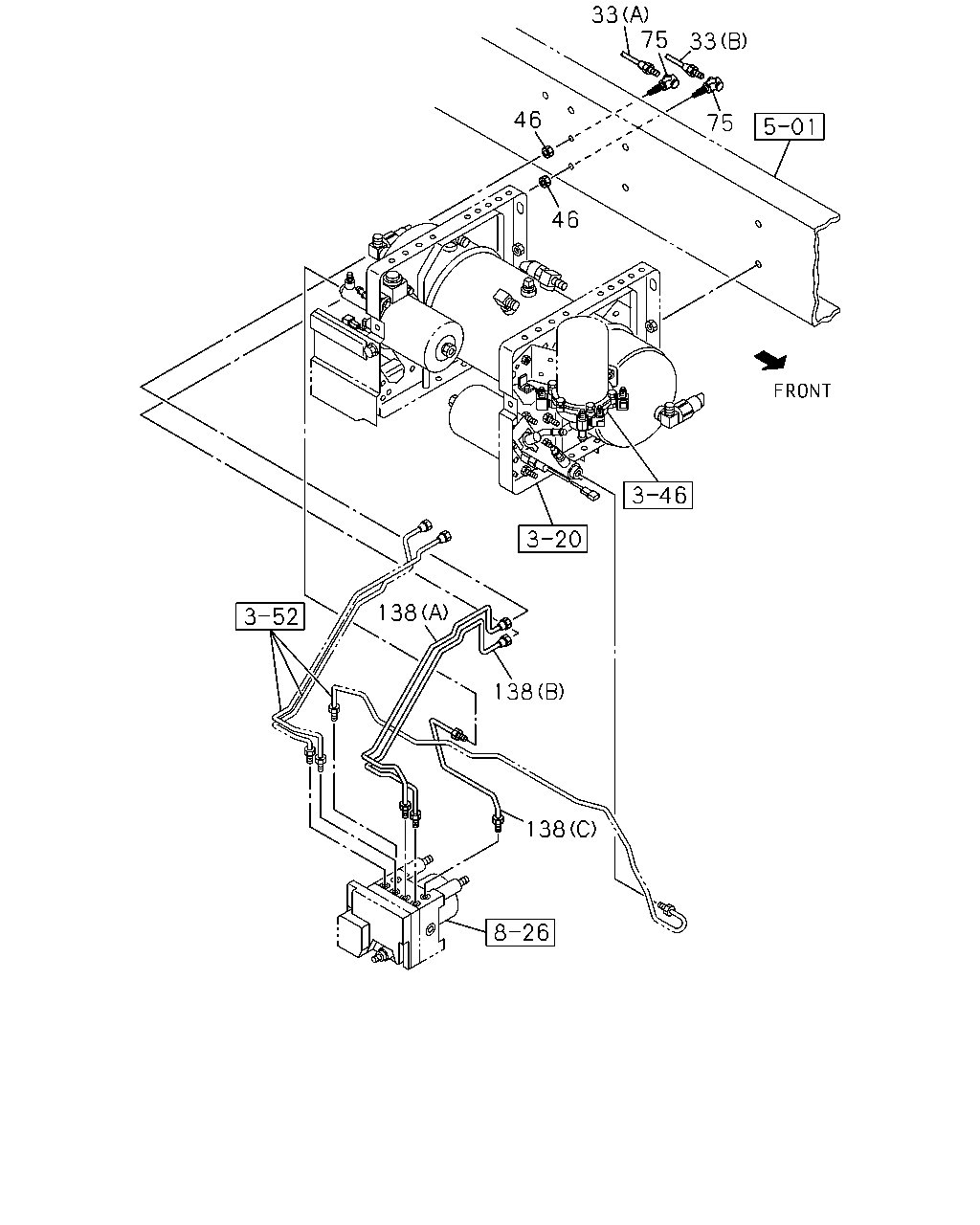

çizim 63412
33 75 33 46 75 46 138 138 138
BalonParca AdiParca NoAdetTipApplied Date A B
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1205- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1205- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) LH LINE L=1111 		8-98138-758-0 01 1 0906- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) RH LINE L=954 		8-98071-239-0 01 1 0906- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1205- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2536 		8-98071-249-0 01 1 0906-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2533 		8-98183-303-0 01 1 1108-1204 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2533 		8-98183-303-0 01 1 1205- ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0906-1204 ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1205- ● ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0906-1204 ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 1205- ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0906-1204 ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 1205- ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0906-1204 ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 1205- ● ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0906-1204 ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 1205- ● ●
