◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11230 - FRR-LHD(EU)SPACE EU5 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#16793) — 50 parça

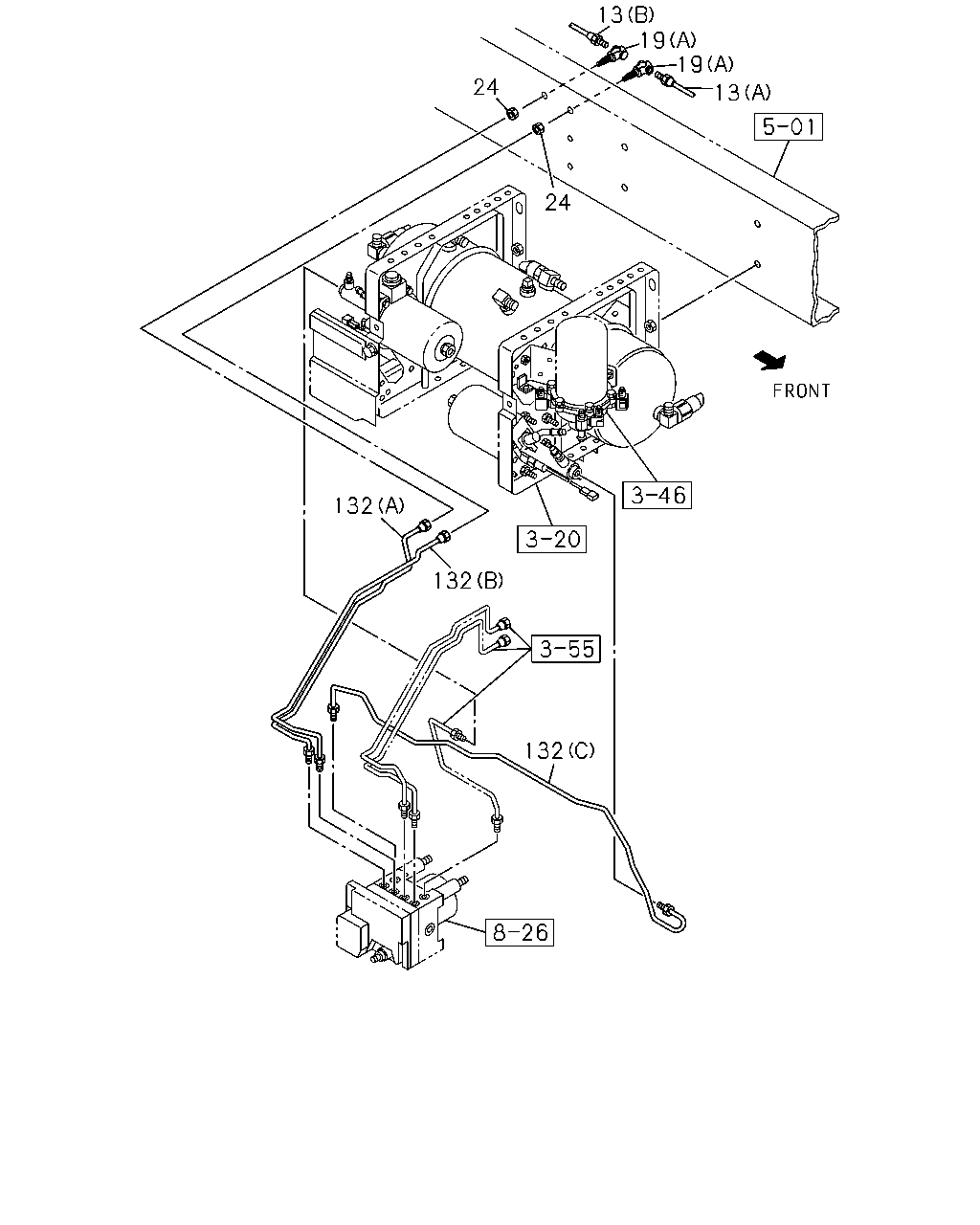

çizim 61890
13 19 19 24 13 24 132 132 132
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
MLD6S M/T(X7W) (A) L=976 		8-98121-748-0 01 1 0906- ●
13 PIPE; OIL,UNION TO UNION
MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 0906-1204 ●
13 PIPE; OIL,UNION TO UNION
MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 1205- ●
13 PIPE; OIL,UNION TO UNION
(A) L=967 		8-98067-417-0 01 1 1205- ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) L=1644 		8-98099-637-0 01 1 0906- ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) L=1847 		8-98078-163-0 01 1 0906-0911 ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) L=1833 		8-98158-297-0 01 1 0912-1204 ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=1833 		8-98158-297-0 01 1 1205- ●
13 PIPE; OIL,UNION TO UNION
(B) L=1833 		8-98158-297-0 01 1 1205- ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 0906-1204 ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1205- ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0906-1204 ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 1205- ● ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0906-1204 ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1205- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(A) L=625 		8-98116-095-0 01 1 0906-1204 ●
132 PIPE; OIL,BRK,HYD UNIT
(A) L=625 		8-98116-095-0 01 1 1205- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 0906-1204 ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 1205- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=645 		8-98011-949-0 01 1 0906-1204 ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=645 		8-98011-949-0 01 1 1205- ● ●

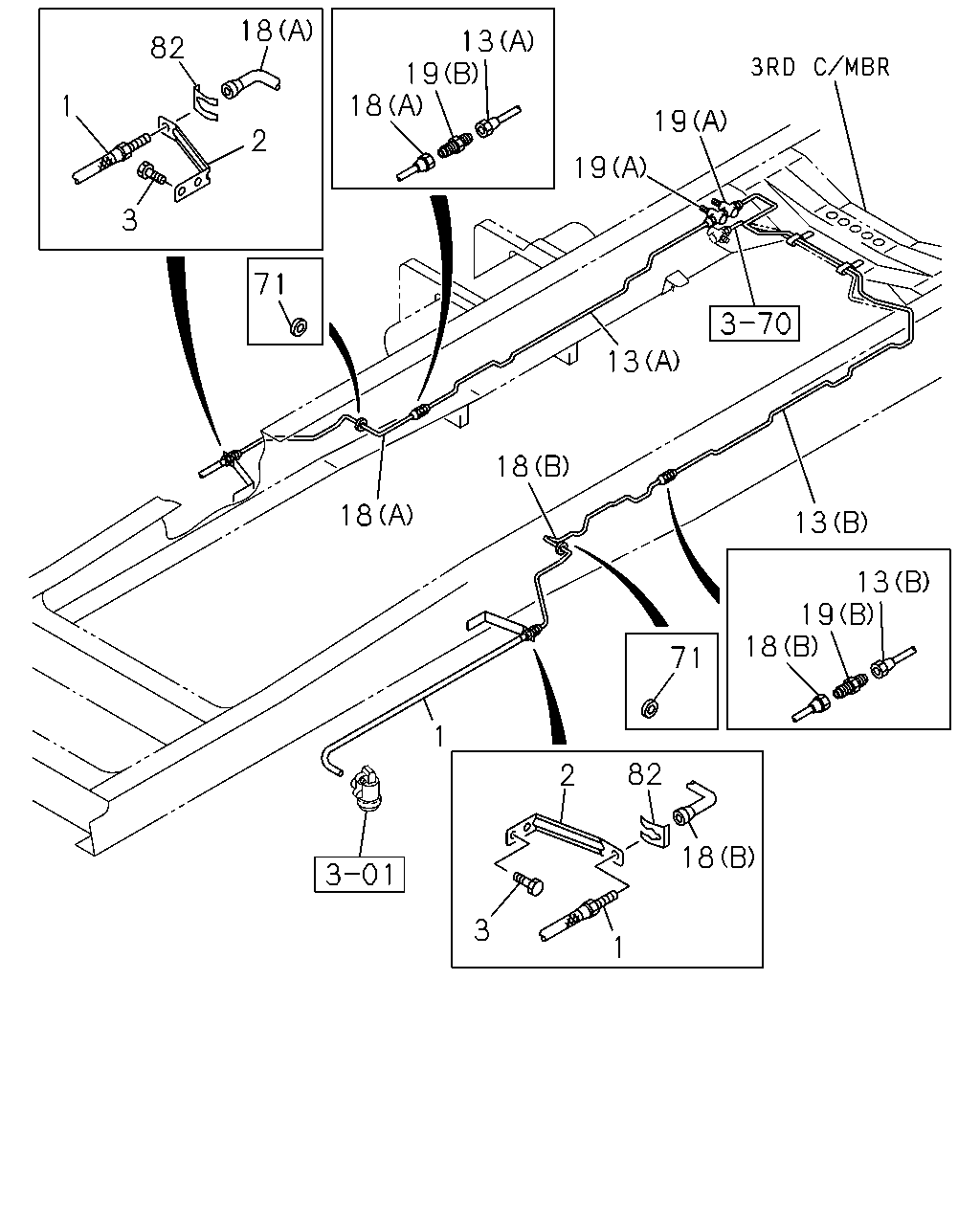

çizim 62097
18 13 19 18 82 1 19 2 19 3 71 13 18 18 13 13 19 18 71 1 82 2 18 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=640 		8-98085-202-0 02 1 0906-1109 ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98202-875-0 02 1 1110-1204 ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98202-875-0 02 1 1205-1210 ● ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1211- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-946-1 02 1 0906-1204 ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-946-1 02 1 1205- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0906-1204 ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1205- ● ●
13 PIPE; OIL,UNION TO UNION
MLD6S M/T(X7W) (A) L=976 		8-98121-748-0 01 1 0906- ●
13 PIPE; OIL,UNION TO UNION
MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 0906-1204 ●
13 PIPE; OIL,UNION TO UNION
MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 1205- ●
13 PIPE; OIL,UNION TO UNION
(A) L=967 		8-98067-417-0 01 1 1205- ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) L=1644 		8-98099-637-0 01 1 0906- ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) L=1847 		8-98078-163-0 01 1 0906-0911 ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) L=1833 		8-98158-297-0 01 1 0912-1204 ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=1833 		8-98158-297-0 01 1 1205- ●
13 PIPE; OIL,UNION TO UNION
(B) L=1833 		8-98158-297-0 01 1 1205- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1016 		8-98065-376-0 01 1 0906-1204 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1016 		8-98065-376-0 01 1 1205- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=567 		8-98067-426-0 01 1 0906-1204 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=567 		8-98067-426-0 01 1 1205- ● ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 0906-1204 ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1205- ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0906-1204 ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 1205- ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0906-1204 ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1205- ● ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 0906-1204 ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1205- ● ●
