3-41 — REAR BRAKE POWER CHAMBER (#16791) — 66 parça

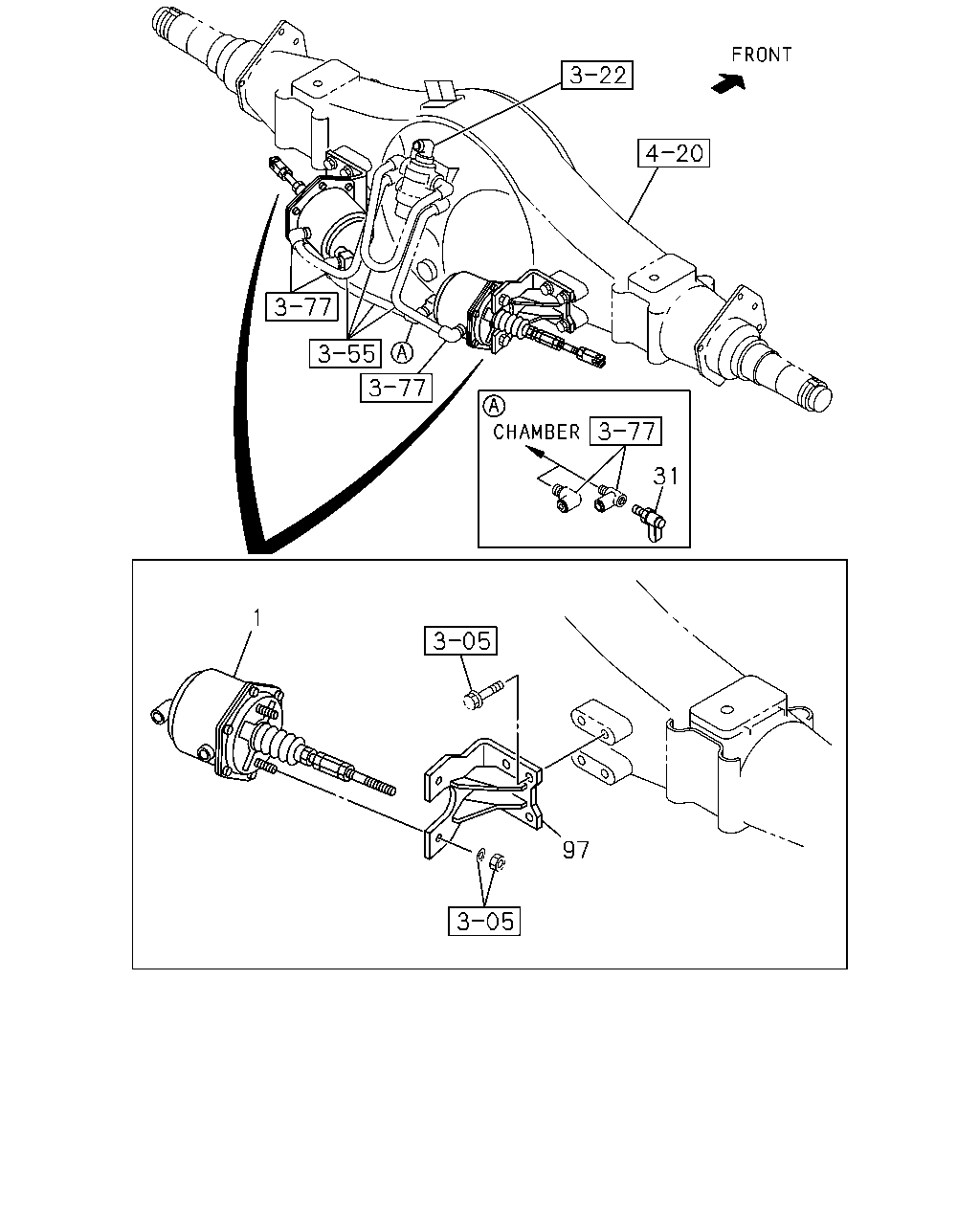

çizim 15309
31 1 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-921-1 01 1 0906-1204 ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-921-1 01 1 1205- ●
1 CHAMBER ASM; SPRING 1-48250-921-1 01 1 1205- ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-920-1 01 1 0906-1204 ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-920-1 01 1 1205- ●
1 CHAMBER ASM; SPRING 1-48250-920-1 01 1 1205- ●
31 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0906-1204 ●
31 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1205- ●
31 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1205- ●
97 BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48258-242-0 02 1 0906-1204 ●
97 BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48258-242-0 02 1 1205- ●
97 BRACKET; CHAMBER 1-48258-242-0 02 1 1205- ●

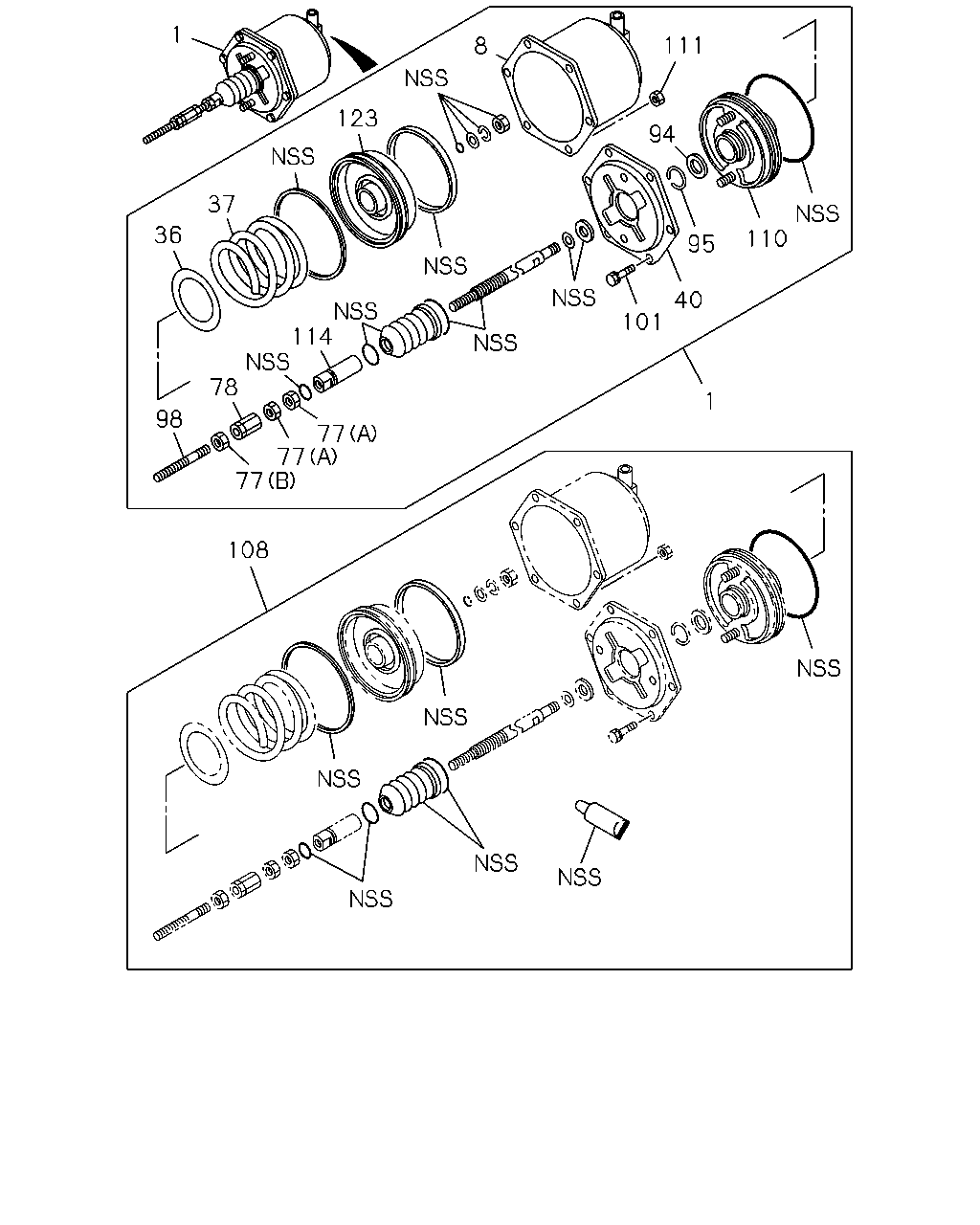

çizim 61754
1 111 8 123 94 37 110 36 95 40 114 78 101 1 98 77 77 77 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-921-1 01 1 0906-1204 ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-921-1 01 1 1205- ●
1 CHAMBER ASM; SPRING 1-48250-921-1 01 1 1205- ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-920-1 01 1 0906-1204 ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-920-1 01 1 1205- ●
1 CHAMBER ASM; SPRING 1-48250-920-1 01 1 1205- ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-190-1 02 1 0906-1204 ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-190-1 02 1 1205- ●
8 SHELL; CYL,SPR CHAMBER 1-48251-190-1 02 1 1205- ●
36 RETAINER; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-099-0 02 1 0906-1204 ●
36 RETAINER; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-099-0 02 1 1205- ●
36 RETAINER; SPR CHAMBER 1-48269-099-0 02 1 1205- ●
37 SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48265-009-0 02 1 0906-1204 ●
37 SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48265-009-0 02 1 1205- ●
37 SPRING; LWR,SPR CHAMBER 1-48265-009-0 02 1 1205- ●
40 COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48266-013-1 02 1 0906-1204 ●
40 COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48266-013-1 02 1 1205- ●
40 COVER ASM; LWR,SPR CHAMBER 1-48266-013-1 02 1 1205- ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48269-105-0 04 1 0906-1204 ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48269-105-0 04 1 1205- ●
77 NUT; SPR CHAMBER BRK
(A) 		1-48269-105-0 04 1 1205- ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48269-114-0 02 1 0906-1204 ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48269-114-0 02 1 1205- ●
77 NUT; SPR CHAMBER BRK
(B) 		1-48269-114-0 02 1 1205- ●
78 TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-113-0 02 1 0906-1204 ●
78 TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-113-0 02 1 1205- ●
78 TURNBACKLE; SPR CHAMBER BRK 1-48269-113-0 02 1 1205- ●
94 PLATE; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-097-1 02 1 0906-1204 ●
94 PLATE; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-097-1 02 1 1205- ●
94 PLATE; RELEASE,SPR CHAMBER 1-48269-097-1 02 1 1205- ●
95 RING; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-098-0 02 1 0906-1204 ●
95 RING; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-098-0 02 1 1205- ●
95 RING; RELEASE,SPR CHAMBER 1-48269-098-0 02 1 1205- ●
98 ROD; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48263-038-0 02 1 0906-1204 ●
98 ROD; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48263-038-0 02 1 1205- ●
98 ROD; CHAMBER 1-48263-038-0 02 1 1205- ●
101 BOLT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-102-0 12 1 0906-1204 ●
101 BOLT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-102-0 12 1 1205- ●
101 BOLT; SPR CHAMBER 1-48269-102-0 12 1 1205- ●
108 REPAIR KIT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-442-0 02 1 0906-1204 ●
108 REPAIR KIT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-442-0 02 1 1205- ●
108 REPAIR KIT; SPR CHAMBER 1-85576-442-0 02 1 1205- ●
110 PLATE; MOUNTING,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-189-0 02 1 0906-1204 ●
110 PLATE; MOUNTING,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-189-0 02 1 1205- ●
110 PLATE; MOUNTING,SPR CHAMBER 1-48251-189-0 02 1 1205- ●
111 NUT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-101-0 12 1 0906-1204 ●
111 NUT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-101-0 12 1 1205- ●
111 NUT; SPR CHAMBER 1-48269-101-0 12 1 1205- ●
114 HOLDER; ROD,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-250-0 02 1 0906-1204 ●
114 HOLDER; ROD,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-250-0 02 1 1205- ●
114 HOLDER; ROD,SPR CHAMBER 1-48269-250-0 02 1 1205- ●
123 PISTON ASM; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48262-024-2 02 1 0906-1204 ●
123 PISTON ASM; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48262-024-2 02 1 1205- ●
123 PISTON ASM; SPR CHAMBER 1-48262-024-2 02 1 1205- ●
