3-26 — TRAILER CONTROL (#16788) — 103 parça

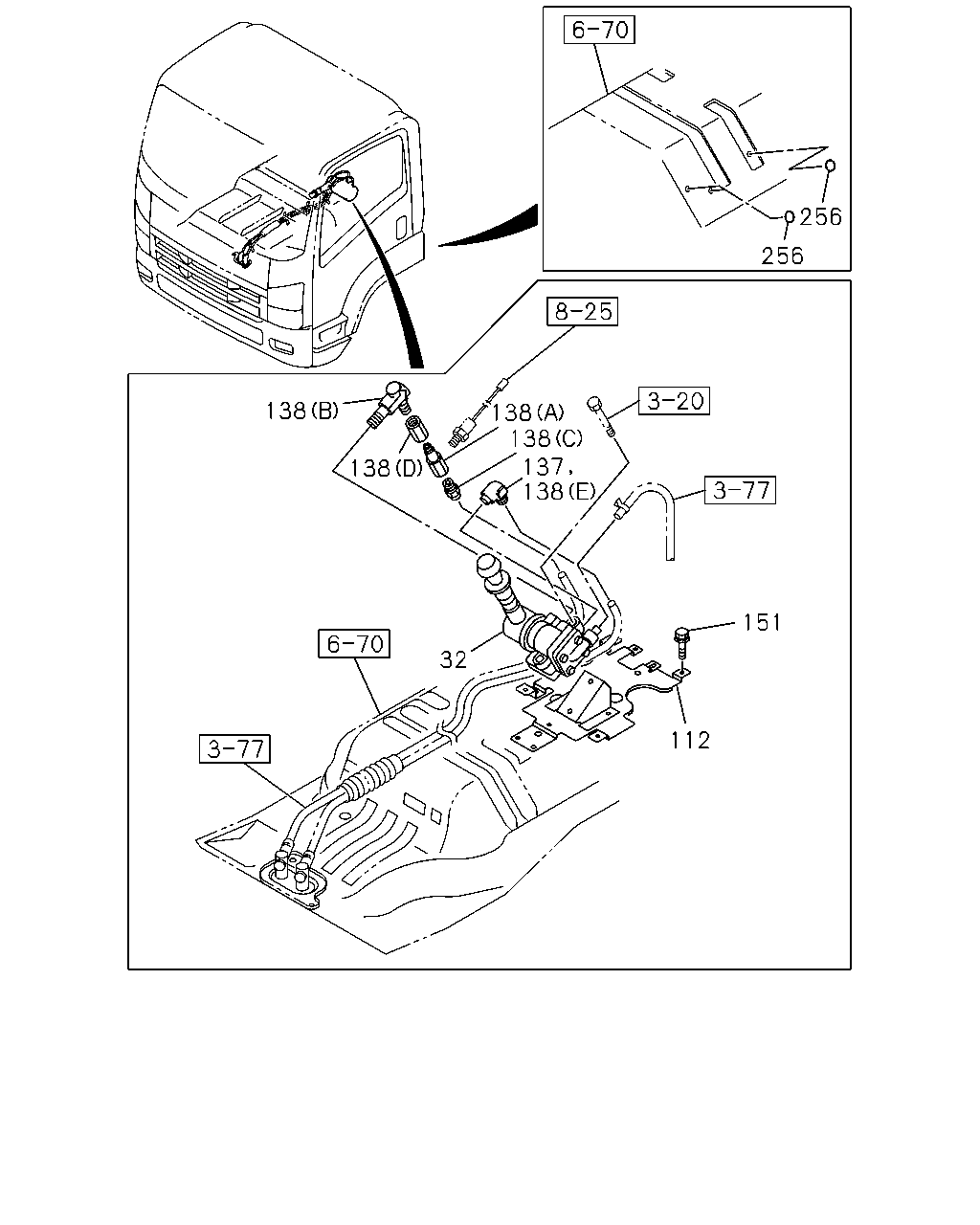

256 256 138 138 138 137 138 138 151 32 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	0906-1204	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	1205-	●
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	1205-		●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98098-703-0	01	1	0906-1204	●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98098-703-0	01	1	1205-	●
112	BRACKET; CONT VLV	8-98098-703-0	01	1	1205-		●
137	CONNECTOR; SUPPLY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-1101	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-1204	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1205-	●
138	CONNECTOR; DELIVERY (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1205-		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09650-240-1	01	1	0906-1204	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09650-240-1	01	1	1205-	●
138	CONNECTOR; DELIVERY (B)	1-09650-240-1	01	1	1205-		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-335-1	01	1	0906-1204	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-335-1	01	1	1205-	●
138	CONNECTOR; DELIVERY (A)	1-09660-335-1	01	1	1205-		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09660-880-0	01	1	0906-1204	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09660-880-0	01	1	1205-	●
138	CONNECTOR; DELIVERY (D)	1-09660-880-0	01	1	1205-		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1204	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1205-	●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1205-		●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16	0-52000-616-0	04	1	0906-1204	●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16	0-52000-616-0	04	1	1205-	●
151	BOLT; VLV BRKT M6X16	0-52000-616-0	04	1	1205-		●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	10	1	0906-1204	●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	10	1	1205-	●
256	SEAL OD=25 BLACK	1-76798-019-0	10	1	1205-		●

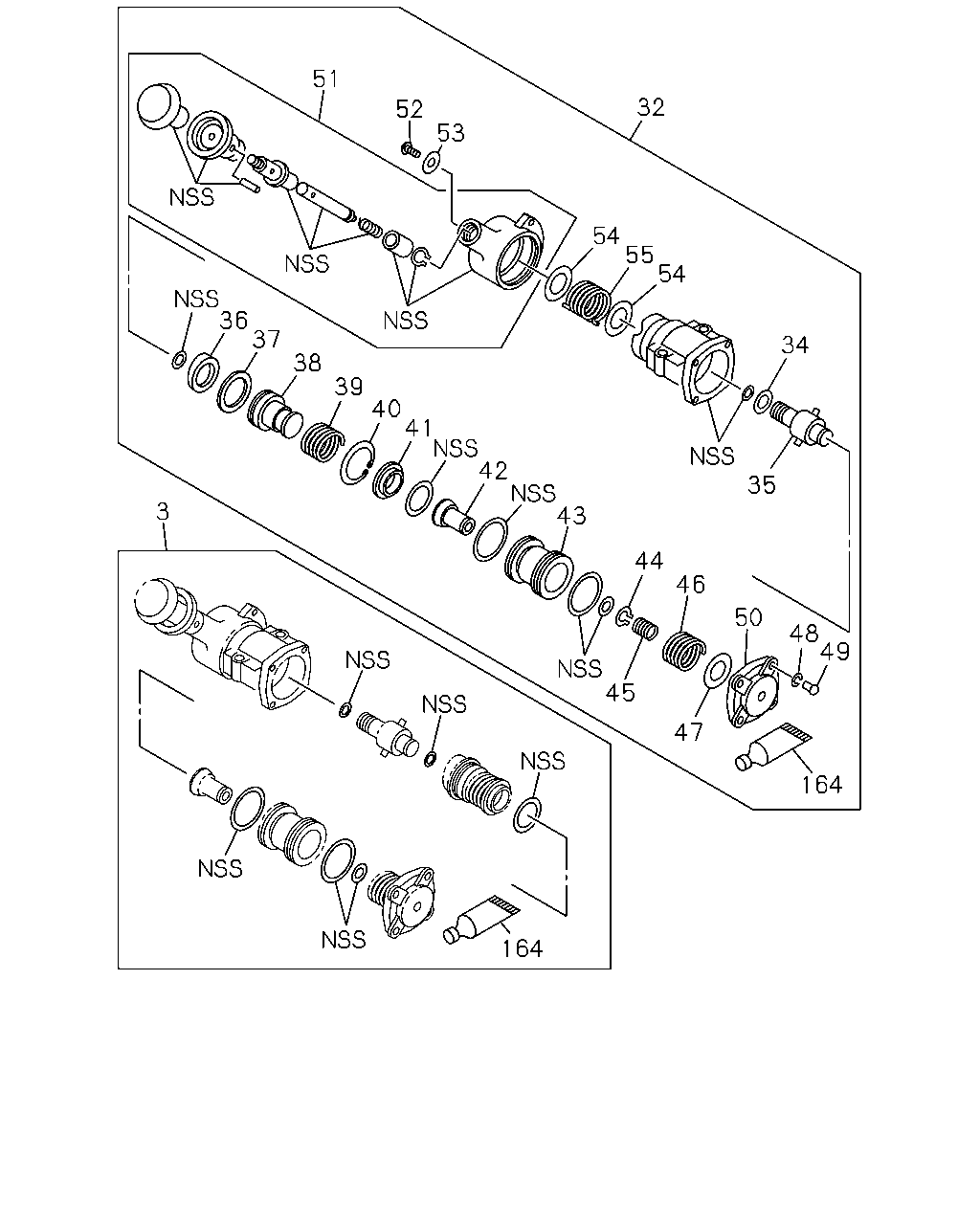

51 32 52 53 54 55 54 36 37 34 38 39 40 41 42 43 35 3 44 46 50 48 49 45 47 164 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-096-0	01	1	0906-1204	●
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-096-0	01	1	1205-	●
3	REPAIR KIT; HAND BRK VLV	1-48469-096-0	01	1	1205-		●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	0906-1204	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	1205-	●
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	1205-		●
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	0906-1204	●
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	1205-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1205-		●
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	0906-1204	●
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	1205-	●
35	HOLDER; CAM	1-48469-054-0	01	1	1205-		●
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	0906-1204	●
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	1205-	●
36	RING; CAM	1-48469-056-0	01	1	1205-		●
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	0906-1204	●
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	1205-	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1205-		●
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	0906-1204	●
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	1205-	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1205-		●
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	0906-1204	●
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	1205-	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1205-		●
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	0906-1204	●
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	1205-	●
40	RING; SNAP	1-48469-067-0	01	1	1205-		●
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	0906-1204	●
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	1205-	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1205-		●
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	0906-1204	●
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	1205-	●
42	VALVE; FEED	1-48469-065-0	01	1	1205-		●
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	0906-1204	●
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	1205-	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1205-		●
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	0906-1204	●
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	1205-	●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	1205-		●
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	0906-1204	●
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	1205-	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	1205-		●
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	0906-1204	●
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	1205-	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1205-		●
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	0906-1204	●
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	1205-	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1205-		●
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	0906-1204	●
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	1205-	●
48	WASHER; COVER	1-48469-091-0	04	1	1205-		●
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	0906-1204	●
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	1205-	●
49	SCREW; COVER	1-48469-092-0	04	1	1205-		●
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	0906-1204	●
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	1205-	●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	1205-		●
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	0906-1204	●
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	1205-	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1205-		●
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	0906-1204	●
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	1205-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1205-		●
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	0906-1204	●
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	1205-	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1205-		●
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	0906-1204	●
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	1205-	●
54	SEAT; SPRING	1-48469-082-0	02	1	1205-		●
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	0906-1204	●
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	1205-	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1205-		●
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	0906-1204	●
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	1205-	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1205-		●
