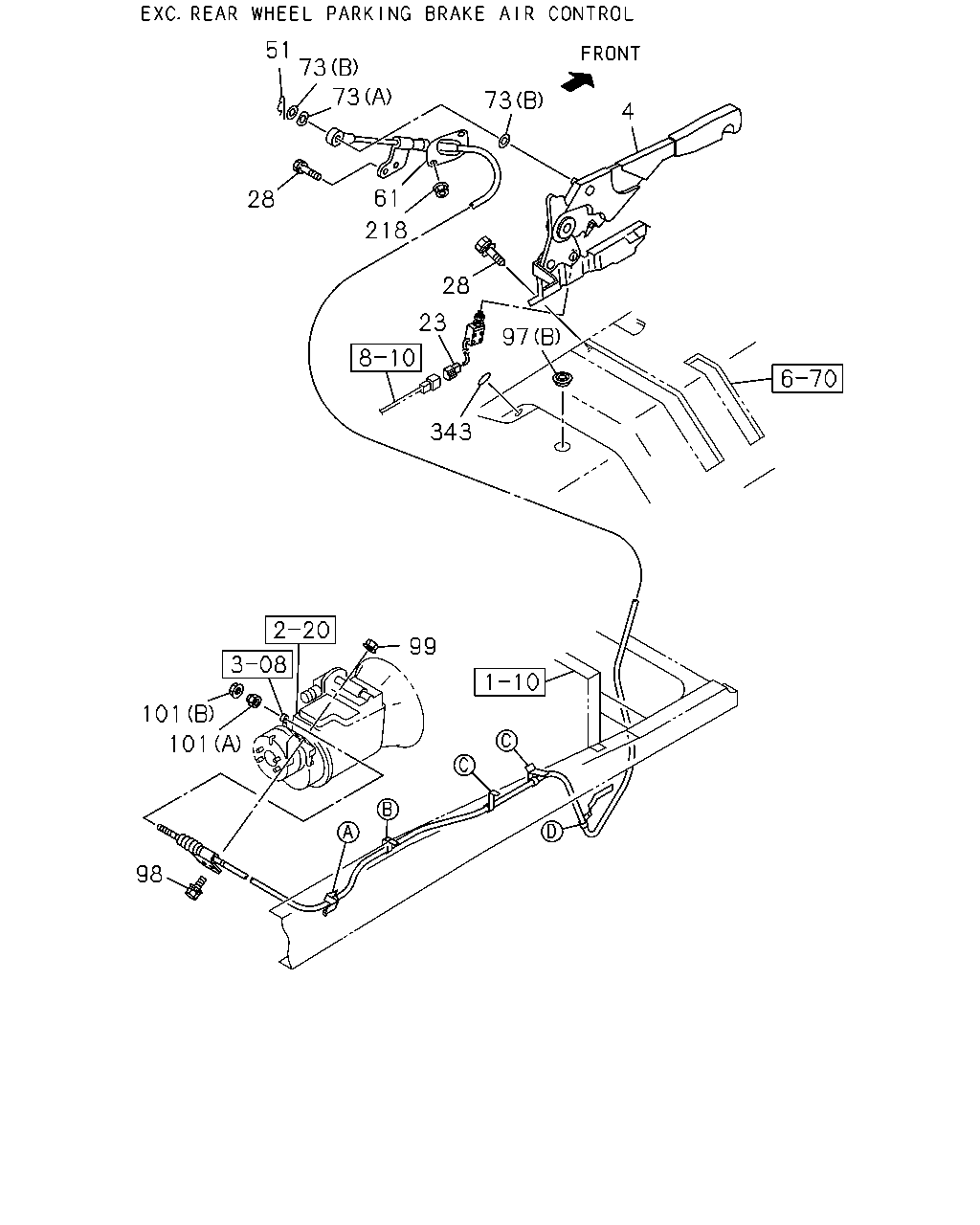

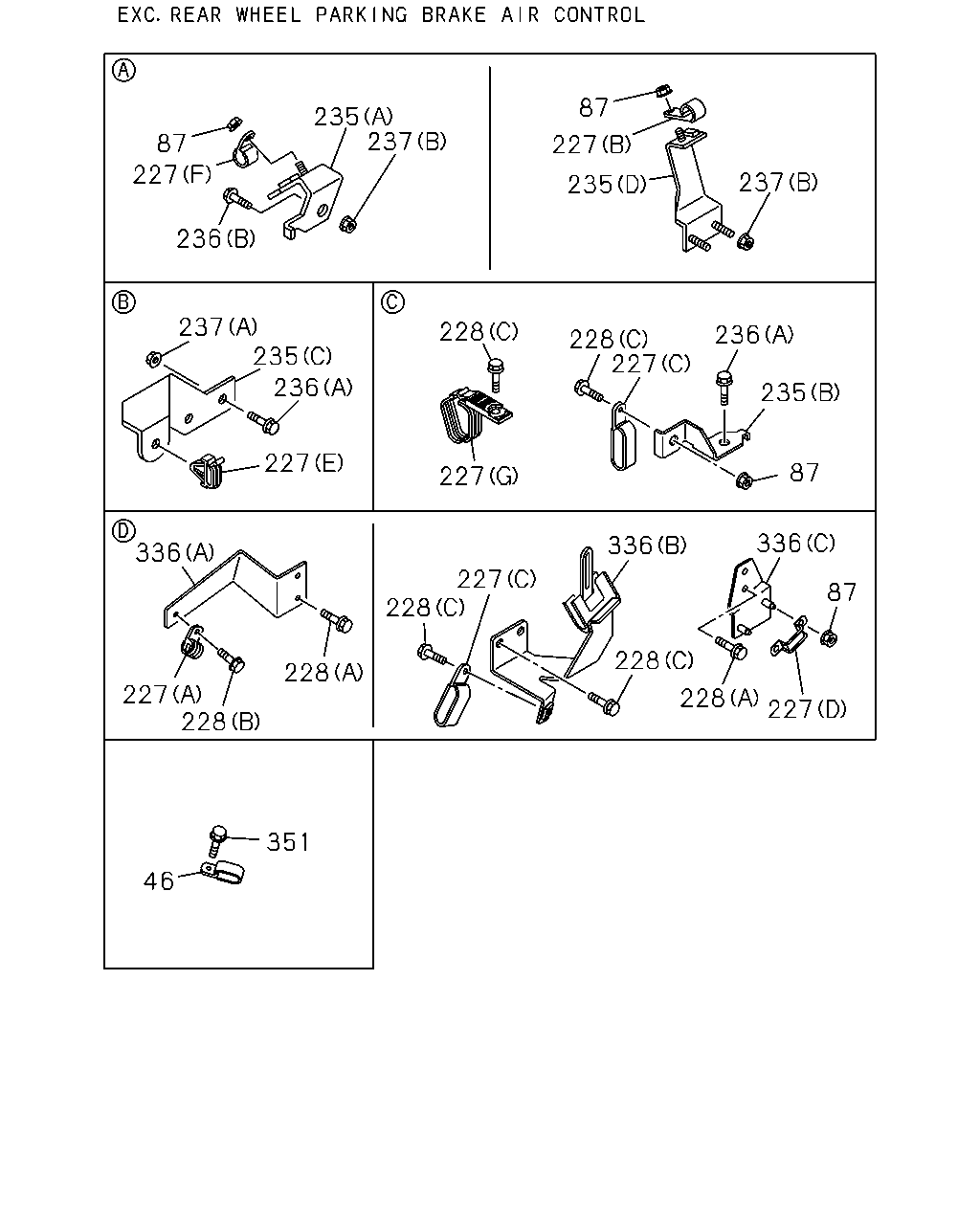

3-11 — PARKING BRAKE CONTROL (#16785) — 92 parça

87 235 237 87 227 227 237 235 236 237 235 228 236 228 227 236 235 227 87 227 336 336 336 227 228 87 228 228 227 228 228 227 351 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	0906-	●
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0906-	●
87	NUT GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0906-	●
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	0906-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	0906-	●
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98080-966-0	01	1	0906-	●
227	CLIP; RAD MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20	0-95235-235-0	01	1	0906-	●
227	CLIP; RAD MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=16 L=20	0-95235-535-0	01	1	0906-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5	5-09709-020-0	01	1	0906-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0906-1504	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=26 L=26	1-09701-236-0	01	1	0906-	●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	01	1	0906-	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	0906-	●
228	BOLT; CLIP RAD MTG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0906-1204	●
228	BOLT; CLIP RAD MTG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1205-	●	●
235	BRACKET; CONT CABLE TO FRAME MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98115-318-0	01	1	0906-	●
235	BRACKET; CONT CABLE TO FRAME MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98077-903-2	01	1	0906-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-152-0	01	1	0906-	●
235	BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98126-426-0	01	1	0906-1204	●
235	BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98126-426-0	01	1	1205-	●	●
236	BOLT; BRKT TO FRAME MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28651-030-0	01	1	0906-1504	●
236	BOLT; BRKT TO FRAME MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28051-030-0	01	1	1505-	●
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
236	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	03	1	0906-	●
237	NUT; BRKT TO FRAME MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	02	1	0906-	●
237	NUT; BRKT TO FRAME MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	01	1	0906-	●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	0906-	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-965-0	01	1	0906-1204	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-965-0	01	1	1205-1309	●	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98251-969-0	01	1	1310-	●	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98139-517-0	01	1	0906-1204	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98139-517-0	01	1	1205-	●	●
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98065-276-0	01	1	0906-1204	●
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98065-276-0	01	1	1205-	●	●
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	0906-	●

97 336 336 336 236 228 235 228 228 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0906-1204	●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1205-	●
97	GROMMET; PARKING BRK CABLE (A)	8-98029-219-1	01	1	1205-		●
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0906-	●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	01	1	0906-	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	0906-	●
228	BOLT; CLIP RAD MTG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0906-1204	●
228	BOLT; CLIP RAD MTG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1205-	●	●
235	BRACKET; CONT CABLE TO FRAME MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98115-318-0	01	1	0906-	●
235	BRACKET; CONT CABLE TO FRAME MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98077-903-2	01	1	0906-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-152-0	01	1	0906-	●
235	BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98126-426-0	01	1	0906-1204	●
235	BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98126-426-0	01	1	1205-	●	●
236	BOLT; BRKT TO FRAME MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28651-030-0	01	1	0906-1504	●
236	BOLT; BRKT TO FRAME MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28051-030-0	01	1	1505-	●
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●
236	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE	0-28650-825-0	01	1	1205-		●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	03	1	0906-	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-965-0	01	1	0906-1204	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-965-0	01	1	1205-1309	●	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98251-969-0	01	1	1310-	●	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98139-517-0	01	1	0906-1204	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98139-517-0	01	1	1205-	●	●
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98065-276-0	01	1	0906-1204	●
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98065-276-0	01	1	1205-	●	●

51 73 73 73 4 61 28 218 28 23 97 343 99 101 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-565-0	01	1	0906-	●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	0906-	●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0906-	●
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	0906-	●
61	CABLE; PARKING BRK MLD6S M/T(X7W) GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4320	8-98130-618-3	01	1	0906-	●
61	CABLE; PARKING BRK MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) L=4200	8-98119-716-4	01	1	0906-	●
61	CABLE; PARKING BRK MZW6P M/T(RSZ) GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4436	8-98130-616-3	01	1	0906-	●
61	CABLE; PARKING BRK MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) L=4316	8-98064-659-7	01	1	0906-	●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	0906-	●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	0906-	●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0906-1204	●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1205-	●
97	GROMMET; PARKING BRK CABLE (A)	8-98029-219-1	01	1	1205-		●
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0906-	●
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0906-	●
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0906-	●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	0906-	●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-46259-007-0	01	1	0906-	●
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0906-	●
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	08	1	0906-	●
