Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#16782) — 363 parça

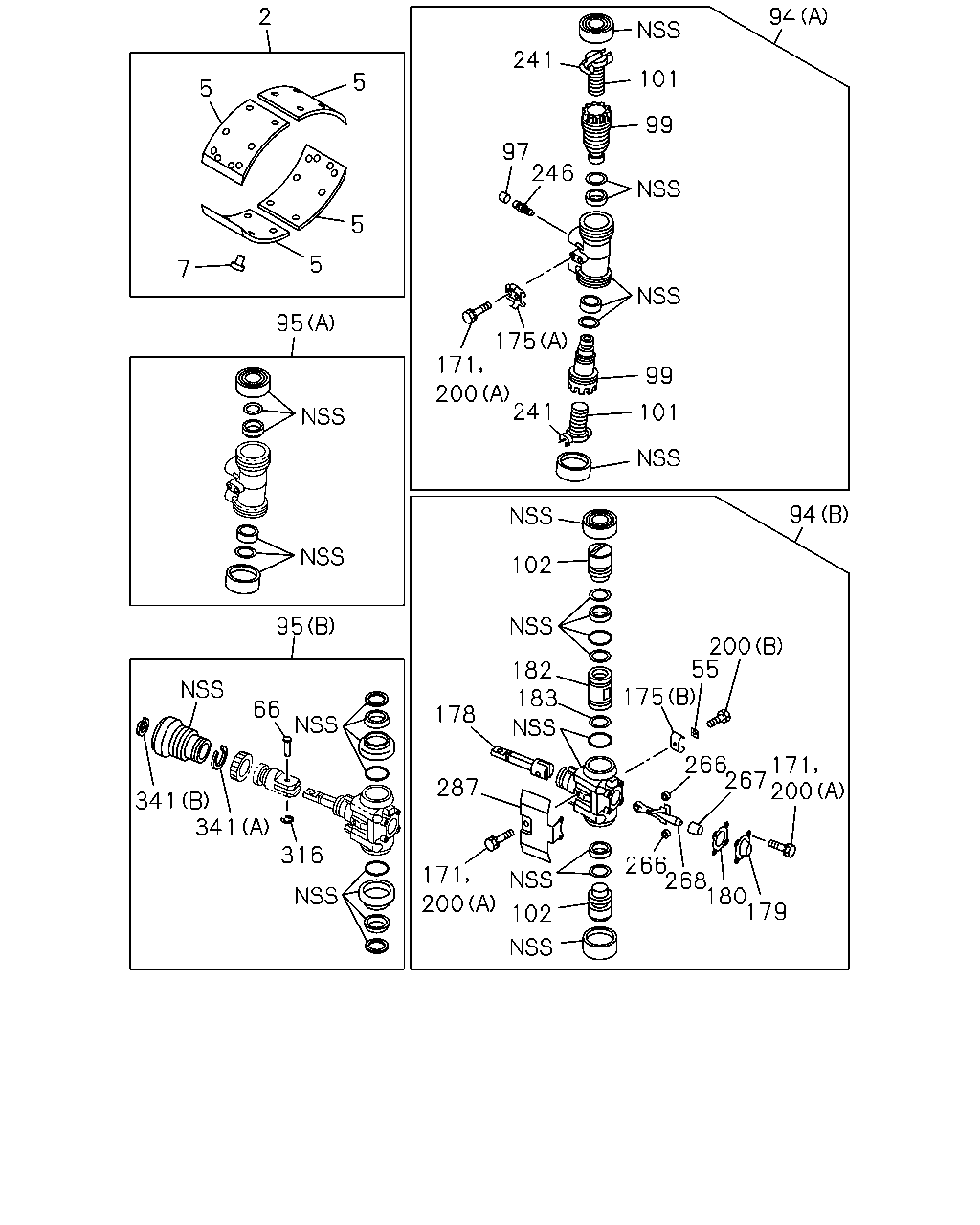

2 5 5 5 5 7 95 95 66 341 341 316 178 287 171 200 102 266 268 180 179 200 267 171 266 183 182 175 55 200 102 94 101 241 200 171 175 246 97 241 101 99 94 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	0906-1204	●
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	1205-	●
2	LINING SET; RR BRK,STANDARD	1-88311-387-0	02	1	1205-		●
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0906-1204	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1205-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-802-0	08	1	1205-		●
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0906-	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0906-1204	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	1205-	●	●
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-073-0	02	1	0906-1204	●
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-073-0	02	1	1205-	●
55	PLATE; LK,RR WHEEL CYL	1-47622-073-0	02	1	1205-		●
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	0906-1204	●
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	1205-	●
66	PIN; JAW JOINT	1-09744-129-0	02	1	1205-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-0	02	1	0906-1204	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1205-	●
94	CYLINDER; WHEEL,RR BRK (A) FORWARD	1-47601-166-1	02	1	1205-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0906-1204	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1205-	●
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47601-219-0	01	1	1205-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0906-1204	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1205-	●
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47601-218-0	01	1	1205-		●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0906-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	0906-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	0906-	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	0906-1204	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	1205-	●
95	CUP SET; RR WHEEL CYL (A) FORWARD	1-87831-324-0	02	1	1205-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	0906-1204	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	1205-	●
95	CUP SET; RR WHEEL CYL (B) BACKWARD	1-87831-325-0	02	1	1205-		●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	0906-	●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0906-1204	●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	1205-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	0906-1204	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	1205-	●
99	PISTON; RR WHEEL CYL	1-47620-240-0	04	1	1205-		●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	0906-	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	0906-1204	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	1205-	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	0906-1204	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	1205-	●
102	PISTON; REAR WHEEL CYL	1-47620-241-0	02	1	1205-		●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	0906-	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-071-0	10	1	0906-1204	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-071-0	10	1	1205-	●
171	BOLT; RR WHEEL CYL	1-47622-071-0	10	1	1205-		●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-187-0	02	1	0906-1204	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-187-0	02	1	1205-	●
175	HANGER; RR WHEEL BRK (A)	1-47619-187-0	02	1	1205-		●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-188-0	02	1	0906-1204	●
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-188-0	02	1	1205-	●
175	HANGER; RR WHEEL BRK (B)	1-47619-188-0	02	1	1205-		●
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-013-0	02	1	0906-1204	●
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-013-0	02	1	1205-	●
178	WEDGE; RR WHEEL CYL	1-47640-013-0	02	1	1205-		●
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-045-0	02	1	0906-1204	●
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-045-0	02	1	1205-	●
179	COVER; WEDGE,RR WHEEL CYL	1-47649-045-0	02	1	1205-		●
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-013-0	02	1	0906-1204	●
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-013-0	02	1	1205-	●
180	GASKET; COVER,RR WHEEL CYL	1-47619-013-0	02	1	1205-		●
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-280-0	04	1	0906-1204	●
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-280-0	04	1	1205-	●
182	TAPPET; RR WHEEL CYL	1-47629-280-0	04	1	1205-		●
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-690-0	02	1	0906-1204	●
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-690-0	02	1	1205-	●
183	GASKET; TAPPET,WHEEL CYL	1-09623-690-0	02	1	1205-		●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	0906-1204	●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	1205-	●
200	BOLT (C)	1-47159-240-0	02	1	1205-		●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	0906-1204	●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	1205-	●
200	BOLT (D)	1-47159-241-0	02	1	1205-		●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	0906-1204	●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	1205-	●
200	BOLT (A)	1-47622-071-0	04	1	1205-		●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	0906-1204	●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	1205-	●
200	BOLT (B)	1-47622-072-0	02	1	1205-		●
241	HOLDER	1-47619-097-0	04	1	0906-1204	●
241	HOLDER	1-47619-097-0	04	1	1205-	●	●
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	0906-1204	●
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1205-1406	●
246	BLEEDER	1-47615-018-1	02	1	1205-1406		●
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-	●
246	BLEEDER	1-47615-009-0	02	1	1407-		●
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-003-0	04	1	0906-1204	●
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-003-0	04	1	1205-	●
266	ROLLER; WEDGE	1-47643-003-0	04	1	1205-		●
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-004-0	02	1	0906-1204	●
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-004-0	02	1	1205-	●
267	CAGE; WEDGE	1-47649-004-0	02	1	1205-		●
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-003-0	02	1	0906-1204	●
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-003-0	02	1	1205-	●
268	RETAINER; WEDGE	1-47649-003-0	02	1	1205-		●
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-186-0	02	1	0906-1204	●
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-186-0	02	1	1205-	●
287	COVER	1-47619-186-0	02	1	1205-		●
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0906-1204	●
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1205-	●
316	RING; SNAP ID=9	0-91805-509-0	02	1	1205-		●
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	0906-1204	●
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	1205-	●
341	SPRING; ASSIST,BOOT (A)	1-47616-110-0	02	1	1205-		●
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	0906-1204	●
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	1205-	●
341	SPRING; ASSIST,BOOT (B)	1-47619-184-0	02	1	1205-		●

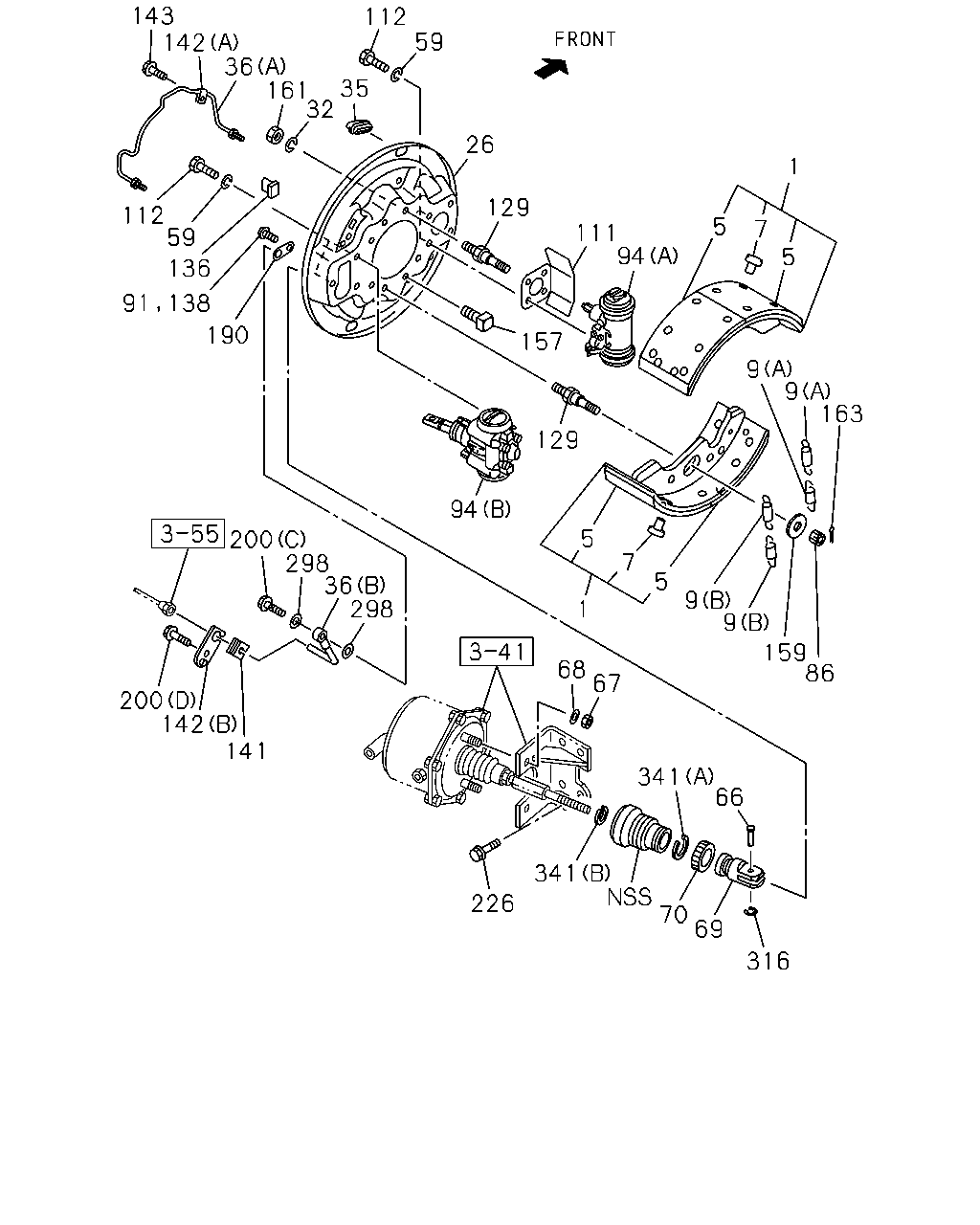

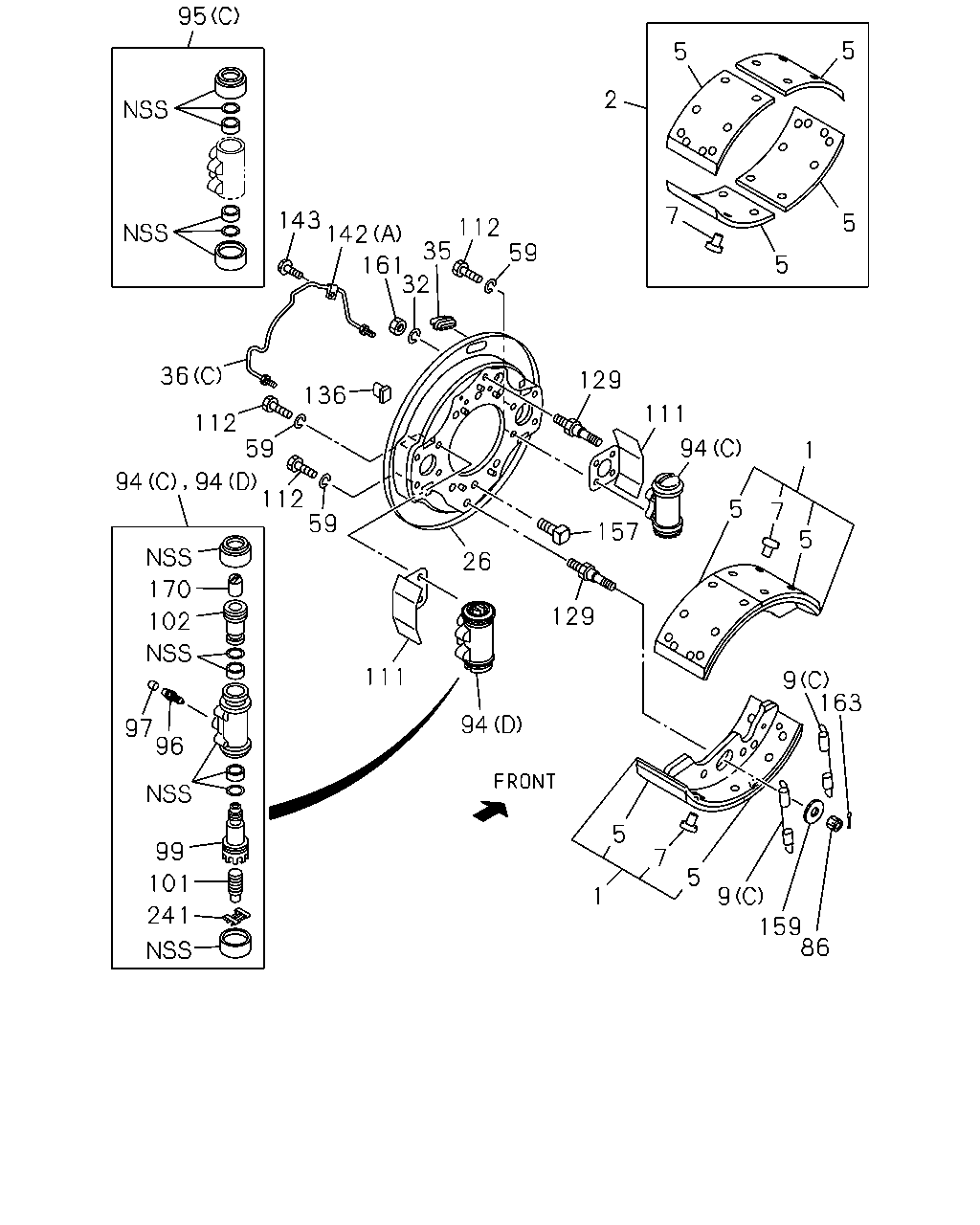

95 143 142 161 32 35 112 59 36 112 59 136 129 111 94 157 129 26 59 112 94 94 111 94 1 5 7 5 9 159 86 163 9 1 5 7 5 170 102 97 96 99 101 241 2 5 5 5 5 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	0906-1204	●
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	1205-	●
1	SHOE; BRK,RR	1-47170-485-1	04	1	1205-		●
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	0906-	●
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	0906-1204	●
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	1205-	●
2	LINING SET; RR BRK,STANDARD	1-88311-387-0	02	1	1205-		●
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0906-1204	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1205-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-802-0	08	1	1205-		●
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0906-	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0906-1204	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	1205-	●	●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-0	04	1	0906-1204	●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	1205-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-381-1	04	1	1205-		●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	0906-1204	●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	1205-	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-382-0	04	1	1205-		●
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	0906-	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-1	01	1	0906-1204	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	1205-	●
26	PLATE; BACK,RR BRK	1-47150-713-2	01	1	1205-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-1	01	1	0906-1204	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	1205-	●
26	PLATE; BACK,RR BRK	1-47150-712-2	01	1	1205-		●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	0906-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	0906-	●
32	WASHER; LK	1-47159-110-0	04	1	0906-1204	●
32	WASHER; LK	1-47159-110-0	04	1	1205-	●	●
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0906-1204	●
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	1205-	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-905-0	02	1	0906-1204	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-905-0	02	1	1205-	●
36	PIPE; OIL,RR BRK (B)	1-49167-905-0	02	1	1205-		●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	0906-1204	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	1205-	●
36	PIPE; OIL,RR BRK (A)	1-49167-858-0	01	1	1205-		●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	0906-1204	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	1205-	●
36	PIPE; OIL,RR BRK (A)	1-49167-857-0	01	1	1205-		●
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-859-0	02	1	0906-	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	0906-1204	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	1205-	●
59	WASHER; LK,RR WHEEL CYL ID=12.2	0-91510-612-0	14	1	1205-		●
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0906-	●
86	NUT; FLANGE	1-09440-101-0	04	1	0906-1204	●
86	NUT; FLANGE	1-09440-101-0	04	1	1205-	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-0	02	1	0906-1204	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1205-	●
94	CYLINDER; WHEEL,RR BRK (A) FORWARD	1-47601-166-1	02	1	1205-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0906-1204	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1205-	●
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47601-219-0	01	1	1205-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0906-1204	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1205-	●
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47601-218-0	01	1	1205-		●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0906-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	0906-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	0906-	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	0906-1204	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	1205-	●
95	CUP SET; RR WHEEL CYL (A) FORWARD	1-87831-324-0	02	1	1205-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	0906-1204	●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	1205-	●
95	CUP SET; RR WHEEL CYL (B) BACKWARD	1-87831-325-0	02	1	1205-		●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	0906-	●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	0906-1406	●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-	●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0906-1204	●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	1205-	●	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	0906-1204	●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	1205-	●
99	PISTON; RR WHEEL CYL	1-47620-240-0	04	1	1205-		●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	0906-	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	0906-1204	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	1205-	●	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	0906-1204	●
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	1205-	●
102	PISTON; REAR WHEEL CYL	1-47620-241-0	02	1	1205-		●
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	0906-	●
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	0906-1204	●
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	1205-	●
111	COVER; WHEEL CYL	1-47159-230-0	02	1	1205-		●
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	0906-	●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	0906-1204	●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	1205-	●
112	BOLT; WHEEL CYL SETTING	1-47159-112-0	14	1	1205-		●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	0906-	●
129	PIN; SHOE HOLD	1-47162-044-0	04	1	0906-1204	●
129	PIN; SHOE HOLD	1-47162-044-0	04	1	1205-	●	●
136	GROMMET	1-09333-138-0	04	1	0906-1204	●
136	GROMMET	1-09333-138-0	04	1	1205-	●	●
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	0906-1204	●
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	1205-	●	●
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	0906-1204	●
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	1205-	●
142	CLAMP; OIL PIPE (B)	1-47619-189-0	02	1	1205-		●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0906-1204	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	1205-	●	●
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	0906-1204	●
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	1205-	●	●
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	0906-1204	●
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	1205-	●	●
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	0906-1204	●
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	1205-	●	●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	0906-1204	●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	1205-	●	●
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-185-0	04	1	0906-	●
241	HOLDER	1-47619-097-0	04	1	0906-1204	●
241	HOLDER	1-47619-097-0	04	1	1205-	●	●

316 69 70 341 226 66 341 67 68 86 159 9 9 5 1 7 5 94 298 36 298 200 141 142 200 190 138 91 136 59 112 143 142 36 161 32 35 112 59 26 129 129 157 111 94 5 7 1 5 9 9 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	0906-1204	●
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	1205-	●
1	SHOE; BRK,RR	1-47170-485-1	04	1	1205-		●
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0906-1204	●
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1205-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-802-0	08	1	1205-		●
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0906-	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0906-1204	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	1205-	●	●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-0	04	1	0906-1204	●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	1205-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-381-1	04	1	1205-		●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	0906-1204	●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	1205-	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-382-0	04	1	1205-		●
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	0906-	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-1	01	1	0906-1204	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	1205-	●
26	PLATE; BACK,RR BRK	1-47150-713-2	01	1	1205-		●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-1	01	1	0906-1204	●
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	1205-	●
26	PLATE; BACK,RR BRK	1-47150-712-2	01	1	1205-		●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	0906-	●
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	0906-	●
32	WASHER; LK	1-47159-110-0	04	1	0906-1204	●
32	WASHER; LK	1-47159-110-0	04	1	1205-	●	●
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0906-1204	●
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	1205-	●	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-905-0	02	1	0906-1204	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-905-0	02	1	1205-	●
36	PIPE; OIL,RR BRK (B)	1-49167-905-0	02	1	1205-		●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	0906-1204	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	1205-	●
36	PIPE; OIL,RR BRK (A)	1-49167-858-0	01	1	1205-		●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	0906-1204	●
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	1205-	●
36	PIPE; OIL,RR BRK (A)	1-49167-857-0	01	1	1205-		●
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-859-0	02	1	0906-	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	0906-1204	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	1205-	●
59	WASHER; LK,RR WHEEL CYL ID=12.2	0-91510-612-0	14	1	1205-		●
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0906-	●
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	0906-1204	●
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	1205-	●
66	PIN; JAW JOINT	1-09744-129-0	02	1	1205-		●
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	0906-1204	●
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	1205-	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	04	1	1205-		●
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	0906-1204	●
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	1205-	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	04	1	1205-		●
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09768-106-1	02	1	0906-1204	●
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09768-106-1	02	1	1205-	●
69	JOINT; JAW	1-09768-106-1	02	1	1205-		●
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	0-91111-518-0	02	1	0906-1204	●
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	0-91111-518-0	02	1	1205-	●
70	NUT; LK,JAW JOINT M18	0-91111-518-0	02	1	1205-		●
86	NUT; FLANGE	1-09440-101-0	04	1	0906-1204	●
86	NUT; FLANGE	1-09440-101-0	04	1	1205-	●	●
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	0906-1204	●
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	1205-	●
91	BOLT; CHAMBER M5X10 W/LK WASHER	0-36220-510-0	02	1	1205-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-0	02	1	0906-1204	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1205-	●
94	CYLINDER; WHEEL,RR BRK (A) FORWARD	1-47601-166-1	02	1	1205-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0906-1204	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1205-	●
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47601-219-0	01	1	1205-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0906-1204	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1205-	●
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47601-218-0	01	1	1205-		●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0906-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	0906-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	0906-	●
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	0906-1204	●
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	1205-	●
111	COVER; WHEEL CYL	1-47159-230-0	02	1	1205-		●
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	0906-	●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	0906-1204	●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	1205-	●
112	BOLT; WHEEL CYL SETTING	1-47159-112-0	14	1	1205-		●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	0906-	●
129	PIN; SHOE HOLD	1-47162-044-0	04	1	0906-1204	●
129	PIN; SHOE HOLD	1-47162-044-0	04	1	1205-	●	●
136	GROMMET	1-09333-138-0	04	1	0906-1204	●
136	GROMMET	1-09333-138-0	04	1	1205-	●	●
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	0906-1204	●
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	1205-	●
138	SCREW; LOCK PLATE M5X10 W/LK WASHER	0-36220-510-0	02	1	1205-		●
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09332-133-0	02	1	0906-1204	●
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09332-133-0	02	1	1205-	●
141	PROTECTOR; RR BRK PIPE	1-09332-133-0	02	1	1205-		●
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	0906-1204	●
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	1205-	●	●
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	0906-1204	●
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	1205-	●
142	CLAMP; OIL PIPE (B)	1-47619-189-0	02	1	1205-		●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0906-1204	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	1205-	●	●
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	0906-1204	●
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	1205-	●	●
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	0906-1204	●
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	1205-	●	●
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	0906-1204	●
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	1205-	●	●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	0906-1204	●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	1205-	●	●
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	0906-1204	●
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	1205-	●
190	PLATE; LK,CONNECTOR	1-47619-032-0	04	1	1205-		●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	0906-1204	●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	1205-	●
200	BOLT (C)	1-47159-240-0	02	1	1205-		●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	0906-1204	●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	1205-	●
200	BOLT (D)	1-47159-241-0	02	1	1205-		●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	0906-1204	●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	1205-	●
200	BOLT (A)	1-47622-071-0	04	1	1205-		●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	0906-1204	●
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	1205-	●
200	BOLT (B)	1-47622-072-0	02	1	1205-		●
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	0906-1204	●
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	1205-	●
226	BOLT; BRKT M14X35 FLANGE	0-28651-435-0	08	1	1205-		●
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-115-0	04	1	0906-1204	●
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-115-0	04	1	1205-	●
298	GASKET	1-47616-115-0	04	1	1205-		●
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0906-1204	●
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1205-	●
316	RING; SNAP ID=9	0-91805-509-0	02	1	1205-		●
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	0906-1204	●
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	1205-	●
341	SPRING; ASSIST,BOOT (A)	1-47616-110-0	02	1	1205-		●
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	0906-1204	●
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	1205-	●
341	SPRING; ASSIST,BOOT (B)	1-47619-184-0	02	1	1205-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
