3-01 — FRONT WHEEL BRAKE (#16781) — 73 parça

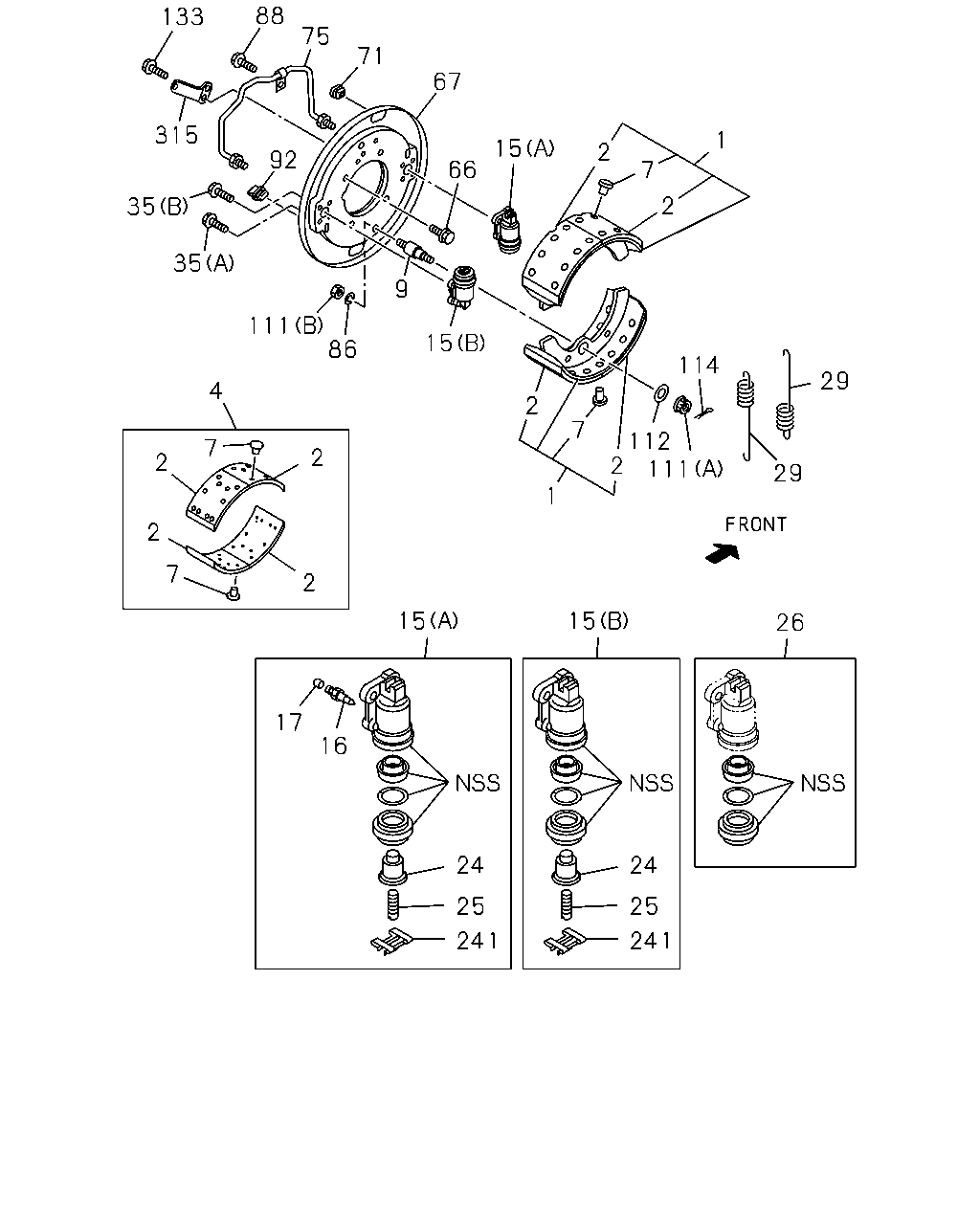

çizim 15160
88 133 75 71 67 315 1 15 2 92 66 7 2 35 35 9 111 86 15 114 29 4 2 7 112 2 111 7 2 2 29 1 2 7 2 15 15 26 17 16 24 24 25 25 241 241
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 1-47170-483-0 04 1 0906-1204 ●
1 SHOE; BRK,FRT 1-47170-483-0 04 1 1205- ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-800-0 08 1 0906-1204 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-800-0 08 1 1205- ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-385-0 02 1 0906-1204 ●
4 LINING SET; FRT BRK,STANDARD 1-88311-385-0 02 1 1205- ● ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 0906-1204 ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 1205- ● ●
9 PIN; SHOE HOLDER 1-47162-046-0 04 1 0906-1204 ●
9 PIN; SHOE HOLDER 1-47162-046-0 04 1 1205- ● ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-174-0 01 1 0906-1204 ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-174-0 01 1 1205- ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-175-0 01 1 0906-1204 ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-175-0 01 1 1205- ● ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-172-0 01 1 0906-1204 ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-172-0 01 1 1205- ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-173-0 01 1 0906-1204 ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-173-0 01 1 1205- ● ●
16 SCREW; BLEEDER,FRT BRK 1-47615-009-0 02 1 0906-1204 ●
16 SCREW; BLEEDER,FRT BRK 1-47615-009-0 02 1 1205- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 0906-1204 ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 1205- ● ●
24 PISTON; FRT WHEEL CYL 1-47620-237-0 04 1 0906-1204 ●
24 PISTON; FRT WHEEL CYL 1-47620-237-0 04 1 1205- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-070-0 04 1 0906-1204 ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-070-0 04 1 1205- ● ●
26 CUP SET; FRT WHEEL CYL 1-87831-309-0 04 1 0906-1204 ●
26 CUP SET; FRT WHEEL CYL 1-87831-309-0 04 1 1205- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-385-2 04 1 0906-1204 ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-385-2 04 1 1205- ● ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50051-025-0 08 1 0906-0906 ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 0907-1204 ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1205- ● ●
35 BOLT; FRT WHEEL CYL
(B) 		1-47159-227-0 08 1 0906-1204 ●
35 BOLT; FRT WHEEL CYL
(B) 		1-47159-227-0 08 1 1205- ● ●
66 BOLT; OIL SHIELD COVER
M14X60 		0-20951-460-0 04 1 0906-1204 ●
66 BOLT; OIL SHIELD COVER
M14X60 		0-20951-460-0 04 1 1205- ● ●
67 PLATE; BACK,FRT BRK 1-47150-704-0 01 1 0906-0907 ●
67 PLATE; BACK,FRT BRK 1-47150-716-1 01 1 0908-1204 ●
67 PLATE; BACK,FRT BRK 1-47150-716-1 01 1 1205- ● ●
67 PLATE; BACK,FRT BRK 1-47150-705-0 01 1 0906-0907 ●
67 PLATE; BACK,FRT BRK 1-47150-717-1 01 1 0908-1204 ●
67 PLATE; BACK,FRT BRK 1-47150-717-1 01 1 1205- ● ●
71 GROMMET; CHECK HOLE 1-09333-139-0 04 1 0906-1204 ●
71 GROMMET; CHECK HOLE 1-09333-139-0 04 1 1205- ● ●
75 PIPE; OIL,FWD,FRT BRK 1-49167-859-0 02 1 0906-1204 ●
75 PIPE; OIL,FWD,FRT BRK 1-49167-859-0 02 1 1205- ● ●
86 WASHER; LK,FRT WHEEL CYL 1-47159-110-0 04 1 0906-1204 ●
86 WASHER; LK,FRT WHEEL CYL 1-47159-110-0 04 1 1205- ● ●
88 BOLT; BRK PIPE CLAMP
M6X10 		9-01900-610-0 02 1 0906-1204 ●
88 BOLT; BRK PIPE CLAMP
M6X10 		9-01900-610-0 02 1 1205- ● ●
92 GROMMET; ADJ HOLE 1-09333-138-0 04 1 0906-1204 ●
92 GROMMET; ADJ HOLE 1-09333-138-0 04 1 1205- ● ●
111 NUT; FLANGE,SHOE HOLD
(A) 		1-09440-101-0 04 1 0906-1204 ●
111 NUT; FLANGE,SHOE HOLD
(A) 		1-09440-101-0 04 1 1205- ● ●
111 NUT; FLANGE,SHOE HOLD
(B) 		1-47159-111-0 04 1 0906-1204 ●
111 NUT; FLANGE,SHOE HOLD
(B) 		1-47159-111-0 04 1 1205- ● ●
112 WASHER; PL,SHOE HOLD 1-47169-037-0 04 1 0906-1204 ●
112 WASHER; PL,SHOE HOLD 1-47169-037-0 04 1 1205- ● ●
114 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		9-08112-020-0 04 1 0906-0907 ●
114 PIN; SPLIT,SHOE HOLD 1-47169-048-0 04 1 0908-1204 ●
114 PIN; SPLIT,SHOE HOLD 1-47169-048-0 04 1 1205- ● ●
133 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 04 1 0906-0906 ●
133 BOLT; BRKT
M8X20 W/LK WASHER 		0-50540-820-0 04 1 0907-1204 ●
133 BOLT; BRKT
M8X20 W/LK WASHER 		0-50540-820-0 04 1 1205- ● ●
241 HOLDER 1-47619-097-0 04 1 0906-1204 ●
241 HOLDER 1-47619-097-0 04 1 1205- ● ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-228-0 01 1 0906-0907 ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-242-0 01 1 0908-1204 ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-242-0 01 1 1205- ● ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-229-0 01 1 0906-0907 ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-243-0 01 1 0908-1204 ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-243-0 01 1 1205- ● ●
