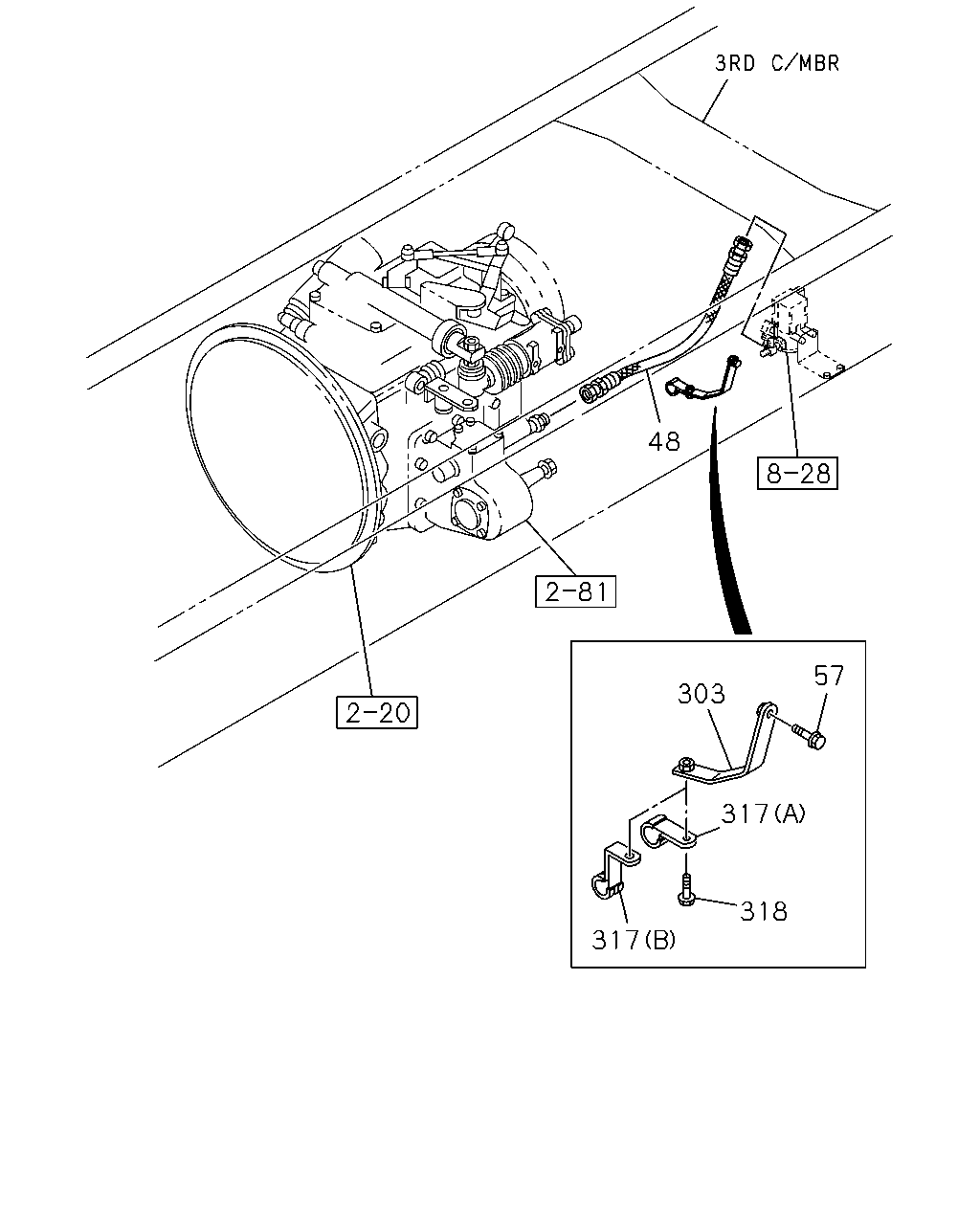

2-85 — POWER TAKE OFF CONTROL (#16780) — 35 parça

3 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0906-1204	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1205-	●	●
15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	0906-1204	●
15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	1205-	●	●

48 57 303 317 318 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	HOSE; FLEX,PTO MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	1-09363-733-0	01	1	0906-	●
48	HOSE; FLEX,PTO MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=580	1-09363-613-1	01	1	0906-1204	●
48	HOSE; FLEX,PTO MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=580	1-09363-613-1	01	1	1205-	●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390	1-09363-616-0	01	1	0906-	●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=310	1-09363-713-0	01	1	0906-	●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=470	1-09363-714-0	01	1	0906-1204	●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=470	1-09363-714-0	01	1	1205-	●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=470	1-09363-714-0	01	1	1205-		●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=560	1-09363-914-0	01	1	0906-1204	●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=560	1-09363-914-0	01	1	1205-	●
48	HOSE; FLEX,PTO MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=560	1-09363-914-0	01	1	1205-		●
57	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) PTO CONTROL<SV6> M10X25 FLANGE	0-28651-025-0	01	1	0906-1204	●
57	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> M10X25 FLANGE	0-28651-025-0	01	1	1205-	●
57	BOLT; BRKT PTO CONTROL<SV6> M10X25 FLANGE	0-28651-025-0	01	1	1205-		●
303	BRACKET; CLIP MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) PTO CONTROL<SV6>	8-98136-977-0	01	1	0906-1204	●
303	BRACKET; CLIP MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6>	8-98136-977-0	01	1	1205-	●
303	BRACKET; CLIP MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) PTO CONTROL<SV6>	8-98136-973-0	01	1	0906-1204	●
303	BRACKET; CLIP MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6>	8-98136-973-0	01	1	1205-	●
303	BRACKET; CLIP MZW6P M/T(RSZ) PTO CONTROL<SV6>	8-98136-973-0	01	1	1205-		●
317	CLIP; NYLON TUBE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) PTO CONTROL<SV6> (A) ID=11 L=16	0-95235-025-0	01	1	0906-0907	●
317	CLIP; NYLON TUBE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) PTO CONTROL<SV6> (B) ID=15 L=22 H=30	1-09701-215-1	01	1	0908-1005	●
317	CLIP; NYLON TUBE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) PTO CONTROL<SV6> (B) ID=15 L=22 H=30	1-09701-215-1	01	1	1006-1204	●
317	CLIP; NYLON TUBE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) PTO CONTROL<SV6> (B) ID=15 L=22 H=30	1-09701-215-1	01	1	1006-1204	●
317	CLIP; NYLON TUBE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> (B) ID=15 L=22 H=30	1-09701-215-1	01	1	1205-	●
317	CLIP; NYLON TUBE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> (B) ID=15 L=22 H=30	1-09701-215-1	01	1	1205-	●
317	CLIP; NYLON TUBE PTO CONTROL<SV6> (B) ID=15 L=22 H=30	1-09701-215-1	01	1	1205-		●
317	CLIP; NYLON TUBE PTO CONTROL<SV6> (B) ID=15 L=22 H=30	1-09701-215-1	01	1	1205-		●
318	BOLT; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) PTO CONTROL<SV6> M8X16 FLANGE	0-28050-816-0	01	1	0906-0909	●
318	BOLT; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	01	1	0910-1204	●
318	BOLT; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	01	1	1205-	●
318	BOLT; CLIP PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	01	1	1205-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
