7-43 — SUN VISOR AND ASSIST GRIP (#1678) — 102 parça

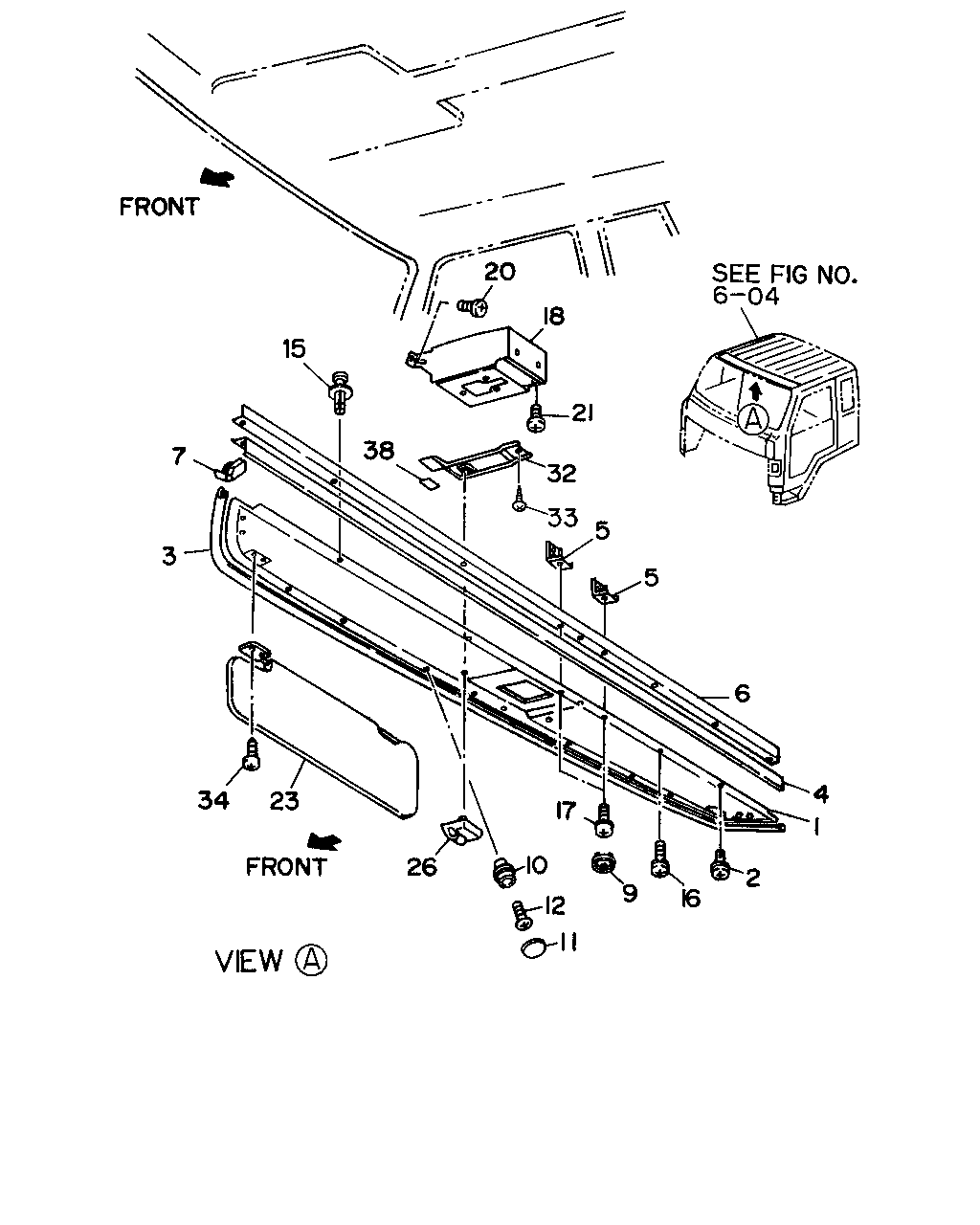

20 18 21 32 33 5 5 6 4 1 2 16 9 38 15 7 3 34 23 26 17 10 12 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BOARD; HEADER SHELF DELUXE CAB<W14>	1-73318-501-2	01	1	9207-	●	●	●	●	●
2	FASTENER; HEADER SHELF BOARD DELUXE CAB<W14> GRAY	1-73318-356-0	04	1	9207-	●	●	●	●	●
3	FINISHER; HEADER SHELF,FRT DELUXE CAB<W14> L=2030	1-73318-363-0	01	1	9207-	●	●	●	●	●
4	FRAME; HEADER SHELF DELUXE CAB<W14>	1-73318-204-5	01	1	9207-	●	●	●	●	●
5	BRACKET; HEADER SHELF FRAME DELUXE CAB<W14>	1-73318-206-0	02	1	9207-	●	●	●	●	●
6	FINISHER; HEADER SHELF,REAR DELUXE CAB<W14> L=1596	1-73318-147-4	01	1	9207-	●	●	●	●	●
7	FINISHER; HEADER SHELF,CORNER DELUXE CAB<W14>	1-73318-269-1	01	1	9207-	●	●	●	●	●
7	FINISHER; HEADER SHELF,CORNER DELUXE CAB<W14>	1-73318-268-1	01	1	9207-	●	●	●	●	●
9	COVER; HOLE,HEADER SHELF CENTER DELUXE CAB<W14> EXC. RADIO AM & TAPE PLAYER(UM1)	1-73317-231-0	02	1	9207-	●	●	●	●	●
10	COLLAR; HEADER SHELF DELUXE CAB<W14>	1-73318-341-0	06	1	9207-	●	●	●	●	●
11	CAP; HEADER SHELF DELUXE CAB<W14> GRAY	1-73318-357-0	06	1	9207-	●	●	●	●	●
12	SCREW; HEADER SHELF DELUXE CAB<W14> M6X16	1-09981-531-0	06	1	9207-	●	●	●	●	●
15	FASTENER; HEADER SHELF BOARD DELUXE CAB<W14> D6.8X11 PUSH RIVET	1-73318-230-0	07	1	9207-	●	●	●	●	●
16	SCREW; FRAME,HEADER SHELF DELUXE CAB<W14> M6X12 W/LK WASHER	9-03910-612-0	04	1	9207-	●	●	●	●	●
17	SCREW; BRKT,HEADER SHELF FRAME DELUXE CAB<W14> M6X12 W/LK WASHER	9-03910-612-0	02	1	9207-	●	●	●	●	●
18	SUPPORT; HEADER SHELF CENTER DELUXE CAB<W14> RADIO AM & TAPE PLAYER(UM1)	1-73318-416-1	01	1	9207-	●	●	●	●	●
18	SUPPORT; HEADER SHELF CENTER DELUXE CAB<W14> EXC. RADIO AM & TAPE PLAYER(UM1)	1-73318-476-0	01	1	9207-	●	●	●	●	●
20	SCREW; SUPPORT,HEADER SHELF DELUXE CAB<W14> M6X12 W/LK WASHER	9-03910-612-0	06	1	9207-	●	●	●	●	●
21	SCREW; SUPPORT,HEADER SHELF CENTER DELUXE CAB<W14> M6X12 W/LK WASHER	9-03910-612-0	04	1	9207-	●	●	●	●	●
23	SUN VISOR DELUXE CAB<W14>	1-73138-111-2	01	1	9207-	●	●	●	●	●
23	SUN VISOR DELUXE CAB<W14>	1-73138-110-2	01	1	9207-	●	●	●	●	●
23	SUN VISOR EXC. DELUXE CAB<W14>	1-73138-120-0	01	1	9207-	●	●	●	●	●
23	SUN VISOR EXC. DELUXE CAB<W14>	1-73138-119-0	01	1	9207-	●	●	●	●	●
26	HOLDER; SUN VISOR GRAY	1-73137-141-0	02	1	9207-	●	●	●	●	●
32	PLATE; HOLDER,SUN VISOR DELUXE CAB<W14> EXC. SUN VISOR PASSENGER<D20>	1-73318-229-0	01	1	9207-9312	●	●	●	●	●
32	PLATE; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> DELUXE CAB<W14>	1-73318-229-0	02	1	9207-9312	●	●	●	●	●
32	PLATE; HOLDER,SUN VISOR DELUXE CAB<W14>	1-73318-229-0	02	1	9401-	●	●	●	●	●
33	SCREW; HOLDER,SUN VISOR DELUXE CAB<W14> EXC. SUN VISOR PASSENGER<D20> M6X20	1-09981-365-0	02	1	9207-9312	●	●	●	●	●
34	SCREW; SUN VISOR M6X20	1-09981-365-0	02	1	9207-9211	●	●	●	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X20	1-09981-365-0	02	1	9207-9211	●	●	●	●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9212-9312	●	●	●	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X20	1-09981-310-0	02	1	9212-9312	●	●	●	●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	04	1	9401-	●	●	●	●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	04	1	9401-	●	●	●	●	●
38	CUSHION; PLATE SUN VISOR PASSENGER<D20> DELUXE CAB<W14>	1-73318-286-0	02	1	9207-9312	●	●	●	●	●
38	CUSHION; PLATE DELUXE CAB<W14>	1-73318-286-0	02	1	9401-	●	●	●	●	●

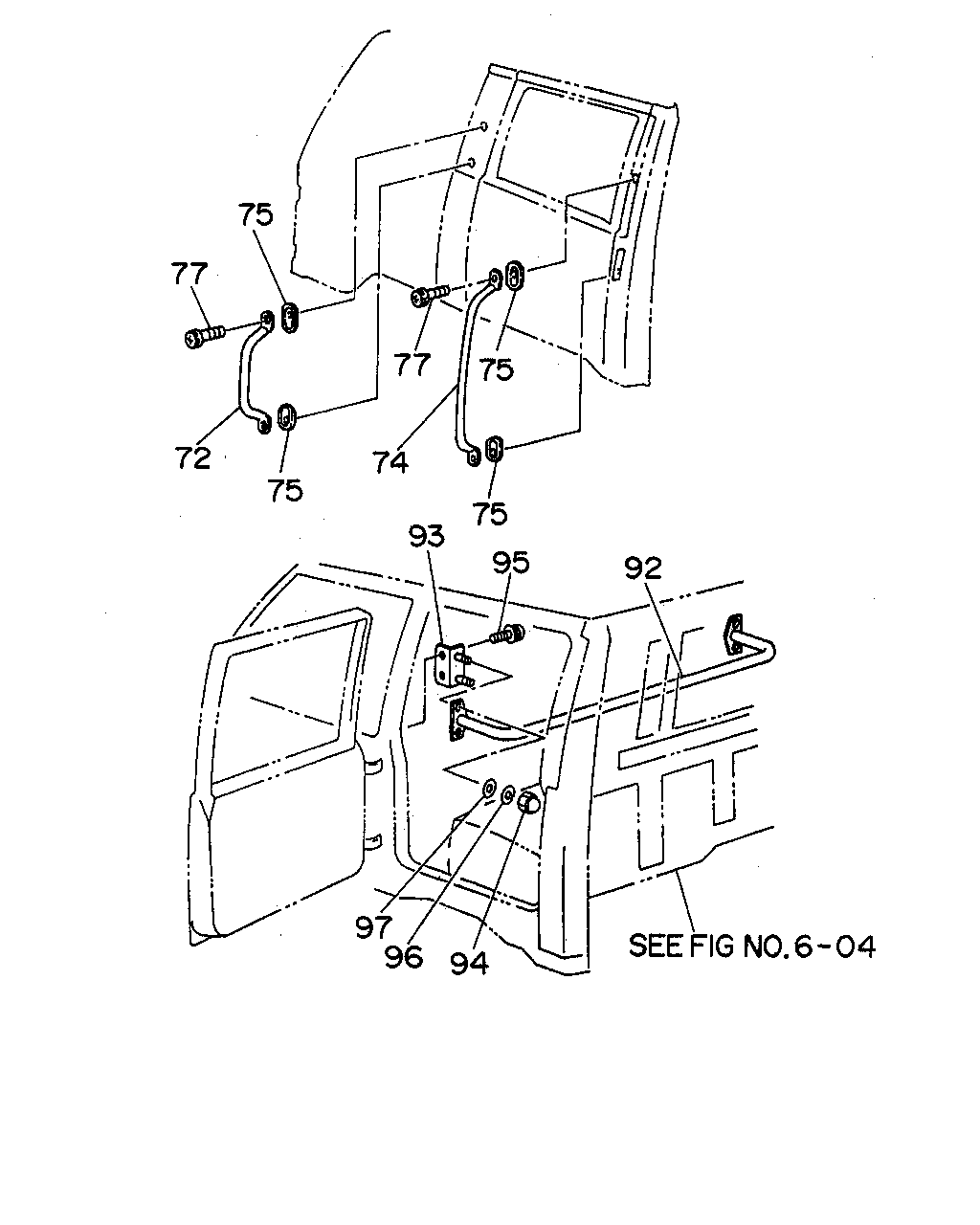

75 77 72 75 74 77 75 75 93 95 92 97 96 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E
72	GRIP; ASSIST,CAB ENTRY,BACK WHITE	1-71998-278-0	02	1	9207-	●
74	GRIP; ASSIST,CAB ENTRY,BACK CENTER WHITE L=199	1-71998-437-0	02	1	9207-	●
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-478-1	08	1	9207-	●
77	SCREW; ASSIST GRIP M8X25	1-09981-429-0	08	1	9207-	●
92	BAR; ASSIST	1-73618-123-2	01	1	9207-	●
93	BRACKET; ASSIST BAR	1-73618-126-1	02	1	9207-	●
94	NUT; CAP,ASSIST BAR M8 FLANGE	1-09984-126-0	04	1	9207-	●
95	SCREW; ASSIST BAR BRKT M8X20 W/LK&PL WASHER	1-09980-496-0	04	1	9207-	●
96	WASHER; LK,ASSIST BAR ID=8.2	1-09985-177-0	04	1	9207-	●
97	WASHER; PL,ASSIST BAR ID=8.4 OD=16	1-09985-174-0	04	1	9207-	●

71 41 122 71 139 71 71 79 79 71 59 79 71 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
41	GRIP; ASSIST,BACK SIDE AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY>	1-71998-134-2	04	1	9405-					●
56	GRIP; ASSIST,SIDE SILL WHITE	1-71998-131-0	02	1	9207-9402	●		●
56	GRIP; ASSIST,SIDE SILL EXC. AUSTRALIA EQUIPMENT(RR3) WHITE	1-71998-131-0	02	1	9207-9402		●		●	●
56	GRIP; ASSIST,SIDE SILL WHITE	1-71998-131-0	02	1	9403-	●		●		●
56	GRIP; ASSIST,SIDE SILL EXC. AUSTRALIA EQUIPMENT(RR3) WHITE	1-71998-131-0	02	1	9403-		●		●
59	COVER; ASSIST GRIP	1-73617-037-1	02	1	9207-	●		●
59	COVER; ASSIST GRIP EXC. AUSTRALIA EQUIPMENT(RR3)	1-73617-037-1	02	1	9207-		●		●	●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9207-9404	●	●	●	●	●
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9207-9404					●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9405-	●	●	●	●
71	SCREW AUSTRALIA EQUIPMENT(RR3) EXC. REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9405-					●
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9405-					●
71	SCREW DELUXE CAB<W14> M6X37 W/PL WASHER	1-09981-423-0	02	1	9207-	●	●	●	●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9207-9402	●		●
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) M6X37 W/PL WASHER	1-09981-460-0	04	1	9207-9402		●		●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9403-	●		●		●
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) M6X37 W/PL WASHER	1-09981-460-0	04	1	9403-		●		●
71	SCREW AUSTRALIA EQUIPMENT(RR3) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9207-		●		●	●
71	SCREW AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> M6X16 W/LK&PL WASHER	1-09981-172-0	16	1	9405-9407					●
71	SCREW AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9408-					●
79	GRIP; ASSIST (C)	1-73617-036-5	01	1	9207-	●		●
79	GRIP; ASSIST EXC. AUSTRALIA EQUIPMENT(RR3) (C)	1-73617-036-5	01	1	9207-		●		●	●
79	GRIP; ASSIST (C)	1-73617-035-5	01	1	9207-	●		●
79	GRIP; ASSIST EXC. AUSTRALIA EQUIPMENT(RR3) (C)	1-73617-035-5	01	1	9207-		●		●	●
79	GRIP; ASSIST AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> (A)	1-71998-134-2	02	1	9405-					●
79	GRIP; ASSIST AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> (B)	1-71998-851-1	01	1	9405-					●
79	GRIP; ASSIST AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> (B)	1-71998-850-0	01	1	9405-					●
122	WASHER; PL,ASSIST GRIP AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> ID=10.2 OD=22 T=6	1-09989-009-1	02	1	9408-					●
139	GRIP; ASSIST,CTR PILLAR	1-73618-158-2	02	1	9207-					●

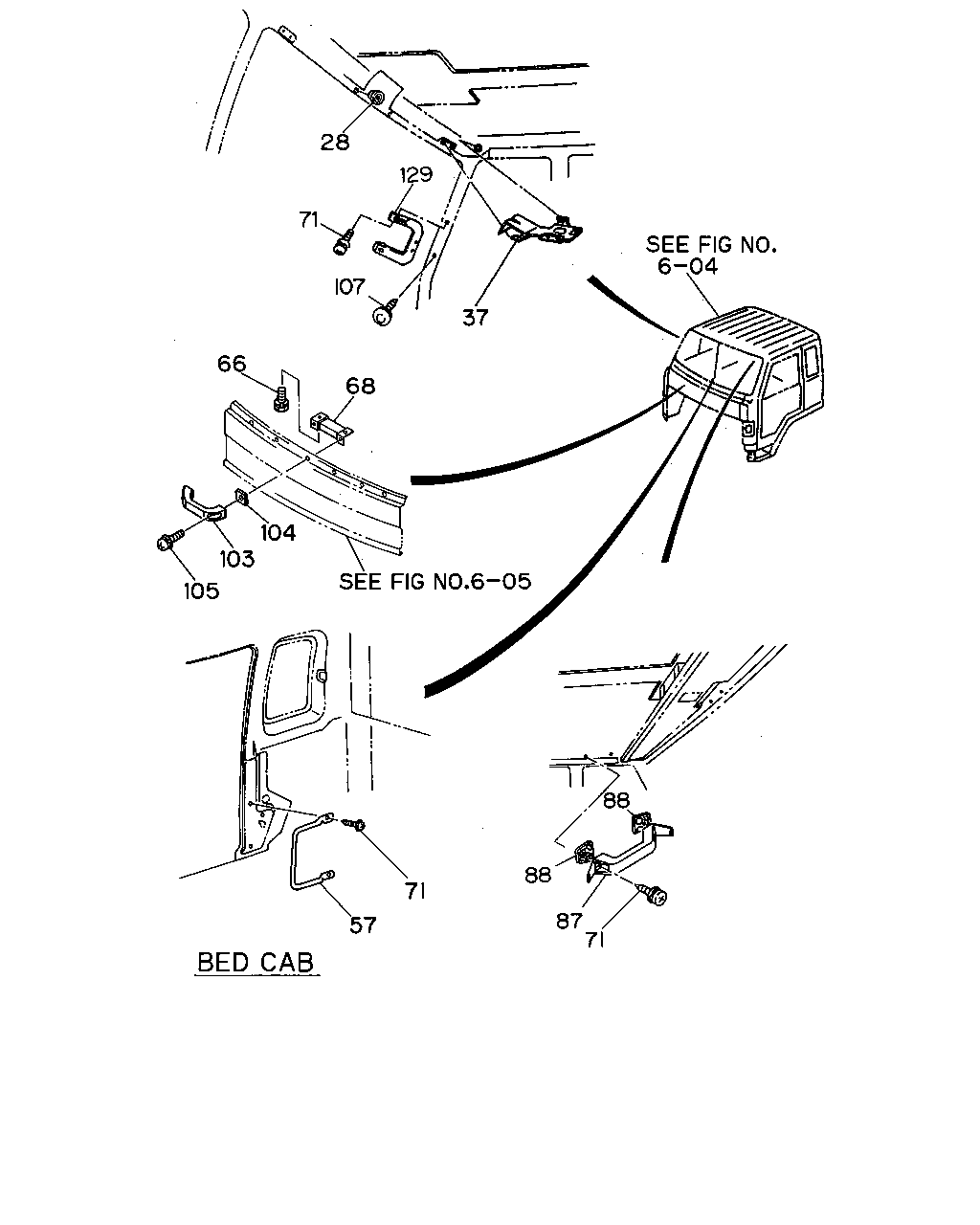

28 129 71 107 37 68 66 105 103 104 57 71 88 88 87 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
28	GROMMET; SUN VISOR FIX HOLE EXC. SUN VISOR PASSENGER<D20>,DELUXE CAB<W14> OD=15.0	8-94279-040-0	01	1	9207-9312	●	●	●	●	●
37	SUPPORT; SUN VISOR & HTR SHELF FRAME DELUXE CAB<W14>	1-73318-234-2	01	1	9207-	●	●	●	●	●
37	SUPPORT; SUN VISOR & HTR SHELF FRAME DELUXE CAB<W14>	1-73318-233-2	01	1	9207-	●	●	●	●	●
57	GRIP; ASSIST,RR PILLAR AUSTRALIA EQUIPMENT(RR3) BLACK	1-71998-467-0	02	1	9207-		●		●
66	BOLT; ASSIST GRIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9207-	●	●	●	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-192-0	01	1	9207-	●	●	●	●	●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9207-9404	●	●	●	●	●
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9207-9404					●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9405-	●	●	●	●
71	SCREW AUSTRALIA EQUIPMENT(RR3) EXC. REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9405-					●
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9405-					●
71	SCREW DELUXE CAB<W14> M6X37 W/PL WASHER	1-09981-423-0	02	1	9207-	●	●	●	●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9207-9402	●		●
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) M6X37 W/PL WASHER	1-09981-460-0	04	1	9207-9402		●		●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9403-	●		●		●
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) M6X37 W/PL WASHER	1-09981-460-0	04	1	9403-		●		●
71	SCREW AUSTRALIA EQUIPMENT(RR3) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9207-		●		●	●
71	SCREW AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> M6X16 W/LK&PL WASHER	1-09981-172-0	16	1	9405-9407					●
71	SCREW AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	9408-					●
87	GRIP; ASSIST,CANT RAIL SIDE DELUXE CAB<W14>	1-73618-156-0	01	1	9207-	●	●	●	●	●
88	BASE; ASSIST GRIP DELUXE CAB<W14>	1-73618-157-0	02	1	9207-	●	●	●	●	●
103	GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	01	1	9207-	●	●	●	●	●
104	SPACER; ASSIST GRIP	1-71997-529-2	02	1	9207-	●	●	●	●	●
105	SCREW; ASSIST GRIP M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9207-	●	●	●	●	●
107	PLUG; ASSIST GRIP,DUMMY HOLE INTERIOR FULL TRIM<WM3>	1-76378-240-0	02	1	9207-	●		●
107	PLUG; ASSIST GRIP,DUMMY HOLE INTERIOR FULL TRIM<WM3> EXC. AUSTRALIA EQUIPMENT(RR3)	1-76378-240-0	02	1	9207-		●		●
129	GRIP; ASSIST,FRT PILLAR AUSTRALIA EQUIPMENT(RR3)	1-73618-158-2	02	1	9207-		●		●	●
