2-30 — GEAR SHIFTER AND QUADRANT BOX (#16772) — 538 parça

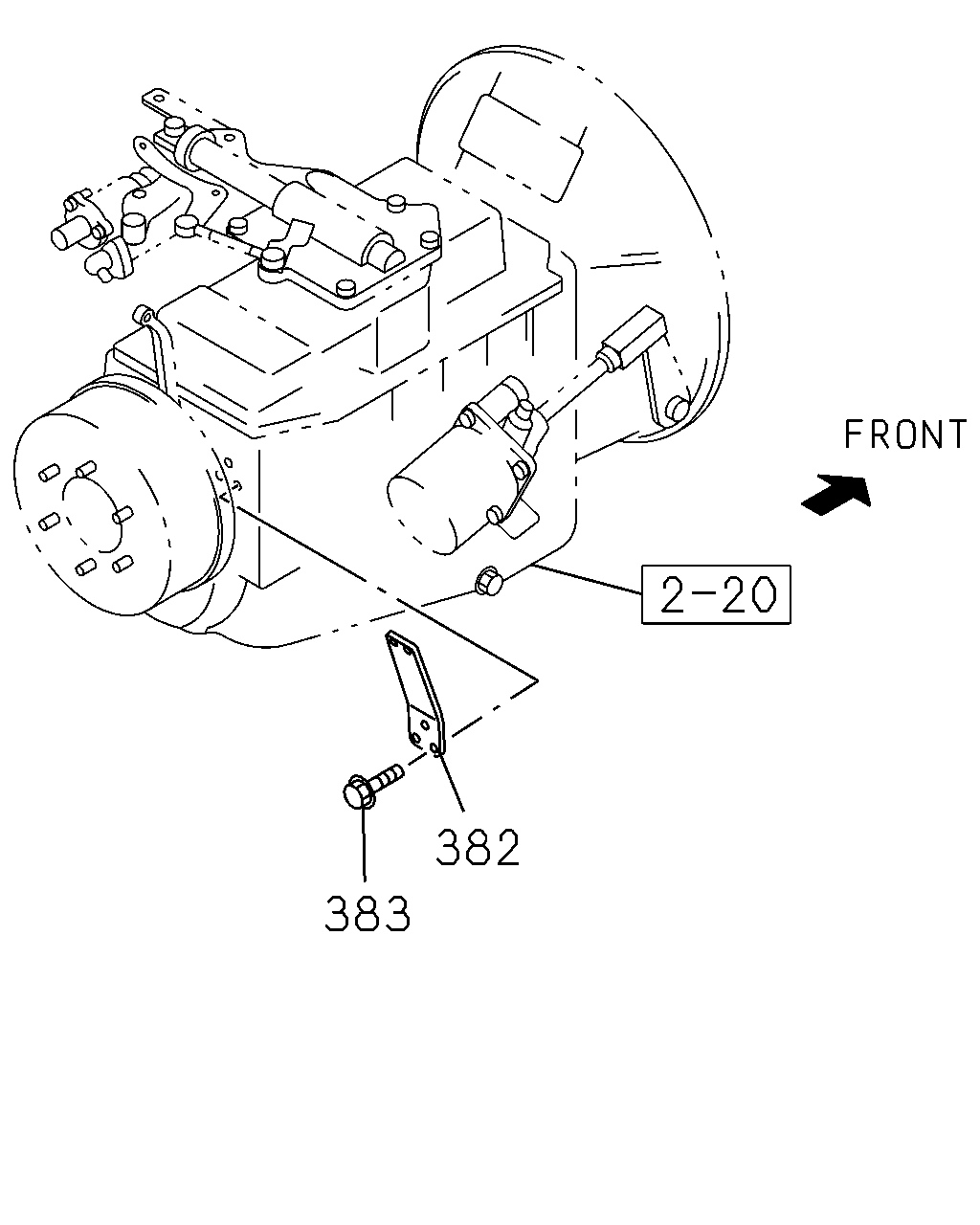

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-223-0	01	1	0906-	●
	383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	0906-	●

38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 86 39 54 30 28 86 54 38 86 39 142 31 30 28 86 225 224 513 223 398 80 142 221 413 78 61 86 142 142 142 42 158 218 71 171 157 142 219 78 70 142 69 42 66 227 65 67 13 72 15 65 65 67 68 11 12 86 86 86 86

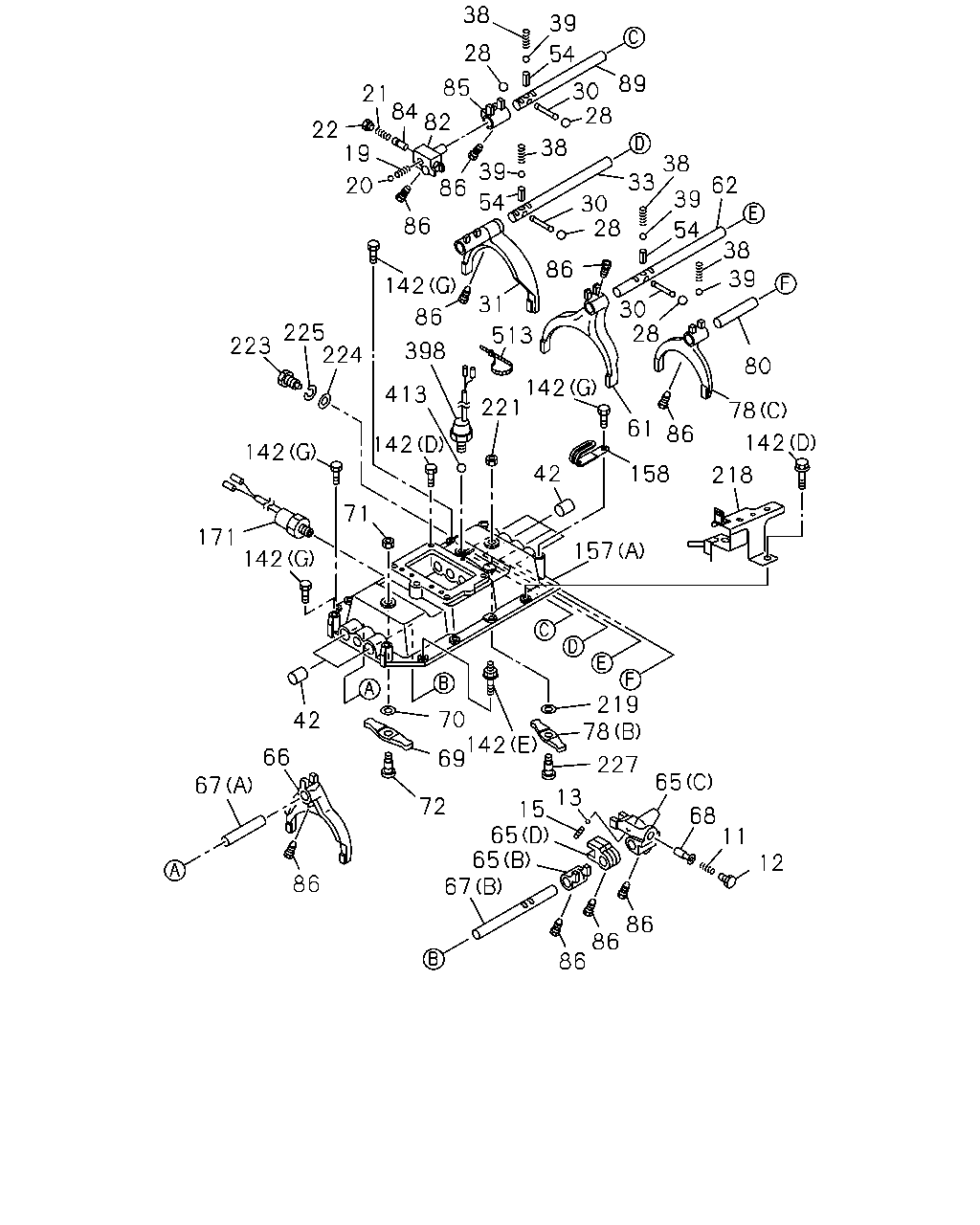

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0906-	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0906-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0906-	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0906-	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0906-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0906-	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0906-	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0906-	●
28	BALL; INTER LK	9-00097-501-0	04	1	0906-	●
30	PIN; INTER LK	9-33534-003-0	03	1	0906-	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0906-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0906-1202	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●
38	SPRING; DETENT	1-09580-379-0	04	1	0906-	●
39	BALL; DETENT	1-09843-012-0	04	1	0906-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0906-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0906-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0906-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0906-1202	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-202-3	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	8-97388-980-1	01	1	0906-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0906-	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0906-		●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0906-1202	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0906-1202	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0906-	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0906-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0906-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0906-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0906-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0906-	●
78	ARM; SHIFT,REV (C)	1-33511-234-1	01	1	0906-	●
78	ARM; SHIFT,REV (A)	8-97388-975-1	01	1	0906-		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0906-1202	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0906-	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0906-		●
84	SLEEVE; REV	1-33516-025-0	01	1	0906-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0906-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0906-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0906-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0906-		●
142	BOLT; QUAD BOX (G) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0906-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0906-	●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0906-	●
157	BOX; QUAD,TRANS (B)	8-98059-176-0	01	1	0906-	●
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0906-	●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0906-		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0906-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0906-1306		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312		●
218	BRACKET; HARNESS CLIP,QUAD BOX	8-98114-116-0	01	1	0906-	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0906-	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0906-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0906-	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0906-	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0906-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0906-	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0906-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0906-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
413	BALL; BACK SW	9-00097-013-0	01	1	0906-	●
513	CLIP; BAND L=140	5-09707-031-1	01	1	0906-	●

59 59 549 6 262 167 128 189 181 317 294 294 243 129 645 559 631 535 130 535 171 129 273 192 317 189 333 163 192 551 58 142 285 548 262 554 346 624 398

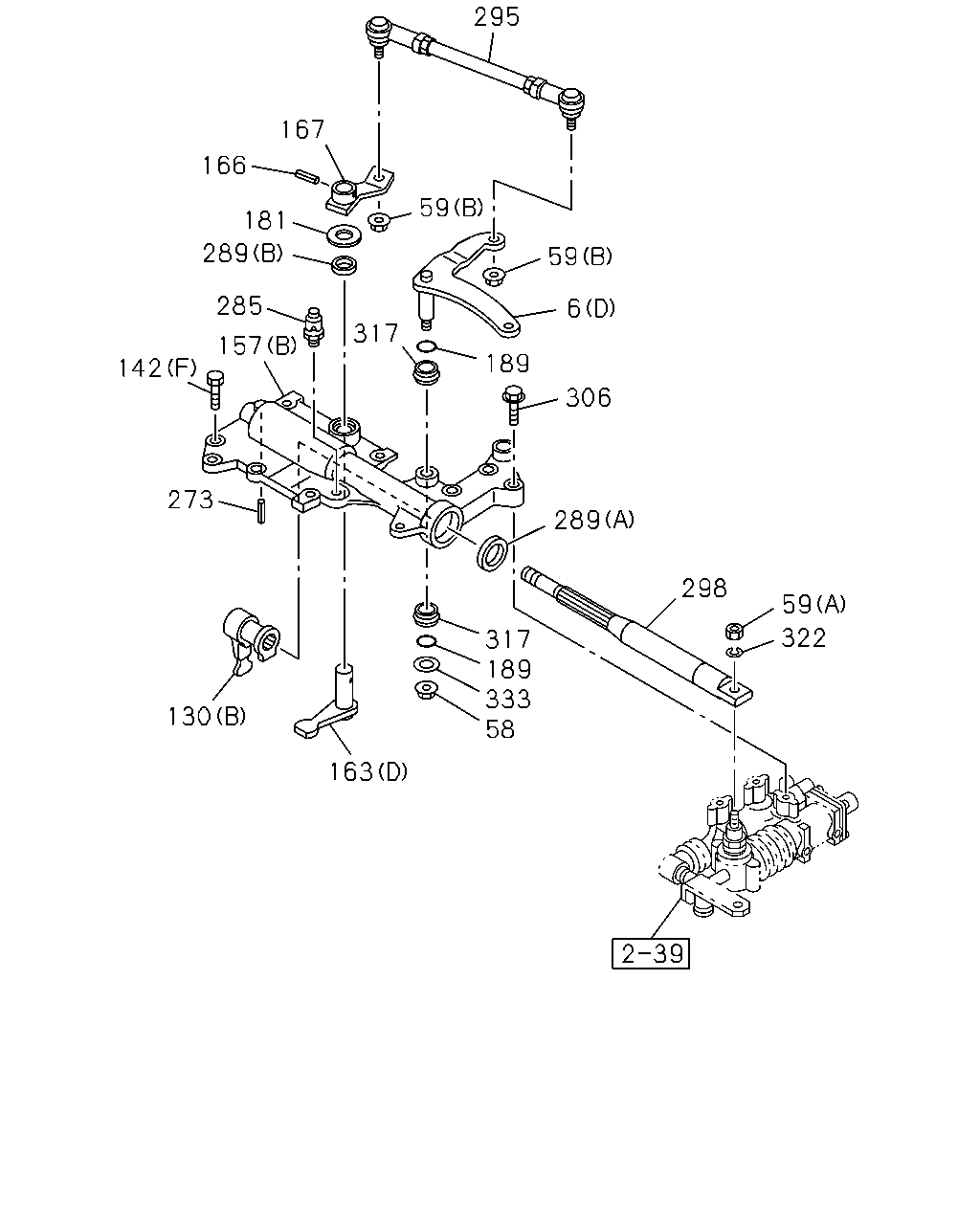

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (D)	8-98059-183-0	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98014-157-1	01	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0906-		●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0906-	●
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	0906-		●
59	NUT (A) M12	0-91110-512-0	01	1	0906-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0906-		●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0906-	●
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	0906-		●
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98096-925-0	01	1	0906-1208		●
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1209-1507		●
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-		●
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	0906-		●
130	LEVER; SHIFT,INTERNAL (B)	8-98114-548-0	01	1	0906-	●
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97306-647-0	01	1	0906-		●
142	BOLT; QUAD BOX (G) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0906-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0906-	●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
163	LEVER; SELECT,INTERNAL (D)	1-33522-153-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL	8-98059-180-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0906-		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0906-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0906-1306		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312		●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0906-	●
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	0906-		●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0906-	●
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	0906-		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0906-		●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	0906-		●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	0906-		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	0-28050-612-0	11	1	0906-0906		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	0907-		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	0-28050-612-0	01	1	0906-0912		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	1-33739-842-0	01	1	1001-		●

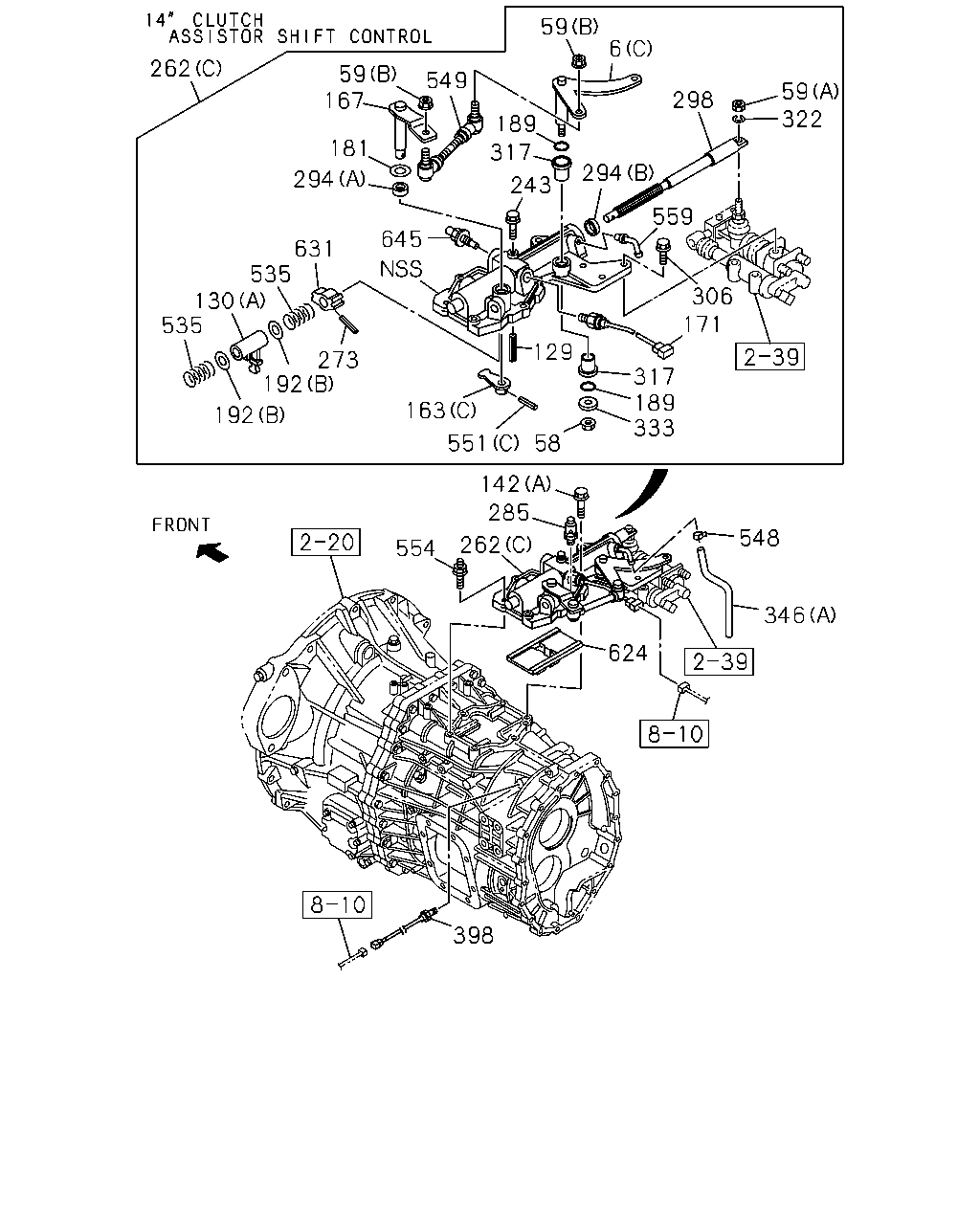

262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-473-4	01	1	0906-1204		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-563-0	01	1	1205-1306		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-038-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-998-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-158-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-333-0	01	1	1508-		●

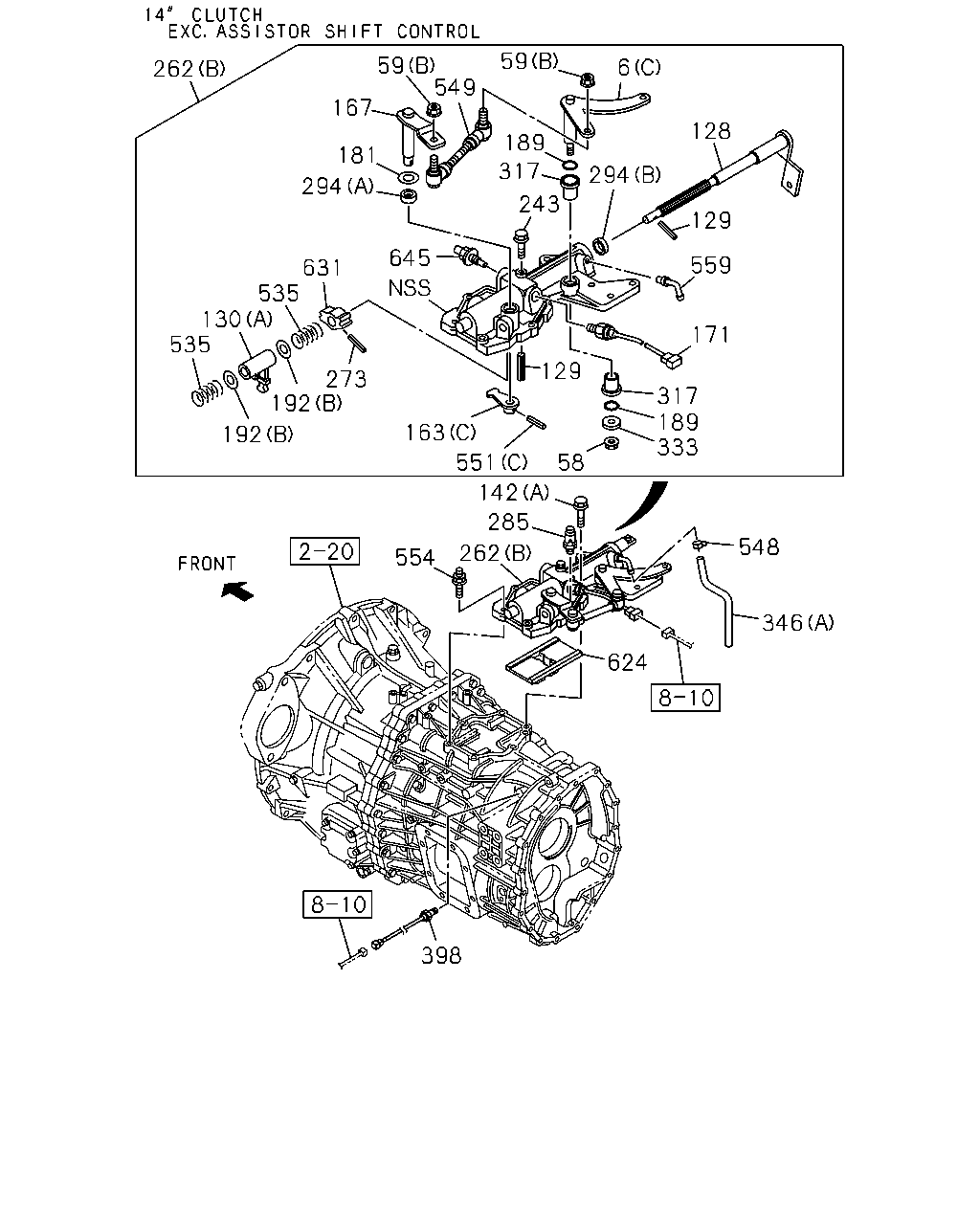

262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-474-3	01	1	0906-1204		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-564-0	01	1	1205-1208		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98211-654-0	01	1	1209-1306		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-037-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-991-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-157-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-332-0	01	1	1508-		●

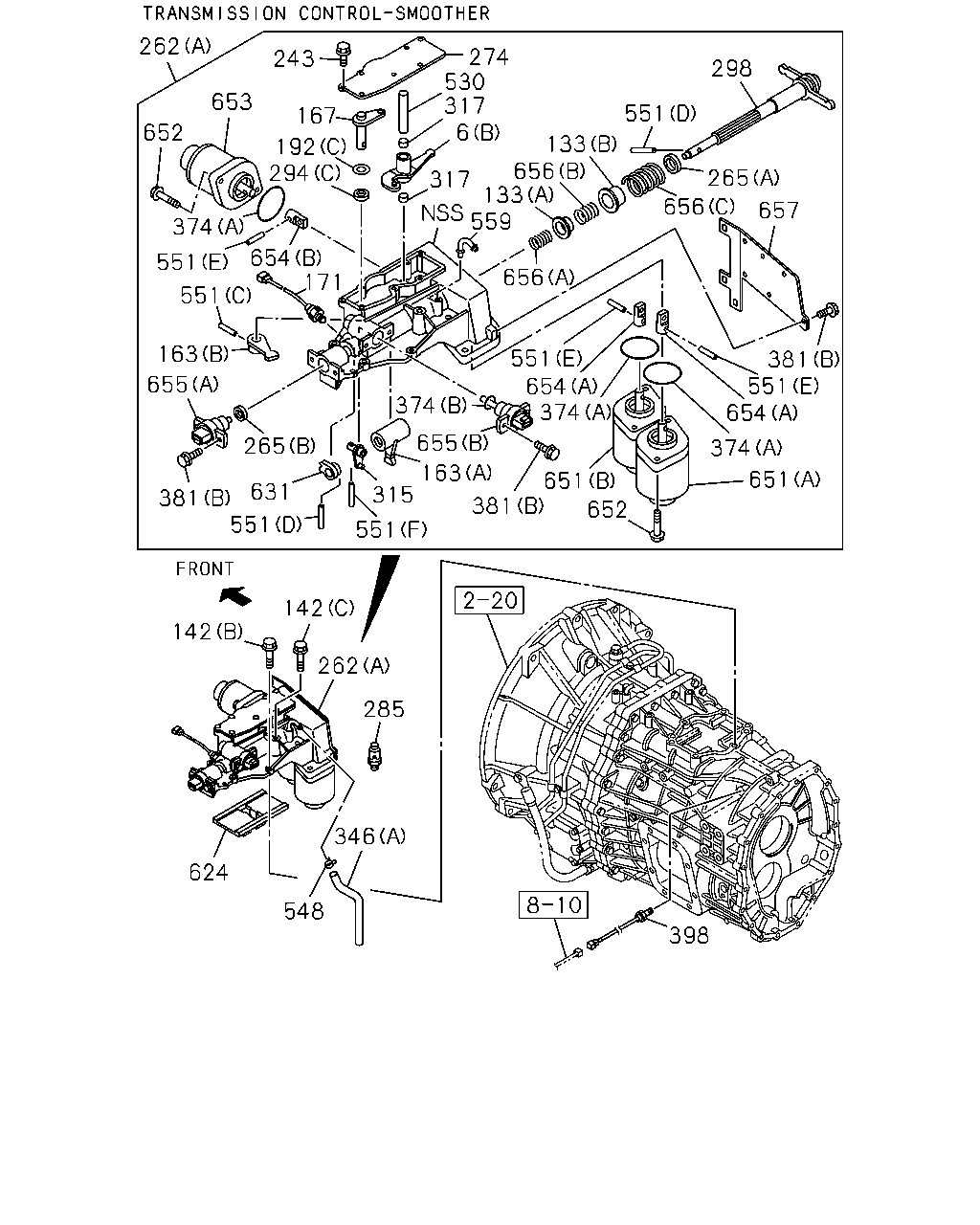

262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-495-4	01	1	0906-1010		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-814-1	01	1	1011-1306		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1307-1411		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-		●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	0906-	●
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	0906-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0906-1204	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1208-1404	●
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1208-1404		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0906-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0906-	●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	0906-		●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0906-		●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0906-	●
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	0906-		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0906-1204		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0906-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0906-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0906-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	0906-		●
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404		●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE	8-97031-674-0	01	1	0906-1204		●
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-095-0	01	1	0906-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0906-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0906-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	0906-		●
554	STUD; CONT BOX 14" CLUTCH(WF6) M8X15,M8X25 L=49	8-97365-378-0	02	1	0906-		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	0906-1204		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0906-		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0906-		●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	0906-		●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0906-		●
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	0906-		●

262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 142 142 262 285 346 624 548 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (D)	8-98059-183-0	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98014-157-1	01	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0906-		●
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-988-0	01	1	0906-		●
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-989-0	01	1	0906-		●
142	BOLT; QUAD BOX (G) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0906-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0906-	●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
163	LEVER; SELECT,INTERNAL (D)	1-33522-153-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL	8-98059-180-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0906-		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0906-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0906-1306		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0906-		●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	0906-		●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	0906-		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	0-28050-612-0	11	1	0906-0906		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	0907-		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	0-28050-612-0	01	1	0906-0912		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	1-33739-842-0	01	1	1001-		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-473-4	01	1	0906-1204		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-563-0	01	1	1205-1306		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-038-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-998-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-158-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-333-0	01	1	1508-		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-474-3	01	1	0906-1204		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-564-0	01	1	1205-1208		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98211-654-0	01	1	1209-1306		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-037-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-991-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-157-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-332-0	01	1	1508-		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-495-4	01	1	0906-1010		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-814-1	01	1	1011-1306		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1307-1411		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-		●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0906-		●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	0906-		●
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	0906-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0906-1204	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1208-1404	●
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1208-1404		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0906-		●
298	SHAFT; SHIFT LEVER	8-98059-178-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0906-1507		●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-		●
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0906-		●
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	0906-1411		●
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0906-	●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	0906-		●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0906-		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0906-1204		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0906-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	0906-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	0906-		●
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	0-28050-612-0	04	1	0906-0906		●
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-		●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0906-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0906-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0906-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
530	SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	0906-		●
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404		●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE	8-97031-674-0	01	1	0906-1204		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0906-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0906-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	0906-		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	0906-1204		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0906-		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0906-		●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	0906-		●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0906-		●
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	0906-		●
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	0906-		●
652	BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE	0-28151-025-0	06	1	0906-		●
653	SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	0906-		●
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	0906-		●
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	0906-		●
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	0906-1010		●
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1011-		●
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	0906-1010		●
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1011-		●
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	0906-		●
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	0906-		●
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	0906-		●
657	PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	0906-		●

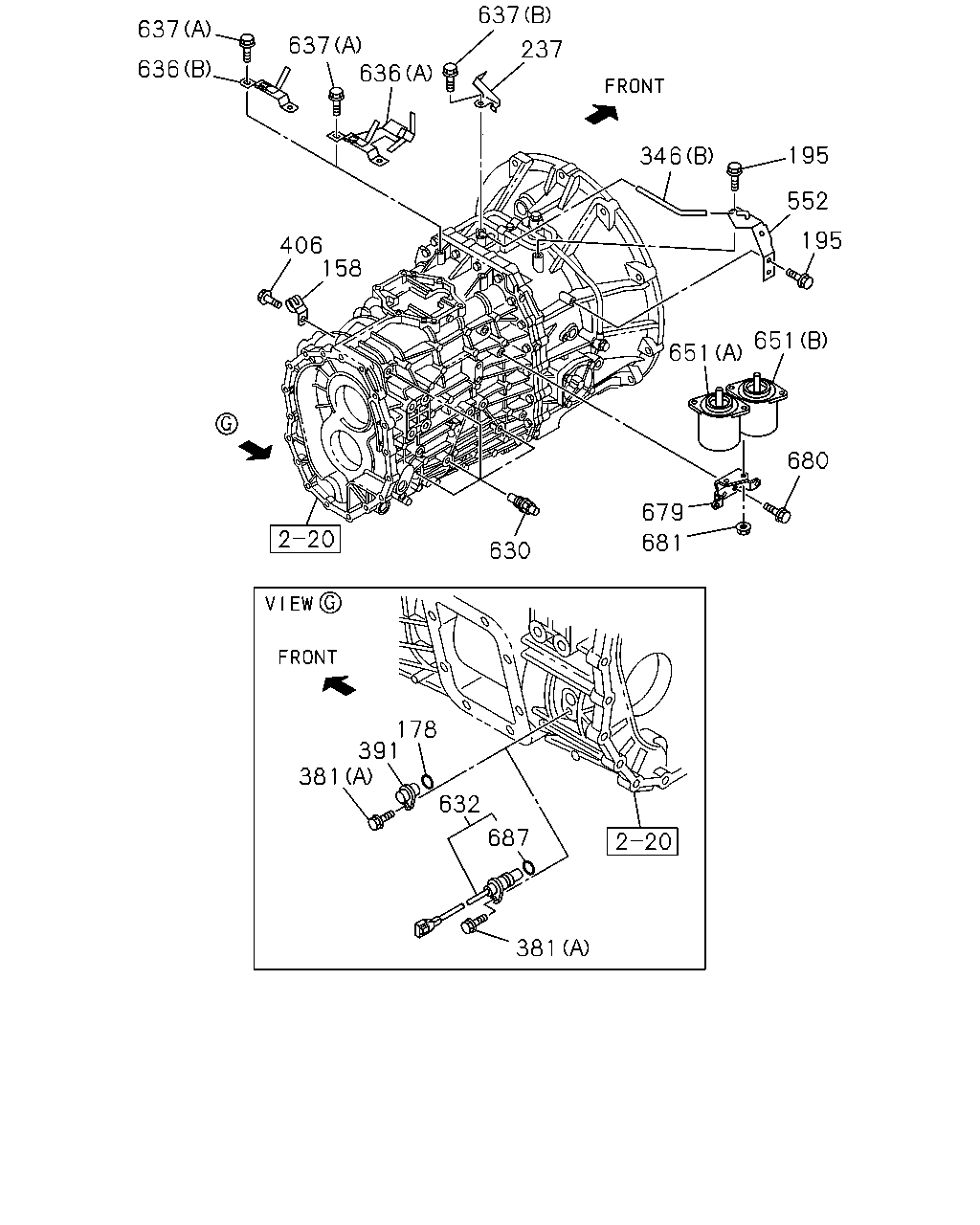

637 637 637 636 237 636 195 346 552 195 406 158 651 651 680 679 681 630 178 391 381 632 687 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0906-	●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0906-		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	9-09567-113-0	01	1	0906-		●
195	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0906-		●
237	BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-307-1	01	1	0906-		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0906-1204		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0906-		●
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	0-28050-612-0	04	1	0906-0906		●
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-		●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0906-		●
391	PLUG; SW HOLE 14" CLUTCH(WF6)	8-97300-273-1	01	1	0906-		●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	0906-		●
552	BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-329-1	01	1	0906-		●
630	DETENT ASM	8-98019-536-0	04	1	0906-		●
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	0906-		●
636	BRACKET; CLIP 14" CLUTCH(WF6) (B)	8-97610-092-1	01	1	0906-1502		●
636	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-093-1	01	1	0906-		●
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-1502		●
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE	0-28050-816-0	02	1	1503-		●
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0906-		●
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	0906-		●
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	0906-		●
679	BRACKET; HEAT PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-332-0	01	1	0906-		●
680	BOLT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	0906-		●
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	0906-		●
687	GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	0906-		●

295 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (D)	8-98059-183-0	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98014-157-1	01	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0906-		●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0906-	●
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	0906-		●
59	NUT (A) M12	0-91110-512-0	01	1	0906-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0906-		●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0906-	●
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	0906-		●
130	LEVER; SHIFT,INTERNAL (B)	8-98114-548-0	01	1	0906-	●
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97306-647-0	01	1	0906-		●
142	BOLT; QUAD BOX (G) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0906-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0906-	●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0906-	●
157	BOX; QUAD,TRANS (B)	8-98059-176-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL (D)	1-33522-153-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	0906-		●
166	PIN; SPR,SELECT LEVER L=25 OD=5	1-09748-032-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL	8-98059-180-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0906-		●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0906-	●
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	0906-		●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0906-	●
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	0906-		●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	0906-	●
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	0906-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0906-1204	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1208-1404	●
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1208-1404		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0906-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0906-	●
295	ROD; LINK,RELAY LEVER	8-98059-185-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER	8-98059-178-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0906-1507		●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-		●
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0906-		●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0906-	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0906-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0906-	●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	0906-		●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0906-		●
322	WASHER; LK	8-98031-750-0	01	1	0906-	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0906-		●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0906-	●
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	0906-		●

59 6 262 59 167 549 59 322 298 189 181 317 294 294 243 559 645 631 535 130 535 306 171 129 273 192 317 189 333 163 192 551 58 142 285 548 262 554 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (D)	8-98059-183-0	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98014-157-1	01	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0906-		●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0906-	●
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	0906-		●
59	NUT (A) M12	0-91110-512-0	01	1	0906-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0906-		●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0906-	●
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	0906-		●
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	0906-		●
130	LEVER; SHIFT,INTERNAL (B)	8-98114-548-0	01	1	0906-	●
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97306-647-0	01	1	0906-		●
142	BOLT; QUAD BOX (G) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0906-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0906-	●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
163	LEVER; SELECT,INTERNAL (D)	1-33522-153-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL	8-98059-180-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0906-		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0906-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0906-1306		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312		●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0906-	●
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	0906-		●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0906-	●
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	0906-		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0906-		●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	0906-		●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	0906-		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	0-28050-612-0	11	1	0906-0906		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	0907-		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	0-28050-612-0	01	1	0906-0912		●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	1-33739-842-0	01	1	1001-		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-473-4	01	1	0906-1204		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-563-0	01	1	1205-1306		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-038-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-998-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-158-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-333-0	01	1	1508-		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-474-3	01	1	0906-1204		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-564-0	01	1	1205-1208		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98211-654-0	01	1	1209-1306		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-037-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-991-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-157-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-332-0	01	1	1508-		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-495-4	01	1	0906-1010		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-814-1	01	1	1011-1306		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1307-1411		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-		●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	0906-	●
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	0906-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0906-1204	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1208-1404	●
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1208-1404		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0906-		●
298	SHAFT; SHIFT LEVER	8-98059-178-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0906-1507		●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-		●
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0906-		●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0906-	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0906-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0906-	●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	0906-		●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0906-		●
322	WASHER; LK	8-98031-750-0	01	1	0906-	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0906-		●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0906-	●
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	0906-		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0906-1204		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0906-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0906-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0906-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	0906-		●
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404		●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE	8-97031-674-0	01	1	0906-1204		●
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-095-0	01	1	0906-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0906-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0906-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	0906-		●
554	STUD; CONT BOX 14" CLUTCH(WF6) M8X15,M8X25 L=49	8-97365-378-0	02	1	0906-		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	0906-1204		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0906-		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0906-		●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	0906-		●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0906-		●
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	0906-		●

551 78 32 51 684 551 551 89 65 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (D)	8-98059-183-0	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98014-157-1	01	1	0906-		●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0906-		●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	0906-1307		●
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-		●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	0906-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-202-3	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	8-97388-980-1	01	1	0906-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0906-	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0906-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0906-	●
78	ARM; SHIFT,REV (C)	1-33511-234-1	01	1	0906-	●
78	ARM; SHIFT,REV (A)	8-97388-975-1	01	1	0906-		●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0906-	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0906-		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0906-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0906-		●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	0906-1506		●
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-		●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	0906-		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0906-		●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	0906-		●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	0906-		●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	0906-		●
320	SHAFT; LEVER	8-97377-928-0	01	1	0906-		●
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	0906-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0906-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0906-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	0906-		●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	0906-		●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	0906-		●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	0906-		●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	0906-		●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	0906-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
