◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11230 - FRR-LHD(EU)SPACE EU5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#16765) — 104 parça
çizim 61792
48 101 50 239 104 180 107 106 104 184
BalonParca AdiParca NoAdetTipApplied Date A B
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0906-1204 ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1205- ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0906-1204 ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0906-1204 ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1205- ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1205- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0906-1005 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0906-1005 ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1006-1009 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1006-1009 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010-1204 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010-1204 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1205- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1205- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=510 		8-98059-811-0 01 1 0906-1204 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=510 		8-98059-811-0 01 1 1205- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0906- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0906-1204 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 1205- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1684 SERVICED BY L=1700 		1-47428-737-0 01 1 0906-1204 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1684 SERVICED BY L=1700 		1-47428-737-0 01 1 1205- ● ●
106 UNION; OIL PIPE
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 3WAY 		1-09654-137-2 01 1 0906- ●
106 UNION; OIL PIPE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0906-1204 ●
106 UNION; OIL PIPE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 1205- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0906-0910 ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911-1204 ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 1205- ● ●
107 NUT; UNION,OIL PIPE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0906-1204 ●
107 NUT; UNION,OIL PIPE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 1205- ● ●
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0906-0910 ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 0911-1204 ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 1205- ● ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 2WAY 		1-09654-059-2 01 1 0906-1204 ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 2WAY 		1-09654-059-2 01 1 1205- ● ●

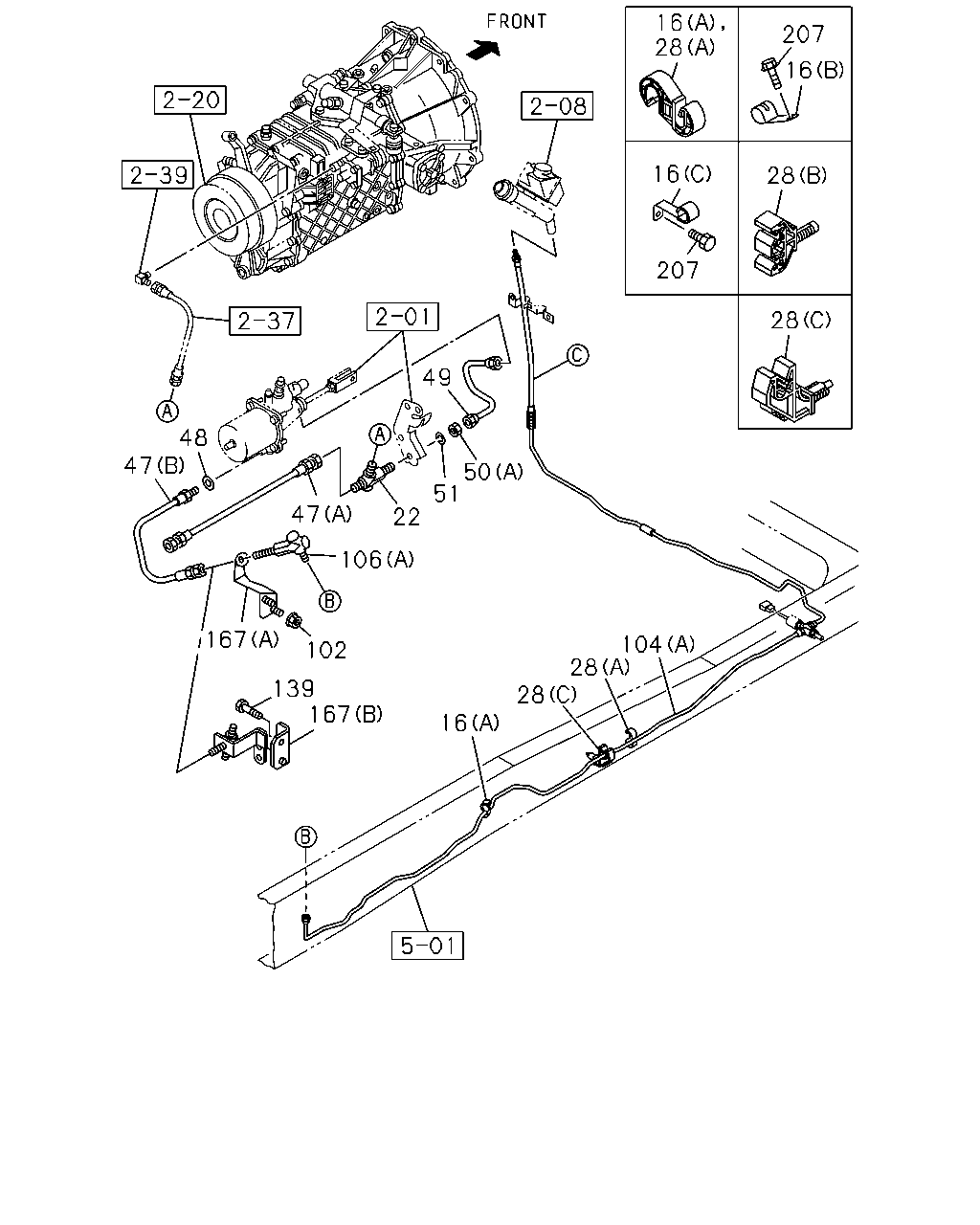

çizim 63091
16 28 207 16 16 28 207 28 49 48 47 50 51 47 22 106 167 104 102 28 28 139 167 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 H=45 L=25 		1-09700-866-0 01 1 0906- ●
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 02 1 0906- ●
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0906-1005 ●
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1006-1204 ●
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1006-1204 ●
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1205- ● ●
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1205- ● ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=18 L=28 		1-09701-067-0 01 1 0906-1204 ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=18 L=28 		1-09701-067-0 01 1 1205- ● ●
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0906-1204 ●
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1205- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 0906-1204 ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 1205- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0906-1204 ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1205- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 04 1 0906-1204 ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 04 1 1205- ● ●
47 HOSE; FLEX,CLU CONT
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=550 		8-98122-509-0 01 1 0906- ●
47 HOSE; FLEX,CLU CONT
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540 		1-09363-612-1 01 1 0906- ●
47 HOSE; FLEX,CLU CONT
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=620 		1-09363-770-0 01 1 0906- ●
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390 		8-98080-980-0 01 1 0906-1204 ●
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390 		8-98080-980-0 01 1 1205- ● ●
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=560 		1-09363-914-0 01 1 0906- ●
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=640 		1-09363-974-0 01 1 0906- ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0906-1204 ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 1205- ●
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 1205- ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=740 		1-09363-674-0 01 1 0906-1204 ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=740 		1-09363-674-0 01 1 1205- ●
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=740 		1-09363-674-0 01 1 1205- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0906-1204 ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1205- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 0906-1204 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 1205- ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0906-1204 ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0906-1204 ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1205- ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1205- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0906-1005 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0906-1005 ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1006-1009 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1006-1009 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010-1204 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010-1204 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1205- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1205- ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0906-1204 ●
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0906-1204 ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 1205- ● ●
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1205- ● ●
102 NUT; FLEX HOSE,CLU CONT
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0906-1204 ●
102 NUT; FLEX HOSE,CLU CONT
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 1205- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0906- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0906-1204 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 1205- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1684 SERVICED BY L=1700 		1-47428-737-0 01 1 0906-1204 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1684 SERVICED BY L=1700 		1-47428-737-0 01 1 1205- ● ●
106 UNION; OIL PIPE
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 3WAY 		1-09654-137-2 01 1 0906- ●
106 UNION; OIL PIPE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0906-1204 ●
106 UNION; OIL PIPE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 1205- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0906-0910 ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911-1204 ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 1205- ● ●
139 BOLT; BRKT
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30 FLANGE 		0-28051-030-0 01 1 0906- ●
167 BRACKET; UNION
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98132-086-0 01 1 0906- ●
167 BRACKET; UNION
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 0906-1204 ●
167 BRACKET; UNION
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 1205- ● ●
207 BOLT; CLIP
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 01 1 0906- ●
207 BOLT; CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 0906-1204 ●
207 BOLT; CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1205- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
