0-31 — THERMOSTAT AND HOUSING (#16754) — 177 parça

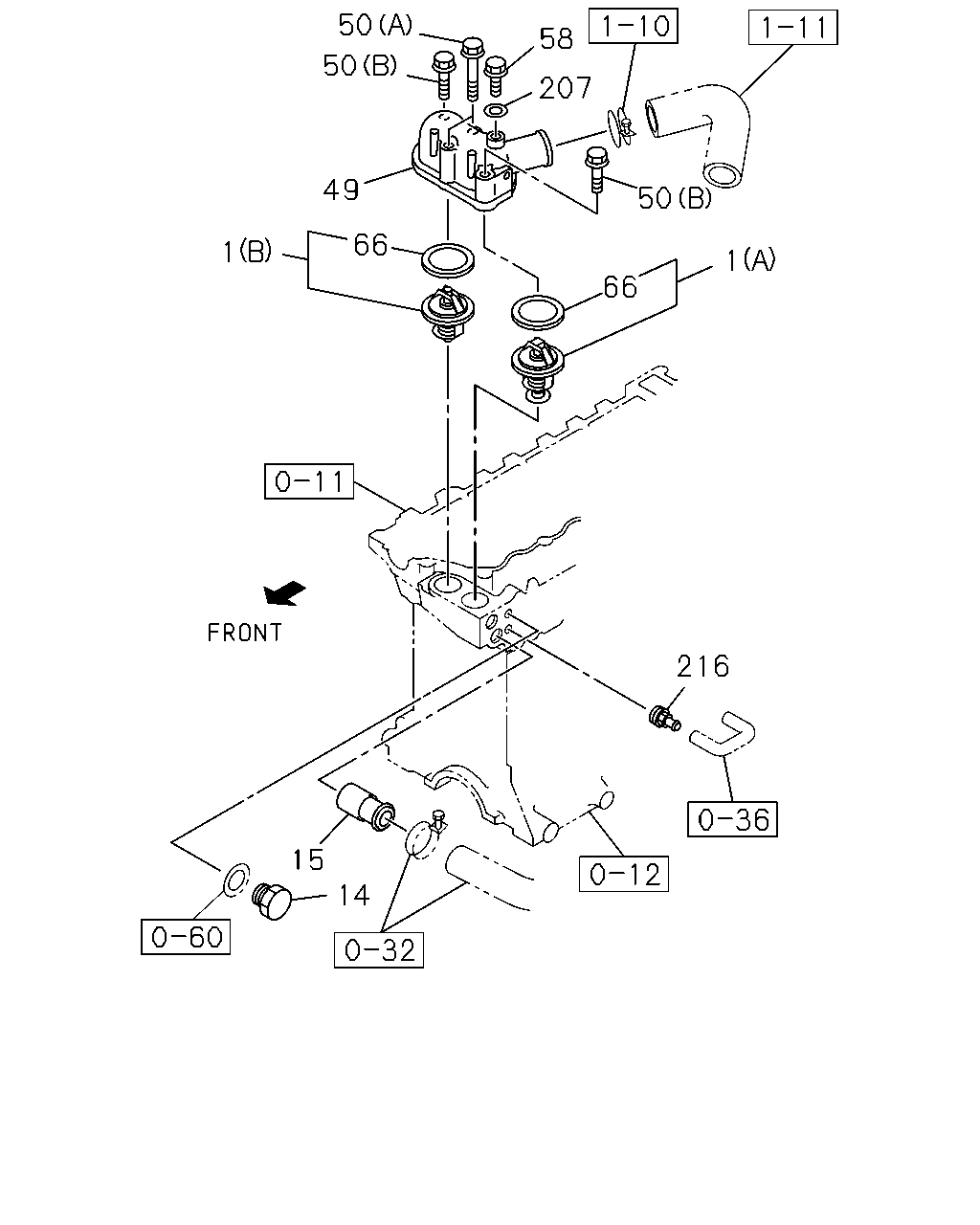

çizim 9780
50 58 50 207 49 50 66 1 1 66 216 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9811-9907 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97231-889-0 01 1 9908-9911 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97233-417-0 01 1 9912-0008 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97263-193-0 01 1 0009-0010 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-1 01 1 0011- ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9811-9907 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97167-495-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97167-495-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97231-887-0 01 1 9908-0008 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97231-887-0 01 1 9908-0008 ●
1 01.246 THERMOSTAT
CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97231-887-0 01 1 9908-0008 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97263-194-0 01 1 0009-0010 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97263-194-0 01 1 0009-0010 ●
1 01.246 THERMOSTAT
CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97263-194-0 01 1 0009-0010 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97300-787-0 01 1 0011-0105 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97300-787-0 01 1 0011-0105 ●
1 01.246 THERMOSTAT
CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97300-787-0 01 1 0011-0105 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-1 01 1 0106-0205 ● ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-1 01 1 0106-0205 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. COLOMBIA EQUIPMENT(X74) (B) 85 CELSIUS 		8-97300-787-1 01 1 0206- ● ●
1 01.246 THERMOSTAT
COLOMBIA EQUIPMENT(X74) (B) 85 CELSIUS 		8-97300-787-1 01 1 0206- ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-1 01 1 0206- ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9811-9902 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97167-496-0 01 1 9811-9902 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9904-9907 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97167-496-0 01 1 9904-9907 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97231-888-0 01 1 9908-0008 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97231-888-0 01 1 9908-0008 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97263-192-0 01 1 0009-0010 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97263-192-0 01 1 0009-0010 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97300-792-1 01 1 0011- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97300-792-1 01 1 0011- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94482-277-0 01 1 9811-9811 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9812-0105 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-498-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97231-890-0 01 1 9908-9911 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97233-418-0 01 1 9912-0008 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97263-191-0 01 1 0009-0010 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-1 01 1 0011- ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 01.073 PT3/8 		5-09605-005-0 01 1 9811-9908 ●
14 01.252 PLUG; SW
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 01.073 PT3/8 		5-09605-005-0 01 1 9811-9908 ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 01.073 PT3/8 		5-09605-005-0 01 1 9909-0003 ●
14 01.252 PLUG; SW
CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) 01.073 PT3/8 		5-09605-005-0 01 1 9909-0003 ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 01.073 PT3/8 		5-09605-005-0 01 1 0004- ●
14 01.252 PLUG; SW
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 01.073 PT3/8 		5-09605-005-0 01 1 0004- ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 04.520 M16X8 PLUG 		9-09661-005-0 01 1 9811- ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9811- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 9811- ● ● ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 9811- ● ● ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 9811-0105 ●
50 01.252 BOLT; OUTLET PIPE
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9811- ● ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9811-0105 ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 9811- ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97167-477-0 01 1 9811-9907 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97167-477-0 01 1 9811-9907 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9811-9907 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9811-9907 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97231-848-0 01 1 9908-0010 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97231-848-0 01 1 9908-0010 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97231-848-0 01 1 9908-0010 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97231-848-0 01 1 9908-0010 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97300-793-0 01 1 0011-0205 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97300-793-0 01 1 0011-0205 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0011-0205 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0011-0205 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97300-793-0 01 1 0206- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97300-793-0 01 1 0206- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0206- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0206- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94365-675-1 01 1 9811-9902 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97216-156-0 01 1 9903-0105 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL> 		8-97167-477-0 02 1 9811-9907 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL> 		8-97231-848-0 02 1 9908-0010 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL> 		8-97300-793-0 02 1 0011-0207 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. COLOMBIA EQUIPMENT(X74) 		8-97300-793-0 02 1 0208- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) COLOMBIA EQUIPMENT(X74) 		8-97300-793-0 02 1 0208- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL> 		8-97300-793-0 02 1 0208- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 02 1 0208- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9811- ● ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
TURBOCHARGER(K51) 		8-97041-589-3 01 1 9811-0205 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97041-589-3 01 1 9811-0205 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
TURBOCHARGER(K51) 		8-97041-589-3 01 1 0206-0212 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
EXC. EURO3 SPECIFICATION<NT3> 		8-97041-589-3 01 1 0206-0212 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
TURBOCHARGER(K51) 		8-97358-699-0 01 1 0301- ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
EXC. EURO3 SPECIFICATION<NT3> 		8-97358-699-0 01 1 0301- ●
çizim 47375
50 49 54 1 64 66 2 44 14 90
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9811-9907 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97231-889-0 01 1 9908-9911 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97233-417-0 01 1 9912-0008 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97263-193-0 01 1 0009-0010 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-1 01 1 0011- ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9811-9907 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97167-495-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97167-495-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97231-887-0 01 1 9908-0008 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97231-887-0 01 1 9908-0008 ●
1 01.246 THERMOSTAT
CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97231-887-0 01 1 9908-0008 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97263-194-0 01 1 0009-0010 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97263-194-0 01 1 0009-0010 ●
1 01.246 THERMOSTAT
CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97263-194-0 01 1 0009-0010 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97300-787-0 01 1 0011-0105 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97300-787-0 01 1 0011-0105 ●
1 01.246 THERMOSTAT
CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97300-787-0 01 1 0011-0105 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-1 01 1 0106-0205 ● ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-1 01 1 0106-0205 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. COLOMBIA EQUIPMENT(X74) (B) 85 CELSIUS 		8-97300-787-1 01 1 0206- ● ●
1 01.246 THERMOSTAT
COLOMBIA EQUIPMENT(X74) (B) 85 CELSIUS 		8-97300-787-1 01 1 0206- ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-1 01 1 0206- ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9811-9902 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97167-496-0 01 1 9811-9902 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9904-9907 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97167-496-0 01 1 9904-9907 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97231-888-0 01 1 9908-0008 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97231-888-0 01 1 9908-0008 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97263-192-0 01 1 0009-0010 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97263-192-0 01 1 0009-0010 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97300-792-1 01 1 0011- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (B) 85 CELSIUS 		8-97300-792-1 01 1 0011- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94482-277-0 01 1 9811-9811 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9812-0105 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-498-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97231-890-0 01 1 9908-9911 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97233-418-0 01 1 9912-0008 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97263-191-0 01 1 0009-0010 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-1 01 1 0011- ●
2 01.251 HOUSING; THERMOSTAT 8-97139-602-0 01 1 9811-9812 ●
2 01.251 HOUSING; THERMOSTAT 8-97139-603-0 01 1 9901-0105 ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 01.073 PT3/8 		5-09605-005-0 01 1 9811-9908 ●
14 01.252 PLUG; SW
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 01.073 PT3/8 		5-09605-005-0 01 1 9811-9908 ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 01.073 PT3/8 		5-09605-005-0 01 1 9909-0003 ●
14 01.252 PLUG; SW
CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) 01.073 PT3/8 		5-09605-005-0 01 1 9909-0003 ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 01.073 PT3/8 		5-09605-005-0 01 1 0004- ●
14 01.252 PLUG; SW
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 01.073 PT3/8 		5-09605-005-0 01 1 0004- ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 04.520 M16X8 PLUG 		9-09661-005-0 01 1 9811- ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9811- ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9811-9905 ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9906-0002 ●
44 01.252 BOLT; HSG TO HD
HEATER & DEFROSTER(C41) ISRAEL EQUIPMENT(7LX) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0003-0105 ●
44 01.252 BOLT; HSG TO HD
AIR CONDITIONER MANUAL CONT(C60) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0003-0105 ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9906-0002 ●
44 01.252 BOLT; HSG TO HD
HEATER & DEFROSTER(C41) EXC. ISRAEL EQUIPMENT(7LX) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 0003-0105 ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 0106-0106 ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 9811- ● ● ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 9811-0105 ●
50 01.252 BOLT; OUTLET PIPE
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9811- ● ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9811-0105 ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 9811-0105 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252 		8-94365-674-1 01 1 9811-0105 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97167-477-0 01 1 9811-9907 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97167-477-0 01 1 9811-9907 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9811-9907 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9811-9907 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97231-848-0 01 1 9908-0010 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97231-848-0 01 1 9908-0010 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97231-848-0 01 1 9908-0010 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97231-848-0 01 1 9908-0010 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97300-793-0 01 1 0011-0205 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97300-793-0 01 1 0011-0205 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0011-0205 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0011-0205 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97300-793-0 01 1 0206- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97300-793-0 01 1 0206- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0206- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0206- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94365-675-1 01 1 9811-9902 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97216-156-0 01 1 9903-0105 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL> 		8-97167-477-0 02 1 9811-9907 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL> 		8-97231-848-0 02 1 9908-0010 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL> 		8-97300-793-0 02 1 0011-0207 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. COLOMBIA EQUIPMENT(X74) 		8-97300-793-0 02 1 0208- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) COLOMBIA EQUIPMENT(X74) 		8-97300-793-0 02 1 0208- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL> 		8-97300-793-0 02 1 0208- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 02 1 0208- ●
90 01.251 BOLT; BRKT 8-97038-624-0 03 1 9906-0002 ●
90 01.251 BOLT; BRKT
HEATER & DEFROSTER(C41) ISRAEL EQUIPMENT(7LX) 		8-97038-624-0 03 1 0003-0105 ●
90 01.251 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 		8-97038-624-0 03 1 0003-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
