Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#16750) — 362 parça

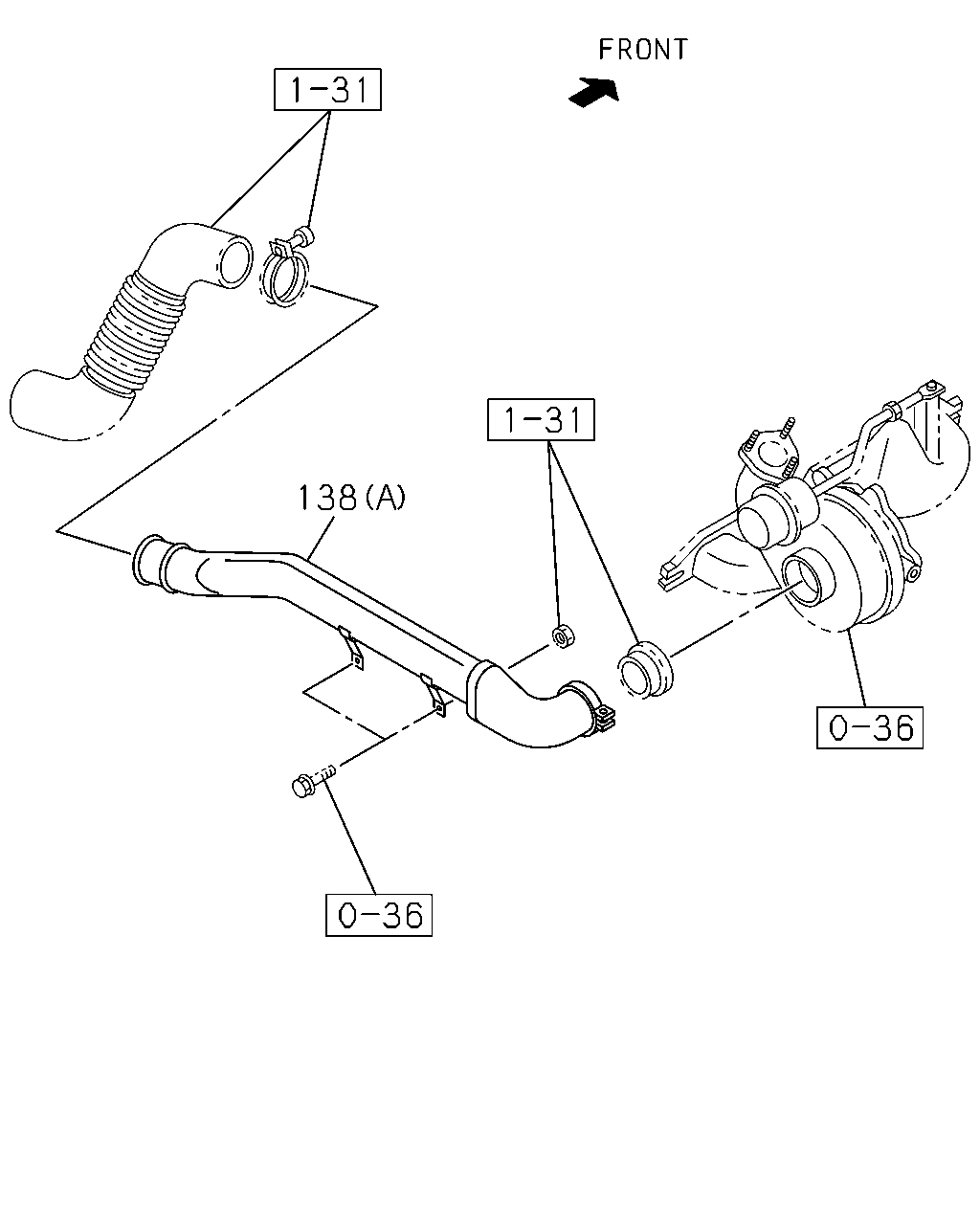

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97187-359-2	01	1	9811-9812	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97222-878-0	01	1	9901-	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97187-358-2	01	1	9811-9812	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97178-748-2	01	1	9901-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) (B)	8-97180-566-0	01	1	9811-9902	●
138	03.265 PIPE; INL (B)	8-97180-566-1	01	1	9903-	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKEBOOSTER<7QQ> (A)	8-97214-593-0	01	1	9811-0112		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97214-593-0	01	1	0201-0201	●		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-593-0	01	1	0201-0201		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKEBOOSTER<7QQ> (A)	8-97214-593-0	01	1	0202-		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-594-0	01	1	9811-		●

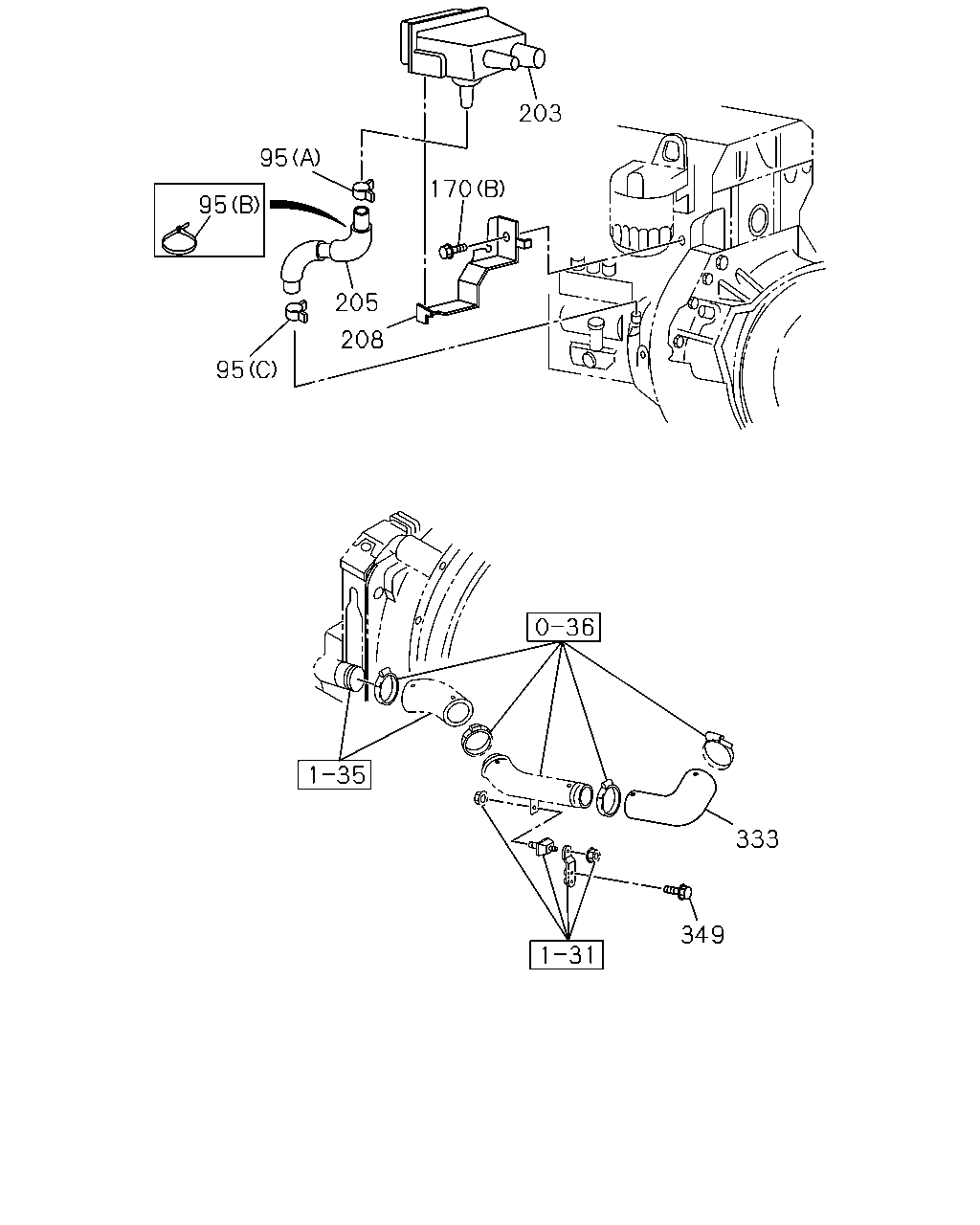

203 95 170 95 205 208 95 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (A) ID=77-95	1-09707-114-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (B) ID=50-69	8-94316-991-0	02	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (C) ID=68-85	8-94320-428-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 ID=13	8-94238-571-0	02	1	9811-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9811-		●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-		●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9811-		●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9811-		●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9811-		●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9811-		●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9811-		●
333	03.278 HOSE; RUBBER,INL PIPE TURBOCHARGER(K51) (A)	8-97201-103-1	01	1	9811-	●
333	03.278 HOSE; RUBBER,INL PIPE TURBOCHARGER(K51) (B)	8-97202-285-3	01	1	9811-	●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL>	8-97189-631-0	01	1	9811-		●
349	03.417 BOLT; BRKT,INL PIPE CHARGE AIR COOLER<6PL> 04.595 M8X20 FLANGE	0-28480-820-0	04	1	9811-		●

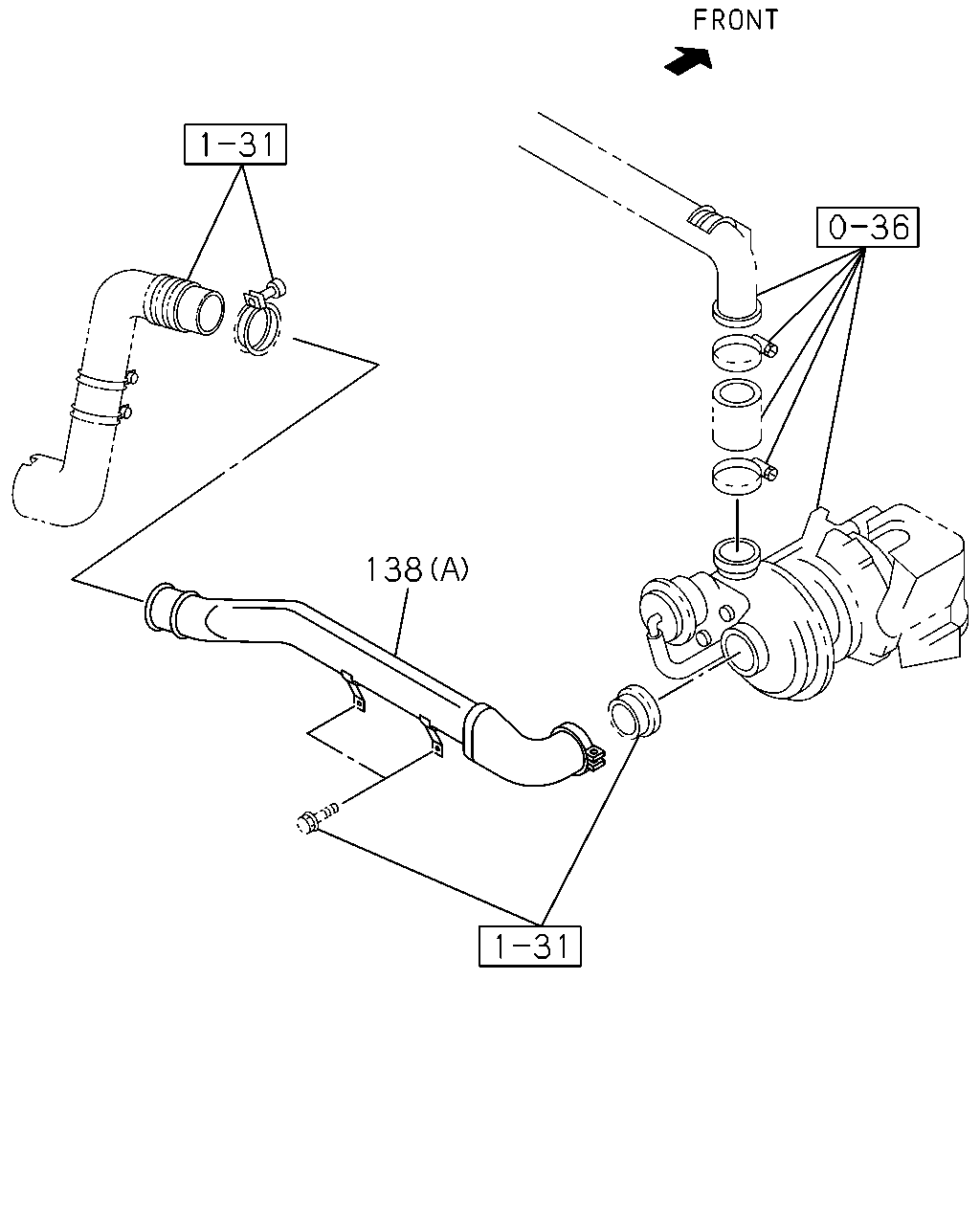

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97187-359-2	01	1	9811-9812	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97222-878-0	01	1	9901-	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97187-358-2	01	1	9811-9812	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97178-748-2	01	1	9901-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) (B)	8-97180-566-0	01	1	9811-9902	●
138	03.265 PIPE; INL (B)	8-97180-566-1	01	1	9903-	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKEBOOSTER<7QQ> (A)	8-97214-593-0	01	1	9811-0112		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97214-593-0	01	1	0201-0201	●		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-593-0	01	1	0201-0201		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKEBOOSTER<7QQ> (A)	8-97214-593-0	01	1	0202-		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-594-0	01	1	9811-		●

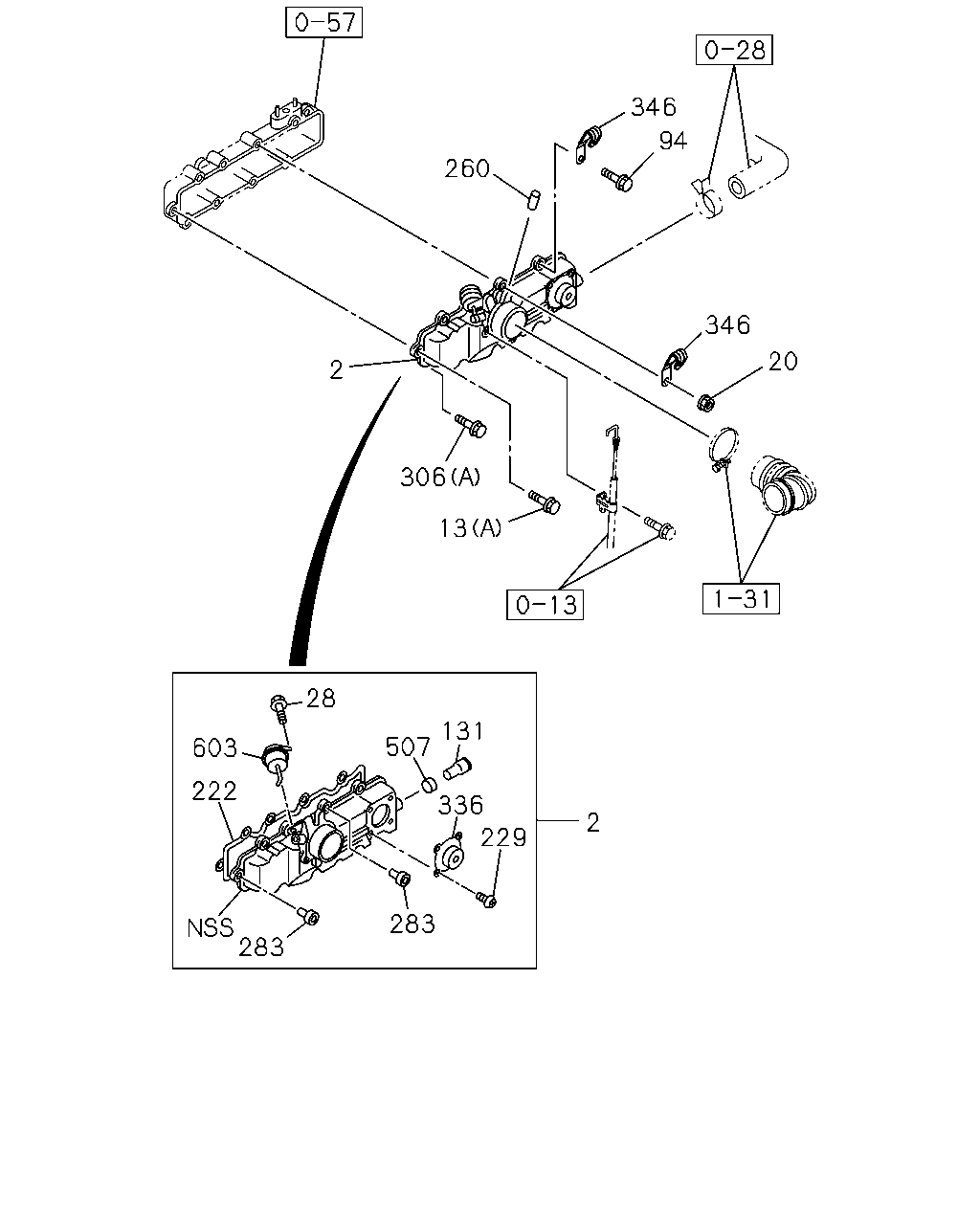

346 94 260 346 20 2 306 13 28 131 507 603 222 336 2 229 283 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL TURBOCHARGER(K51)	8-97212-454-1	01	1	9811-	●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	9811-0105	●
2	03.407 COVER; INL	8-97146-864-2	01	1	9811-0105			●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0106-0204	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	0106-0204			●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0205-	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	0205-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-238-0	01	1	0102-			●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97146-866-2	01	1	0205-	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9811-9901		●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-		●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (B) M8X52 L=68	8-97118-455-0	01	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-0105				●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-0105				●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9811-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-0105				●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-0101	●		●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0102-	●
28	03.278 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0102-			●
94	02.559 BOLT TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9811-	●
94	02.559 BOLT EXC. TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-			●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9811-		●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9811-		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	9811-9903	●		●
131	03.278 PIPE; PCV,INL EXC. TURBOCHARGER(K51)	8-97102-601-0	01	1	9904-	●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	9904-			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	9811-	●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9811-9901		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9811-		●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9811-9903	●		●
229	03.278 SCREW; VENTILATION VLV EXC. TURBOCHARGER(K51) 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9904-	●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9904-			●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	9811-9902	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9811-9902			●
260	03.278 CAP; RUBBER CHARGE AIR COOLER<6PL> 01.780 ID=4	8-94217-809-0	01	1	9811-9902		●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	9903-0205	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9903-0205		●	●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	0206-	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0206-			●
260	03.278 CAP; RUBBER EXC. CHARGE AIR COOLER<6PL> 01.780 ID=4	8-94217-809-0	01	1	0206-		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9811-9903	●		●
283	03.265 RUBBER EXC. TURBOCHARGER(K51) OD=23	8-97105-689-6	10	1	9904-	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9904-			●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> OD=23	8-97105-689-6	09	1	9811-9901		●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> L=18	8-97219-650-0	09	1	9902-		●
306	03.265 BOLT; VLV TURBOCHARGER(K51) (B) M8X85 L=101	8-97118-454-0	01	1	9811-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9811-	●		●
306	03.265 BOLT; VLV 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105				●
306	03.265 BOLT; VLV 04.054 (D) M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9811-0105				●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9811-9903	●		●
336	03.415 VALVE; VENTILATION EXC. TURBOCHARGER(K51)	8-97119-887-0	01	1	9904-	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9904-			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-	●		●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-		●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9811-		●
507	03.415 ORIFICE	8-97088-649-0	01	1	9811-9903	●		●
507	03.415 ORIFICE EXC. TURBOCHARGER(K51)	8-97088-649-0	01	1	9904-	●
507	03.415 ORIFICE	8-97088-649-0	01	1	9904-			●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	9811-0101	●		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0102-	●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97204-780-0	01	1	0102-			●

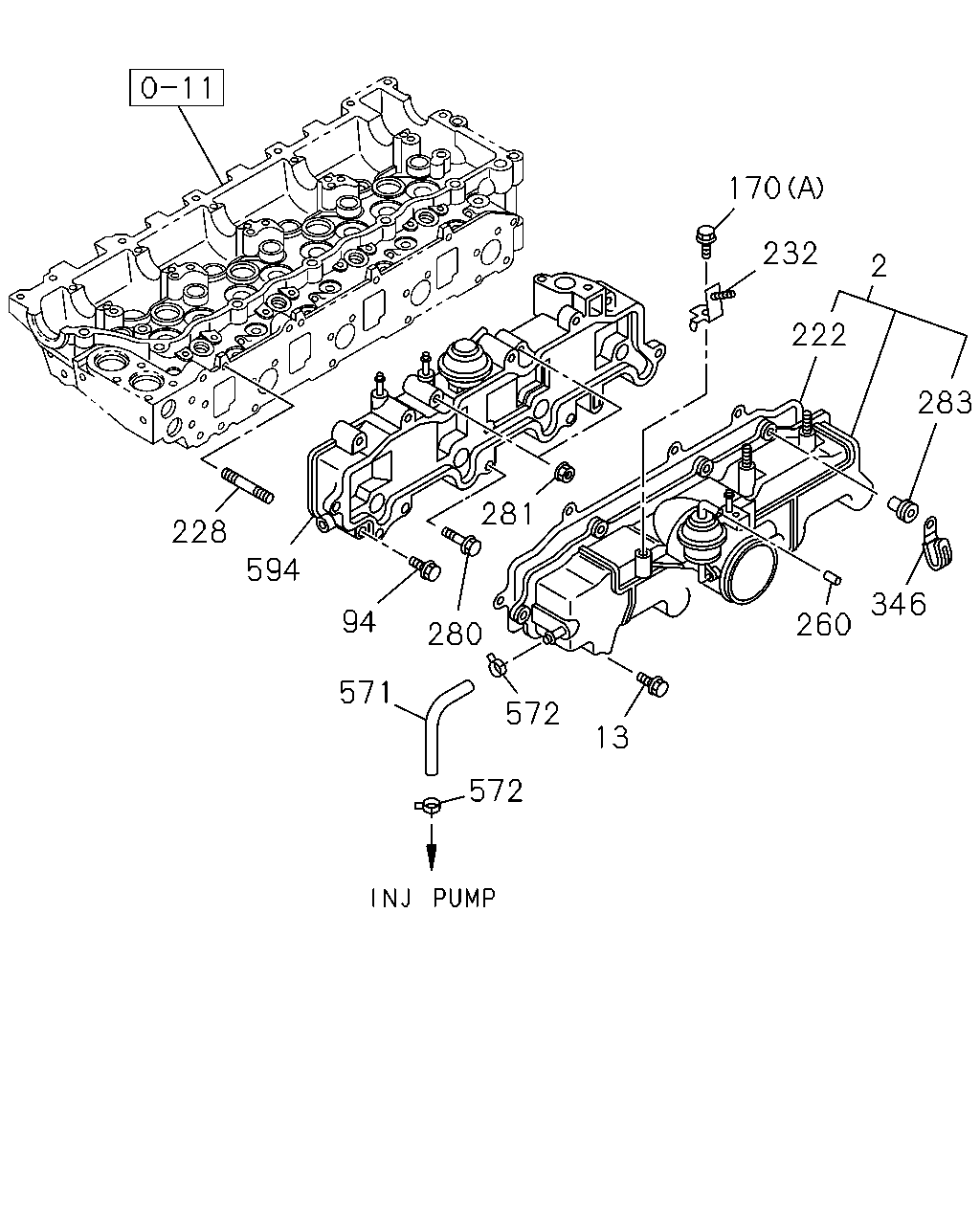

170 232 2 222 283 281 228 594 346 94 260 280 571 572 13 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL TURBOCHARGER(K51)	8-97212-454-1	01	1	9811-	●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	9811-0105	●
2	03.407 COVER; INL	8-97146-864-2	01	1	9811-0105			●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0106-0204	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	0106-0204			●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0205-	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	0205-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-238-0	01	1	0102-			●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97146-866-2	01	1	0205-	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9811-9901		●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-		●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (B) M8X52 L=68	8-97118-455-0	01	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-0105				●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-0105				●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9811-		●
94	02.559 BOLT TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9811-	●
94	02.559 BOLT EXC. TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-			●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9811-		●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9811-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9811-		●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	9811-	●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9811-9901		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9811-		●
228	03.407 STUD; INL COVER CHARGE AIR COOLER<6PL> M8X84 L=95	8-97181-739-0	02	1	9811-		●
232	03.407 BRACKET; INJ PIPE CHARGE AIR COOLER<6PL>	8-97190-249-0	01	1	9811-		●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	9811-9902	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9811-9902			●
260	03.278 CAP; RUBBER CHARGE AIR COOLER<6PL> 01.780 ID=4	8-94217-809-0	01	1	9811-9902		●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	9903-0205	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9903-0205		●	●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	0206-	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0206-			●
260	03.278 CAP; RUBBER EXC. CHARGE AIR COOLER<6PL> 01.780 ID=4	8-94217-809-0	01	1	0206-		●
280	03.403 BOLT; INL COVER CHARGE AIR COOLER<6PL> 09.171 M8X80 FLANGE	0-28080-880-0	01	1	9811-		●
281	03.407 NUT; INL COVER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9811-9903	●		●
283	03.265 RUBBER EXC. TURBOCHARGER(K51) OD=23	8-97105-689-6	10	1	9904-	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9904-			●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> OD=23	8-97105-689-6	09	1	9811-9901		●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> L=18	8-97219-650-0	09	1	9902-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-	●		●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-		●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9811-		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> L=350	8-97304-609-1	01	1	0201-		●
571	03.265 HOSE; AIR BOOST TURBOCHARGER(K51) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	9811-	●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9811-0112		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0201-		●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9811-		●
572	03.407 CLIP; BOOST HOSE TURBOCHARGER(K51) 03.145 ID=8	8-94107-762-0	02	1	9811-	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9811-		●
594	03.278 CASE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97187-617-0	01	1	9811-		●
594	03.278 CASE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97148-948-4	01	1	9811-9911		●
594	03.278 CASE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97230-991-0	01	1	9912-		●

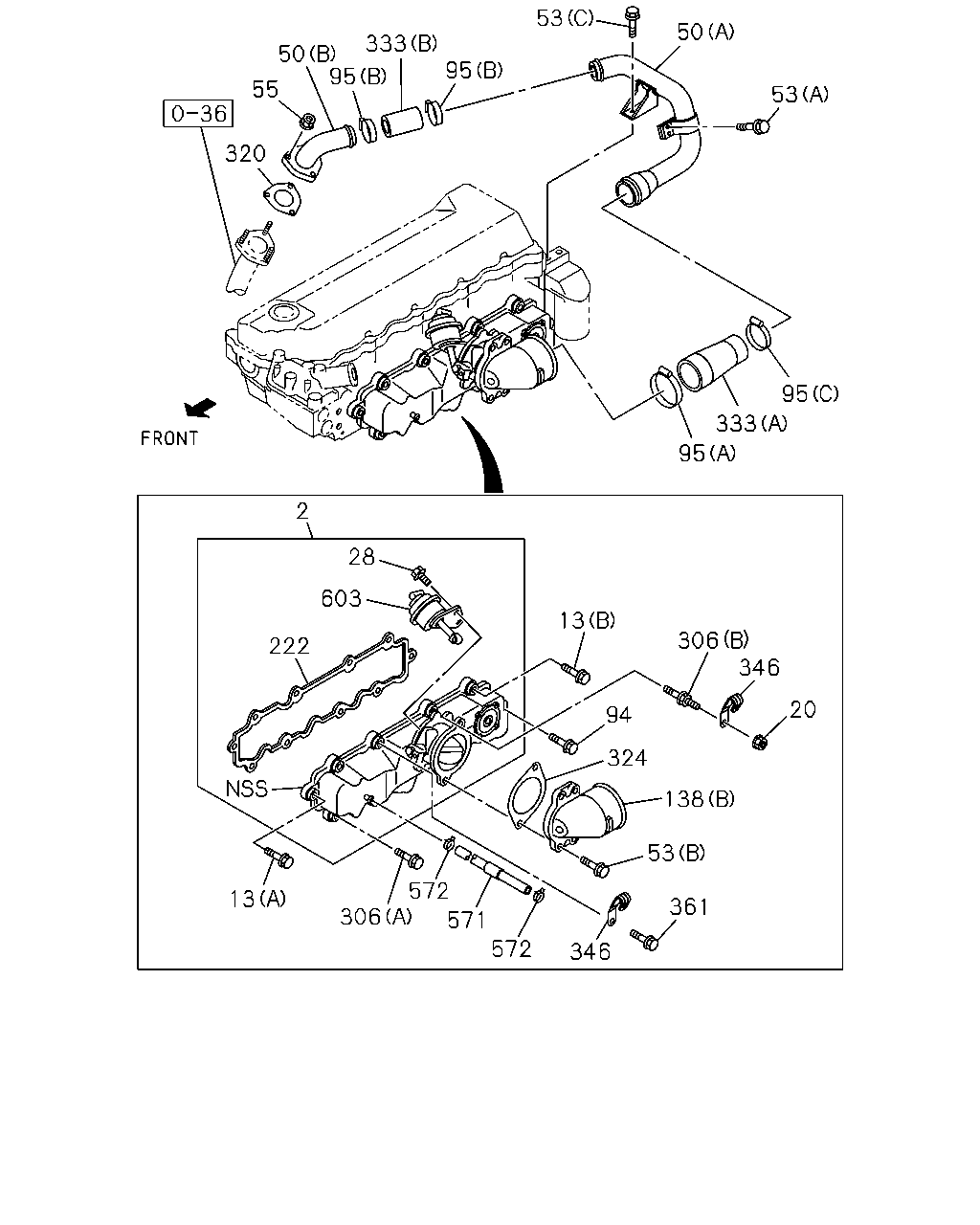

53 50 333 95 50 95 55 53 320 95 333 95 2 28 603 13 306 346 222 20 94 324 138 53 572 13 361 306 571 572 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL TURBOCHARGER(K51)	8-97212-454-1	01	1	9811-	●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	9811-0105	●
2	03.407 COVER; INL	8-97146-864-2	01	1	9811-0105			●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0106-0204	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	0106-0204			●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0205-	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	0205-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-238-0	01	1	0102-			●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97146-866-2	01	1	0205-	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9811-9901		●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-		●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (B) M8X52 L=68	8-97118-455-0	01	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-0105				●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-0105				●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9811-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-0105				●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-0101	●		●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0102-	●
28	03.278 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0102-			●
50	03.265 PIPE; INL TURBOCHARGER(K51) (A)	8-97178-735-4	01	1	9811-	●
50	03.265 PIPE; INL TURBOCHARGER(K51) (B)	8-97202-327-2	01	1	9811-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9811-9907	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	9908-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	9811-9902	●
53	03.602 BOLT; INL PIPE 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9811-	●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9811-0105				●
55	03.407 NUT; INL PIPE TURBOCHARGER(K51) 01.062 M6 FLANGE	0-91150-206-0	03	1	9811-	●
94	02.559 BOLT TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9811-	●
94	02.559 BOLT EXC. TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-			●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9811-		●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9811-		●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (A) ID=77-95	1-09707-114-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (B) ID=50-69	8-94316-991-0	02	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (C) ID=68-85	8-94320-428-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 ID=13	8-94238-571-0	02	1	9811-		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97187-359-2	01	1	9811-9812	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97222-878-0	01	1	9901-	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97187-358-2	01	1	9811-9812	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97178-748-2	01	1	9901-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) (B)	8-97180-566-0	01	1	9811-9902	●
138	03.265 PIPE; INL (B)	8-97180-566-1	01	1	9903-	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKEBOOSTER<7QQ> (A)	8-97214-593-0	01	1	9811-0112		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97214-593-0	01	1	0201-0201	●		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-593-0	01	1	0201-0201		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKEBOOSTER<7QQ> (A)	8-97214-593-0	01	1	0202-		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-594-0	01	1	9811-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	9811-	●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9811-9901		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9811-		●
306	03.265 BOLT; VLV TURBOCHARGER(K51) (B) M8X85 L=101	8-97118-454-0	01	1	9811-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9811-	●		●
306	03.265 BOLT; VLV 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105				●
306	03.265 BOLT; VLV 04.054 (D) M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9811-0105				●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER(K51)	8-97202-328-1	01	1	9811-	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER(K51)	8-97180-546-0	01	1	9811-9902	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-0	01	1	9903-	●
333	03.278 HOSE; RUBBER,INL PIPE TURBOCHARGER(K51) (A)	8-97201-103-1	01	1	9811-	●
333	03.278 HOSE; RUBBER,INL PIPE TURBOCHARGER(K51) (B)	8-97202-285-3	01	1	9811-	●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL>	8-97189-631-0	01	1	9811-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-	●		●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-		●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9811-		●
361	03.278 BOLT; CLIP TURBOCHARGER(K51) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-	●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> L=350	8-97304-609-1	01	1	0201-		●
571	03.265 HOSE; AIR BOOST TURBOCHARGER(K51) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	9811-	●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9811-0112		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0201-		●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9811-		●
572	03.407 CLIP; BOOST HOSE TURBOCHARGER(K51) 03.145 ID=8	8-94107-762-0	02	1	9811-	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9811-		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	9811-0101	●		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0102-	●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97204-780-0	01	1	0102-			●

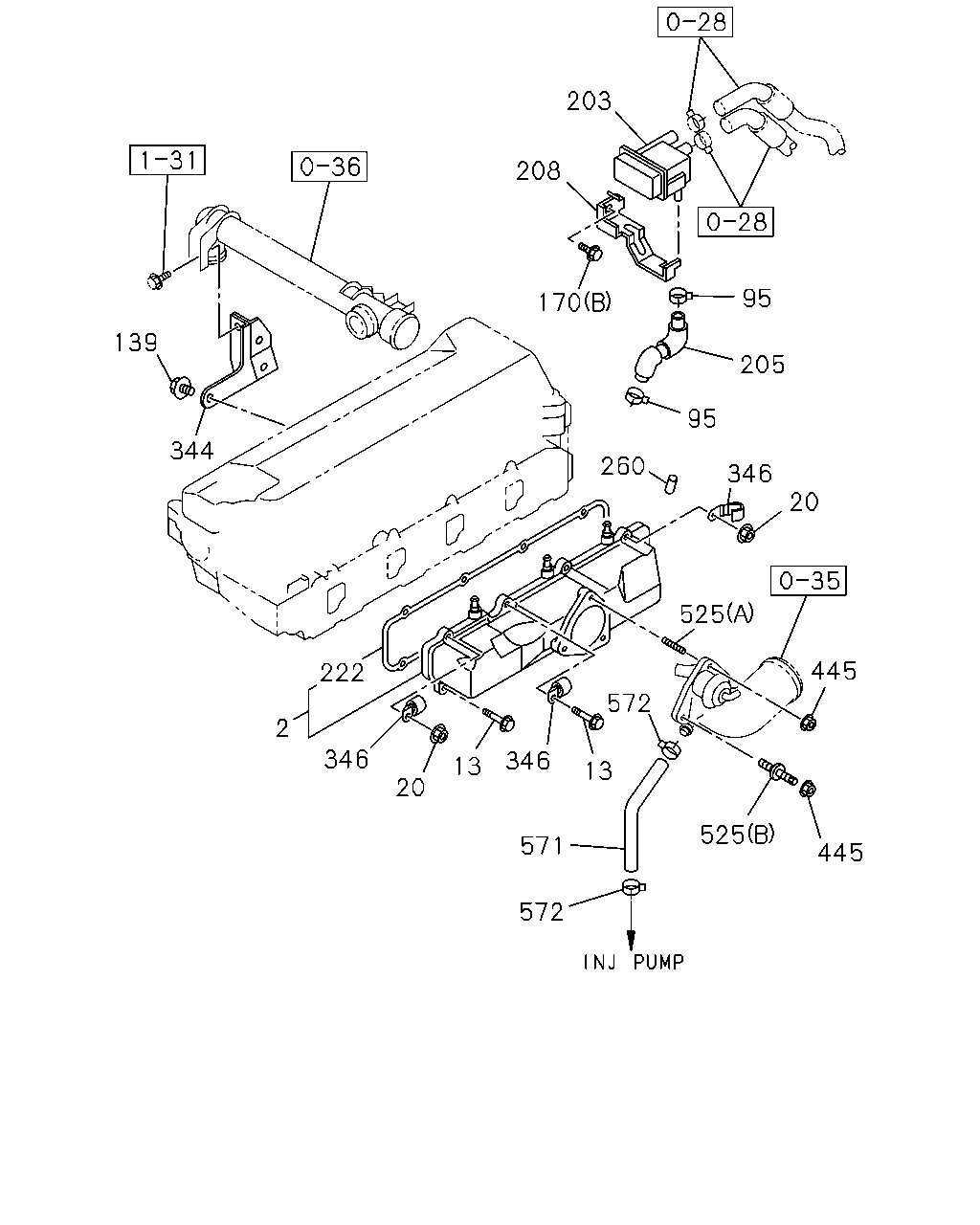

203 208 95 170 139 205 95 344 260 346 20 525 445 222 572 2 346 346 13 13 20 525 571 445 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL TURBOCHARGER(K51)	8-97212-454-1	01	1	9811-	●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	9811-0105	●
2	03.407 COVER; INL	8-97146-864-2	01	1	9811-0105			●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0106-0204	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	0106-0204			●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0205-	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	0205-			●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-238-0	01	1	0102-			●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97146-866-2	01	1	0205-	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9811-9901		●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-		●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (B) M8X52 L=68	8-97118-455-0	01	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-0105				●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-0105				●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9811-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-0105				●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (A) ID=77-95	1-09707-114-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (B) ID=50-69	8-94316-991-0	02	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (C) ID=68-85	8-94320-428-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 ID=13	8-94238-571-0	02	1	9811-		●
139	03.162 BOLT; BRKT FIX EXC. CHARGE AIR COOLER<6PL> 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9811-0001		●
139	03.162 BOLT; BRKT FIX EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0002-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9811-		●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-		●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9811-		●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9811-		●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9811-		●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9811-		●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9811-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	9811-	●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9811-9901		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9811-		●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	9811-9902	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9811-9902			●
260	03.278 CAP; RUBBER CHARGE AIR COOLER<6PL> 01.780 ID=4	8-94217-809-0	01	1	9811-9902		●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	9903-0205	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9903-0205		●	●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	0206-	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0206-			●
260	03.278 CAP; RUBBER EXC. CHARGE AIR COOLER<6PL> 01.780 ID=4	8-94217-809-0	01	1	0206-		●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97065-482-3	01	1	9811-0008		●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97252-310-0	01	1	0009-0102		●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97289-654-0	01	1	0103-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-	●		●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-		●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9811-		●
445	03.275 NUT; THROTTLE BODY TO MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	9811-		●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 03.270 (B)	8-97033-689-0	01	1	9811-		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> L=350	8-97304-609-1	01	1	0201-		●
571	03.265 HOSE; AIR BOOST TURBOCHARGER(K51) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	9811-	●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9811-0112		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0201-		●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9811-		●
572	03.407 CLIP; BOOST HOSE TURBOCHARGER(K51) 03.145 ID=8	8-94107-762-0	02	1	9811-	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9811-		●

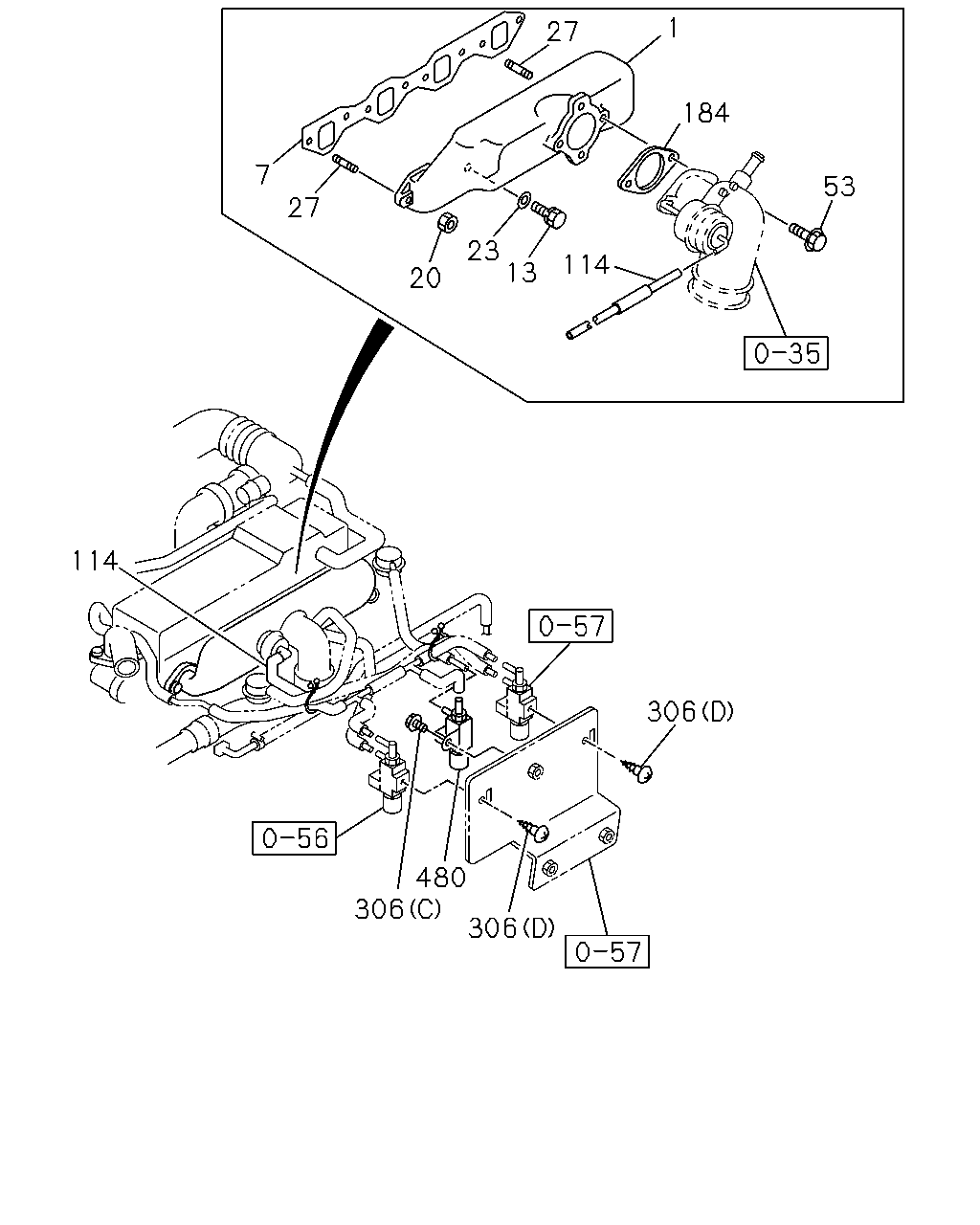

1 27 184 7 53 27 23 13 114 20 114 306 480 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	9811-0105				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9811-9904				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9905-0101				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0102-0105				●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (B) M8X52 L=68	8-97118-455-0	01	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9811-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-0105				●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-0105				●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9811-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-0105				●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-0105				●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9811-9811				●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9812-0105				●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	9812-0105				●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9811-9907	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	9908-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	9811-9902	●
53	03.602 BOLT; INL PIPE 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9811-	●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9811-0105				●
114	03.265 HOSE; VAC,INT THROTTLE L=400	8-97194-945-0	01	1	9811-9904				●
114	03.265 HOSE; VAC,INT THROTTLE L=403	8-97228-401-0	01	1	9905-0105				●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.406	8-97035-883-0	01	1	9811-0105				●
306	03.265 BOLT; VLV TURBOCHARGER(K51) (B) M8X85 L=101	8-97118-454-0	01	1	9811-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9811-	●		●
306	03.265 BOLT; VLV 08.900 (C) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105				●
306	03.265 BOLT; VLV 04.054 (D) M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9811-0105				●
480	03.314 VALVE ASM; VAC SW 03.670	8-94144-597-1	01	1	9811-0105				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
