◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#1675) — 64 parça

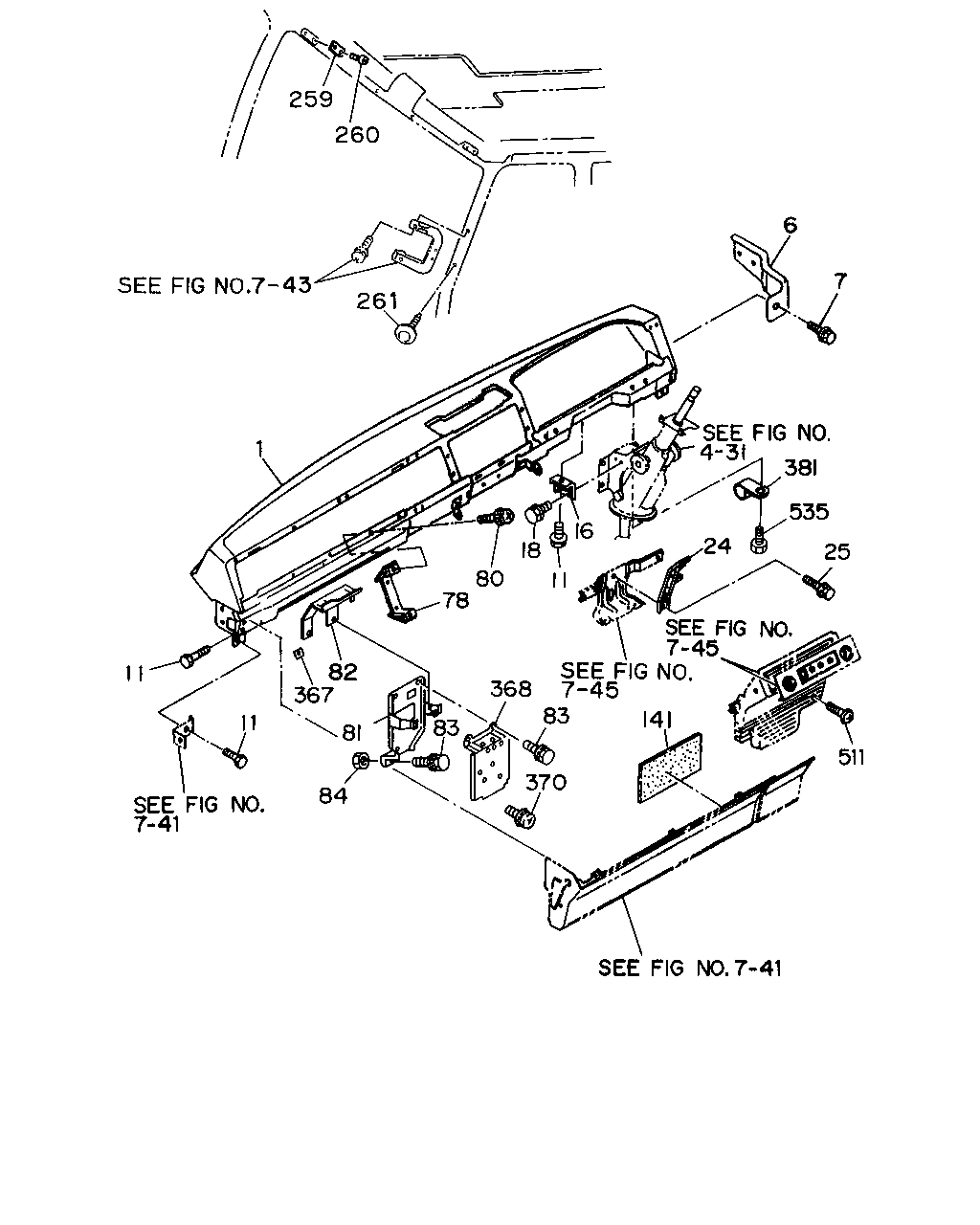

çizim 93667
259 260 261 6 7 381 535 25 24 511 16 18 11 80 78 1 11 11 367 82 81 84 83 368 370 83 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; INST 1-65680-831-0 01 1 9207- ● ● ● ● ●
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9207- ● ● ● ● ●
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9207- ● ● ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X16 W/LK&PL WASHER 		1-09980-440-0 04 1 9207- ● ● ● ● ●
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 08 1 9207- ● ● ● ● ●
16 BRACKET; INST PNL 1-65680-836-0 01 1 9207- ● ● ● ● ●
18 BOLT; BRKT
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9207- ● ● ● ● ●
24 STAY; INST CLUSTER 1-65680-448-2 01 1 9207- ● ● ● ● ●
25 BOLT; STAY,INST CLUSTER
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9207- ● ● ● ● ●
78 SUPPORT; VENT DUCT,PASSENGER SIDE 1-65680-372-3 01 1 9207- ● ● ● ● ●
80 SCREW; SUPPORT,VENT DUCT
M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9207- ● ● ● ● ●
81 BRACKET; ELEC CONT UNIT 1-73998-404-6 01 1 9207- ● ● ● ● ●
82 BRACKET; CONT UNIT,ELEC 1-73998-409-7 01 1 9207- ● ● ● ● ●
83 BOLT; BRKT,CONT UNIT
M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9207- ● ● ● ● ●
83 BOLT; BRKT,CONT UNIT
M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9207-9304 ● ● ● ● ●
83 BOLT; BRKT,CONT UNIT
M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9305- ● ● ● ● ●
83 BOLT; BRKT,CONT UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9207- ● ● ● ● ●
83 BOLT; BRKT,CONT UNIT
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9207- ● ● ● ● ●
84 NUT; CONT UNIT BRKT
M6 FLANGE 		5-09440-004-0 01 1 9207- ● ● ● ● ●
141 PROTECTOR; EDGE 1-72378-028-0 01 1 9207- ● ● ● ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20>,DELUXE CAB<W14> 		1-61480-566-0 01 1 9207-9312 ● ● ● ● ●
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20>,DELUXE CAB<W14> M6X12 W/LK WASHER 		9-03910-612-0 02 1 9207-9312 ● ● ● ● ●
261 PLUG; ASSIST GRIP HOLE
EXC. INTERIOR FULL TRIM<WM3> WHITE 		1-76378-213-0 04 1 9207- ● ● ● ● ●
367 SEAL; CONT UNIT BRKT
25X25 		8-94272-533-0 01 1 9207- ● ● ● ● ●
368 BRACKET; SUB,ELEC CONT UNIT 1-73998-408-6 01 1 9207- ● ● ● ● ●
370 SCREW; BRKT,ELEC CONT UNIT
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9207- ● ● ● ● ●
381 CLIP; HARNESS
ID=31 L=50 		1-09700-870-1 01 1 9209- ● ● ● ● ●
511 SCREW; CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-431-0 02 1 9207- ● ● ● ● ●
535 BOLT; CLIP
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9209-9211 ● ● ● ● ●

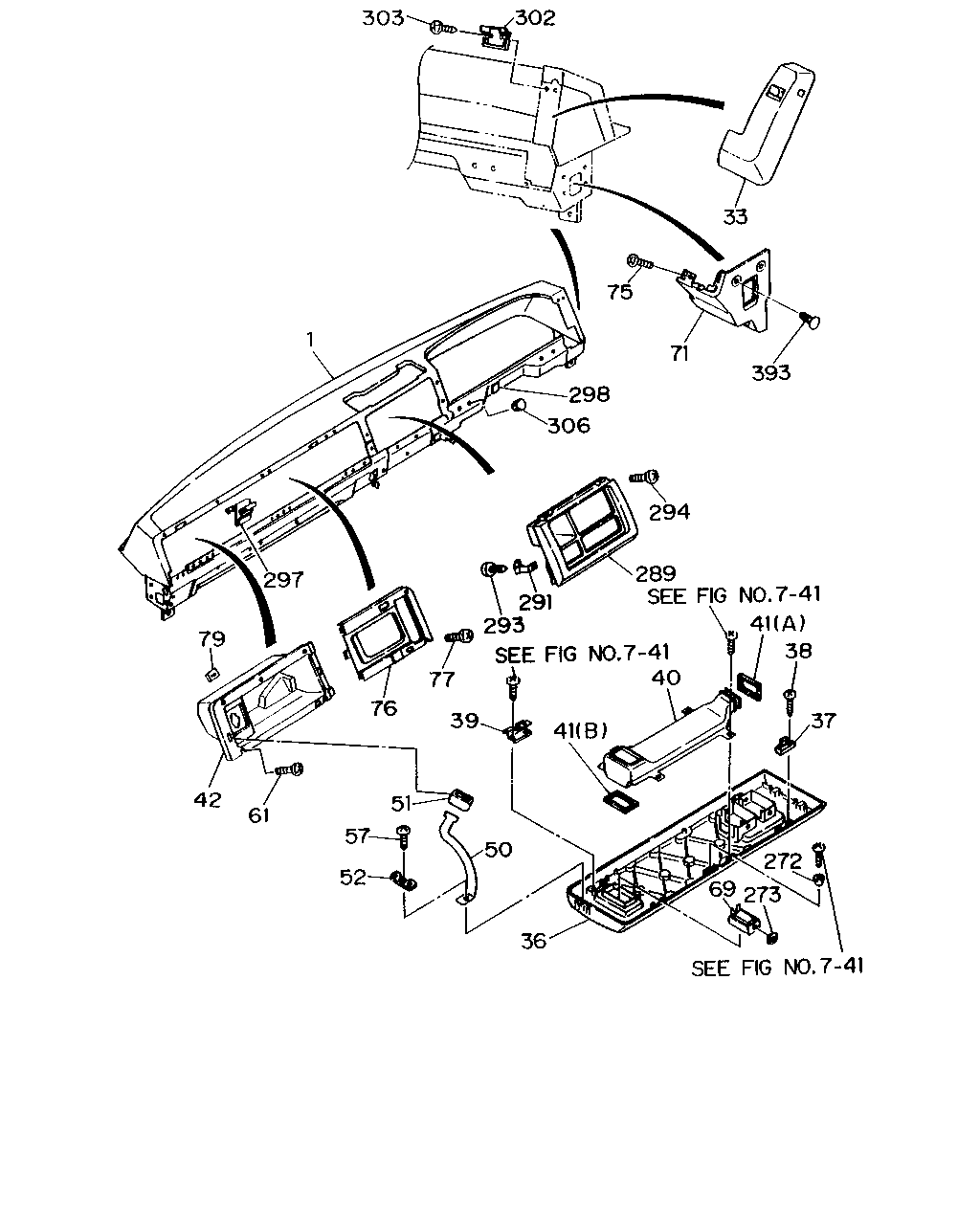

çizim 96415
303 302 33 75 71 393 298 306 1 79 297 42 61 76 77 293 291 294 289 41 38 37 272 273 69 40 41 39 51 57 52 50 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; INST 1-65680-831-0 01 1 9207- ● ● ● ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-067-0 01 1 9207- ● ● ● ● ●
36 BEZEL; INST SIDE CLUSTER
DARK GRAY 		1-72548-108-0 01 1 9207- ● ● ● ● ●
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9207- ● ● ● ● ●
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9207- ● ● ● ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72558-013-2 01 1 9207- ● ● ● ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72558-012-2 01 1 9207- ● ● ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76378-215-1 01 1 9207- ● ● ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9207- ● ● ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9207- ● ● ● ● ●
42 BOX; GLOVE,INST PNL 1-72538-025-6 01 1 9207- ● ● ● ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 1-72548-047-4 02 1 9207- ● ● ● ● ●
51 CUSHION; STOPPER,GLOVE BOX 1-72548-069-0 02 1 9207- ● ● ● ● ●
52 PLATE; STOPPER,GLOVE BOX 1-72548-073-0 02 1 9207- ● ● ● ● ●
57 SCREW; GLOVE BOX STOPPER 1-09981-388-1 06 1 9207- ● ● ● ● ●
61 SCREW; GLOVE BOX
M6X16 W/PL WASHER 		1-09981-176-0 05 1 9207- ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9207- ● ● ● ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-038-0 01 1 9207- ● ● ● ● ●
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9207- ● ● ● ● ●
76 COVER; VENT DUCT,PASSENGER SIDE 1-73928-317-6 01 1 9207- ● ● ● ● ●
77 SCREW; VENT DUCT COVER
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9207- ● ● ● ● ●
79 SEAL; SIDE DEFROSTER
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-76377-092-0 01 1 9207- ● ● ● ● ●
272 CUSHION; SIDE CLUSTER BEZEL 1-72548-046-0 01 1 9207- ● ● ● ● ●
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9207- ● ● ● ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-036-0 01 1 9207- ● ● ● ● ●
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9207- ● ● ● ● ●
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9207- ● ● ● ● ●
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9207- ● ● ● ● ●
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72558-014-1 02 1 9207- ● ● ● ● ●
298 PIECE; DIST,CLUSTER BEZEL 1-72548-077-0 01 1 9207- ● ● ● ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9207- ● ● ● ● ●
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9207- ● ● ● ● ●
306 BUTTON; CLIP,INST CLUSTER,DRIVER SIDE
AUTO ENG SHUTOFF(KB6) 		1-72448-261-0 02 1 9207- ● ● ● ● ●
306 BUTTON; CLIP,INST CLUSTER,DRIVER SIDE
EXC. AUTO ENG SHUTOFF(KB6) 		1-72448-261-0 01 1 9207- ● ● ● ● ●
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9207- ● ● ● ● ●
