Sayfa 0-22 - Isuzu EPC

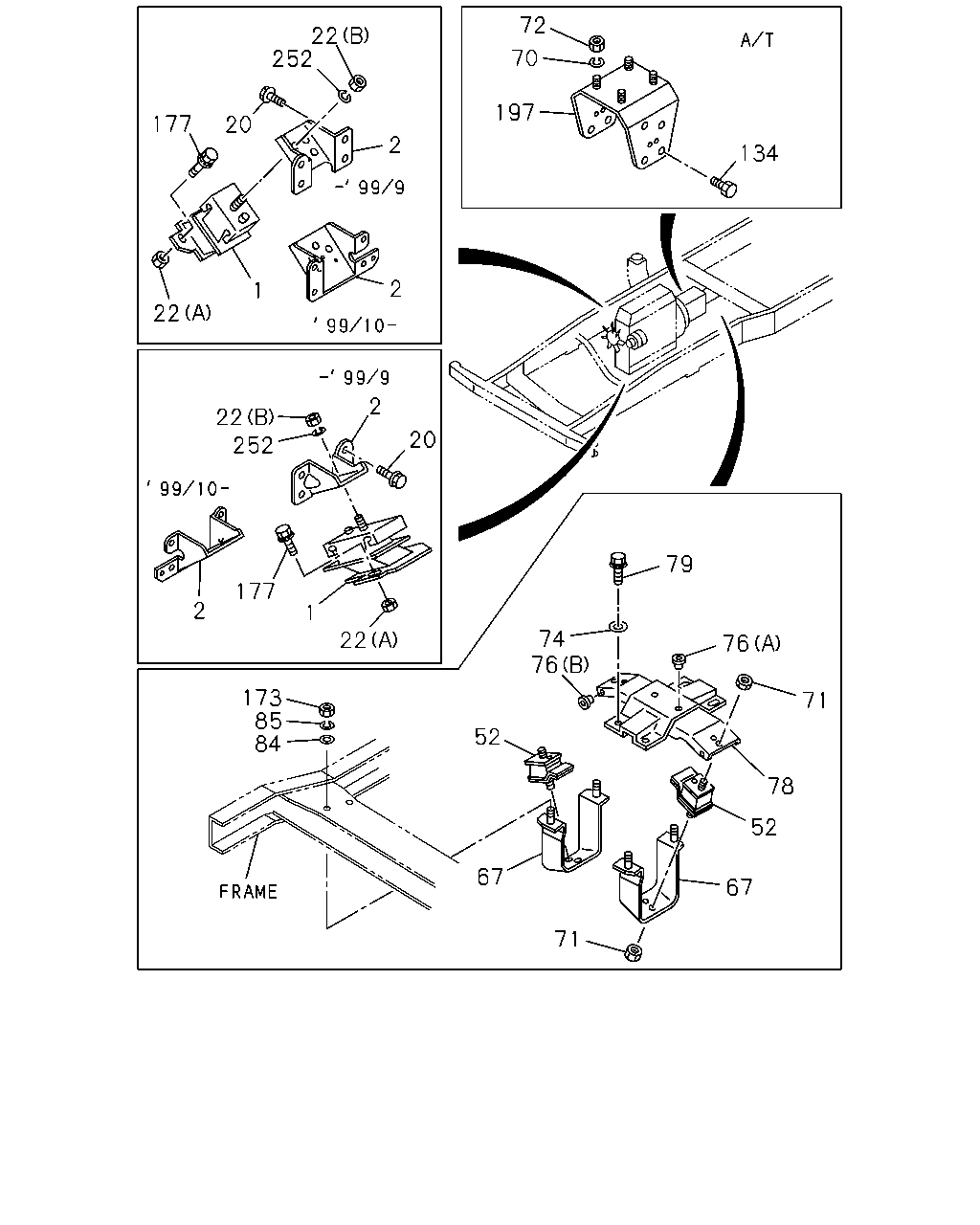

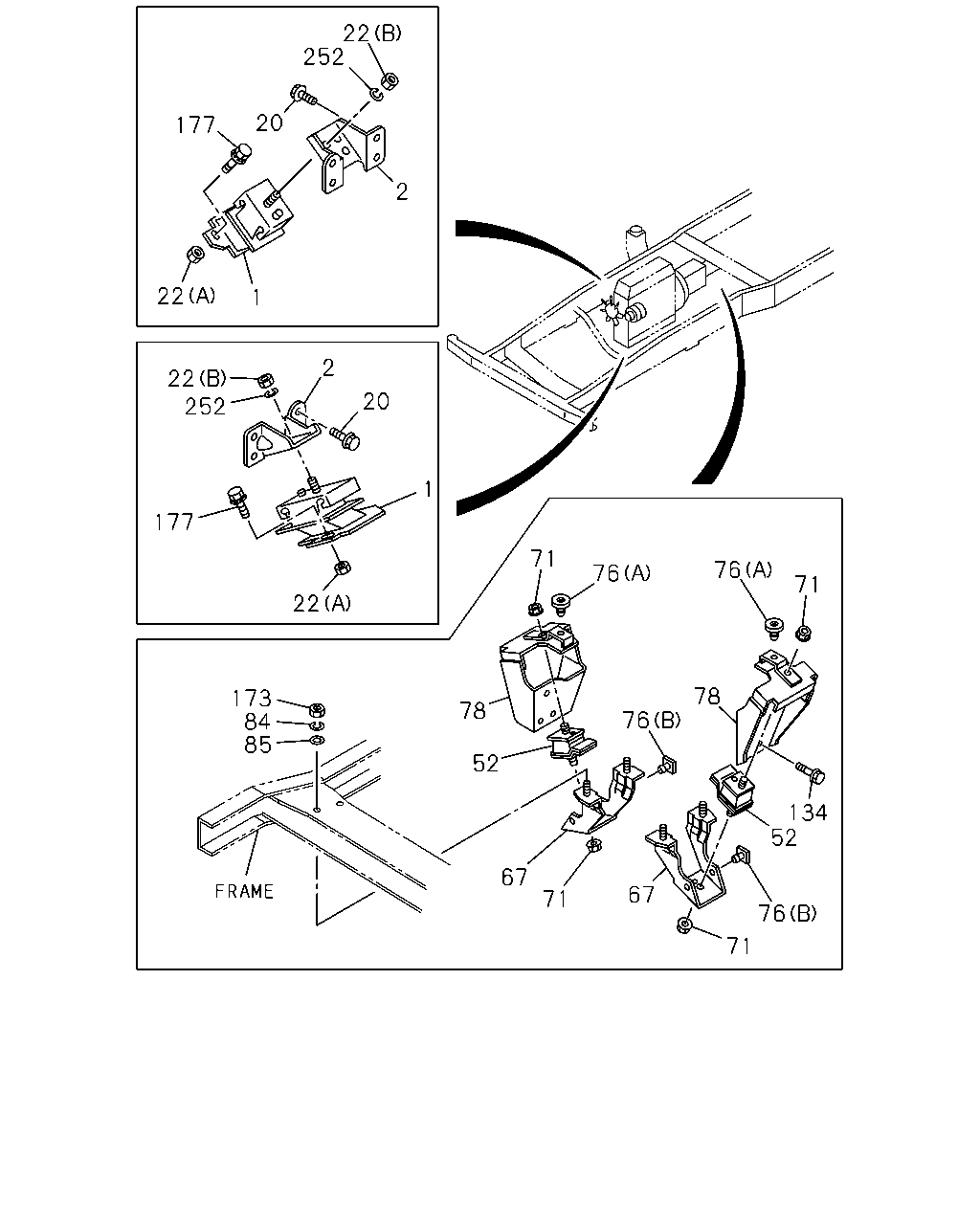

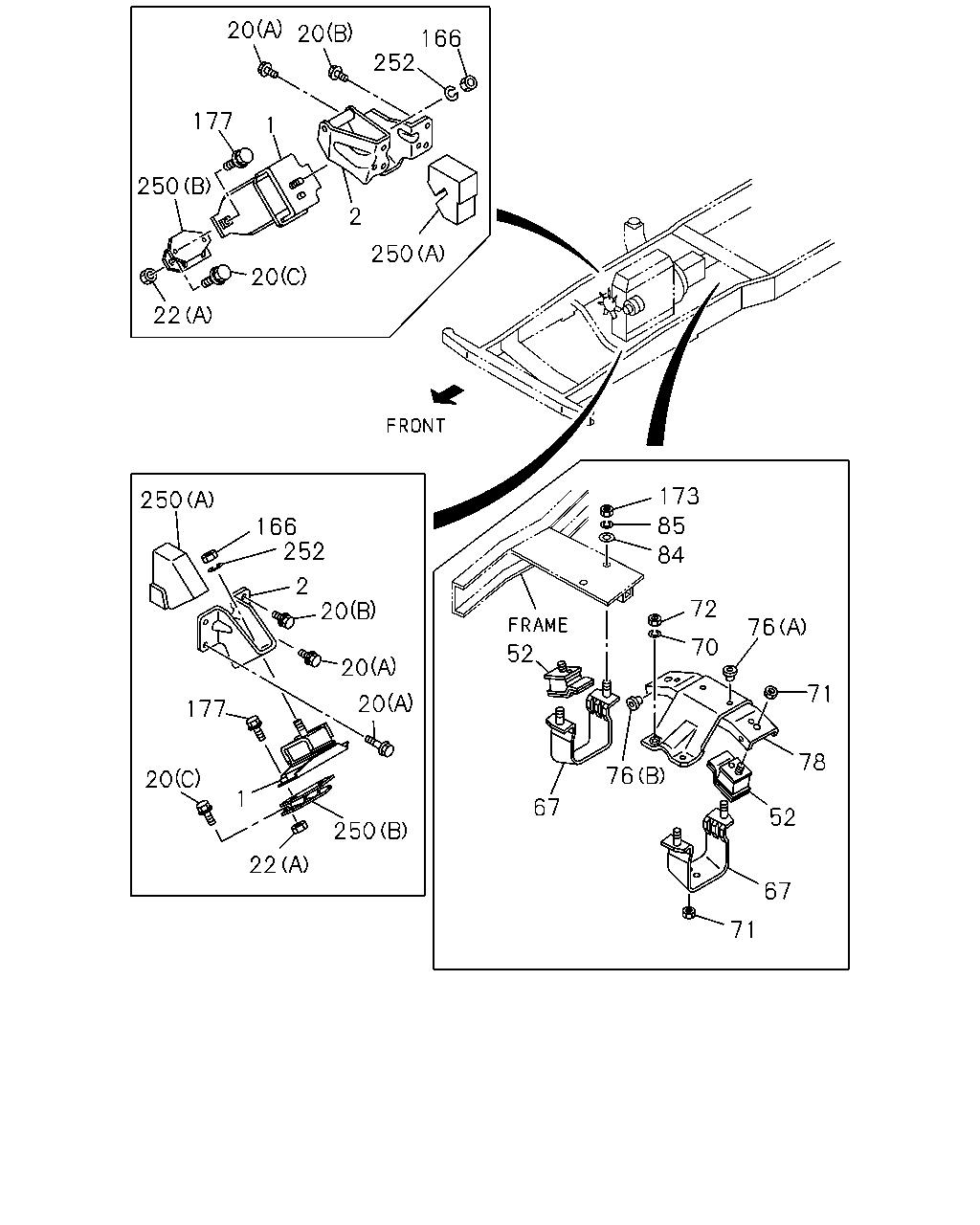

0-22 — ENGINE MOUNTING (#16749) — 323 parça

20 20 166 252 177 1 250 2 250 20 22 173 250 85 166 252 84 2 72 20 76 70 52 20 71 20 177 76 78 20 1 67 52 250 22 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	9811-0202	●	●
1	00.027 RUBBER; ENG FOOT,FRT M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97201-671-0	01	1	9811-0202			●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	0203-	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97201-671-0	01	1	0203-			●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ>	8-97201-669-0	01	1	9811-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-498-1	01	1	9811-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-497-1	01	1	9811-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	9811-0105				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	9811-0105				●
1	00.027 RUBBER; ENG FOOT,FRT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97187-417-0	01	1	9811-			●
1	00.027 RUBBER; ENG FOOT,FRT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97187-416-0	01	1	9811-			●
1	00.027 RUBBER; ENG FOOT,FRT M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97187-418-0	01	1	9811-0202			●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97187-418-0	01	1	0203-			●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9811-9907	●	●	●
2	00.029 FOOT; ENG	8-97228-330-0	02	1	9908-9910	●	●	●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	9911-	●	●	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9811-0105				●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9811-0105				●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9811-	●	●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9811-0105				●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9811-0105				●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	01	1	9811-0105				●
20	00.029 BOLT; ENG FOOT 00.002 (C) M10X37.5	8-94468-733-1	04	1	9902-0105				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-			●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	9811-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	9811-0105				●
22	00.002 NUT; CUSHION RUBBER TO BRKT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	9811-0105			●
22	00.002 NUT; CUSHION RUBBER TO BRKT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0106-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9811-0105	●	●		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ)	8-94111-903-0	02	1	9811-0105			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0106-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ)	8-94111-903-0	02	1	0106-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97039-277-0	02	1	9811-0207			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-277-0	01	1	0208-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-277-0	01	1	0208-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FLOOR REMOTE SHIFT<M11>	8-94384-214-0	01	1	9811-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FLOOR REMOTE SHIFT<M11>	8-94384-213-0	01	1	9811-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FLOOR REMOTE SHIFT<M11>	8-97021-232-1	02	1	9811-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9811-0105				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9811-0105				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-94111-908-2	02	1	9811-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-94111-908-2	02	1	9811-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97039-282-2	02	1	9811-0207			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-282-2	01	1	0208-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-282-2	01	1	0208-			●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA EXC. FLOOR REMOTE SHIFT<M11> ID=10.2	9-09150-610-0	04	1	9811-9812	●	●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ID=10.2	9-09150-610-0	04	1	9811-9812			●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA EXC. FLOOR REMOTE SHIFT<M11> ID=10.2	9-09150-610-0	04	1	9901-0105	●	●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA ID=10.2	9-09150-610-0	04	1	9901-0105				●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ID=10.2	9-09150-610-0	04	1	9901-0105			●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA EXC. FLOOR REMOTE SHIFT<M11> ID=10.2	9-09150-610-0	04	1	0106-	●	●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ID=10.2	9-09150-610-0	04	1	0106-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0201-0202	●	●		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0201-0202			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0203-	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0203-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-0112	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0207			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0207			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0208-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0208-			●
72	00.002 NUT; SUPPORT RUBBER TO TRANS EXC. FLOOR REMOTE SHIFT<M11> 09.011 M10	9-09110-410-0	04	1	9811-9812	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 09.011 M10	9-09110-410-0	04	1	9811-9812			●
72	00.002 NUT; SUPPORT RUBBER TO TRANS EXC. FLOOR REMOTE SHIFT<M11> 09.011 M10	9-09110-410-0	04	1	9901-0105	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9901-0105				●
72	00.002 NUT; SUPPORT RUBBER TO TRANS A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 09.011 M10	9-09110-410-0	04	1	9901-0105			●
72	00.002 NUT; SUPPORT RUBBER TO TRANS EXC. FLOOR REMOTE SHIFT<M11> 09.011 M10	9-09110-410-0	04	1	0106-	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 09.011 M10	9-09110-410-0	04	1	0106-			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A),(B)	8-94111-904-0	04	1	9811-0105	●	●		●
76	00.002 STOPPER; ENG MTG RUBBER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 00.027 (A),(B)	8-94111-904-0	04	1	9811-0105			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A),(B)	8-94111-904-0	04	1	0106-0203	●	●
76	00.002 STOPPER; ENG MTG RUBBER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 00.027 (A),(B)	8-94111-904-0	04	1	0106-0203			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A),(B)	8-94111-904-0	02	1	0204-	●	●
76	00.002 STOPPER; ENG MTG RUBBER M/T MXA5R(RMT),M/T MXA5S(RNA),A/T 4 SPEED-AISIN(RNJ) 00.027 (A),(B)	8-94111-904-0	02	1	0204-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) 00.027 (A)	8-94111-904-0	02	1	9811-0207			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 00.027 (A)	8-94111-904-0	01	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 00.027 (A)	8-94111-904-0	01	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B)	8-97039-947-1	02	1	9811-0112			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B)	8-97039-947-1	01	1	0201-0207			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B)	8-97039-947-1	01	1	0201-0207			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) (B)	8-97039-947-1	01	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) (B)	8-97039-947-1	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL>	8-97307-777-0	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL>	8-97234-719-0	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR	8-94112-891-2	01	1	9811-	●	●
78	00.029 BRACKET; ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-94112-891-2	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR EXC. FLOOR REMOTE SHIFT<M11>	8-94458-319-1	01	1	9811-	●	●
78	00.029 BRACKET; ENG MTG,RR A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-94458-319-1	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9811-0105				●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL>	8-97172-398-1	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL>	8-97172-399-1	01	1	9811-0207			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL>	8-97172-399-1	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL>	8-97211-474-0	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL>	8-97211-475-0	01	1	9811-0207			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL>	8-97211-475-0	01	1	0208-			●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9811-	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	9811-	●	●	●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9811-0105				●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9811-	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9811-9904	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9905-	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X32.5	8-97090-761-0	04	1	9905-0105				●
250	00.002 SPACER; ENG FOOT (B)	8-94172-052-4	01	1	9811-0105				●
250	00.002 SPACER; ENG FOOT (A)	8-97205-803-0	01	1	9811-0105				●
250	00.002 SPACER; ENG FOOT (B)	8-94172-053-4	01	1	9811-0105				●
250	00.002 SPACER; ENG FOOT (A)	8-97205-805-0	01	1	9811-0105				●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9811-0105	●	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0106-	●	●	●

72 22 252 70 197 177 20 2 134 2 1 22 2 22 252 20 79 177 2 1 74 76 22 76 173 85 84 71 52 78 52 67 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	9811-0202	●	●
1	00.027 RUBBER; ENG FOOT,FRT M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97201-671-0	01	1	9811-0202			●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	0203-	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97201-671-0	01	1	0203-			●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ>	8-97201-669-0	01	1	9811-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-498-1	01	1	9811-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-497-1	01	1	9811-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	9811-0105				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	9811-0105				●
1	00.027 RUBBER; ENG FOOT,FRT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97187-417-0	01	1	9811-			●
1	00.027 RUBBER; ENG FOOT,FRT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97187-416-0	01	1	9811-			●
1	00.027 RUBBER; ENG FOOT,FRT M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97187-418-0	01	1	9811-0202			●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97187-418-0	01	1	0203-			●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9811-9907	●	●	●
2	00.029 FOOT; ENG	8-97228-330-0	02	1	9908-9910	●	●	●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	9911-	●	●	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9811-0105				●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9811-0105				●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9811-	●	●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9811-0105				●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9811-0105				●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	01	1	9811-0105				●
20	00.029 BOLT; ENG FOOT 00.002 (C) M10X37.5	8-94468-733-1	04	1	9902-0105				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-			●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	9811-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	9811-0105				●
22	00.002 NUT; CUSHION RUBBER TO BRKT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	9811-0105			●
22	00.002 NUT; CUSHION RUBBER TO BRKT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0106-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9811-0105	●	●		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ)	8-94111-903-0	02	1	9811-0105			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0106-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ)	8-94111-903-0	02	1	0106-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97039-277-0	02	1	9811-0207			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-277-0	01	1	0208-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-277-0	01	1	0208-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FLOOR REMOTE SHIFT<M11>	8-94384-214-0	01	1	9811-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FLOOR REMOTE SHIFT<M11>	8-94384-213-0	01	1	9811-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FLOOR REMOTE SHIFT<M11>	8-97021-232-1	02	1	9811-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9811-0105				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9811-0105				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-94111-908-2	02	1	9811-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-94111-908-2	02	1	9811-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97039-282-2	02	1	9811-0207			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-282-2	01	1	0208-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-282-2	01	1	0208-			●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA EXC. FLOOR REMOTE SHIFT<M11> ID=10.2	9-09150-610-0	04	1	9811-9812	●	●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ID=10.2	9-09150-610-0	04	1	9811-9812			●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA EXC. FLOOR REMOTE SHIFT<M11> ID=10.2	9-09150-610-0	04	1	9901-0105	●	●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA ID=10.2	9-09150-610-0	04	1	9901-0105				●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ID=10.2	9-09150-610-0	04	1	9901-0105			●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA EXC. FLOOR REMOTE SHIFT<M11> ID=10.2	9-09150-610-0	04	1	0106-	●	●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ID=10.2	9-09150-610-0	04	1	0106-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0201-0202	●	●		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0201-0202			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0203-	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0203-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-0112	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0207			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0207			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0208-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0208-			●
72	00.002 NUT; SUPPORT RUBBER TO TRANS EXC. FLOOR REMOTE SHIFT<M11> 09.011 M10	9-09110-410-0	04	1	9811-9812	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 09.011 M10	9-09110-410-0	04	1	9811-9812			●
72	00.002 NUT; SUPPORT RUBBER TO TRANS EXC. FLOOR REMOTE SHIFT<M11> 09.011 M10	9-09110-410-0	04	1	9901-0105	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9901-0105				●
72	00.002 NUT; SUPPORT RUBBER TO TRANS A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 09.011 M10	9-09110-410-0	04	1	9901-0105			●
72	00.002 NUT; SUPPORT RUBBER TO TRANS EXC. FLOOR REMOTE SHIFT<M11> 09.011 M10	9-09110-410-0	04	1	0106-	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 09.011 M10	9-09110-410-0	04	1	0106-			●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9811-9812	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9811-9812			●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9901-0105	●	●		●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9901-0105			●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	0106-	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	0106-			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A),(B)	8-94111-904-0	04	1	9811-0105	●	●		●
76	00.002 STOPPER; ENG MTG RUBBER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 00.027 (A),(B)	8-94111-904-0	04	1	9811-0105			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A),(B)	8-94111-904-0	04	1	0106-0203	●	●
76	00.002 STOPPER; ENG MTG RUBBER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 00.027 (A),(B)	8-94111-904-0	04	1	0106-0203			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A),(B)	8-94111-904-0	02	1	0204-	●	●
76	00.002 STOPPER; ENG MTG RUBBER M/T MXA5R(RMT),M/T MXA5S(RNA),A/T 4 SPEED-AISIN(RNJ) 00.027 (A),(B)	8-94111-904-0	02	1	0204-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) 00.027 (A)	8-94111-904-0	02	1	9811-0207			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 00.027 (A)	8-94111-904-0	01	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 00.027 (A)	8-94111-904-0	01	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B)	8-97039-947-1	02	1	9811-0112			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B)	8-97039-947-1	01	1	0201-0207			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B)	8-97039-947-1	01	1	0201-0207			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) (B)	8-97039-947-1	01	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) (B)	8-97039-947-1	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL>	8-97307-777-0	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL>	8-97234-719-0	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR	8-94112-891-2	01	1	9811-	●	●
78	00.029 BRACKET; ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-94112-891-2	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR EXC. FLOOR REMOTE SHIFT<M11>	8-94458-319-1	01	1	9811-	●	●
78	00.029 BRACKET; ENG MTG,RR A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-94458-319-1	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9811-0105				●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL>	8-97172-398-1	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL>	8-97172-399-1	01	1	9811-0207			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL>	8-97172-399-1	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL>	8-97211-474-0	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL>	8-97211-475-0	01	1	9811-0207			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL>	8-97211-475-0	01	1	0208-			●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS FLOOR REMOTE SHIFT<M11> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9811-	●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9811-			●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9811-	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	9811-	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT M/T MZZ6U(RSF) 03.890 M12X25	0-28781-225-0	06	1	0208-			●
134	00.029 BOLT; SUPPORT BRKT EXC. FLOOR REMOTE SHIFT<M11> 00.002 M12X30	0-28781-230-0	08	1	9811-	●	●
134	00.029 BOLT; SUPPORT BRKT A/T 4 SPEED-AISIN(RNJ) M12X25	8-97210-827-0	08	1	9811-			●
134	00.029 BOLT; SUPPORT BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 00.002 M12X30	0-28781-230-0	07	1	9811-0112			●
134	00.029 BOLT; SUPPORT BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 03.890 M12X25	0-28781-225-0	07	1	0201-			●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9811-	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9811-9904	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9905-	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X32.5	8-97090-761-0	04	1	9905-0105				●
197	00.029 BRACKET; ENG MTG BRKT TO TRANS EXC. FLOOR REMOTE SHIFT<M11>	8-94382-868-3	01	1	9811-	●	●
197	00.029 BRACKET; ENG MTG BRKT TO TRANS A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-97120-177-1	01	1	9811-			●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9811-0105	●	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0106-	●	●	●

22 252 20 177 2 22 1 2 22 252 20 1 177 71 76 76 71 22 78 173 84 85 78 76 2 134 52 67 67 71 76 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	9811-0202	●	●
1	00.027 RUBBER; ENG FOOT,FRT M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97201-671-0	01	1	9811-0202			●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	0203-	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97201-671-0	01	1	0203-			●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ>	8-97201-669-0	01	1	9811-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-498-1	01	1	9811-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97120-497-1	01	1	9811-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	9811-0105				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	9811-0105				●
1	00.027 RUBBER; ENG FOOT,FRT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97187-417-0	01	1	9811-			●
1	00.027 RUBBER; ENG FOOT,FRT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97187-416-0	01	1	9811-			●
1	00.027 RUBBER; ENG FOOT,FRT M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97187-418-0	01	1	9811-0202			●
1	00.027 RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97187-418-0	01	1	0203-			●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9811-9907	●	●	●
2	00.029 FOOT; ENG	8-97228-330-0	02	1	9908-9910	●	●	●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	9911-	●	●	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9811-0105				●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9811-0105				●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9811-	●	●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9811-0105				●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9811-0105				●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	01	1	9811-0105				●
20	00.029 BOLT; ENG FOOT 00.002 (C) M10X37.5	8-94468-733-1	04	1	9902-0105				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-			●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	9811-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	9811-0105				●
22	00.002 NUT; CUSHION RUBBER TO BRKT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	9811-0105			●
22	00.002 NUT; CUSHION RUBBER TO BRKT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0106-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9811-0105	●	●		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ)	8-94111-903-0	02	1	9811-0105			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0106-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ)	8-94111-903-0	02	1	0106-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97039-277-0	02	1	9811-0207			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-277-0	01	1	0208-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-277-0	01	1	0208-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FLOOR REMOTE SHIFT<M11>	8-94384-214-0	01	1	9811-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FLOOR REMOTE SHIFT<M11>	8-94384-213-0	01	1	9811-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FLOOR REMOTE SHIFT<M11>	8-97021-232-1	02	1	9811-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9811-0105				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9811-0105				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-94111-908-2	02	1	9811-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-94111-908-2	02	1	9811-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97039-282-2	02	1	9811-0207			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-282-2	01	1	0208-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF)	8-97039-282-2	01	1	0208-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0201-0202	●	●		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0201-0202			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0203-	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0203-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-0112	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0207			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0207			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0208-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A),(B)	8-94111-904-0	04	1	9811-0105	●	●		●
76	00.002 STOPPER; ENG MTG RUBBER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 00.027 (A),(B)	8-94111-904-0	04	1	9811-0105			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A),(B)	8-94111-904-0	04	1	0106-0203	●	●
76	00.002 STOPPER; ENG MTG RUBBER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),A/T 4 SPEED-AISIN(RNJ) 00.027 (A),(B)	8-94111-904-0	04	1	0106-0203			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A),(B)	8-94111-904-0	02	1	0204-	●	●
76	00.002 STOPPER; ENG MTG RUBBER M/T MXA5R(RMT),M/T MXA5S(RNA),A/T 4 SPEED-AISIN(RNJ) 00.027 (A),(B)	8-94111-904-0	02	1	0204-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) 00.027 (A)	8-94111-904-0	02	1	9811-0207			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 00.027 (A)	8-94111-904-0	01	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) 00.027 (A)	8-94111-904-0	01	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B)	8-97039-947-1	02	1	9811-0112			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B)	8-97039-947-1	01	1	0201-0207			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM) (B)	8-97039-947-1	01	1	0201-0207			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) (B)	8-97039-947-1	01	1	0208-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) (B)	8-97039-947-1	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL>	8-97307-777-0	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL>	8-97234-719-0	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR	8-94112-891-2	01	1	9811-	●	●
78	00.029 BRACKET; ENG MTG,RR M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB)	8-94112-891-2	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR EXC. FLOOR REMOTE SHIFT<M11>	8-94458-319-1	01	1	9811-	●	●
78	00.029 BRACKET; ENG MTG,RR A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-94458-319-1	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9811-0105				●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL>	8-97172-398-1	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL>	8-97172-399-1	01	1	9811-0207			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL>	8-97172-399-1	01	1	0208-			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL>	8-97211-474-0	01	1	9811-			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. CHARGE AIR COOLER<6PL>	8-97211-475-0	01	1	9811-0207			●
78	00.029 BRACKET; ENG MTG,RR M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL>	8-97211-475-0	01	1	0208-			●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9811-	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	9811-	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT M/T MZZ6U(RSF) 03.890 M12X25	0-28781-225-0	06	1	0208-			●
134	00.029 BOLT; SUPPORT BRKT EXC. FLOOR REMOTE SHIFT<M11> 00.002 M12X30	0-28781-230-0	08	1	9811-	●	●
134	00.029 BOLT; SUPPORT BRKT A/T 4 SPEED-AISIN(RNJ) M12X25	8-97210-827-0	08	1	9811-			●
134	00.029 BOLT; SUPPORT BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 00.002 M12X30	0-28781-230-0	07	1	9811-0112			●
134	00.029 BOLT; SUPPORT BRKT M/T MBP6P(RNC),M/T MBP6Q(RNM) 03.890 M12X25	0-28781-225-0	07	1	0201-			●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9811-	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9811-9904	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9905-	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X32.5	8-97090-761-0	04	1	9905-0105				●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9811-0105	●	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0106-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
