◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#16748) — 150 parça

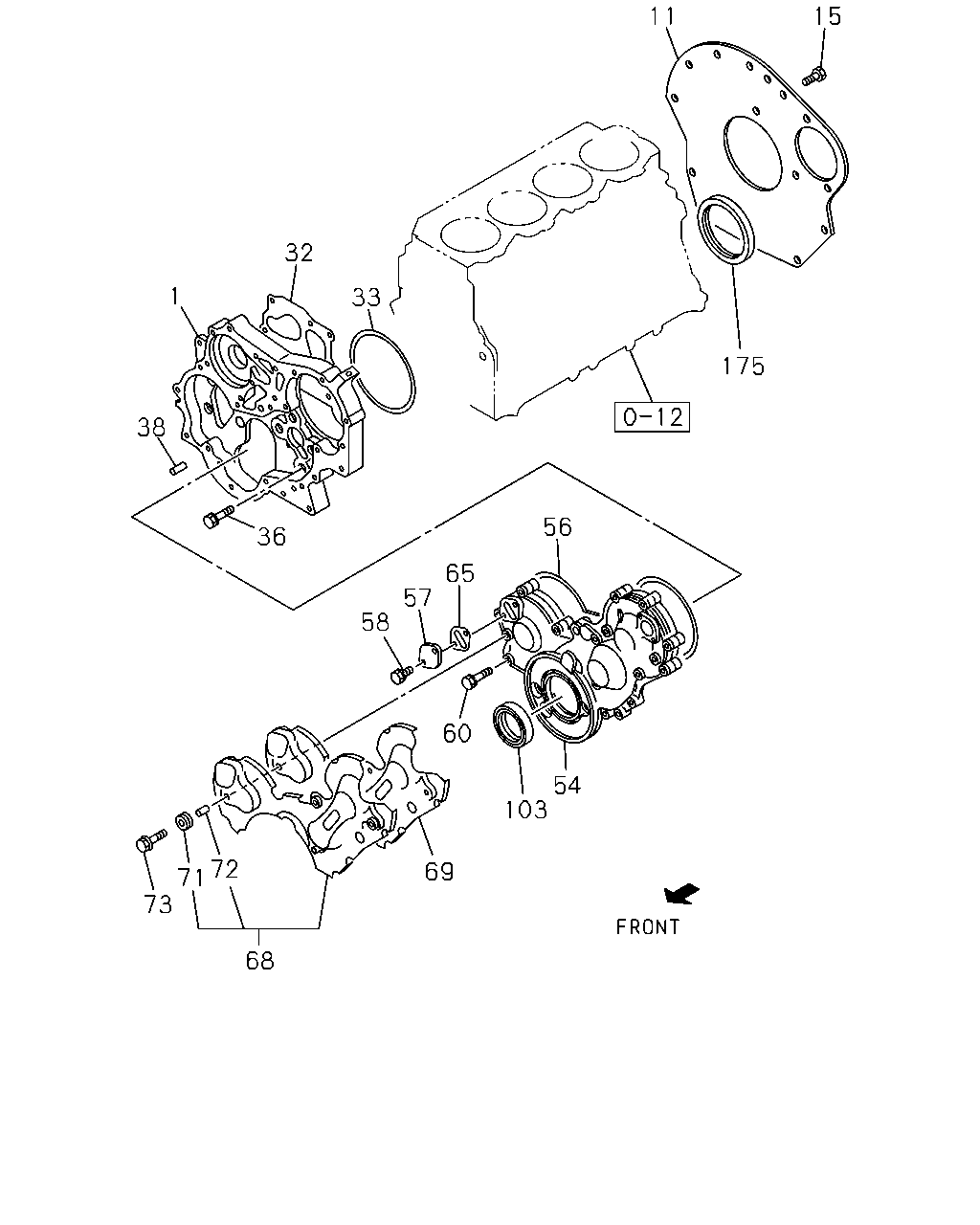

çizim 47544
15 11 32 1 33 175 38 56 36 65 57 58 60 54 103 72 71 73 69 68
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.206 CASE; TIMING GEAR 8-97219-001-3 01 1 9811-0105 ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 9811-0105 ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 9811-0105 ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-0 01 1 9811-0105 ●
33 00.207 GASKET; BRKT TO CASE 8-94109-707-0 01 1 9811-0105 ●
36 00.206 BOLT; GEAR CASE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 06 1 9811-0105 ●
36 00.206 BOLT; GEAR CASE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9811-0105 ●
38 00.685 PIN; GEAR CASE COVER
00.669 OD=10 L=20 		9-08151-020-0 02 1 9811-0105 ●
54 00.206 COVER; GEAR CASE 8-97940-716-0 01 1 9811-9812 ●
54 00.206 COVER; GEAR CASE 8-97219-278-0 01 1 9901-9912 ●
54 00.206 COVER; GEAR CASE 8-97231-214-1 01 1 0001-0105 ●
56 00.207 GASKET; GEAR CASE TO COVER 8-94140-117-1 01 1 9811-9910 ●
56 00.207 GASKET; GEAR CASE TO COVER 8-97238-631-0 01 1 9911-0105 ●
57 00.206 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 9811-0105 ●
58 00.206 BOLT; CHECK HOLE COVER
M6X14 W/LK WASHER 		0-50040-614-0 04 1 9811-0105 ●
60 00.206 BOLT; COVER TO CASE
00.727 M8X32 W/LK WASHER 		0-50040-832-0 08 1 9811-9906 ●
60 00.206 BOLT; COVER TO CASE
03.275 M8X30 FLANGE 		0-28080-830-0 08 1 9907-0105 ●
60 00.206 BOLT; COVER TO CASE
01.252 M8X60 W/LK WASHER 		0-50040-860-0 01 1 9811-9906 ●
60 00.206 BOLT; COVER TO CASE
01.252 M8X58 FLANGE 		8-94130-055-1 01 1 9907-0105 ●
60 00.206 BOLT; COVER TO CASE
M8X65 W/LK WASHER 		8-94205-986-1 06 1 9811-9903 ●
60 00.206 BOLT; COVER TO CASE
01.251 M8X60 FLANGE 		0-28080-860-0 06 1 9904-0105 ●
60 00.206 BOLT; COVER TO CASE
M12X55 W/HEX-SOCKET 		9-95821-255-0 01 1 9811-0105 ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE 8-97118-698-0 02 1 9811-0105 ●
68 00.206 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 9811-0105 ●
69 00.206 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 9811-0105 ●
71 00.206 RUBBER; MTG,COVER 5-19389-002-0 04 1 9811-0105 ●
72 00.206 BUSHING; SPACER,COVER TO COVER 5-19389-009-0 04 1 9811-0105 ●
73 00.206 BOLT; COVER FIX
08.900 M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9811-0105 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94369-518-0 01 1 9811-0205 ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97329-780-0 01 1 0206- ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97049-145-0 01 1 9811-0105 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9811-0205 ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0206- ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97071-561-1 01 1 9811-0105 ●

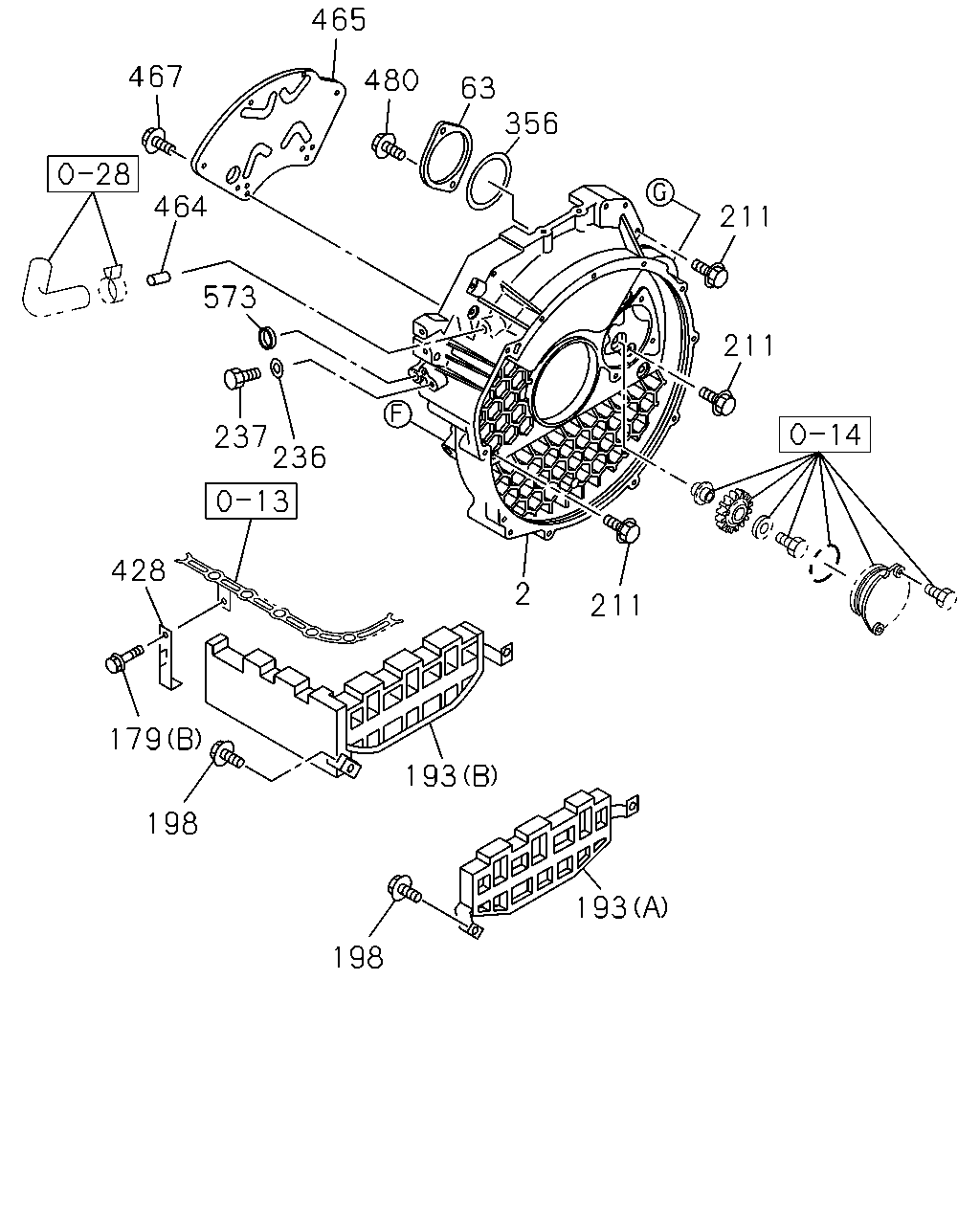

çizim 47680
465 467 480 63 356 464 211 573 211 237 236 428 2 211 179 193 198 193 198
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.683 HOUSING; FLYWHEEL 8-97112-139-5 01 1 9811-9902 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97223-971-0 01 1 9903-9904 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97223-737-2 01 1 9905-0006 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97241-584-0 01 1 0007- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97181-089-2 01 1 9811-9904 ●
2 00.683 HOUSING; FLYWHEEL 8-97209-886-3 01 1 9905- ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 9811- ● ●
179 00.206 BOLT; BRKT
EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0202- ●
179 00.206 BOLT; BRKT
ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 9811- ●
179 00.206 BOLT; BRKT
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 9811-9811 ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 9812- ●
193 01.428 SPACER; STAY TO OIL,PAN
EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97224-867-2 01 1 0202- ●
193 01.428 SPACER; STAY TO OIL,PAN
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97147-247-0 01 1 9811-0005 ●
193 01.428 SPACER; STAY TO OIL,PAN
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97259-536-0 01 1 0006-0201 ●
193 01.428 SPACER; STAY TO OIL,PAN
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97259-536-0 01 1 0202- ●
198 01.428 BOLT; STAY TO OIL PAN
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 9811- ●
211 00.669 BOLT; HSG
TURBOCHARGER(K51) STUD BOLT M8X20,M8X65 L=90 		8-97200-622-1 02 1 9811- ●
211 00.669 BOLT; HSG
EXC. TURBOCHARGER(K51) M8X65 W/PL WASHER 		8-94388-781-0 02 1 9811- ●
211 00.669 BOLT; HSG
M8X65 W/PL WASHER 		8-94388-781-0 02 1 9811- ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 9811- ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> M14X35 FLANGE 		0-28791-435-0 01 1 9811- ● ●
211 00.669 BOLT; HSG
M10X40 FLANGE 		0-28781-040-0 01 1 9811- ● ● ●
211 00.669 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 9811- ● ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 9811- ●
236 00.669 GASKET; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 01 1 0004- ●
237 00.686 PLUG; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 01.519 M10X10 		1-09604-074-0 01 1 0004-0004 ●
237 00.686 PLUG; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0005- ●
356 00.207 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 9811- ● ●
428 00.206 BRACKET; SPACER
EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97215-647-0 01 1 0202- ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 9811- ● ● ●
465 00.686 PLATE; FLYWHEEL HSG
00.669 		8-94370-384-3 01 1 9811-9904 ● ● ●
465 00.686 PLATE; FLYWHEEL HSG
00.669 		8-94370-384-3 01 1 9905- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97212-490-0 01 1 9905- ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 9811-9811 ● ● ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 0106- ● ● ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 9812-0105 ● ● ●
480 00.206 BOLT; COVER
00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0106-0108 ● ●
480 00.206 BOLT; COVER
EXC. CHARGE AIR COOLER<6PL> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0106-0108 ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0109- ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 9811-9910 ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 01 1 9911-0006 ● ●
480 00.206 BOLT; COVER
00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0007- ● ●
480 00.206 BOLT; COVER
EXC. CHARGE AIR COOLER<6PL> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0007- ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 02.042 M10X32 FLANGE 		0-28181-032-0 01 1 9911-0006 ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 9905- ● ● ●
573 00.206 CUP; SEALING
CHARGE AIR COOLER<6PL> 00.034 OD=19 		8-94150-231-0 02 1 9909-0105 ●

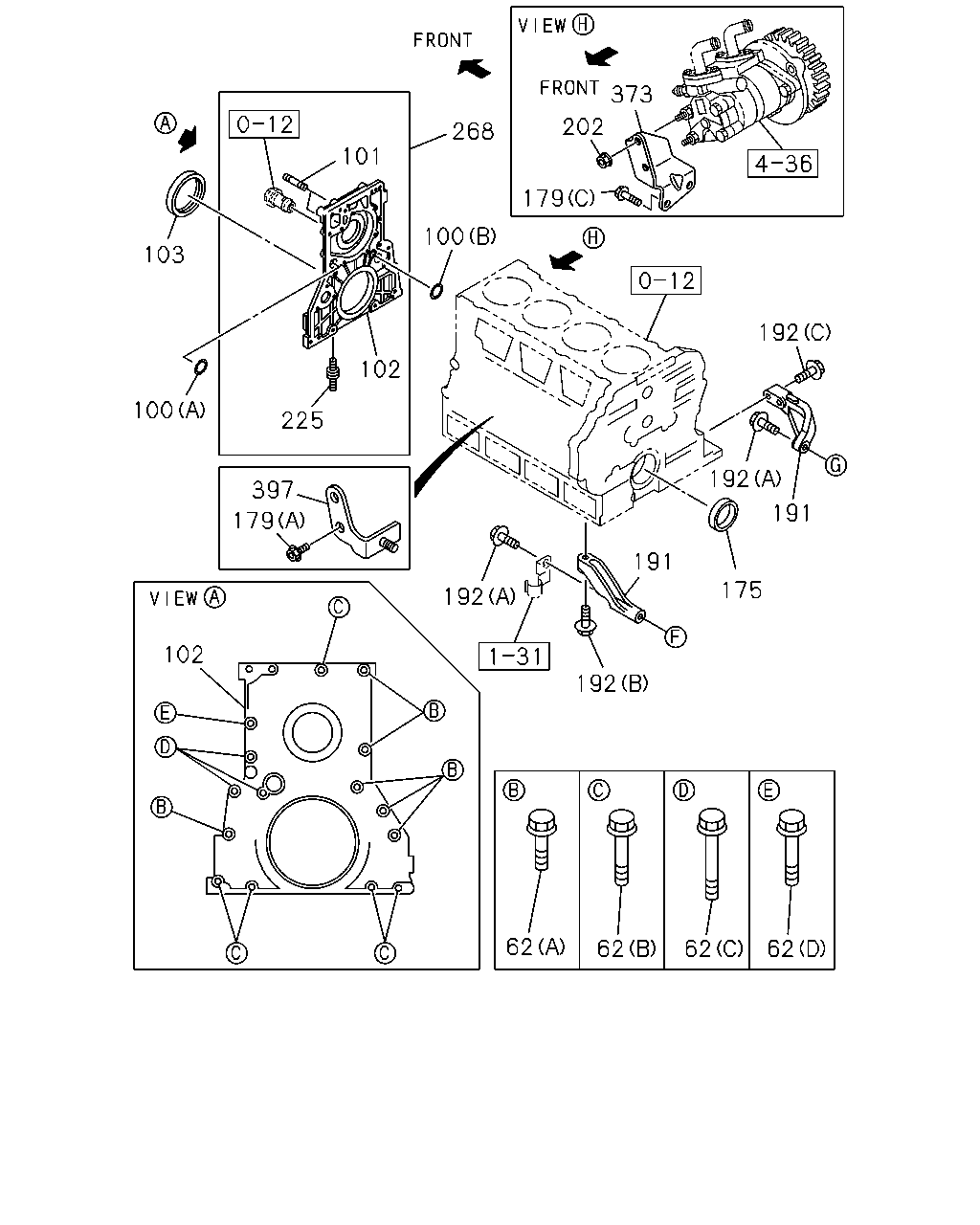

çizim 47909
373 202 268 101 179 100 103 192 102 100 225 192 397 191 179 191 175 192 102 192 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 9811- ● ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 9811- ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 9811- ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 9811- ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 9811- ● ● ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 01 1 9811- ● ● ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		9-04110-818-0 01 1 9811- ● ● ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-97212-677-0 01 1 9811-9902 ● ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97212-677-0 01 1 9903- ● ●
102 00.137 RETAINER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97094-943-2 01 1 9811-9902 ● ●
102 00.137 RETAINER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97094-943-2 01 1 9811-9902 ●
102 00.137 RETAINER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97094-943-3 01 1 9903-0205 ● ●
102 00.137 RETAINER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97094-943-3 01 1 9903-0205 ●
102 00.137 RETAINER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97094-943-3 01 1 0206- ● ●
102 00.137 RETAINER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97094-943-3 01 1 0206- ●
102 00.137 RETAINER; FRT
CHARGE AIR COOLER<6PL> 		8-97148-938-1 01 1 9811- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94369-518-0 01 1 9811-0205 ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97329-780-0 01 1 0206- ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97049-145-0 01 1 9811-0105 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9811-0205 ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0206- ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97071-561-1 01 1 9811-0105 ●
179 00.206 BOLT; BRKT
EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0202- ●
179 00.206 BOLT; BRKT
ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 9811- ●
179 00.206 BOLT; BRKT
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 9811-9811 ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 9812- ●
191 00.669 STAY; FLYWHEEL HSG
TURBOCHARGER(K51) 		8-97167-292-0 01 1 9811- ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 9811- ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 9811- ●
192 00.206 BOLT; STAY TO HSG
TURBOCHARGER(K51) 00.685 (A) M12X50 FLANGE 		0-28181-250-0 01 1 9811- ●
192 00.206 BOLT; STAY TO HSG
TURBOCHARGER(K51) (B) M12X100 FLANGE 		0-28181-200-0 01 1 9811- ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 9811- ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 9811- ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 9811- ●
202 00.206 NUT; BRKT
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0209 ●
202 00.206 NUT; BRKT
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0210- ●
202 00.206 NUT; BRKT
M/T MZZ6U(RSF) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0210- ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9812- ●
225 01.428 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9811-9811 ● ●
225 01.428 STUD; OIL PAN
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9811-9811 ●
225 01.428 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9812-9903 ● ●
225 01.428 STUD; OIL PAN
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9812-9903 ●
225 01.428 STUD; OIL PAN
CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9812-9903 ●
225 01.428 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9904-0002 ● ●
225 01.428 STUD; OIL PAN
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9904-0002 ●
225 01.428 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 0003-0004 ● ● ●
225 01.428 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 0005-0005 ● ●
225 01.428 STUD; OIL PAN
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 0005-0005 ●
225 01.428 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 03 1 0006-0012 ● ●
225 01.428 STUD; OIL PAN
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 03 1 0006-0012 ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0101- ● ●
225 01.428 STUD; OIL PAN
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0101- ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-97212-676-0 01 1 9811-9902 ● ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97212-676-0 01 1 9903-0005 ● ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97259-418-0 01 1 0006-0012 ● ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97305-076-0 01 1 0101- ● ●
268 00.206 COVER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97074-859-2 01 1 9811-9902 ● ●
268 00.206 COVER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97074-859-3 01 1 9903-0005 ● ●
268 00.206 COVER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97259-417-0 01 1 0006-0012 ● ●
268 00.206 COVER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97259-416-0 01 1 0101- ● ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97174-416-1 01 1 9811-0005 ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-865-0 01 1 0006-0006 ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97287-187-0 01 1 0007-0012 ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-865-0 01 1 0101-0204 ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-865-0 01 1 0205- ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 		8-97258-865-0 01 1 0205- ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97148-937-1 01 1 9811- ●
268 00.206 COVER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97113-768-1 01 1 9811- ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 9811- ●
397 00.206 BRACKET; CONNECTOR
ENGINE POWER N-SPEC(7QV) 		8-97163-042-0 01 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
