0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#16747) — 383 parça

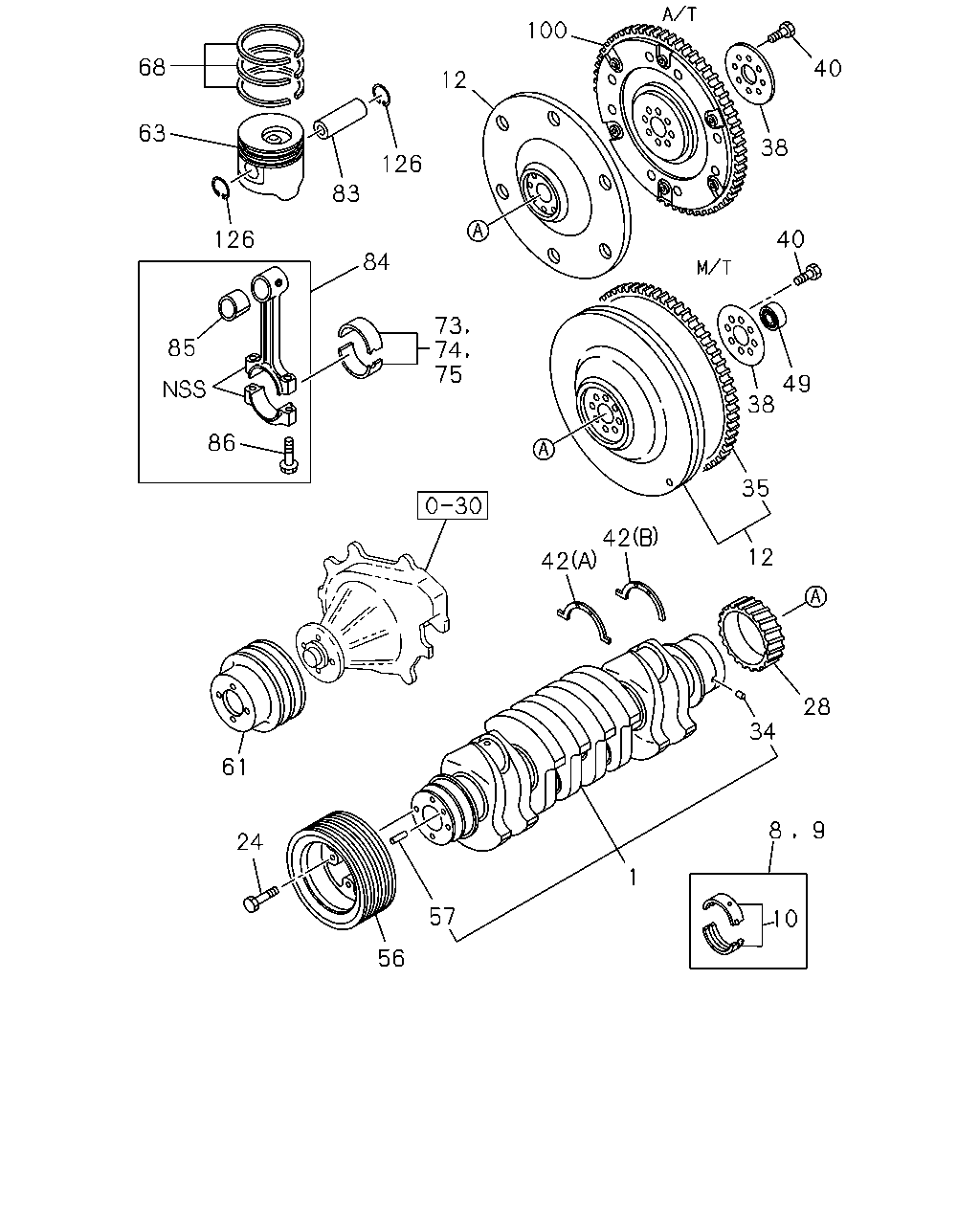

100 68 40 12 63 38 126 83 40 126 84 73 74 75 85 49 38 86 35 42 12 42 28 34 61 8 9 24 1 57 10 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97112-981-2	01	1	9811-	●	●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9811-0008			●
1	00.646 CRANKSHAFT	8-97190-929-0	01	1	0009-0105			●
1	00.646 CRANKSHAFT	8-97165-483-0	01	1	9811-0212				●
1	00.646 CRANKSHAFT	8-97352-534-2	01	1	0301-				●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9811-9904	●	●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	5-87310-546-0	01	1	9905-	●	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9811-9904	●	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	5-87310-547-0	01	1	9905-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9811-9904	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9811-9904	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9811-9904	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9811-0105			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9811-0105			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9811-0105			●
12	00.666 FLYWHEEL M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97330-892-0	01	1	0208-				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11>	8-97169-129-2	01	1	9811-9903	●
12	00.666 FLYWHEEL	8-97169-129-2	01	1	9811-9903		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV)	8-97169-129-2	01	1	9811-9903				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11>	8-97115-782-0	01	1	9904-9904	●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9904-9904		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	9904-9904				●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9904-0101	●	●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	9904-0101				●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	0102-0204	●	●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	0102-0204				●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	0205-	●	●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	0205-				●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9811-0105			●
12	00.666 FLYWHEEL A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-97170-778-1	01	1	9811-				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97166-516-0	01	1	9811-0003				●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-516-0	01	1	9811-0003				●
12	00.666 FLYWHEEL EXC. CHARGE AIR COOLER<6PL>	8-97166-516-0	01	1	0004-				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-516-0	01	1	0004-				●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	9811-	●	●		●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9811-9902	●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	9903-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-97218-061-0	01	1	9811-9904			●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-0	01	1	9905-0105			●
28	00.728 GEAR; CR/SHF Z=42	8-97110-041-4	01	1	9811-9902				●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	9903-				●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9811-	●	●		●
35	00.673 GEAR; RING FLOOR REMOTE SHIFT<M11> Z=138	8-97169-134-0	01	1	9811-9903	●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9811-9903		●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) Z=138	8-97169-134-0	01	1	9811-9903				●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9811-0105			●
35	00.673 GEAR; RING FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> Z=138	8-97046-366-0	01	1	9811-9903				●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) Z=138	8-97046-366-0	01	1	9811-9903				●
35	00.673 GEAR; RING FLOOR REMOTE SHIFT<M11> Z=138	8-97046-366-0	01	1	9904-	●	●		●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> 00.669	8-94310-615-0	01	1	9811-9903	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9811-9903		●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	9811-9903				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9904-0101	●	●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	9904-0101				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	0102-0204	●	●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	0102-0204				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	0205-	●	●
38	00.862 WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	0205-				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9811-0105			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-97170-830-1	01	1	9811-				●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110	8-94397-496-1	01	1	9811-0003				●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110	8-94397-496-1	01	1	9811-0003				●
38	00.862 WASHER; FLYWHEEL EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110	8-94397-496-1	01	1	0004-				●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110	8-94397-496-1	01	1	0004-				●
40	00.669 BOLT; FLYWHEEL FLOOR REMOTE SHIFT<M11> M16X42	8-97178-013-0	08	1	9811-	●	●		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9811-0105			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> M16X51	8-94334-870-1	08	1	9811-				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-	●	●		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-	●	●		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9811-0105			●
49	00.669 BEARING; PILOT FLOOR REMOTE SHIFT<M11> 00.649	8-97031-741-0	01	1	9811-9903	●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	9811-9903		●
49	00.669 BEARING; PILOT CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 00.649	8-97031-741-0	01	1	9811-9903				●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	9904-0101	●	●
49	00.669 BEARING; PILOT CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.649	8-97031-741-0	01	1	9904-0101				●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	0102-0204	●	●
49	00.669 BEARING; PILOT FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.649	8-97031-741-0	01	1	0102-0204				●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	0205-	●	●
49	00.669 BEARING; PILOT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.649	8-97031-741-0	01	1	0205-				●
49	00.669 BEARING; PILOT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97166-589-0	01	1	9811-0003				●
49	00.669 BEARING; PILOT CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-589-0	01	1	9811-0003				●
49	00.669 BEARING; PILOT EXC. CHARGE AIR COOLER<6PL>	8-97166-589-0	01	1	0004-0111				●
49	00.669 BEARING; PILOT FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-589-0	01	1	0004-0111				●
49	00.669 BEARING; PILOT EXC. CHARGE AIR COOLER<6PL>	8-97258-239-0	01	1	0112-				●
49	00.669 BEARING; PILOT FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97258-239-0	01	1	0112-				●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9811-9812	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-0	01	1	9901-9903	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	9904-	●	●		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	9811-0105			●
57	00.662 PIN; PULLEY 08.939 OD=8 L=16	9-08150-816-0	02	1	9811-0212	●	●		●
57	00.662 PIN; PULLEY 08.939 OD=8 L=20	9-08160-820-0	02	1	0301-	●	●		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-1	01	1	9811-9903	●			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9904-	●	●		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9811-9903		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER(K51) NON GRADE	8-97219-032-0	04	1	9811-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER(K51) NON GRADE	8-97183-666-0	04	1	9811-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9811-0105			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9811-0105			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9811-0006		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0007-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97183-664-0	04	1	9811-9910				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97233-129-0	04	1	9911-0012				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97251-696-0	04	1	0101-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97183-665-0	04	1	9811-9910				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97233-130-0	04	1	9911-0012				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97251-697-0	04	1	0101-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-652-1	04	1	9811-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-653-1	04	1	9811-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. TURBOCHARGER(K51)	8-97219-054-0	04	1	9905-9911	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	9912-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER(K51)	8-97105-867-0	04	1	9811-9911	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9811-0105			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9811-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97166-992-1	04	1	9811-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-97078-779-1	04	1	9811-				●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9811-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9811-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9811-0105			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	04	1	9811-				●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	04	1	9811-				●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9811-	●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9811-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9811-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9811-0105			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	9811-				●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	9811-	●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9811-0105			●
84	00.603 ROD ASM; CONN	8-94399-661-2	04	1	9811-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9811-	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9811-0105			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	9811-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9811-	●	●		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9811-0105			●
100	00.666 PLATE; FLEX A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-97170-780-1	01	1	9811-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9811-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9811-0105			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	9811-				●

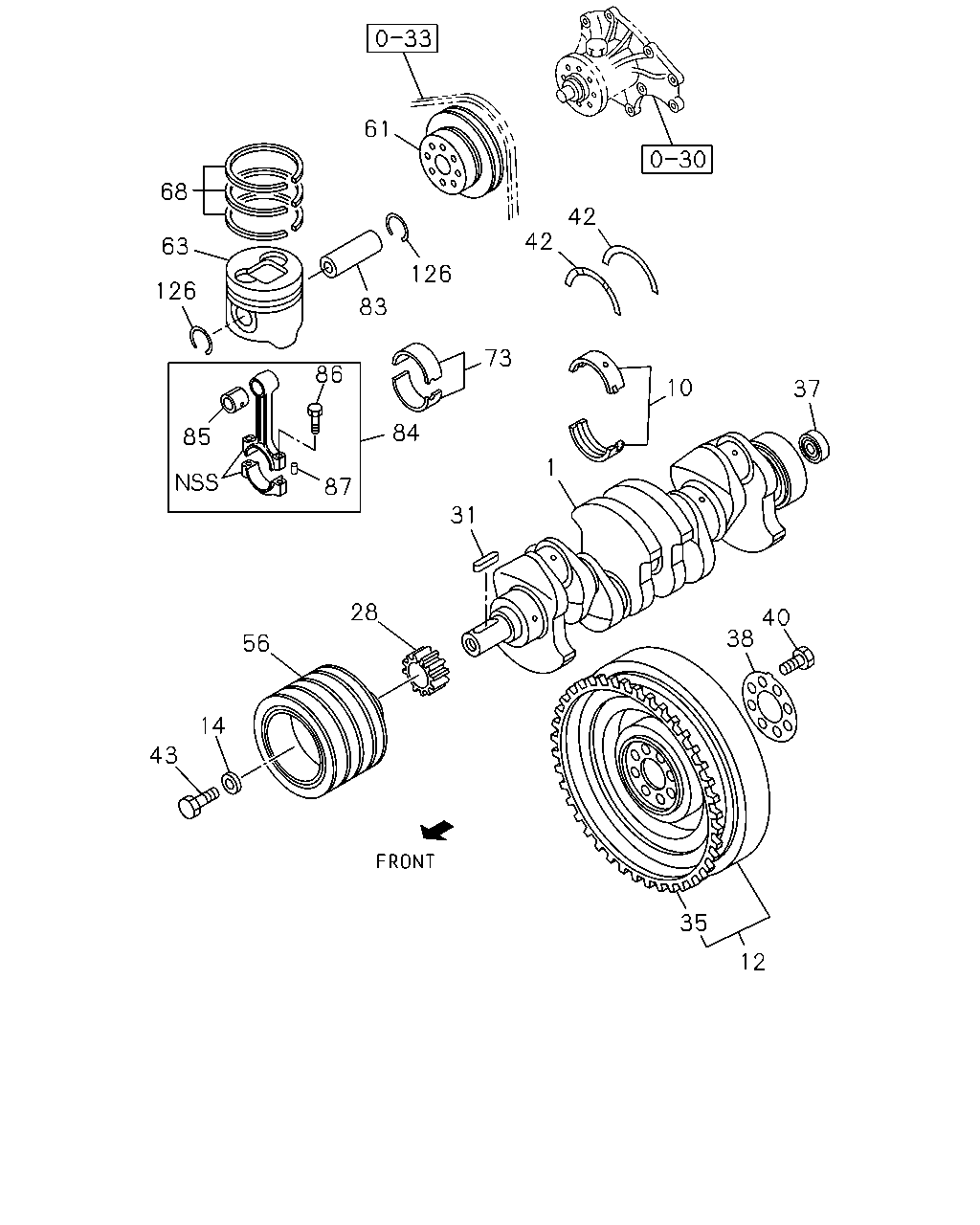

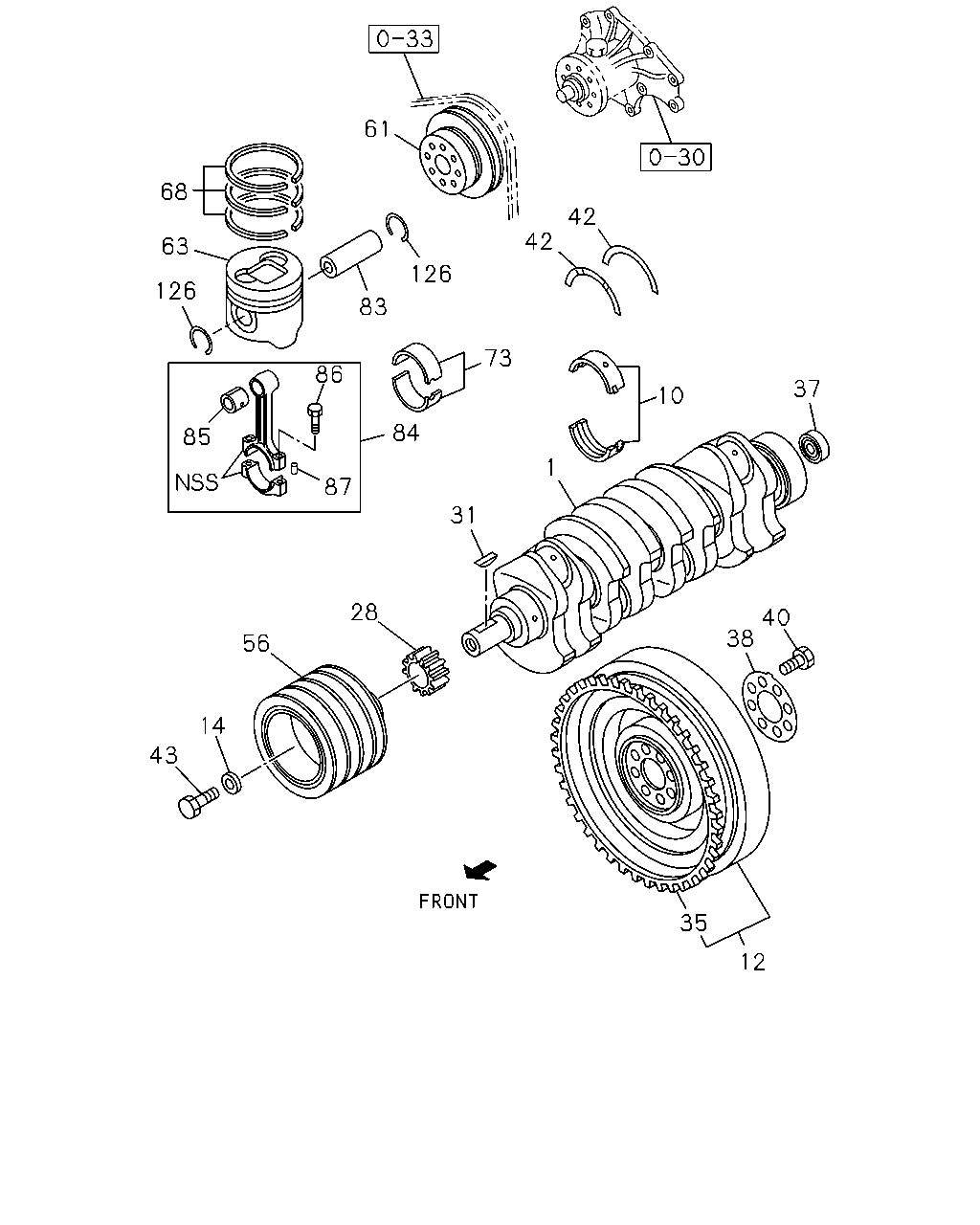

61 68 42 42 63 126 126 83 73 86 10 37 84 85 1 87 31 28 40 38 56 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97112-981-2	01	1	9811-	●	●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9811-0008			●
1	00.646 CRANKSHAFT	8-97190-929-0	01	1	0009-0105			●
1	00.646 CRANKSHAFT	8-97165-483-0	01	1	9811-0212				●
1	00.646 CRANKSHAFT	8-97352-534-2	01	1	0301-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9811-9904	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9811-9904	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9811-9904	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9811-0105			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9811-0105			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9811-0105			●
12	00.666 FLYWHEEL M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97330-892-0	01	1	0208-				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11>	8-97169-129-2	01	1	9811-9903	●
12	00.666 FLYWHEEL	8-97169-129-2	01	1	9811-9903		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV)	8-97169-129-2	01	1	9811-9903				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11>	8-97115-782-0	01	1	9904-9904	●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9904-9904		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	9904-9904				●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9904-0101	●	●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	9904-0101				●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	0102-0204	●	●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	0102-0204				●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	0205-	●	●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	0205-				●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9811-0105			●
12	00.666 FLYWHEEL A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-97170-778-1	01	1	9811-				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97166-516-0	01	1	9811-0003				●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-516-0	01	1	9811-0003				●
12	00.666 FLYWHEEL EXC. CHARGE AIR COOLER<6PL>	8-97166-516-0	01	1	0004-				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-516-0	01	1	0004-				●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9811-0105			●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9811-9902	●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	9903-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-97218-061-0	01	1	9811-9904			●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-0	01	1	9905-0105			●
28	00.728 GEAR; CR/SHF Z=42	8-97110-041-4	01	1	9811-9902				●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	9903-				●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9811-0008			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105			●
35	00.673 GEAR; RING FLOOR REMOTE SHIFT<M11> Z=138	8-97169-134-0	01	1	9811-9903	●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9811-9903		●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) Z=138	8-97169-134-0	01	1	9811-9903				●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9811-0105			●
35	00.673 GEAR; RING FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> Z=138	8-97046-366-0	01	1	9811-9903				●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) Z=138	8-97046-366-0	01	1	9811-9903				●
35	00.673 GEAR; RING FLOOR REMOTE SHIFT<M11> Z=138	8-97046-366-0	01	1	9904-	●	●		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9811-0105			●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> 00.669	8-94310-615-0	01	1	9811-9903	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9811-9903		●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	9811-9903				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9904-0101	●	●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	9904-0101				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	0102-0204	●	●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	0102-0204				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	0205-	●	●
38	00.862 WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	0205-				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9811-0105			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-97170-830-1	01	1	9811-				●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110	8-94397-496-1	01	1	9811-0003				●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110	8-94397-496-1	01	1	9811-0003				●
38	00.862 WASHER; FLYWHEEL EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110	8-94397-496-1	01	1	0004-				●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110	8-94397-496-1	01	1	0004-				●
40	00.669 BOLT; FLYWHEEL FLOOR REMOTE SHIFT<M11> M16X42	8-97178-013-0	08	1	9811-	●	●		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9811-0105			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> M16X51	8-94334-870-1	08	1	9811-				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-	●	●		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-	●	●		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9811-0105			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9811-0105			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9811-9812	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-0	01	1	9901-9903	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	9904-	●	●		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	9811-0105			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-1	01	1	9811-9903	●			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9904-	●	●		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9811-9903		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER(K51) NON GRADE	8-97219-032-0	04	1	9811-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER(K51) NON GRADE	8-97183-666-0	04	1	9811-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9811-0105			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9811-0105			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9811-0006		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0007-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97183-664-0	04	1	9811-9910				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97233-129-0	04	1	9911-0012				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97251-696-0	04	1	0101-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97183-665-0	04	1	9811-9910				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97233-130-0	04	1	9911-0012				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97251-697-0	04	1	0101-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-652-1	04	1	9811-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-653-1	04	1	9811-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. TURBOCHARGER(K51)	8-97219-054-0	04	1	9905-9911	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	9912-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER(K51)	8-97105-867-0	04	1	9811-9911	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9811-0105			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9811-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97166-992-1	04	1	9811-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-97078-779-1	04	1	9811-				●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9811-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9811-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9811-0105			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	04	1	9811-				●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	04	1	9811-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9811-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9811-0105			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	9811-				●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	9811-	●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9811-0105			●
84	00.603 ROD ASM; CONN	8-94399-661-2	04	1	9811-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9811-	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9811-0105			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	9811-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9811-	●	●		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9811-0105			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9811-0105			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9811-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9811-0105			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	9811-				●

61 68 42 42 63 126 126 83 73 86 37 10 84 85 1 87 31 28 40 38 56 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97112-981-2	01	1	9811-	●	●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9811-0008			●
1	00.646 CRANKSHAFT	8-97190-929-0	01	1	0009-0105			●
1	00.646 CRANKSHAFT	8-97165-483-0	01	1	9811-0212				●
1	00.646 CRANKSHAFT	8-97352-534-2	01	1	0301-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9811-9904	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9811-9904	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9811-9904	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-	●	●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9811-0105			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9811-0105			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9811-0105			●
12	00.666 FLYWHEEL M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97330-892-0	01	1	0208-				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11>	8-97169-129-2	01	1	9811-9903	●
12	00.666 FLYWHEEL	8-97169-129-2	01	1	9811-9903		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV)	8-97169-129-2	01	1	9811-9903				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11>	8-97115-782-0	01	1	9904-9904	●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9904-9904		●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	9904-9904				●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9904-0101	●	●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	9904-0101				●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	0102-0204	●	●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	0102-0204				●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	0205-	●	●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97115-782-0	01	1	0205-				●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9811-0105			●
12	00.666 FLYWHEEL A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-97170-778-1	01	1	9811-				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97166-516-0	01	1	9811-0003				●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-516-0	01	1	9811-0003				●
12	00.666 FLYWHEEL EXC. CHARGE AIR COOLER<6PL>	8-97166-516-0	01	1	0004-				●
12	00.666 FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97166-516-0	01	1	0004-				●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9811-0105			●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9811-9902	●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	9903-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-97218-061-0	01	1	9811-9904			●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-0	01	1	9905-0105			●
28	00.728 GEAR; CR/SHF Z=42	8-97110-041-4	01	1	9811-9902				●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	9903-				●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9811-0008			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105			●
35	00.673 GEAR; RING FLOOR REMOTE SHIFT<M11> Z=138	8-97169-134-0	01	1	9811-9903	●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9811-9903		●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) Z=138	8-97169-134-0	01	1	9811-9903				●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9811-0105			●
35	00.673 GEAR; RING FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> Z=138	8-97046-366-0	01	1	9811-9903				●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) Z=138	8-97046-366-0	01	1	9811-9903				●
35	00.673 GEAR; RING FLOOR REMOTE SHIFT<M11> Z=138	8-97046-366-0	01	1	9904-	●	●		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9811-0105			●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> 00.669	8-94310-615-0	01	1	9811-9903	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9811-9903		●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	9811-9903				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9904-0101	●	●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	9904-0101				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	0102-0204	●	●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	0102-0204				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	0205-	●	●
38	00.862 WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.669	8-94310-615-0	01	1	0205-				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9811-0105			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-97170-830-1	01	1	9811-				●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110	8-94397-496-1	01	1	9811-0003				●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110	8-94397-496-1	01	1	9811-0003				●
38	00.862 WASHER; FLYWHEEL EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110	8-94397-496-1	01	1	0004-				●
38	00.862 WASHER; FLYWHEEL FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110	8-94397-496-1	01	1	0004-				●
40	00.669 BOLT; FLYWHEEL FLOOR REMOTE SHIFT<M11> M16X42	8-97178-013-0	08	1	9811-	●	●		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9811-0105			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> M16X51	8-94334-870-1	08	1	9811-				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-	●	●		●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-	●	●		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9811-0105			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9811-0105			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9811-9812	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-0	01	1	9901-9903	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	9904-	●	●		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	9811-0105			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-1	01	1	9811-9903	●			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9904-	●	●		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9811-9903		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER(K51) NON GRADE	8-97219-032-0	04	1	9811-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER(K51) NON GRADE	8-97183-666-0	04	1	9811-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9811-0105			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9811-0105			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9811-0006		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0007-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97183-664-0	04	1	9811-9910				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97233-129-0	04	1	9911-0012				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97251-696-0	04	1	0101-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97183-665-0	04	1	9811-9910				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97233-130-0	04	1	9911-0012				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97251-697-0	04	1	0101-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-652-1	04	1	9811-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-653-1	04	1	9811-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. TURBOCHARGER(K51)	8-97219-054-0	04	1	9905-9911	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	9912-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER(K51)	8-97105-867-0	04	1	9811-9911	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9811-0105			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9811-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97166-992-1	04	1	9811-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-97078-779-1	04	1	9811-				●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9811-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9811-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9811-0105			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	04	1	9811-				●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	04	1	9811-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9811-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9811-0105			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	9811-				●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	9811-	●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9811-0105			●
84	00.603 ROD ASM; CONN	8-94399-661-2	04	1	9811-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9811-	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9811-0105			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	9811-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9811-	●	●		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9811-0105			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9811-0105			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9811-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9811-0105			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	9811-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
