Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#16745) — 414 parça

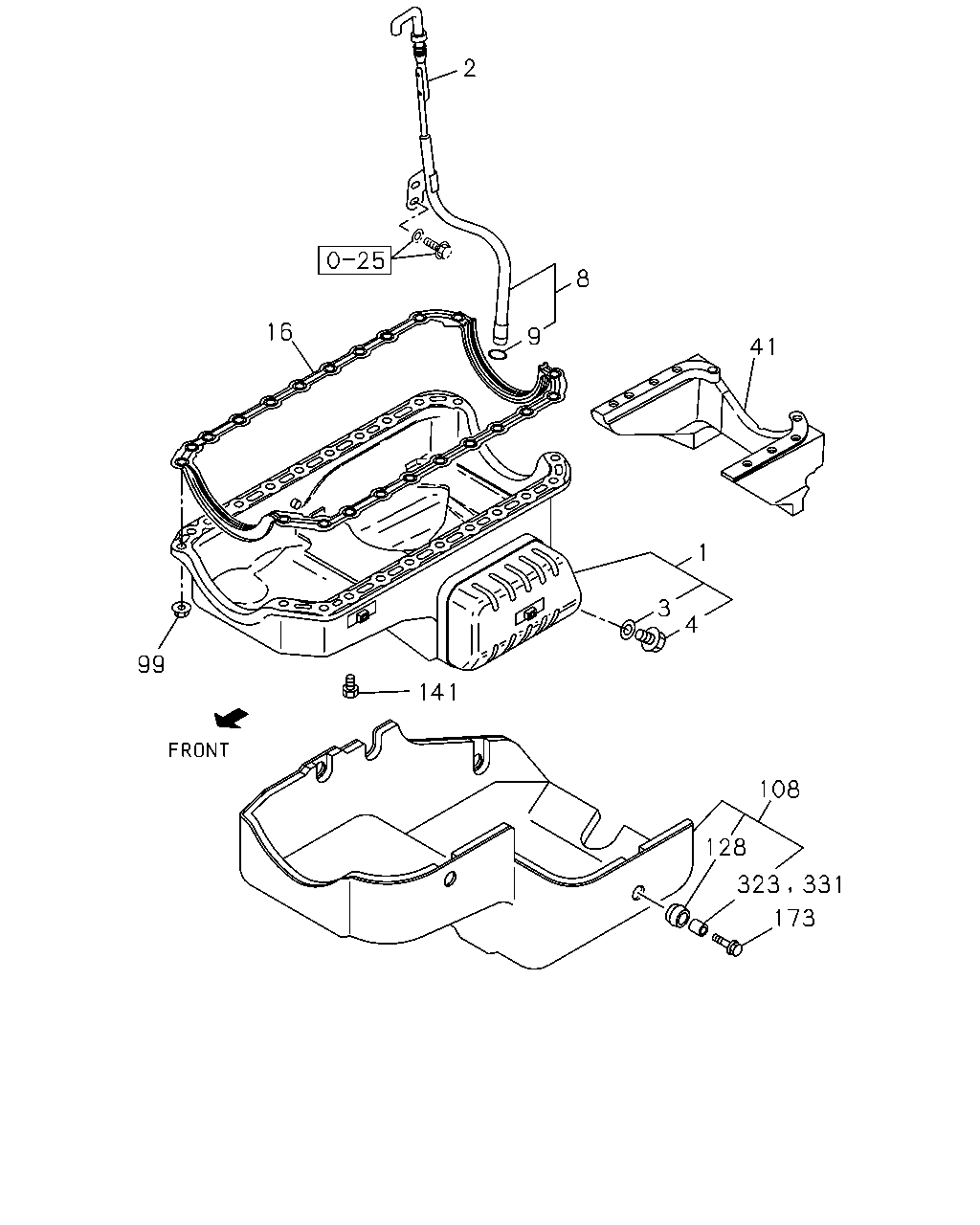

2 8 16 9 41 1 3 4 99 141 108 128 173 323 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012	●	●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-	●	●
1	01.426 PAN ASM; OIL	8-97204-195-0	01	1	9811-9901			●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	9902-0105			●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97117-937-0	01	1	9811-9907				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97209-847-1	01	1	9908-9908				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	9909-0204				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	0205-				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97209-847-2	01	1	0205-				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97149-314-0	01	1	9811-				●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL>	8-97075-348-2	01	1	9811-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905			●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-0105			●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9907-0207				●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	0208-				●
2	01.516 GAUGE; OIL LEVEL VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-2	01	1	9811-				●
2	01.516 GAUGE; OIL LEVEL EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9811-9906				●
2	01.516 GAUGE; OIL LEVEL EXC. CHARGE AIR COOLER<6PL>	8-97227-945-0	01	1	9907-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-	●	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER(K51) (A)	8-97200-567-1	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER(K51) (A)	8-97101-907-1	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97101-907-1	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97204-197-0	01	1	9811-9812			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	9901-0105			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97182-794-0	01	1	9811-9903				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (C)	8-97226-751-0	01	1	9904-9908				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (C)	8-97226-751-1	01	1	9909-0207				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (C)	8-97226-751-1	01	1	0208-0211				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (C)	8-97354-831-0	01	1	0212-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-97165-493-2	01	1	9811-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL> (A)	8-97130-265-0	01	1	9811-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (B)	8-97184-685-1	01	1	9811-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	1-09623-469-0	02	1	0212-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-0211	●	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	0212-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0212-				●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9811-0105			●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9811-0105			●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0106-0106			●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9811-0105			●
108	01.426 COVER; OIL PAN	8-97204-196-2	01	1	9811-9901			●
108	01.426 COVER; OIL PAN	8-97224-447-1	01	1	9902-0105			●
128	01.516 RUBBER; MTG,OIL PAN 00.034 OD=22	8-94140-428-1	04	1	9811-9901			●
128	01.516 RUBBER; MTG,OIL PAN	8-97224-449-0	04	1	9902-9902			●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	9903-0105			●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9811-0105			●
173	01.428 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9811-9901			●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9902-0105			●
323	01.516 BUSHING; MTG RUBBER 00.034 OD=13 T=9.5	8-94140-427-1	04	1	9811-9901			●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	9902-0105			●

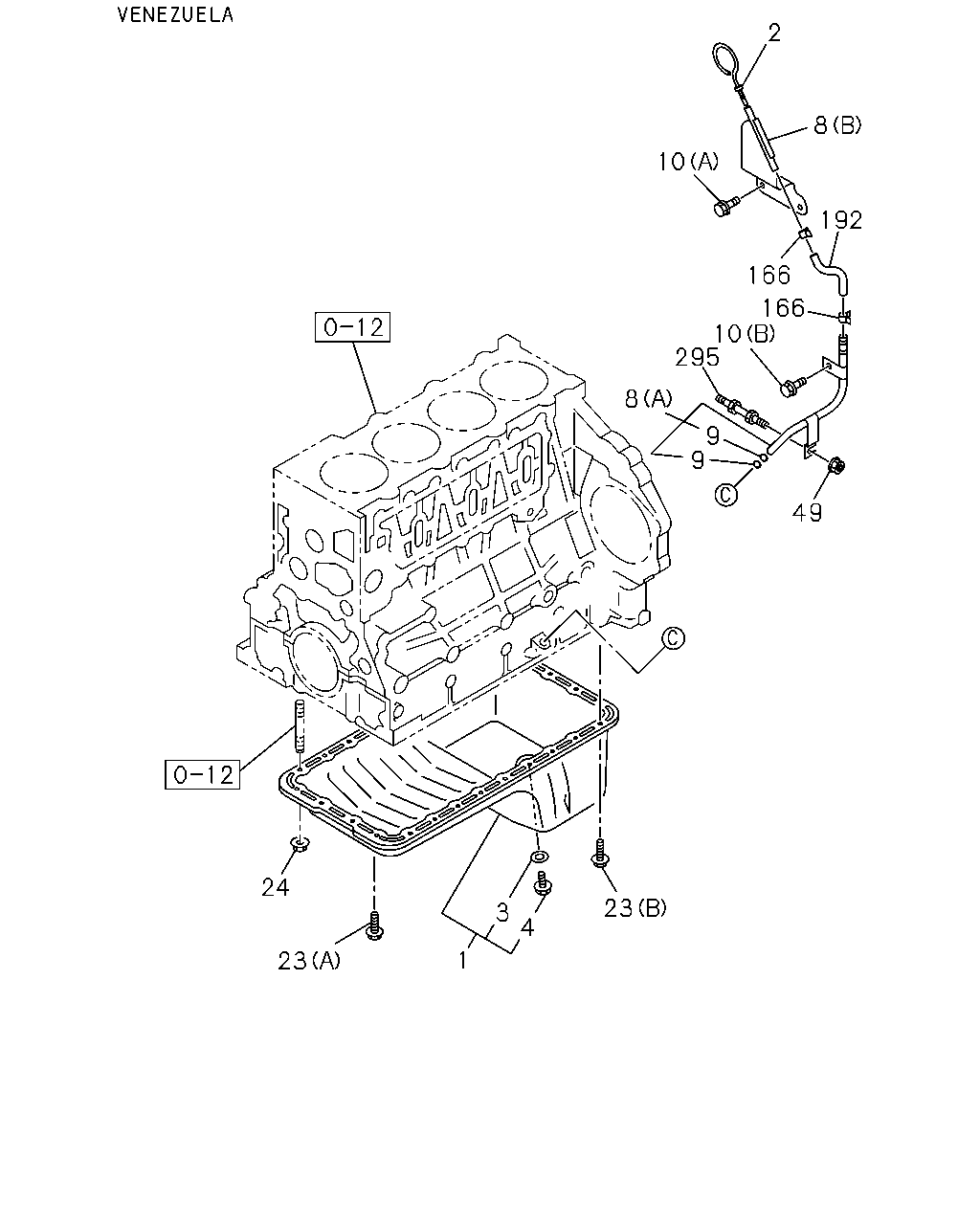

2 8 10 192 166 166 10 295 8 9 9 49 24 23 3 4 1 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012	●	●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-	●	●
1	01.426 PAN ASM; OIL	8-97204-195-0	01	1	9811-9901			●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	9902-0105			●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97117-937-0	01	1	9811-9907				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97209-847-1	01	1	9908-9908				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	9909-0204				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	0205-				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97209-847-2	01	1	0205-				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97149-314-0	01	1	9811-				●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL>	8-97075-348-2	01	1	9811-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905			●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-0105			●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9907-0207				●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	0208-				●
2	01.516 GAUGE; OIL LEVEL VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-2	01	1	9811-				●
2	01.516 GAUGE; OIL LEVEL EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9811-9906				●
2	01.516 GAUGE; OIL LEVEL EXC. CHARGE AIR COOLER<6PL>	8-97227-945-0	01	1	9907-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-	●	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER(K51) (A)	8-97200-567-1	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER(K51) (A)	8-97101-907-1	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97101-907-1	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97204-197-0	01	1	9811-9812			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	9901-0105			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97182-794-0	01	1	9811-9903				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (C)	8-97226-751-0	01	1	9904-9908				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (C)	8-97226-751-1	01	1	9909-0207				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (C)	8-97226-751-1	01	1	0208-0211				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (C)	8-97354-831-0	01	1	0212-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-97165-493-2	01	1	9811-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL> (A)	8-97130-265-0	01	1	9811-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (B)	8-97184-685-1	01	1	9811-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	1-09623-469-0	02	1	0212-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-0211	●	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	0212-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0212-				●
10	01.516 BOLT; GUIDE TUBE TURBOCHARGER(K51) M10X110 FLANGE	0-28186-011-0	01	1	9811-	●
10	01.516 BOLT; GUIDE TUBE EXC. TURBOCHARGER(K51) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-		●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9811-9903				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9904-9908				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9909-0207				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0208-				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 00.029 M10X20 FLANGE	0-28191-020-0	01	1	9904-9908				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9909-0002				●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	9811-				●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9811-9902	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9811-9902				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9903-9903	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9903-9903				●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9903-9903				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9904-0005	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9904-0005				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0006-0012	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0006-0012				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-0112	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-0112				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0201-	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0201-				●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	9811-0112				●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0201-				●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) M8X14	8-97047-005-0	18	1	9811-0112				●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) M8X14	8-97047-005-0	18	1	0201-				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9811-9902	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9811-9902				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9903-9903	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9903-9903				●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9903-9903				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9904-0005	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9904-0005				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0006-0112	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	13	1	0006-0112				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0201-	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) 07.633 M8 FLANGE	0-91150-108-0	13	1	0201-				●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9811-0112				●
24	01.453 NUT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0201-				●
49	01.516 NUT; GUIDE TUBE TURBOCHARGER(K51) 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-	●
49	01.516 NUT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-				●
49	01.516 NUT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-				●
166	01.453 CLIP; RUBBER HOSE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.762 ID=19	8-94238-569-0	02	1	9811-				●
192	01.516 HOSE; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-693-0	01	1	9811-				●
295	01.516 STUD; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>	8-97182-961-0	01	1	9811-				●

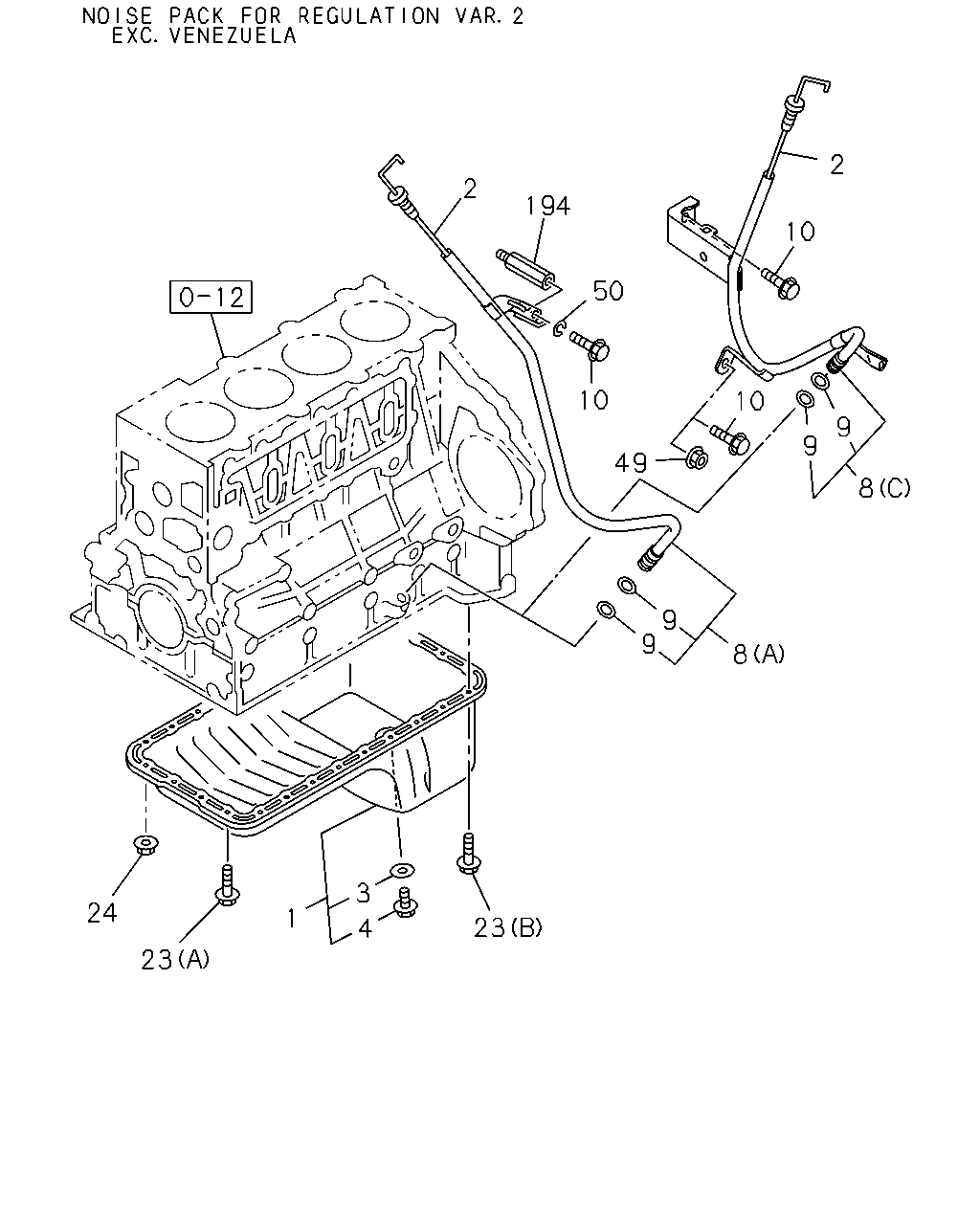

2 2 194 10 50 10 10 9 9 49 8 9 9 8 3 24 1 23 4 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012	●	●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-	●	●
1	01.426 PAN ASM; OIL	8-97204-195-0	01	1	9811-9901			●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	9902-0105			●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97117-937-0	01	1	9811-9907				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97209-847-1	01	1	9908-9908				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	9909-0204				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	0205-				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97209-847-2	01	1	0205-				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97149-314-0	01	1	9811-				●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL>	8-97075-348-2	01	1	9811-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905			●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-0105			●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9907-0207				●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	0208-				●
2	01.516 GAUGE; OIL LEVEL VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-2	01	1	9811-				●
2	01.516 GAUGE; OIL LEVEL EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9811-9906				●
2	01.516 GAUGE; OIL LEVEL EXC. CHARGE AIR COOLER<6PL>	8-97227-945-0	01	1	9907-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-	●	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER(K51) (A)	8-97200-567-1	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER(K51) (A)	8-97101-907-1	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97101-907-1	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97204-197-0	01	1	9811-9812			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	9901-0105			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97182-794-0	01	1	9811-9903				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (C)	8-97226-751-0	01	1	9904-9908				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (C)	8-97226-751-1	01	1	9909-0207				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (C)	8-97226-751-1	01	1	0208-0211				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (C)	8-97354-831-0	01	1	0212-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-97165-493-2	01	1	9811-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL> (A)	8-97130-265-0	01	1	9811-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (B)	8-97184-685-1	01	1	9811-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	1-09623-469-0	02	1	0212-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-0211	●	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	0212-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0212-				●
10	01.516 BOLT; GUIDE TUBE TURBOCHARGER(K51) M10X110 FLANGE	0-28186-011-0	01	1	9811-	●
10	01.516 BOLT; GUIDE TUBE EXC. TURBOCHARGER(K51) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-		●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9811-9903				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9904-9908				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9909-0207				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0208-				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 00.029 M10X20 FLANGE	0-28191-020-0	01	1	9904-9908				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9909-0002				●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	9811-				●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9811-9902	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9811-9902				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9903-9903	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9903-9903				●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9903-9903				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9904-0005	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9904-0005				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0006-0012	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0006-0012				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-0112	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-0112				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0201-	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0201-				●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	9811-0112				●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0201-				●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) M8X14	8-97047-005-0	18	1	9811-0112				●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) M8X14	8-97047-005-0	18	1	0201-				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9811-9902	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9811-9902				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9903-9903	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9903-9903				●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9903-9903				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9904-0005	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9904-0005				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0006-0112	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	13	1	0006-0112				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0201-	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) 07.633 M8 FLANGE	0-91150-108-0	13	1	0201-				●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9811-0112				●
24	01.453 NUT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0201-				●
49	01.516 NUT; GUIDE TUBE TURBOCHARGER(K51) 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-	●
49	01.516 NUT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-				●
49	01.516 NUT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-				●
50	01.516 WASHER; PL,GUIDE TUBE EXC. TURBOCHARGER(K51) 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9811-	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9811-		●
50	01.516 WASHER; PL,GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=26	9-09164-710-0	01	1	9811-				●
194	01.429 SPACER; GUIDE TUBE EXC. TURBOCHARGER(K51)	8-97101-215-0	01	1	9811-9903	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9811-9903		●
194	01.429 SPACER; GUIDE TUBE EXC. TURBOCHARGER(K51)	8-97101-215-0	01	1	9904-0112	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9904-0112		●
194	01.429 SPACER; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97101-215-0	01	1	9904-0112				●
194	01.429 SPACER; GUIDE TUBE EXC. TURBOCHARGER(K51)	8-97101-215-0	01	1	0201-	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0201-		●
194	01.429 SPACER; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97101-215-0	01	1	0201-				●

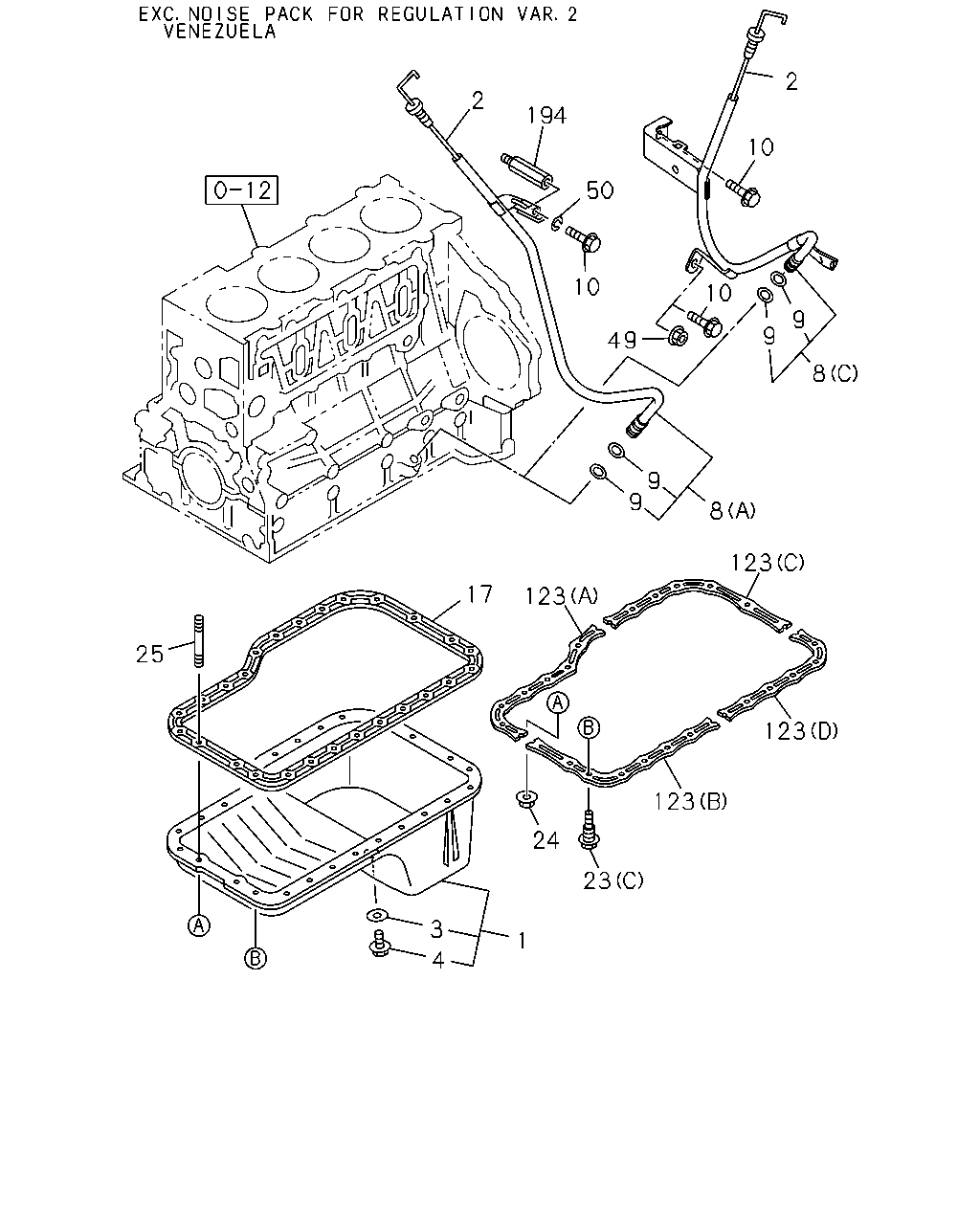

2 2 194 10 50 10 10 9 9 49 8 9 9 8 123 17 123 25 123 123 24 23 3 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012	●	●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-	●	●
1	01.426 PAN ASM; OIL	8-97204-195-0	01	1	9811-9901			●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	9902-0105			●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97117-937-0	01	1	9811-9907				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97209-847-1	01	1	9908-9908				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	9909-0204				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	0205-				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97209-847-2	01	1	0205-				●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97149-314-0	01	1	9811-				●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL>	8-97075-348-2	01	1	9811-				●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905			●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-0105			●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9907-0207				●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	0208-				●
2	01.516 GAUGE; OIL LEVEL VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97184-694-2	01	1	9811-				●
2	01.516 GAUGE; OIL LEVEL EXC. VENEZUELA EQUIPMENT(S2L)	8-97019-885-1	01	1	9811-9906				●
2	01.516 GAUGE; OIL LEVEL EXC. CHARGE AIR COOLER<6PL>	8-97227-945-0	01	1	9907-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-	●	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER(K51) (A)	8-97200-567-1	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER(K51) (A)	8-97101-907-1	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97101-907-1	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97204-197-0	01	1	9811-9812			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	9901-0105			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97182-794-0	01	1	9811-9903				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (C)	8-97226-751-0	01	1	9904-9908				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (C)	8-97226-751-1	01	1	9909-0207				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (C)	8-97226-751-1	01	1	0208-0211				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (C)	8-97354-831-0	01	1	0212-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-97165-493-2	01	1	9811-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL> (A)	8-97130-265-0	01	1	9811-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (B)	8-97184-685-1	01	1	9811-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	1-09623-469-0	02	1	0212-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-0211	●	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	0212-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0212-				●
10	01.516 BOLT; GUIDE TUBE TURBOCHARGER(K51) M10X110 FLANGE	0-28186-011-0	01	1	9811-	●
10	01.516 BOLT; GUIDE TUBE EXC. TURBOCHARGER(K51) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-		●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9811-9903				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9904-9908				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9909-0207				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0208-				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 00.029 M10X20 FLANGE	0-28191-020-0	01	1	9904-9908				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9909-0002				●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	9811-				●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-1	01	1	9811-9902	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97146-148-1	01	1	9811-9902				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-1	01	1	9903-9903	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF>	8-97146-148-1	01	1	9903-9903				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97146-148-1	01	1	9903-9903				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-2	01	1	9904-0012	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97146-148-2	01	1	9904-0012				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0101-0112	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97190-191-1	01	1	0101-0112				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0201-	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L)	8-97190-191-1	01	1	0201-				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9811-9902	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9811-9902				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9903-9903	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9903-9903				●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9903-9903				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9904-0005	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9904-0005				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0006-0012	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0006-0012				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-0112	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-0112				●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0201-	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0201-				●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	9811-0112				●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0201-				●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) M8X14	8-97047-005-0	18	1	9811-0112				●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) M8X14	8-97047-005-0	18	1	0201-				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9811-9902	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9811-9902				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9903-9903	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9903-9903				●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9903-9903				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9904-0005	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9904-0005				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0006-0112	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	13	1	0006-0112				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0201-	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) 07.633 M8 FLANGE	0-91150-108-0	13	1	0201-				●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9811-0112				●
24	01.453 NUT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0201-				●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9811-9902	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9811-9902				●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9903-9903	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9903-9903				●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9903-9903				●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9904-0005	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9904-0005				●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	09	1	0006-0012	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	09	1	0006-0012				●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0101-0112	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0101-0112				●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0201-	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0201-				●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9811-9902	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9811-9902				●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9903-9903	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9903-9903				●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9903-9903				●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9904-0012	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9904-0012				●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0101-0112	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0101-0112				●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0201-	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0201-				●
49	01.516 NUT; GUIDE TUBE TURBOCHARGER(K51) 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-	●
49	01.516 NUT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-				●
49	01.516 NUT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-				●
50	01.516 WASHER; PL,GUIDE TUBE EXC. TURBOCHARGER(K51) 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9811-	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9811-		●
50	01.516 WASHER; PL,GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=26	9-09164-710-0	01	1	9811-				●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EURO3 SPECIFICATION<NT3> (D)	8-97212-596-0	01	1	0201-				●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9811-9902	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97087-619-2	01	1	9811-9902				●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9903-9903	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> (A)	8-97087-619-2	01	1	9903-9903				●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97087-619-2	01	1	9903-9903				●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9904-0012	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97087-619-2	01	1	9904-0012				●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0101-0112	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0101-0112				●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0201-	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) (A)	8-97186-988-0	01	1	0201-				●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9811-9902	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97087-622-2	01	1	9811-9902				●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9903-9903	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> (B)	8-97087-622-2	01	1	9903-9903				●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97087-622-2	01	1	9903-9903				●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9904-0012	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97087-622-2	01	1	9904-0012				●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0101-0112	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0101-0112				●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0201-	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) (B)	8-97186-994-0	01	1	0201-				●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9811-9902	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97087-625-2	01	1	9811-9902				●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9903-9903	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> (C)	8-97087-625-2	01	1	9903-9903				●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97087-625-2	01	1	9903-9903				●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9904-0012	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97087-625-2	01	1	9904-0012				●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0101-0112	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0101-0112				●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0201-	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. VENEZUELA EQUIPMENT(S2L) (C)	8-97186-998-0	01	1	0201-				●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9811-9902	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97087-628-2	01	1	9811-9902				●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9903-9903	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<7AF> (D)	8-97087-628-2	01	1	9903-9903				●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97087-628-2	01	1	9903-9903				●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9904-0012	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97087-628-2	01	1	9904-0012				●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0101-0112	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97187-000-0	01	1	0101-0112				●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0201-	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION<NT3>, VENEZUELAEQUIPMENT(S2L) (D)	8-97187-000-0	01	1	0201-				●
194	01.429 SPACER; GUIDE TUBE EXC. TURBOCHARGER(K51)	8-97101-215-0	01	1	9811-9903	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9811-9903		●
194	01.429 SPACER; GUIDE TUBE EXC. TURBOCHARGER(K51)	8-97101-215-0	01	1	9904-0112	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9904-0112		●
194	01.429 SPACER; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97101-215-0	01	1	9904-0112				●
194	01.429 SPACER; GUIDE TUBE EXC. TURBOCHARGER(K51)	8-97101-215-0	01	1	0201-	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0201-		●
194	01.429 SPACER; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97101-215-0	01	1	0201-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
