Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#16744) — 232 parça

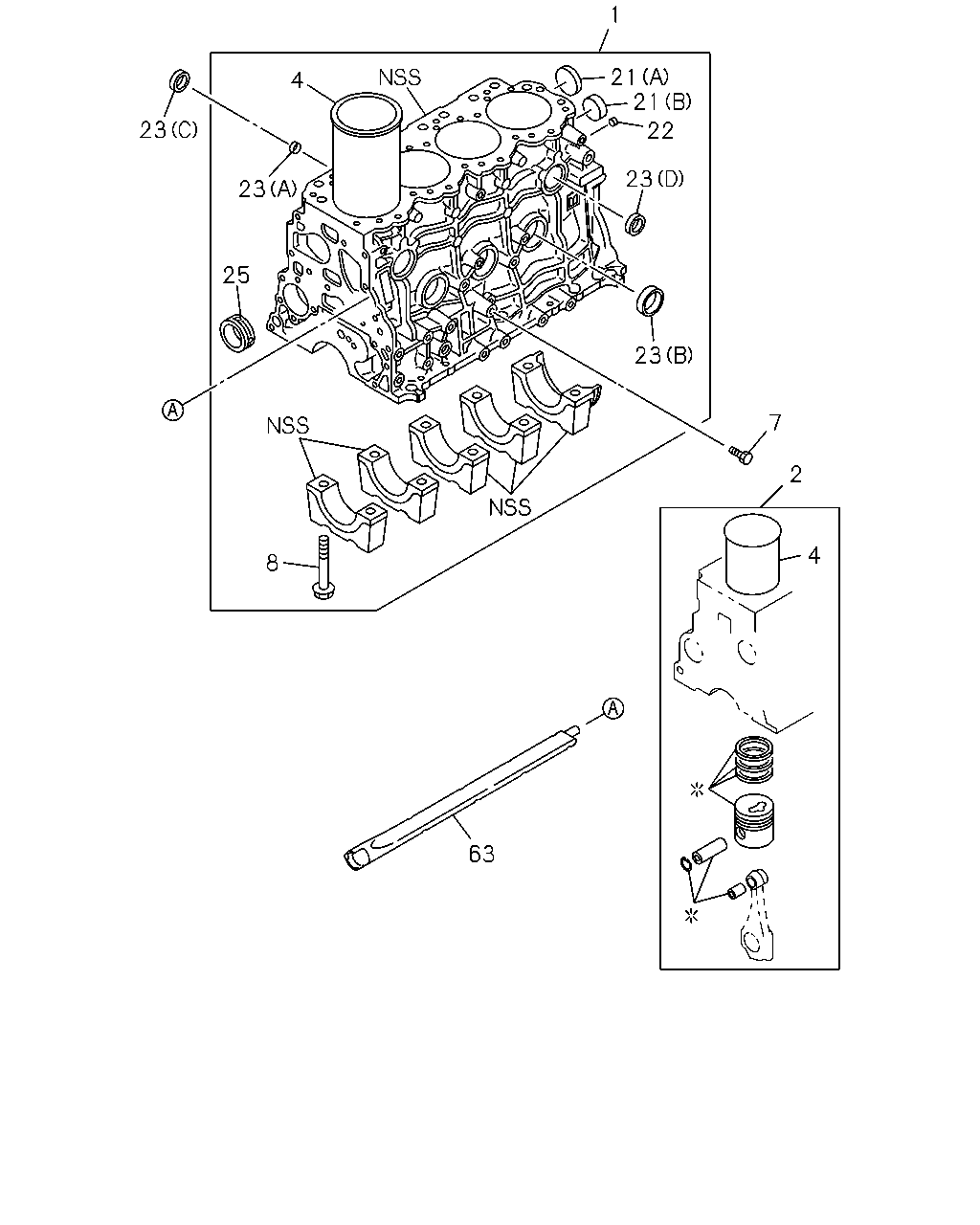

1 21 21 4 23 22 23 23 25 23 7 2 4 8 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL TURBOCHARGER(K51)	8-97173-726-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL EXC. TURBOCHARGER(K51)	8-97191-846-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9811-0105		●
1	00.033 BLOCK ASM; CYL	8-97163-853-3	01	1	9811-			●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9811-				●
2	00.030 LINER SET; ENG CYL TURBOCHARGER(K51) GRADE=1X	5-87813-571-1	04	1	9811-	●
2	00.030 LINER SET; ENG CYL TURBOCHARGER(K51) GRADE=3X	5-87813-572-1	04	1	9811-	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER(K51) GRADE=1X	5-87813-392-2	04	1	9811-	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER(K51) GRADE=3X	5-87813-393-2	04	1	9811-	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-1	04	1	9811-			●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-1	04	1	9811-			●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1	5-87813-409-0	04	1	9811-9907				●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-744-1	04	1	9908-				●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-410-0	04	1	9811-9907				●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-745-1	04	1	9908-				●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-328-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-329-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9811-0204	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97351-558-0	04	1	0205-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9811-0204	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97351-559-0	04	1	0205-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9811-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9811-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	9811-				●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9811-0208	●		●	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0209-	●		●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9811-0105		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9811-0105		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9811-0105		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9811-0105		●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9811-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	9811-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	9811-0105		●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9811-0105		●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9811-0105		●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9811-0105		●

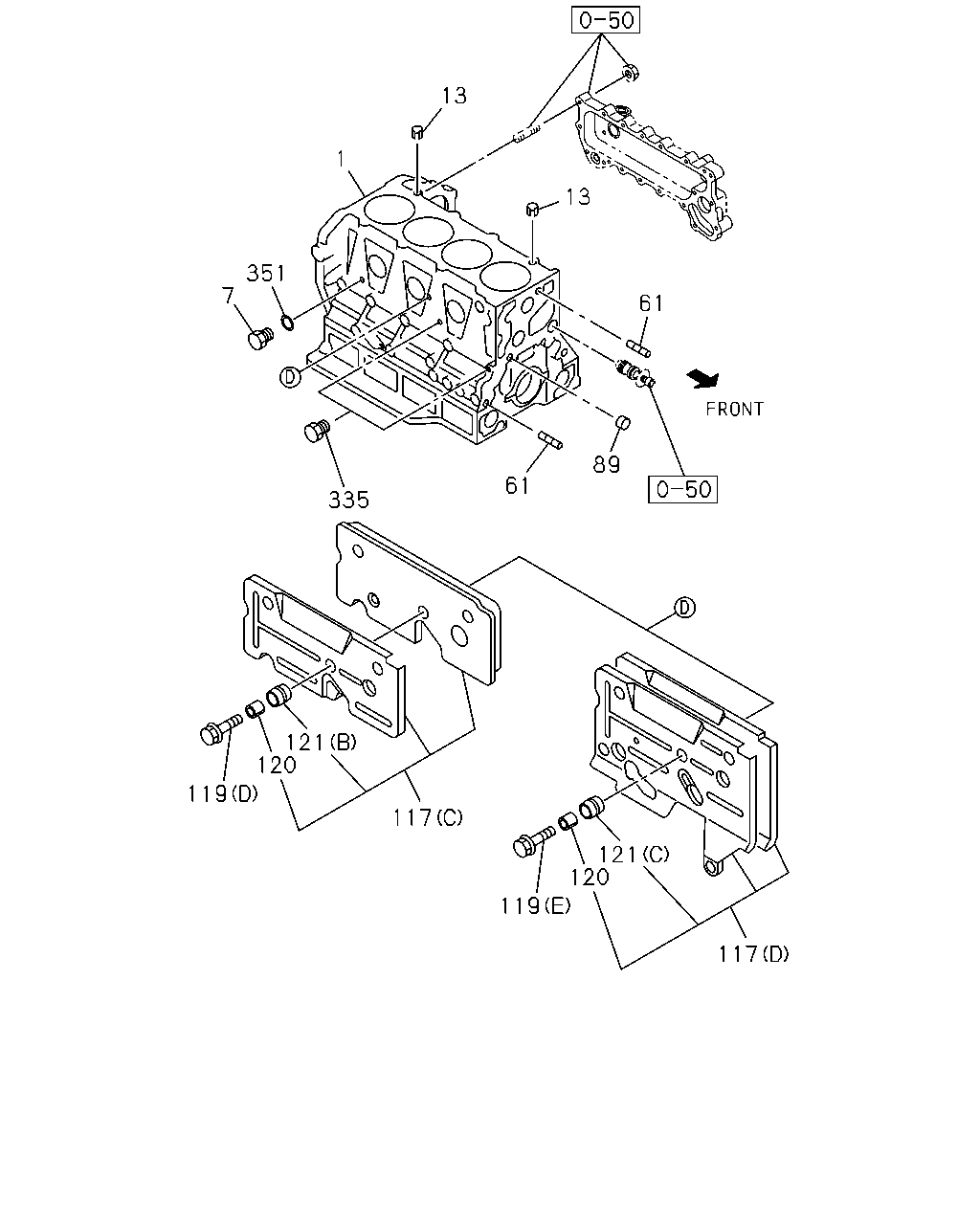

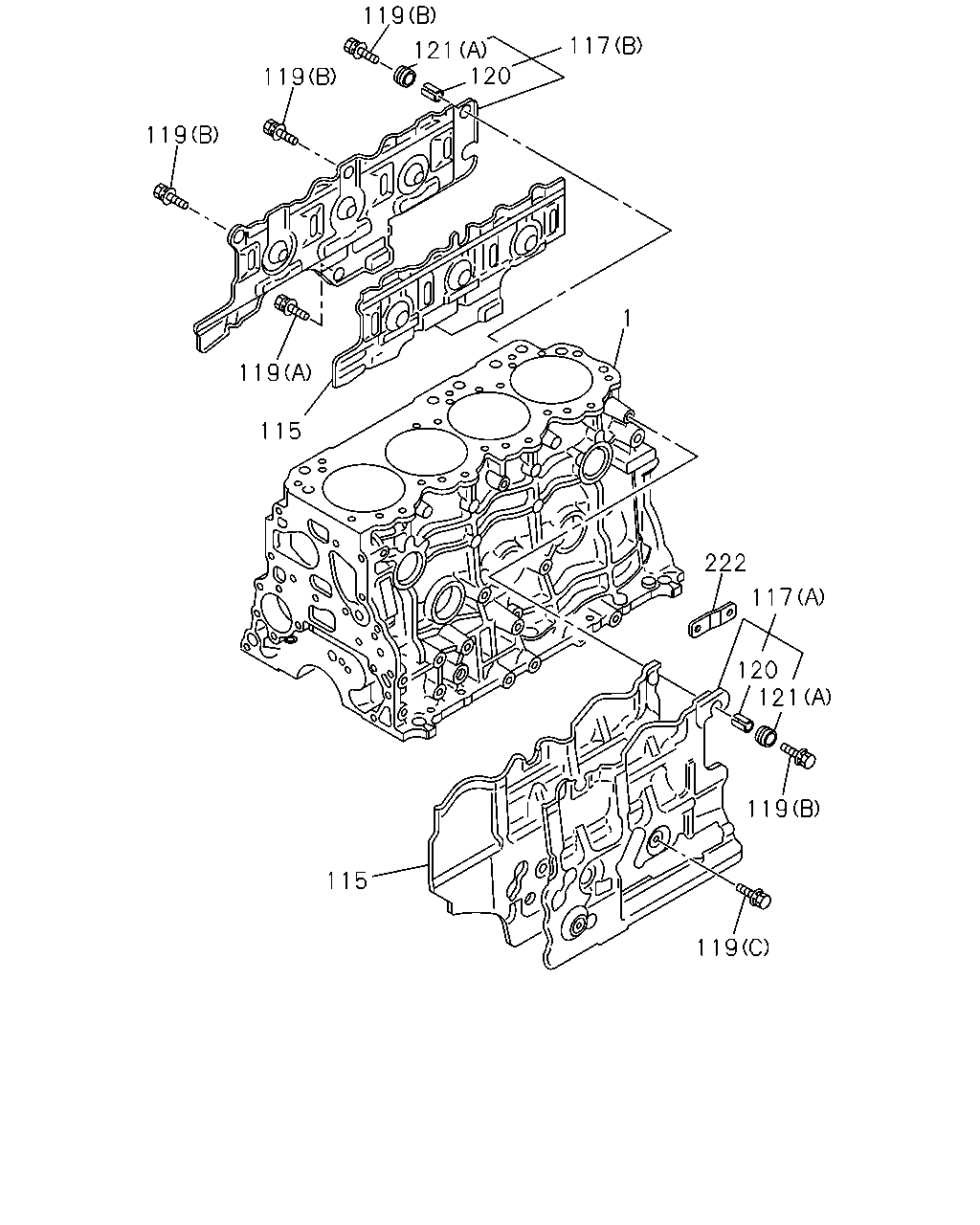

13 1 13 351 7 61 89 61 335 121 120 119 117 121 120 119 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL TURBOCHARGER(K51)	8-97173-726-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL EXC. TURBOCHARGER(K51)	8-97191-846-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9811-0105		●
1	00.033 BLOCK ASM; CYL	8-97163-853-3	01	1	9811-			●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9811-				●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9811-0208	●		●	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0209-	●		●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9811-0105		●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9811-	●		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9811-0105		●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9811-	●		●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	9811-0105		●
89	00.034 CUP; SEALING,OIL GALLERY 03.265 OD=20	9-11219-192-0	03	1	9811-9907	●		●	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	9908-	●		●	●
117	00.030 COVER ASM; C/BL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EURO3 SPECIFICATION<NT3> (D)	8-97258-620-1	01	1	0201-				●
117	00.030 COVER ASM; C/BL (A)	8-97020-126-0	01	1	9811-0105		●
117	00.030 COVER ASM; C/BL (B)	8-97204-191-0	01	1	9811-0105		●
117	00.030 COVER ASM; C/BL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97118-347-0	01	1	9811-0112				●
117	00.030 COVER ASM; C/BL EXC. CHARGE AIR COOLER<6PL> (C)	8-97118-347-0	01	1	9811-0112				●
117	00.030 COVER ASM; C/BL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION<NT3> (C)	8-97118-347-0	01	1	0201-				●
117	00.030 COVER ASM; C/BL EXC. CHARGE AIR COOLER<6PL> (C)	8-97118-347-0	01	1	0201-				●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9811-0105		●
119	00.034 BOLT; COVER FIX 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9811-0105		●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	9811-0105		●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9811-0105		●
119	00.034 BOLT; COVER FIX CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (D) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9811-0112				●
119	00.034 BOLT; COVER FIX EXC. CHARGE AIR COOLER<6PL> (D) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9811-0112				●
119	00.034 BOLT; COVER FIX CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION<NT3> (D) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-				●
119	00.034 BOLT; COVER FIX EXC. CHARGE AIR COOLER<6PL> (D) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-				●
119	00.034 BOLT; COVER FIX CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EURO3 SPECIFICATION<NT3> (E) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0201-				●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	03	1	9811-0105		●
120	00.034 BUSHING; MTG RUBBER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5	8-94140-427-1	04	1	9811-0112				●
120	00.034 BUSHING; MTG RUBBER EXC. CHARGE AIR COOLER<6PL> OD=13 T=9.5	8-94140-427-1	04	1	9811-0112				●
120	00.034 BUSHING; MTG RUBBER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION<NT3> OD=13 T=9.5	8-94140-427-1	04	1	0201-				●
120	00.034 BUSHING; MTG RUBBER EXC. CHARGE AIR COOLER<6PL> OD=13 T=9.5	8-94140-427-1	04	1	0201-				●
120	00.034 BUSHING; MTG RUBBER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EURO3 SPECIFICATION<NT3> OD=13 T=9.5	8-94140-427-1	05	1	0201-				●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EURO3 SPECIFICATION<NT3> (C)	8-97315-987-0	05	1	0201-				●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	03	1	9811-0105		●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B) OD=22	8-94140-428-1	04	1	9811-0112				●
121	00.034 RUBBER; MTG,COVER EXC. CHARGE AIR COOLER<6PL> (B) OD=22	8-94140-428-1	04	1	9811-0112				●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION<NT3> (B) OD=22	8-94140-428-1	04	1	0201-				●
121	00.034 RUBBER; MTG,COVER EXC. CHARGE AIR COOLER<6PL> (B) OD=22	8-94140-428-1	04	1	0201-				●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9811-	●		●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9811-				●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9811-	●		●	●

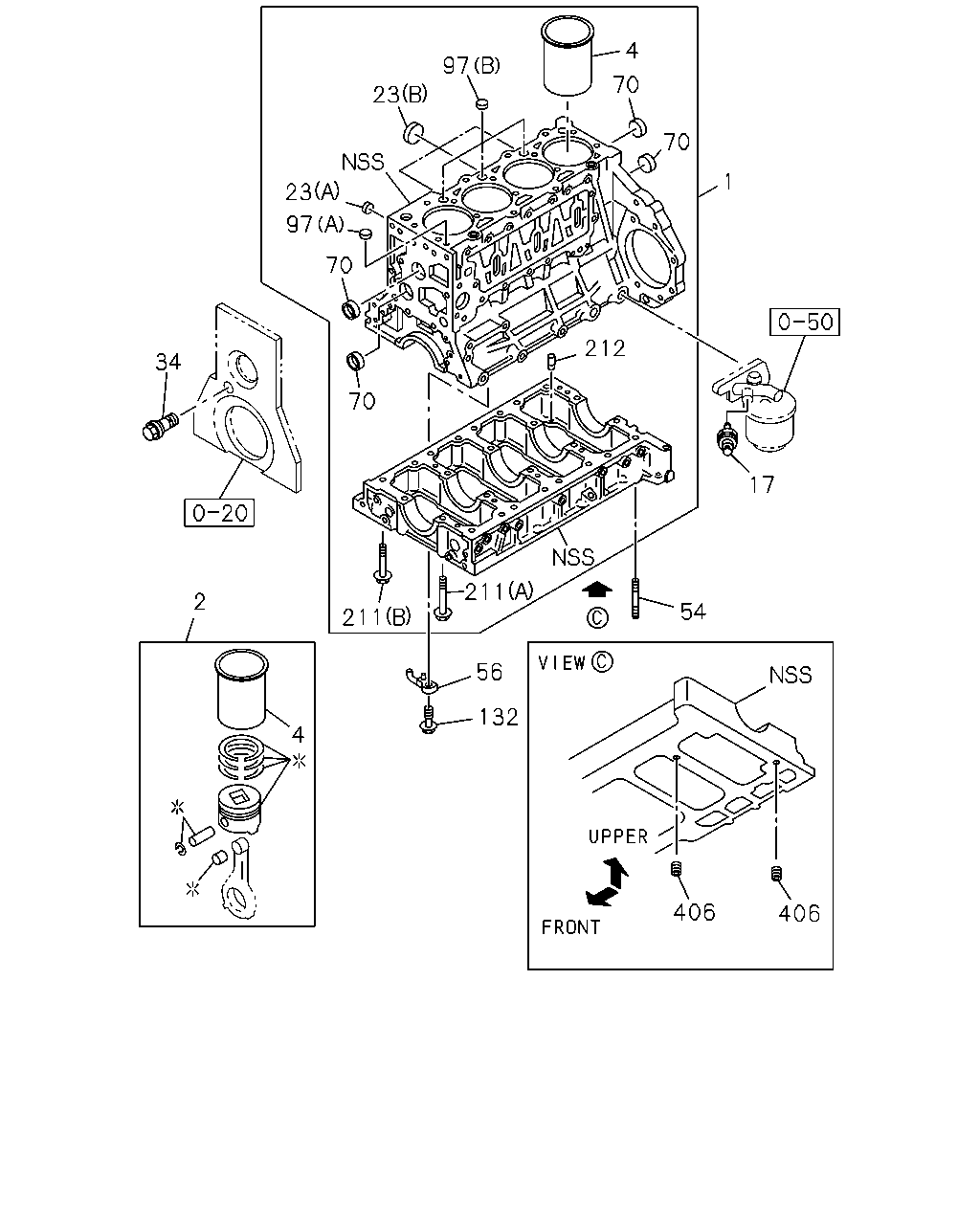

4 97 70 23 70 1 23 97 70 212 34 70 17 211 2 54 211 56 132 4 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL TURBOCHARGER(K51)	8-97173-726-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL EXC. TURBOCHARGER(K51)	8-97191-846-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9811-0105		●
1	00.033 BLOCK ASM; CYL	8-97163-853-3	01	1	9811-			●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9811-				●
2	00.030 LINER SET; ENG CYL TURBOCHARGER(K51) GRADE=1X	5-87813-571-1	04	1	9811-	●
2	00.030 LINER SET; ENG CYL TURBOCHARGER(K51) GRADE=3X	5-87813-572-1	04	1	9811-	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER(K51) GRADE=1X	5-87813-392-2	04	1	9811-	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER(K51) GRADE=3X	5-87813-393-2	04	1	9811-	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-1	04	1	9811-			●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-1	04	1	9811-			●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1	5-87813-409-0	04	1	9811-9907				●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-744-1	04	1	9908-				●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-410-0	04	1	9811-9907				●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-745-1	04	1	9908-				●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-328-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-329-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9811-0204	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97351-558-0	04	1	0205-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9811-0204	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97351-559-0	04	1	0205-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9811-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9811-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	9811-				●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9811-	●		●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9811-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	9811-	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	9811-0105		●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9811-	●		●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9811-0105		●
54	01.428 STUD; OIL PAN TO BLOCK CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M8X20 L=38	8-97021-431-0	03	1	9811-0112				●
54	01.428 STUD; OIL PAN TO BLOCK EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M8X20 L=38	8-97021-431-0	03	1	0201-				●
56	01.519 JET; OIL,PISTON COOLING TURBOCHARGER(K51)	8-97213-294-0	04	1	9811-	●
56	01.519 JET; OIL,PISTON COOLING EXC. TURBOCHARGER(K51)	8-94370-579-0	04	1	9811-	●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9811-			●
56	01.519 JET; OIL,PISTON COOLING	8-94399-166-0	04	1	9811-				●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9811-	●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9811-0105		●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	9811-				●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0205-	●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0205-	●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9811-	●		●	●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9811-	●		●	●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9811-	●		●	●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	9811-	●		●	●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	9811-	●		●	●

119 117 121 120 119 119 1 119 115 222 117 120 121 119 115 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL TURBOCHARGER(K51)	8-97173-726-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL EXC. TURBOCHARGER(K51)	8-97191-846-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9811-0105		●
1	00.033 BLOCK ASM; CYL	8-97163-853-3	01	1	9811-			●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9811-				●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	9811-0105		●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	9811-0105		●
117	00.030 COVER ASM; C/BL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EURO3 SPECIFICATION<NT3> (D)	8-97258-620-1	01	1	0201-				●
117	00.030 COVER ASM; C/BL (A)	8-97020-126-0	01	1	9811-0105		●
117	00.030 COVER ASM; C/BL (B)	8-97204-191-0	01	1	9811-0105		●
117	00.030 COVER ASM; C/BL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97118-347-0	01	1	9811-0112				●
117	00.030 COVER ASM; C/BL EXC. CHARGE AIR COOLER<6PL> (C)	8-97118-347-0	01	1	9811-0112				●
117	00.030 COVER ASM; C/BL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION<NT3> (C)	8-97118-347-0	01	1	0201-				●
117	00.030 COVER ASM; C/BL EXC. CHARGE AIR COOLER<6PL> (C)	8-97118-347-0	01	1	0201-				●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9811-0105		●
119	00.034 BOLT; COVER FIX 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9811-0105		●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	9811-0105		●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9811-0105		●
119	00.034 BOLT; COVER FIX CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (D) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9811-0112				●
119	00.034 BOLT; COVER FIX EXC. CHARGE AIR COOLER<6PL> (D) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9811-0112				●
119	00.034 BOLT; COVER FIX CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION<NT3> (D) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-				●
119	00.034 BOLT; COVER FIX EXC. CHARGE AIR COOLER<6PL> (D) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0201-				●
119	00.034 BOLT; COVER FIX CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EURO3 SPECIFICATION<NT3> (E) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0201-				●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	03	1	9811-0105		●
120	00.034 BUSHING; MTG RUBBER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5	8-94140-427-1	04	1	9811-0112				●
120	00.034 BUSHING; MTG RUBBER EXC. CHARGE AIR COOLER<6PL> OD=13 T=9.5	8-94140-427-1	04	1	9811-0112				●
120	00.034 BUSHING; MTG RUBBER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION<NT3> OD=13 T=9.5	8-94140-427-1	04	1	0201-				●
120	00.034 BUSHING; MTG RUBBER EXC. CHARGE AIR COOLER<6PL> OD=13 T=9.5	8-94140-427-1	04	1	0201-				●
120	00.034 BUSHING; MTG RUBBER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EURO3 SPECIFICATION<NT3> OD=13 T=9.5	8-94140-427-1	05	1	0201-				●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EURO3 SPECIFICATION<NT3> (C)	8-97315-987-0	05	1	0201-				●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	03	1	9811-0105		●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B) OD=22	8-94140-428-1	04	1	9811-0112				●
121	00.034 RUBBER; MTG,COVER EXC. CHARGE AIR COOLER<6PL> (B) OD=22	8-94140-428-1	04	1	9811-0112				●
121	00.034 RUBBER; MTG,COVER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION<NT3> (B) OD=22	8-94140-428-1	04	1	0201-				●
121	00.034 RUBBER; MTG,COVER EXC. CHARGE AIR COOLER<6PL> (B) OD=22	8-94140-428-1	04	1	0201-				●
222	00.340 BRACKET; COVER,C/BL	8-94460-512-0	01	1	9811-0105		●

13 194 148 150 1 148 150 13 148 150 61 70 51 52 17 148 150 53 1 50 15 54 24 40 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL TURBOCHARGER(K51)	8-97173-726-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL EXC. TURBOCHARGER(K51)	8-97191-846-5	01	1	9811-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9811-0105		●
1	00.033 BLOCK ASM; CYL	8-97163-853-3	01	1	9811-			●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9811-				●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9811-	●		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9811-0105		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	02	1	9811-0105		●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9811-	●		●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9811-0105		●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9811-0105		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9811-0105		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9811-0105		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9811-0105		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9811-0105		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9811-0105		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9811-0105		●
54	01.428 STUD; OIL PAN TO BLOCK CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M8X20 L=38	8-97021-431-0	03	1	9811-0112				●
54	01.428 STUD; OIL PAN TO BLOCK EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M8X20 L=38	8-97021-431-0	03	1	0201-				●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9811-	●		●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	9811-0105		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9811-	●		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9811-0105		●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	9811-				●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-9812		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9901-9906		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9907-0105		●
148	02.313 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	9907-0105		●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9811-9812		●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9901-0105		●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	9811-0105		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
