0-10 — CYLINDER HEAD COVER (#16742) — 66 parça

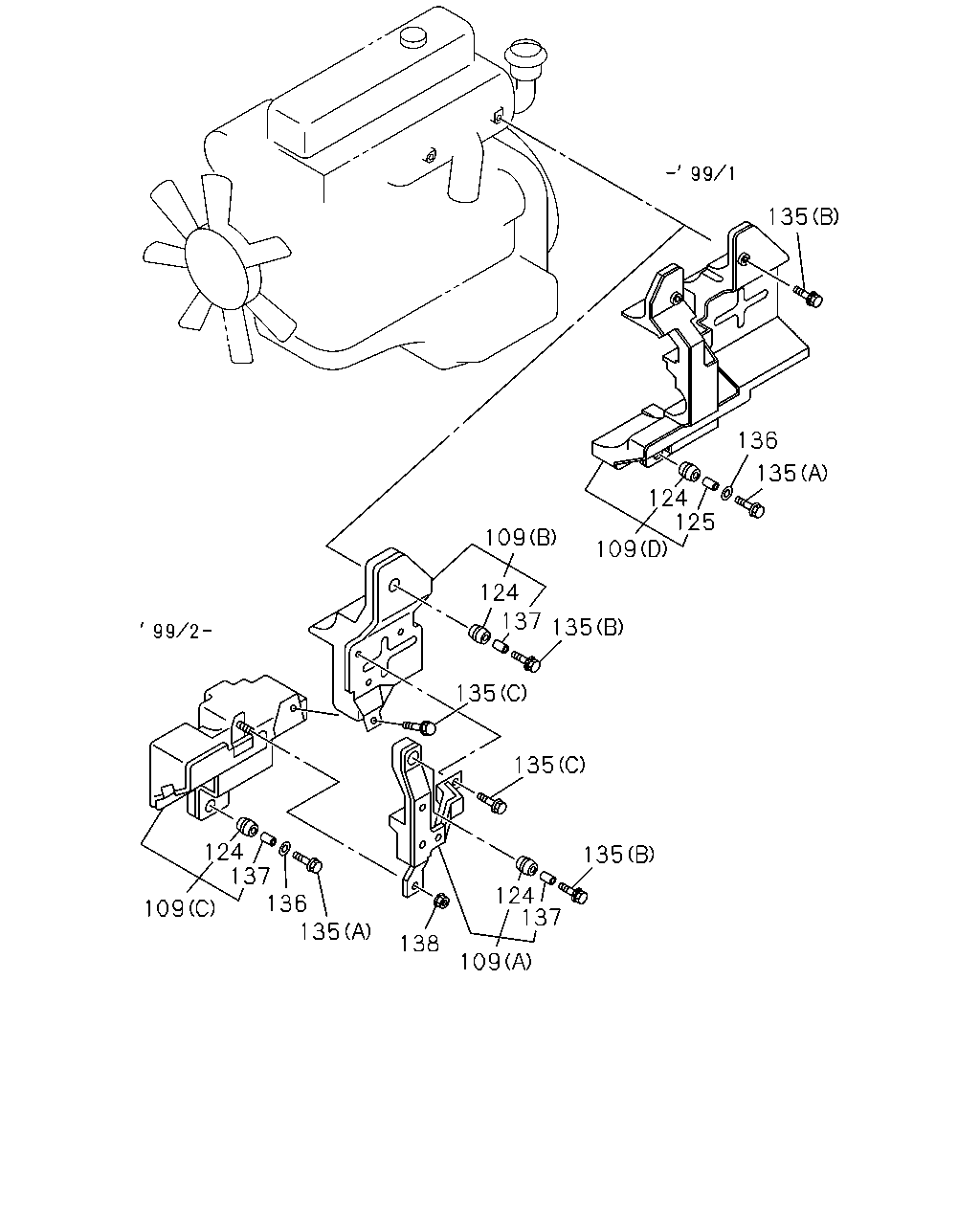

135 136 135 124 125 109 109 124 137 135 135 135 124 137 136 135 135 124 137 109 138 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
109	00.386 COVER; ENG (D)	8-97205-800-0	01	1	9811-9901	●
109	00.386 COVER; ENG (A)	8-97223-628-1	01	1	9902-0105	●
109	00.386 COVER; ENG (B)	8-97223-629-0	01	1	9902-0105	●
109	00.386 COVER; ENG (C)	8-97223-630-0	01	1	9902-0105	●
124	00.413 RUBBER; MTG,COVER 00.034 OD=22	8-94140-428-1	03	1	9811-0105	●
125	00.413 BUSHING; COVER 00.034 OD=13 T=9.5	8-94140-427-1	03	1	9811-9901	●
135	00.413 BOLT; COVER,ENG 09.008 (A) M10X20 FLANGE	0-28081-020-0	01	1	9901-0105	●
135	00.413 BOLT; COVER,ENG 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9901-0105	●
135	00.413 BOLT; COVER,ENG 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	9902-0105	●
136	00.413 WASHER; PL,ENG COVER 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9901-0105	●
137	00.413 BUSHING; MTG RUBBER,COVER 00.034 OD=13 T=9.5	8-94140-427-1	03	1	9902-0105	●
138	00.413 NUT; COVER,ENG 07.633 M8 FLANGE	0-91150-108-0	01	1	9902-0105	●

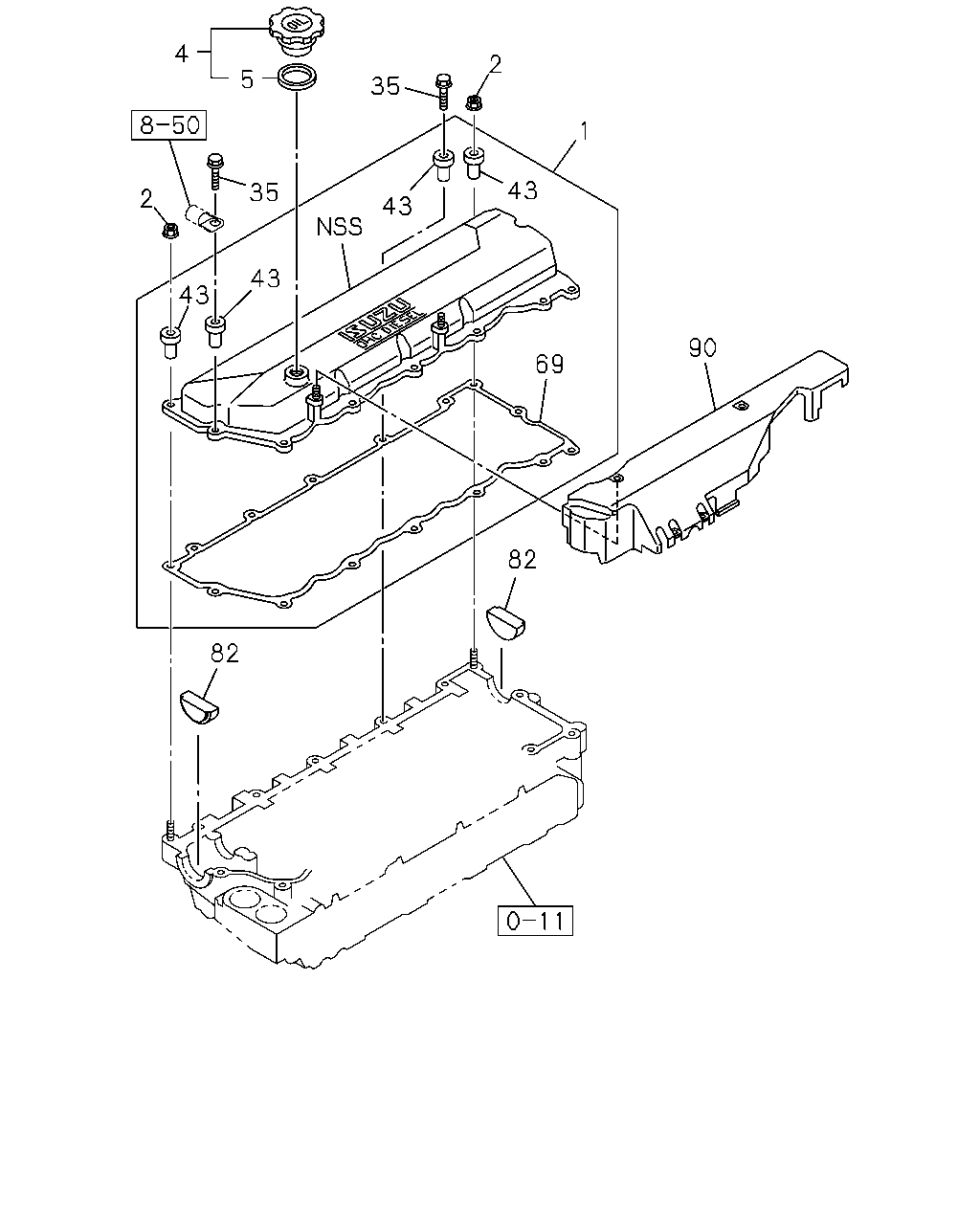

4 2 5 35 1 43 35 2 43 43 43 90 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD EXC. TURBOCHARGER(K51)	8-97226-760-1	01	1	0204-		●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0204-			●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9811-0203		●	●	●
1	00.386 COVER; CYL HD TURBOCHARGER(K51)	8-97113-025-3	01	1	0204-		●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0204-				●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9811-0105	●
2	00.413 NUT; COVER,HD TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-		●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9811-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9811-	●	●	●	●
35	00.293 BOLT; NOISE SHIELD COVER EXC. TURBOCHARGER(K51) 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0204-		●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0204-			●
35	00.293 BOLT; NOISE SHIELD COVER TURBOCHARGER(K51) 04.686 M8X30 FLANGE	0-28680-830-0	12	1	9811-		●
35	00.293 BOLT; NOISE SHIELD COVER EXC. TURBOCHARGER(K51) 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9811-9902		●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9811-9902			●
35	00.293 BOLT; NOISE SHIELD COVER CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9811-9902				●
35	00.293 BOLT; NOISE SHIELD COVER EXC. TURBOCHARGER(K51) 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9903-0203		●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9903-0203			●	●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	0204-				●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. TURBOCHARGER(K51) OD=23	8-97190-120-2	08	1	0204-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0204-			●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9811-0203		●	●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER TURBOCHARGER(K51) 03.265 OD=23	8-97105-689-6	15	1	0204-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0204-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97189-871-1	01	1	0204-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97189-871-1	01	1	0204-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	9811-0203		●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	0204-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	0204-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9811-0105	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	9811-		●	●	●
90	00.386 COVER; NOZZLE,INJ CHARGE AIR COOLER<6PL>	8-97175-141-0	01	1	9811-				●

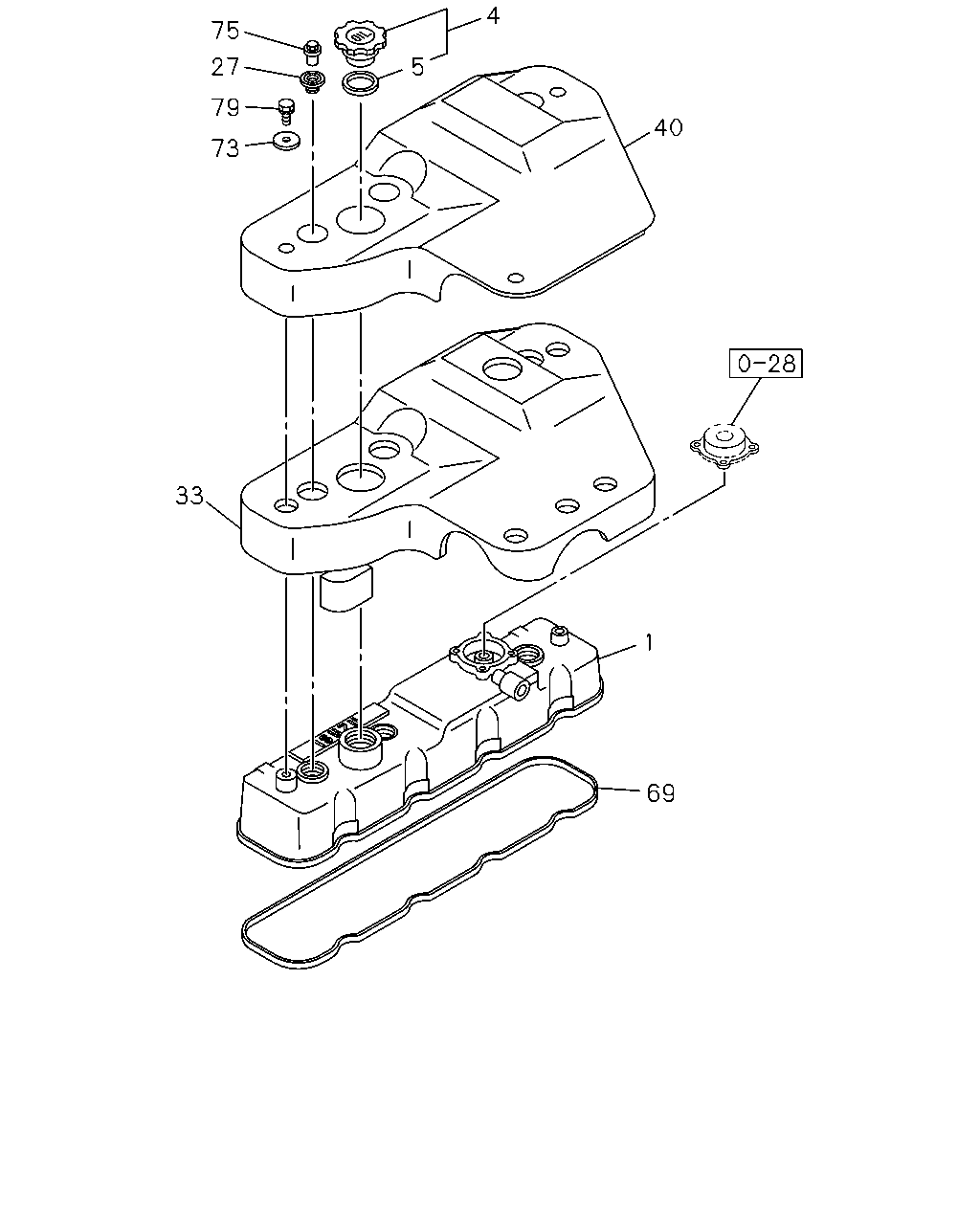

4 75 27 5 79 40 73 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD EXC. TURBOCHARGER(K51)	8-97226-760-1	01	1	0204-		●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0204-			●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9811-0203		●	●	●
1	00.386 COVER; CYL HD TURBOCHARGER(K51)	8-97113-025-3	01	1	0204-		●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0204-				●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9811-0105	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9811-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9811-	●	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9811-0103	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-97263-801-0	03	1	0104-0105	●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97204-206-1	01	1	9811-0105	●
40	00.386 COVER	8-97204-205-3	01	1	9811-0105	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97189-871-1	01	1	0204-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97189-871-1	01	1	0204-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	9811-0203		●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	0204-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	0204-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9811-0105	●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9811-0105	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9811-0105	●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-0105	●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9811-0105	●
