◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶

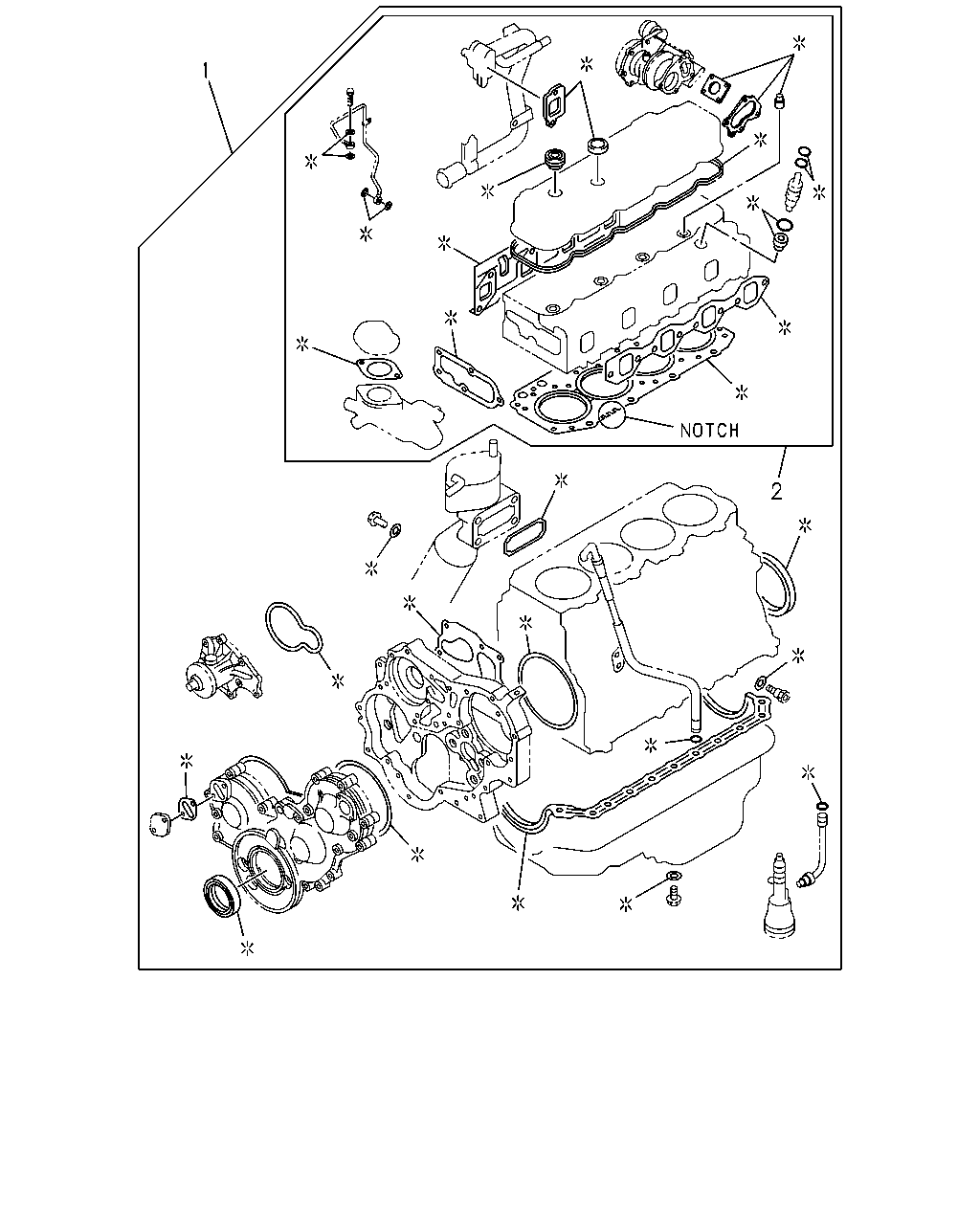

0-05 — ENGINE GASKET KIT (#16741) — 306 parça

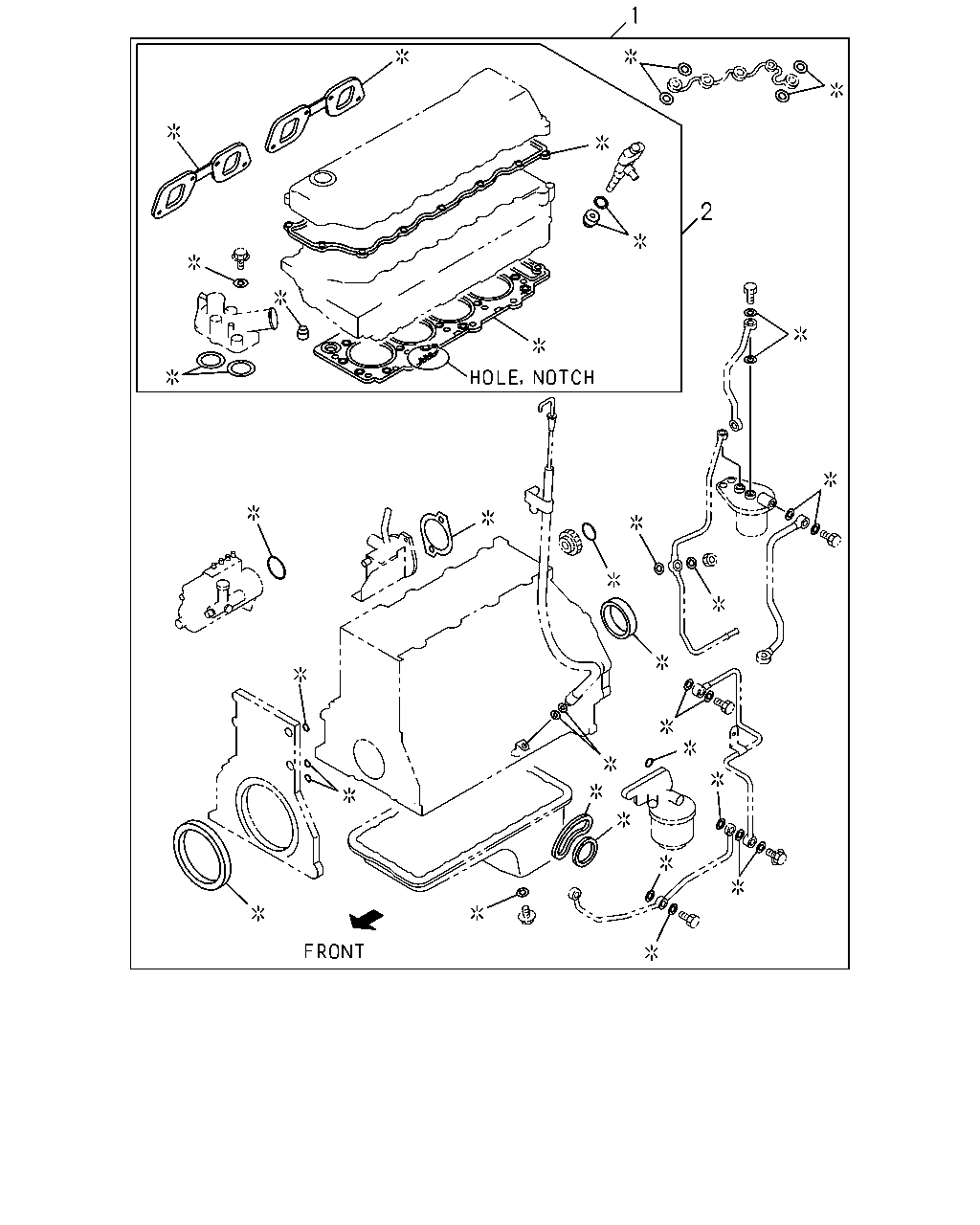

çizim 9601
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87814-104-0 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87814-105-0 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87814-106-0 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87814-336-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87814-337-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-341-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-342-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-343-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87814-332-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87814-333-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87814-334-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.70 WO/NOTCH 		5-87813-565-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-663-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-802-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-954-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-063-1 01 1 0101-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-350-1 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.75 1-NOTCH 		5-87813-566-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-664-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-803-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-955-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-064-1 01 1 0101-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-351-1 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.80 2-NOTCH 		5-87813-567-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-665-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-804-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-956-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-065-1 01 1 0101-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-352-1 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.70 WO/NOTCH 		5-87813-397-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-647-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-799-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-951-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-060-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-226-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-347-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.75 1-NOTCH 		5-87813-398-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-648-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-800-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-952-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-061-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-227-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-348-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.55 2-NOTCH 		5-87813-399-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-649-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-801-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-953-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-062-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-228-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-349-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-550-0 01 1 9811-9812 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-600-0 01 1 9901-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-708-2 01 1 9903-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-551-0 01 1 9811-9812 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-601-0 01 1 9901-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-709-2 01 1 9903-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-552-0 01 1 9811-9812 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-602-0 01 1 9901-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-710-2 01 1 9903-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-394-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87813-641-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87813-772-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87813-948-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-057-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-223-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-395-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87813-642-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87813-773-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87813-949-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-058-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-224-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-396-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87813-643-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87813-774-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87813-950-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-059-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-225-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-403-4 01 1 9811-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-404-4 01 1 9811-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-405-4 01 1 9811-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-400-5 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-401-5 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-402-5 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-4 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-4 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-4 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-353-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-354-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-355-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-338-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-339-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-340-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.70 WO/NOTCH 		5-87813-568-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-666-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-823-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-963-2 01 1 0007- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.75 1-NOTCH 		5-87813-569-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-667-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-824-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-964-2 01 1 0007- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.80 2-NOTCH 		5-87813-570-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-668-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-825-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-965-2 01 1 0007- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.70 WO/NOTCH 		5-87813-352-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-650-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-820-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-960-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-232-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.75 1-NOTCH 		5-87813-353-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-651-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-821-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-961-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-233-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.80 2-NOTCH 		5-87813-354-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-652-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-822-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-962-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-234-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-519-0 01 1 9811-9812 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-603-0 01 1 9901-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-1 01 1 9903-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-520-0 01 1 9811-9812 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-604-0 01 1 9901-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-1 01 1 9903-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-521-0 01 1 9811-9812 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-605-0 01 1 9901-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-1 01 1 9903-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-1 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-644-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-784-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-957-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-1 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-645-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-785-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-958-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-1 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-646-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-786-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-959-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-3 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-3 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-3 01 1 9811-0207 ●
çizim 47831
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87814-104-0 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87814-105-0 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87814-106-0 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87814-336-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87814-337-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-341-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-342-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-343-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87814-332-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87814-333-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87814-334-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.70 WO/NOTCH 		5-87813-565-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-663-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-802-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-954-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-063-1 01 1 0101-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-350-1 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.75 1-NOTCH 		5-87813-566-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-664-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-803-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-955-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-064-1 01 1 0101-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-351-1 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.80 2-NOTCH 		5-87813-567-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-665-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-804-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-956-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-065-1 01 1 0101-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-352-1 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.70 WO/NOTCH 		5-87813-397-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-647-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-799-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-951-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-060-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-226-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-347-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.75 1-NOTCH 		5-87813-398-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-648-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-800-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-952-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-061-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-227-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-348-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.55 2-NOTCH 		5-87813-399-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-649-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-801-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-953-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-062-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-228-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-349-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-550-0 01 1 9811-9812 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-600-0 01 1 9901-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-708-2 01 1 9903-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-551-0 01 1 9811-9812 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-601-0 01 1 9901-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-709-2 01 1 9903-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-552-0 01 1 9811-9812 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-602-0 01 1 9901-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-710-2 01 1 9903-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-394-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87813-641-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87813-772-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87813-948-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-057-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-223-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-395-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87813-642-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87813-773-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87813-949-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-058-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-224-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-396-0 01 1 9811-9904 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87813-643-1 01 1 9905-9908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87813-774-0 01 1 9909-0006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87813-950-1 01 1 0007-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-059-0 01 1 0101-0111 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-225-1 01 1 0112-0210 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-2 01 1 0211- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-403-4 01 1 9811-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-404-4 01 1 9811-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-405-4 01 1 9811-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-400-5 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-401-5 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-402-5 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-4 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-4 01 1 9811-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-4 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-353-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-354-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-355-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-338-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-339-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-340-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.70 WO/NOTCH 		5-87813-568-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-666-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-823-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-963-2 01 1 0007- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.75 1-NOTCH 		5-87813-569-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-667-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-824-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-964-2 01 1 0007- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.80 2-NOTCH 		5-87813-570-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-668-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-825-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-965-2 01 1 0007- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.70 WO/NOTCH 		5-87813-352-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-650-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-820-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-960-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-232-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.75 1-NOTCH 		5-87813-353-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-651-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-821-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-961-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-233-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.80 2-NOTCH 		5-87813-354-0 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-652-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-822-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-962-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-234-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-519-0 01 1 9811-9812 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-603-0 01 1 9901-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-1 01 1 9903-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-520-0 01 1 9811-9812 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-604-0 01 1 9901-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-1 01 1 9903-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-521-0 01 1 9811-9812 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-605-0 01 1 9901-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-1 01 1 9903-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-1 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-644-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-784-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-957-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-1 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-645-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-785-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-958-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-1 01 1 9811-9904 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-646-1 01 1 9905-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-786-0 01 1 9909-0006 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-959-1 01 1 0007-0111 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0112- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-3 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-3 01 1 9811-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-3 01 1 9811-0207 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
