◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#1674) — 25 parça

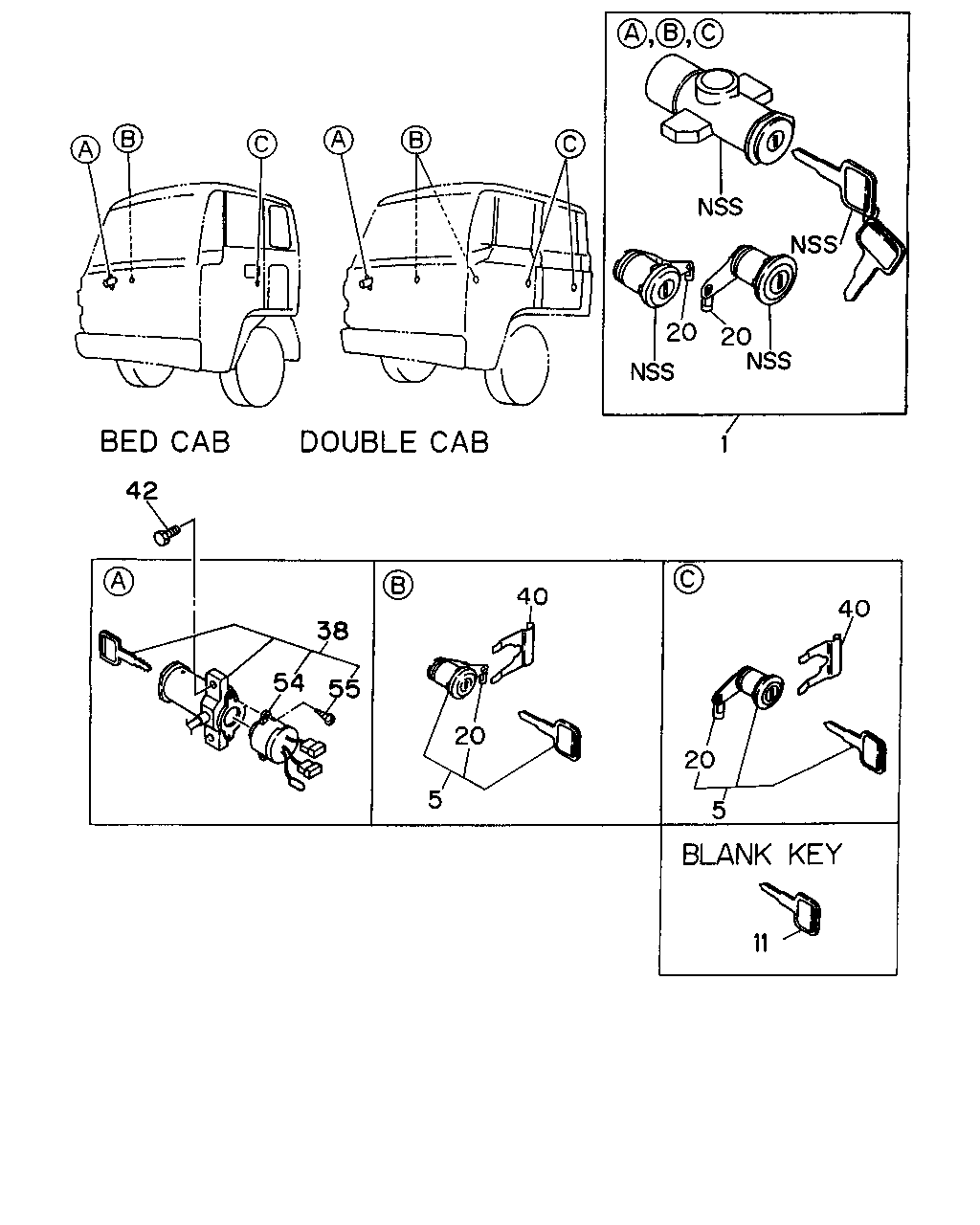

çizim 96430
20 20 1 42 38 54 55 20 5 40 40 20 5 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER SET; CAR LOCK 1-79138-156-2 01 1 9207-9409 ● ● ● ●
1 CYLINDER SET; CAR LOCK 1-79137-089-2 01 1 9410- ● ● ● ●
1 CYLINDER SET; CAR LOCK 1-79138-158-2 01 1 9207-9409 ●
1 CYLINDER SET; CAR LOCK 1-79137-090-2 01 1 9410- ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-101-1 01 1 9207-9409 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79137-094-1 01 1 9410- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-100-1 01 1 9207-9409 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79137-093-1 01 1 9410- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-101-1 02 1 9207-9409 ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79137-094-1 02 1 9410- ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-100-1 02 1 9207-9409 ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79137-093-1 02 1 9410- ●
11 KEY; BLANK 1-79137-039-0 AR 1 9207-9409 ● ● ● ● ●
11 KEY; BLANK 1-79137-129-1 AR 1 9410- ● ● ● ● ●
20 SNAP; DOOR LOCK CYL
NATURAL FOR D=3.5 		1-79138-167-0 01 1 9210- ● ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW 		1-79138-166-0 01 1 9210- ● ● ● ●
20 SNAP; DOOR LOCK CYL
NATURAL FOR D=3.5 		1-79138-167-0 02 1 9210- ●
20 SNAP; DOOR LOCK CYL
YELLOW 		1-79138-166-0 02 1 9210- ●
38 LOCK ASM; STRG 1-79138-165-0 01 1 9207-9409 ● ● ● ● ●
38 LOCK ASM; STRG 1-79137-122-1 01 1 9410- ● ● ● ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9207- ● ● ● ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9207- ●
42 BOLT; STRG LOCK
M8X30 W/PL WASHER 		1-09981-482-2 02 1 9207- ● ● ● ● ●
54 SWITCH ASM; STRG LOCK CYL 1-79137-050-0 01 1 9410- ● ● ● ● ●
55 SCREW; SWITCH
M3X10 W/LK WASHER 		9-03910-310-0 02 1 9410- ● ● ● ● ●
