9-01 — TOOLS (#16739) — 33 parça
çizim 8717
285 280 284
BalonParca AdiParca NoAdetTipApplied Date A B C
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0009- ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE 		0-28680-825-0 04 1 0009- ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8 FLANGE 		0-91150-108-0 03 1 0009- ●

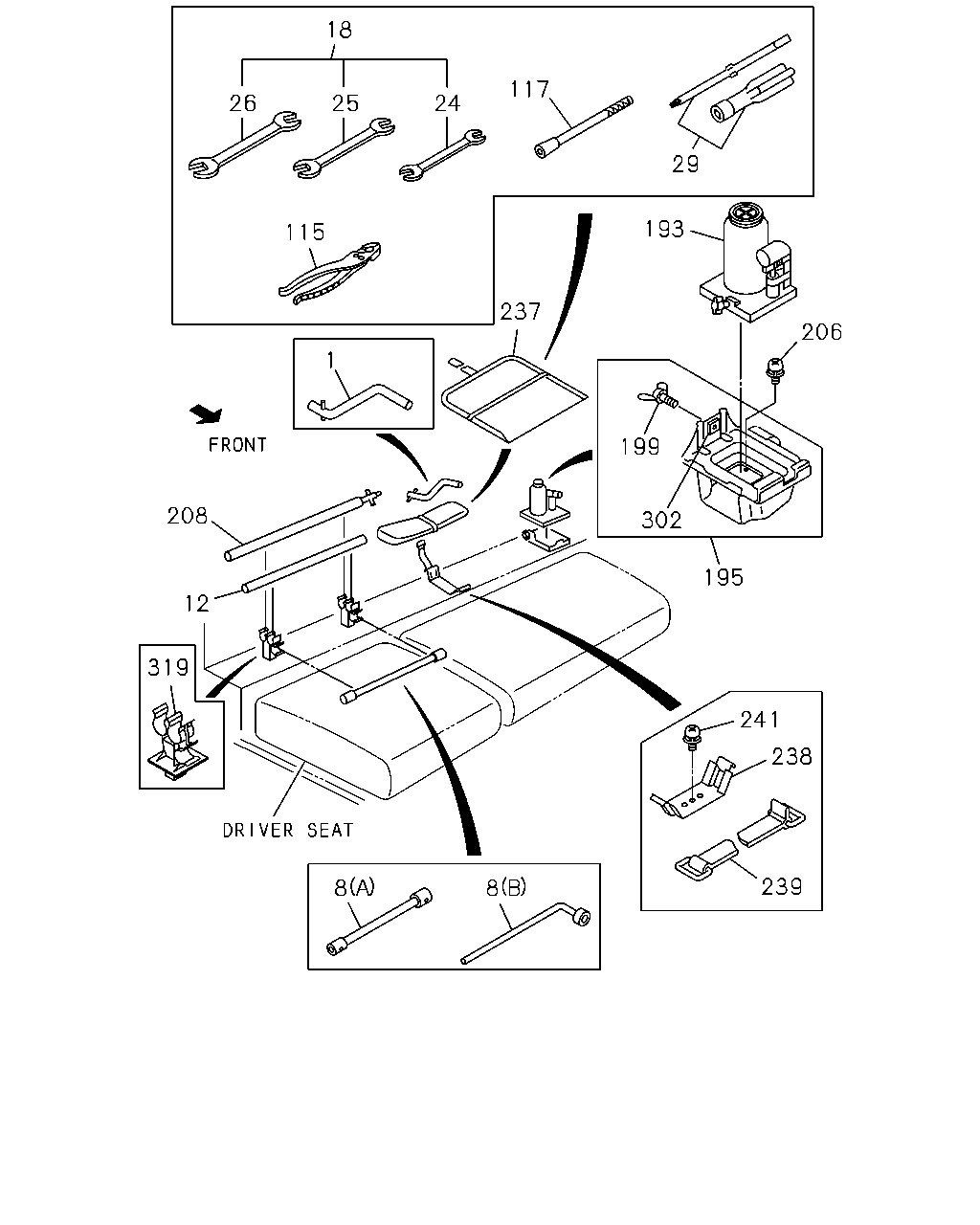

çizim 49084
18 117 26 25 24 29 193 115 237 206 1 199 208 302 195 12 319 241 238 239 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 0009- ● ●
1 HANDLE; SPARE TIRE CARRIER
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 		8-97218-985-0 01 1 0009- ●
8 WRENCH; WHEEL
(B) B=23 L=300 THA 		9-85113-935-0 01 1 0009- ●
8 WRENCH; WHEEL
(A) 41X19 L=330 THA 		8-94386-490-1 01 1 0009- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 0009-0204 ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0205- ● ●
18 WRENCH KIT
THA 		8-97916-962-1 01 1 0009- ● ● ●
24 WRENCH; 8X10
THA 		8-97914-448-0 01 1 0009- ● ● ●
25 WRENCH; 12X14
THA 		8-97914-701-0 01 1 0009- ● ● ●
26 WRENCH; 22X17
MIC THA 		8-97911-404-0 01 1 0009- ● ● ●
29 DRIVER; SCREW
THA 		8-97914-456-1 01 1 0009- ● ● ●
115 PLIER
THA 		8-97914-452-0 01 1 0009- ● ● ●
117 WRENCH; VALVE CAP
THA 		8-97914-462-0 01 1 0009- ● ●
193 JACK ASM
5TON 		8-97131-076-2 01 1 0009-0308 ●
193 JACK ASM
5TON 		8-97371-124-0 01 1 0309- ●
193 JACK ASM
4TON 		8-97131-075-2 01 1 0009-0308 ● ●
193 JACK ASM
4TON 		8-97371-123-0 01 1 0309- ● ●
195 BRACKET; JACK 8-94262-068-2 01 1 0009- ● ● ●
199 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0009- ● ● ●
206 SCREW; OIL JACK BRKT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0009- ● ● ●
208 HANDLE; JACK
L=642 THA 		8-97921-377-0 01 1 0009- ● ● ●
237 BAG; TOOL
THA 		8-97916-550-0 01 1 0009-0103 ● ● ●
237 BAG; TOOL
THA 		8-97916-549-0 01 1 0104-0104 ● ● ●
237 BAG; TOOL
THA 		8-97916-550-0 01 1 0105- ● ● ●
238 SUPPORT; TOOL BAG 8-97866-879-0 01 1 0009-0101 ● ● ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0102- ● ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0009- ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0009- ● ● ●
302 NUT; JACK BRKT 8-94279-522-0 01 1 0009- ● ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 0009- ● ● ●
