◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#16733) — 11 parça

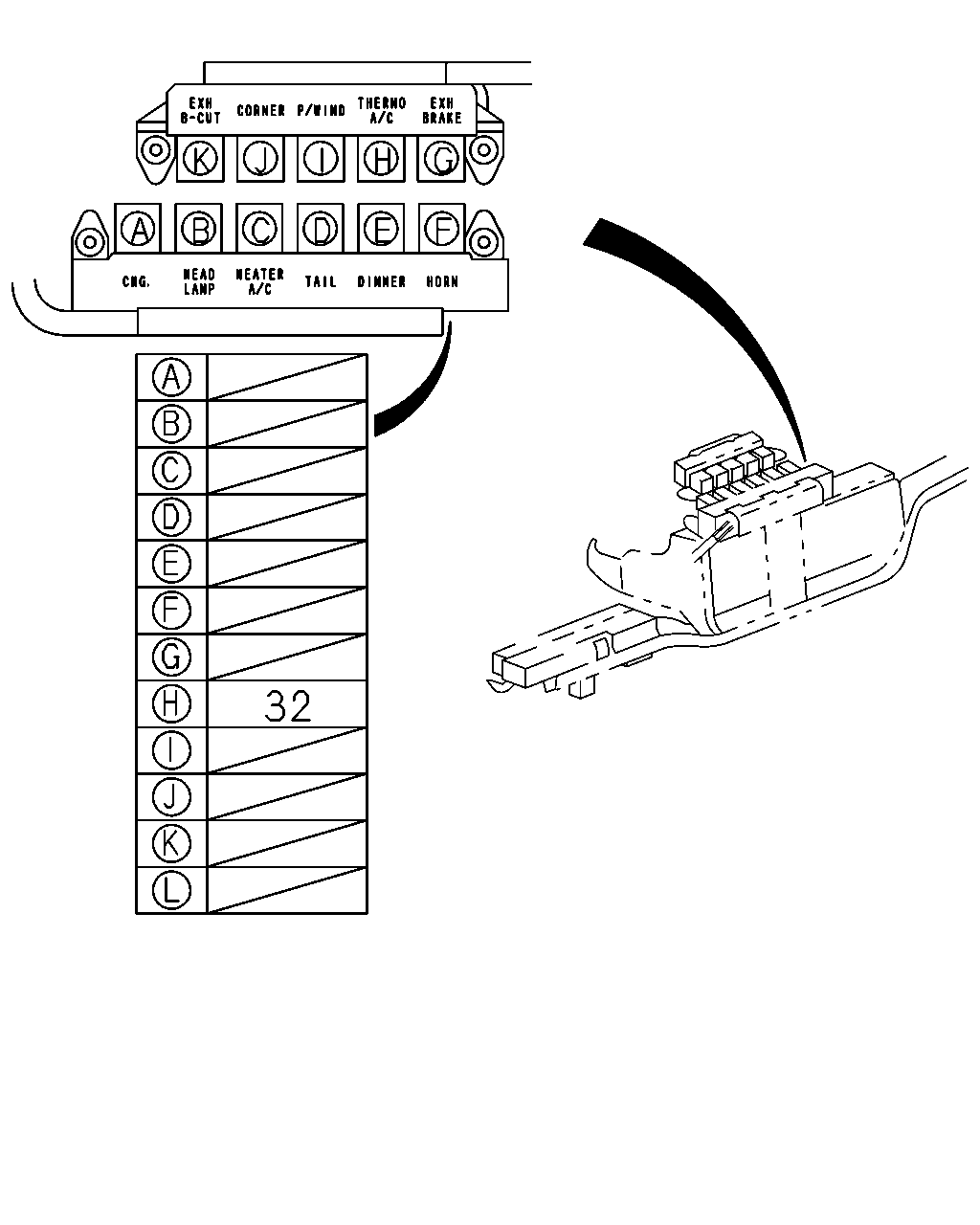

çizim 10922
32
BalonParca AdiParca NoAdetTipApplied Date A B C
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT<C60> 12V 20A THA 		8-97060-926-1 01 1 0009- ● ●
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT<C60> 24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT<C60> 24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
368 RELAY; HEATER AND A/C
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●

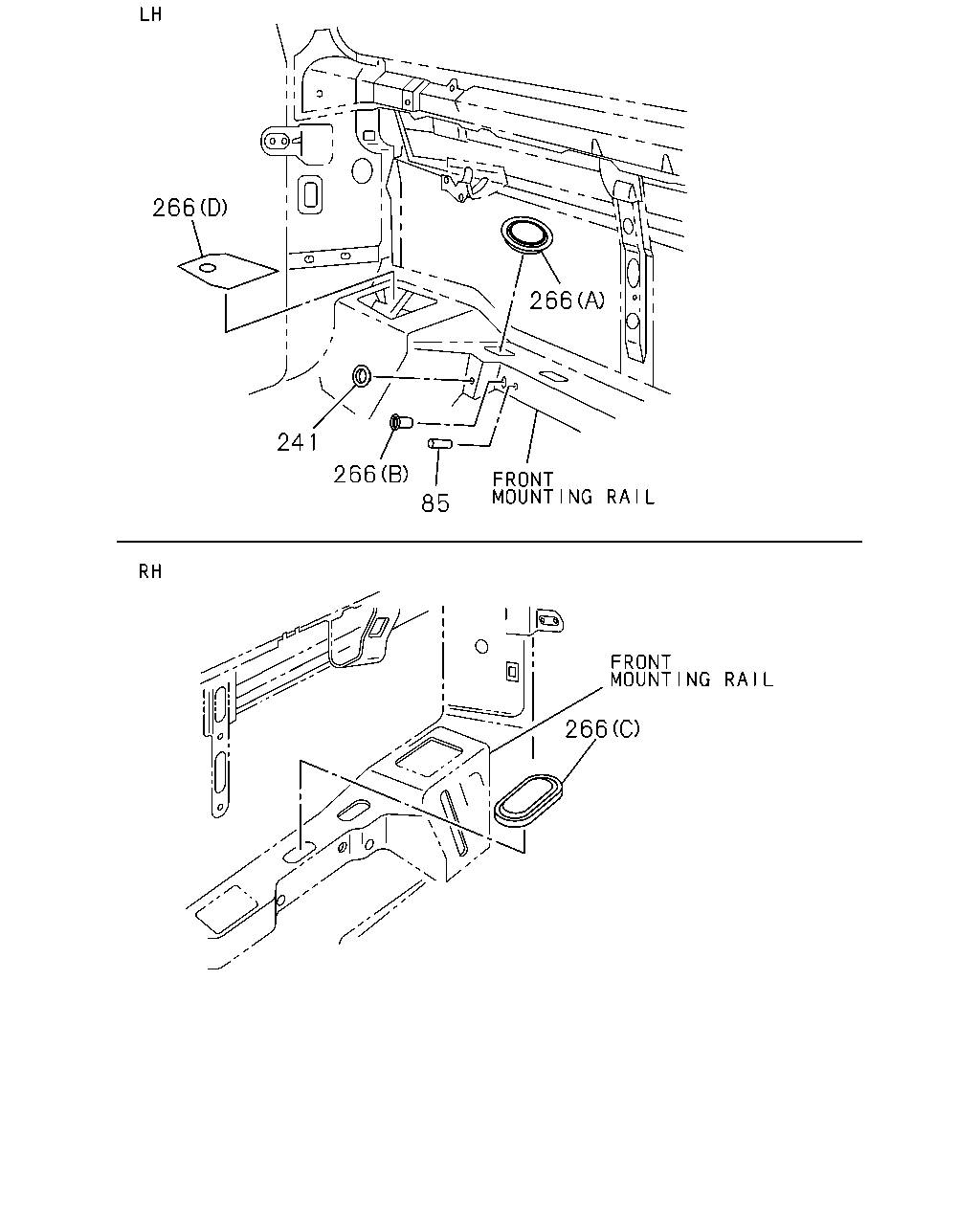

çizim 49398
266 266 241 266 85 266
BalonParca AdiParca NoAdetTipApplied Date A B C
85 SEAL; HTR UNIT
THA 		8-97916-502-0 02 1 0009- ● ● ●
241 PLUG; RUBBER,EVAP DRAIN HOLE 8-97037-392-0 01 1 0009- ● ● ●
266 PLUG; HTR HOLE
(A) H=78 B=37 		8-97036-019-0 01 1 0009- ● ● ●
266 PLUG; HTR HOLE
(C) H=69.5 B=29.5 		8-97036-020-0 01 1 0009- ● ● ●
266 PLUG; HTR HOLE
(B) THA 		8-97917-405-0 01 1 0009- ● ● ●
266 PLUG; HTR HOLE
(D) THA 		8-97917-228-0 01 1 0009- ● ● ●
368 RELAY; HEATER AND A/C
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
