8-28 — CHASSIS ELECTRICAL (#16732) — 32 parça
çizim 47164
361
BalonParca AdiParca NoAdetTipApplied Date A B C
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 01 1 0009- ● ● ●

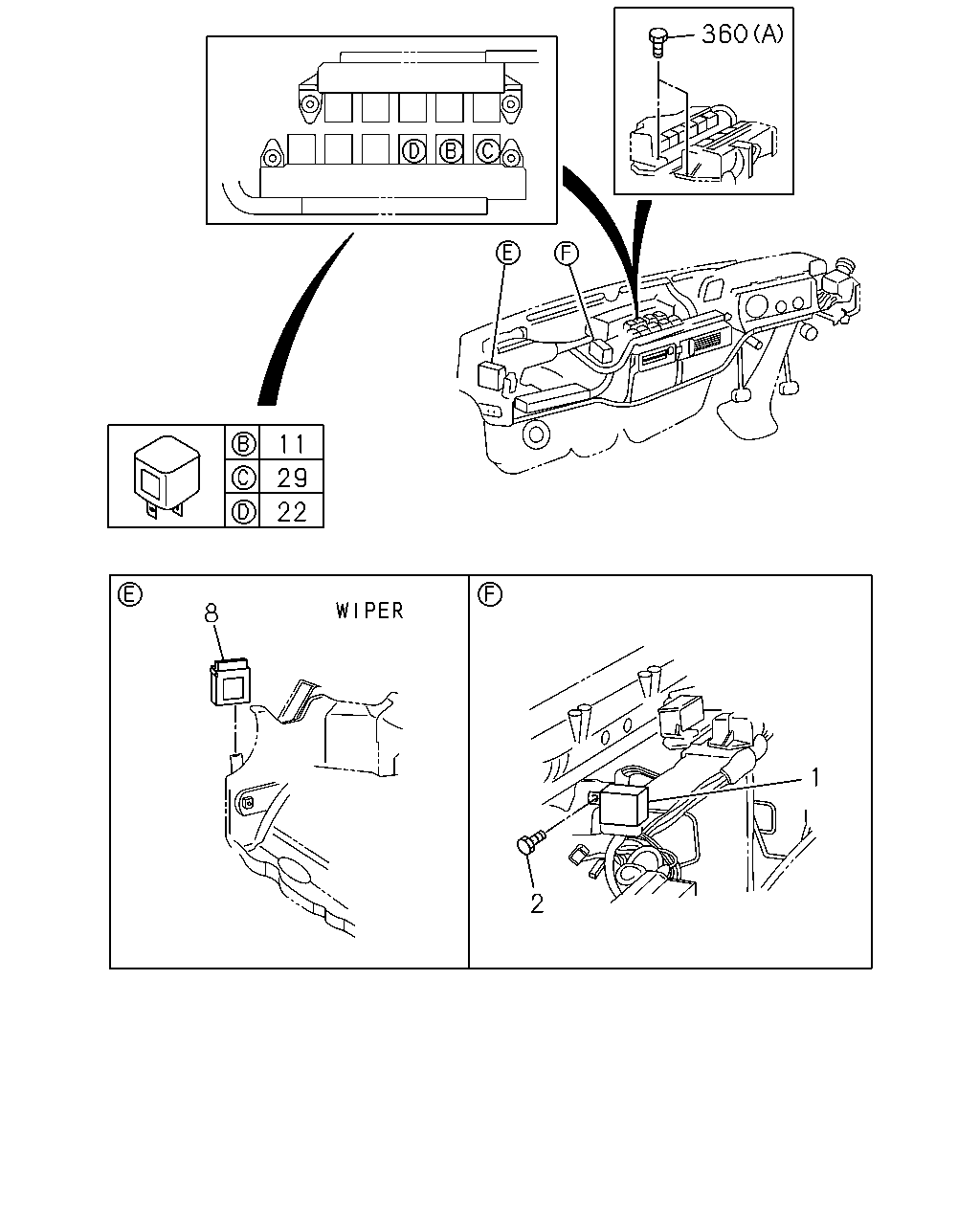

çizim 48296
360 11 29 22 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 8-97228-398-0 01 1 0009- ● ●
1 UNIT; FLASHER 8-97086-508-1 01 1 0009-0212 ●
1 UNIT; FLASHER 8-97360-084-0 01 1 0301- ●
2 BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER THA 		8-94139-963-0 01 1 0009- ● ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-186-0 01 1 0009-0301 ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-984-0 01 1 0302- ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97184-233-0 01 1 0009-0301 ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0302- ●
11 RELAY; DIMMER
12V 20A THA 		8-97060-926-1 01 1 0009- ● ●
11 RELAY; DIMMER
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
11 RELAY; DIMMER
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
22 RELAY; STOP LAMP
12V 20A THA 		8-97060-926-1 01 1 0009- ● ●
22 RELAY; STOP LAMP
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
29 RELAY; HORN
12V 20A THA 		8-97060-926-1 01 1 0009- ● ●
29 RELAY; HORN
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
29 RELAY; HORN
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0009- ● ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER THA 		8-94139-963-0 02 1 0009- ● ● ●
360 BOLT; RELAY BOX
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0009- ●

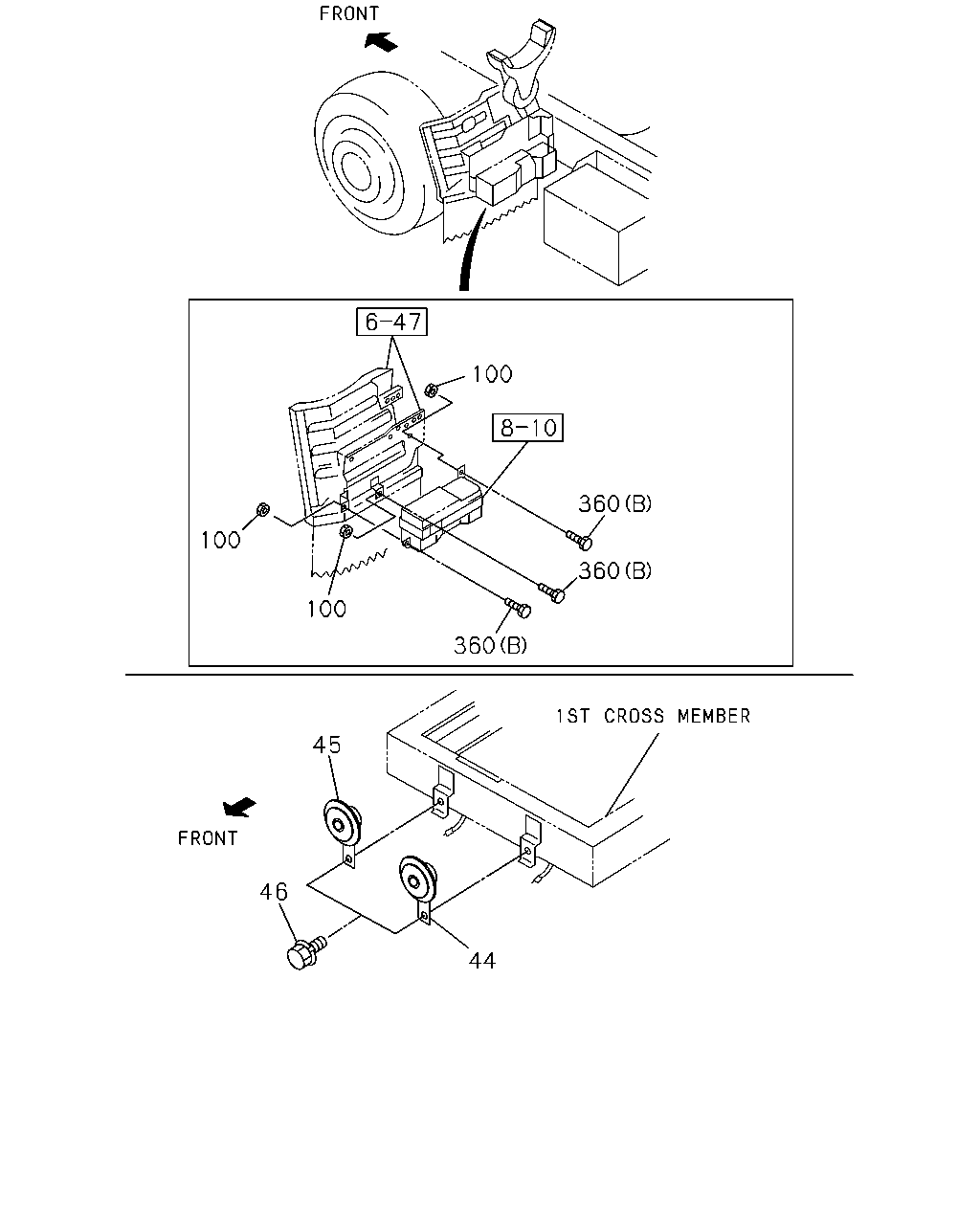

çizim 48480
100 360 100 360 100 360 45 46 44
BalonParca AdiParca NoAdetTipApplied Date A B C
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-355-0 01 1 0009- ● ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-356-0 01 1 0009- ●
45 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-358-0 01 1 0009- ● ●
45 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-357-0 01 1 0009- ●
46 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0009- ● ● ●
46 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0009- ● ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91150-108-0 03 1 0009- ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91150-108-0 02 1 0009- ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0009- ● ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER THA 		8-94139-963-0 02 1 0009- ● ● ●
360 BOLT; RELAY BOX
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0009- ●
