8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#16731) — 15 parça

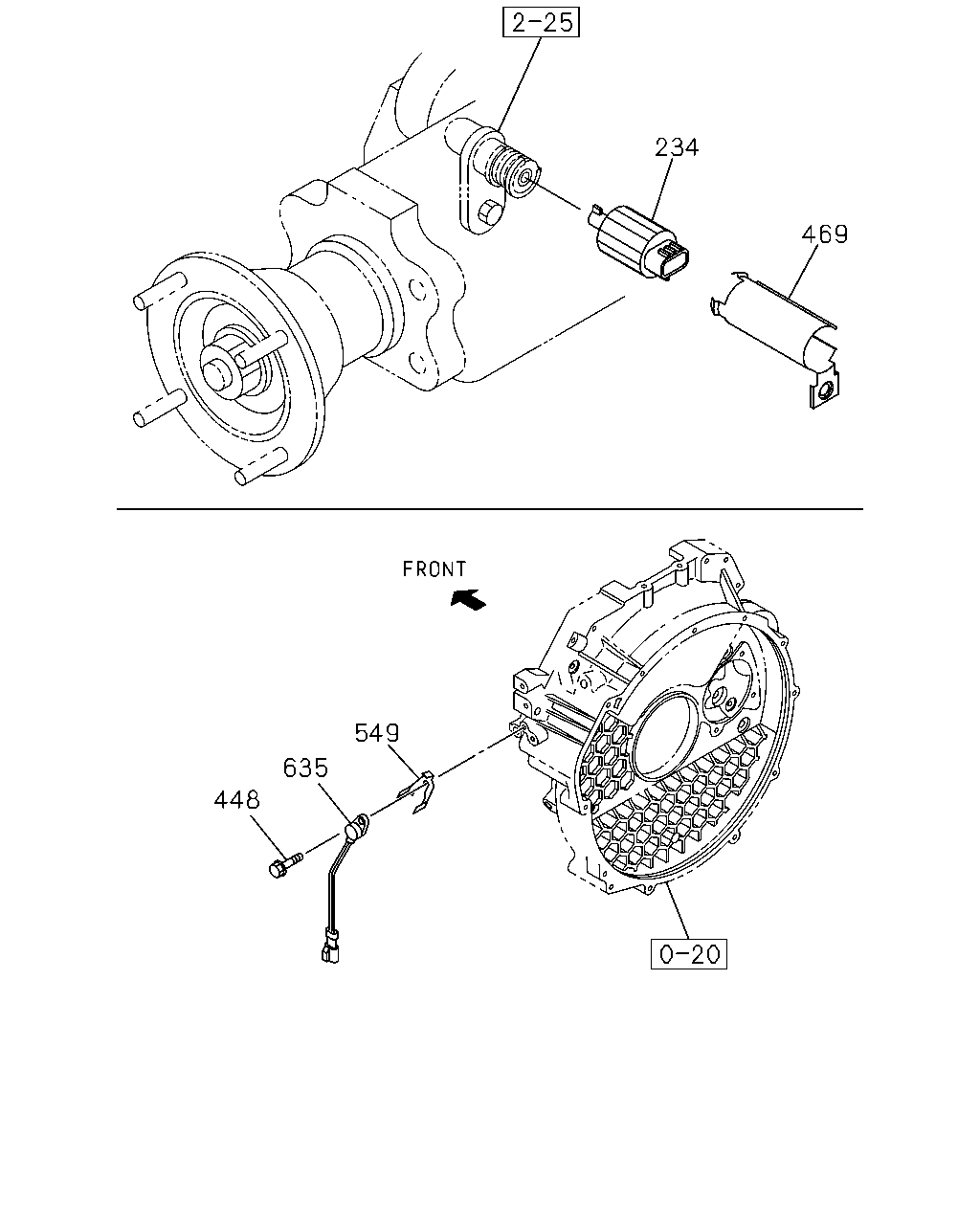

çizim 10921
234 469 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0009- ● ● ●
448 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0009- ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0009-0009 ● ● ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0010- ●
549 SHEET 8-97161-633-2 01 1 0009- ●
635 SENSOR; TACHOMETER
YAZAKI 		8-97214-325-0 01 1 0009- ●

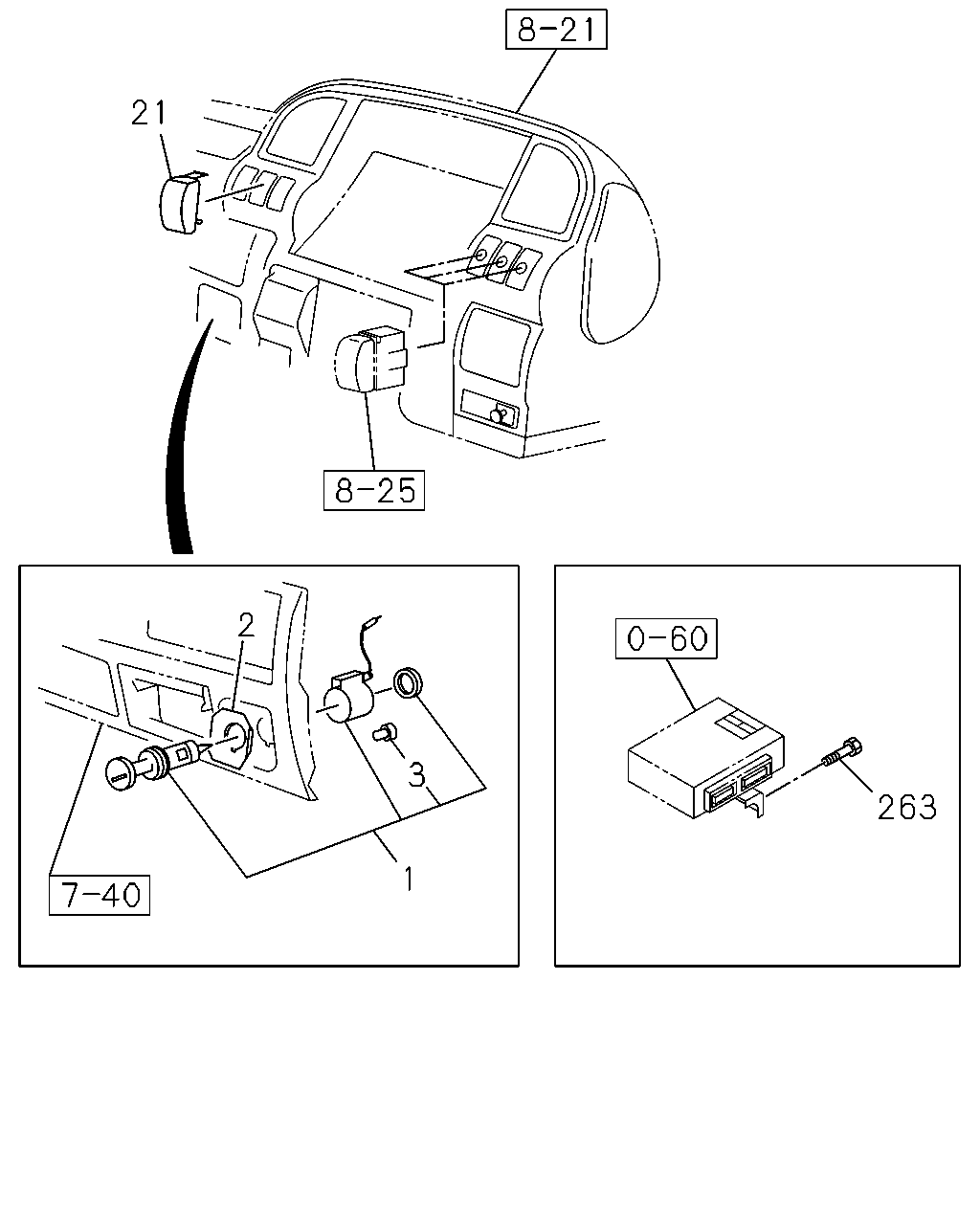

çizim 48440
21 2 3 263 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-97073-936-1 01 1 0009-0108 ● ●
1 LIGHTER; CIGAR 8-97320-322-0 01 1 0109- ● ●
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0009-0108 ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ●
2 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0009- ● ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0009- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0009- ●
21 COVER; HOLE 8-97136-694-0 03 1 0009- ● ● ●
263 BOLT; CONT UNIT
M6X20 		0-28280-620-0 02 1 0009- ●
